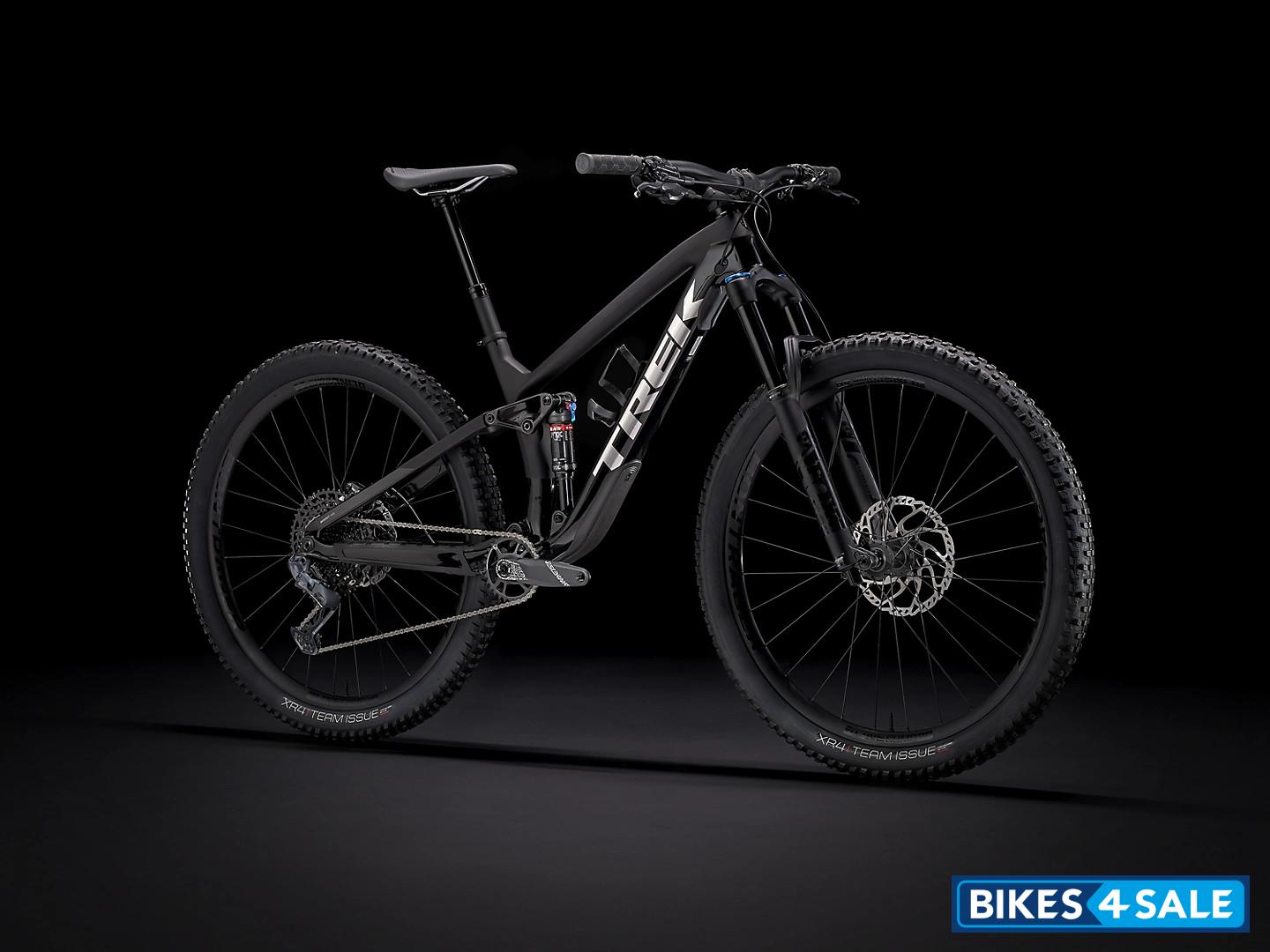

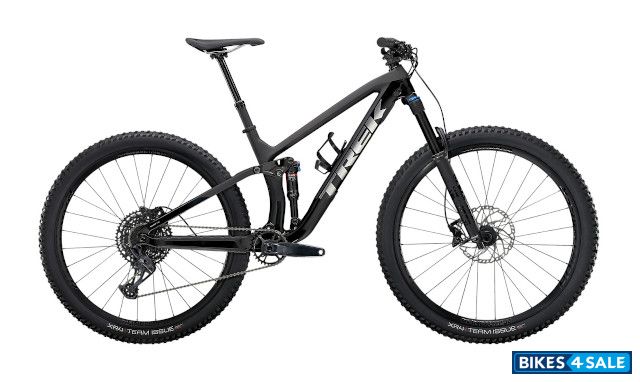

Trek Fuel EX 9.7

Price, review, features and specs

Rate Trek Fuel EX 9.7:
4.0/5 (3 votes)
Add To Compare
Write a Review
Trek Fuel EX 9.7 Price $ 4299 [Alabama, United States]

The given price can change depending on the colour, accessories and other features.

Country, City Showroom Price On Road Price
United States, Alabama $ 4299 --
United States, Alaska $ 4299 --
United States, Arizona $ 4299 --
United States, Atlanta $ 4299 --
United States, Austin $ 4299 --
United States, Baltimore $ 4299 --
United States, Boston $ 4299 --
View price in other cities
Buy new Trek Fuel EX 9.7

Book a Test Drive through Bikes4Sale and we will try to get you the best offer for Trek Fuel EX 9.7.

For Exciting Offers, Book a Test Drive
657
Features
- Internal Storage
- Straight Shot with Knock Block
- Active Braking Pivot
- Control Freak Cable Management
- Complete Tubeless System
- Suspension Calculator
- OCLV Mountain Carbon
- Mino Link Adjustable Geometry
Similar Bicycles
Colours

Lithium Grey/Factory Orange
Matte Raw Carbon/Gloss Trek Black

Technical Specifications
Vehicle TypeBicycle
Load Carrying CapacityCombined weight of bicycle, rider, and cargo of 300 pounds (136 kg)
StemSize : XS, S - Bontrager Line, 35 mm, Knock Block, 0 degree, 40 mm length
Size : M, ML, L, XL - Bontrager Line, 35 mm, Knock Block, 0 degree, 50 mm length
HandlebarBontrager Line, alloy, 35 mm, 27.5 mm rise, 780 mm width
ForkFox Rhythm 36, Float EVOL air spring, GRIP damper, tapered steerer, 44 mm offset, Boost110, 15 mm Kabolt axle, 140 mm travel
SeatpostSize : XS, S - Bontrager Line Dropper, 100 mm travel, internal routing, 31.6 mm, 345 mm length
Size : M, ML, L, XL - Bontrager Line Dropper, 150 mm travel, internal routing, 31.6 mm, 440 mm length
GripBontrager XR Trail Elite, nylon lock-on
CranksetSize : XS, S - SRAM X1 Eagle, DUB, 30T steel ring, Boost (52 mm chainline), 170 mm length
Size : M, ML, L, XL - SRAM X1 Eagle, DUB, 30T steel ring, Boost (52 mm chainline), 175 mm length
ChainSRAM NX Eagle, 12 speed
ShiftersSRAM NX Eagle, 12 speed
SaddleBontrager Arvada, hollow chromoly rails, 138 mm width
HeadsetKnock Block Integrated, 58-degree radius, cartridge bearing, 1-1/8'' top, 1.5'' bottom
Derailleur : RearSRAM GX Eagle
Hub : FrontBontrager alloy, sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru axle
Hub : RearBontrager alloy, sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru axle
CassetteSRAM PG-1230 Eagle, 11-50, 12 speed
Chainrings34T
Bottom BracketSRAM DUB, 92 mm, PressFit
Electricals
Battery
Brakes
Front BrakeShimano 4-piston hydraulic disc, MT4100 lever, MT420 caliper
Brake Rotor : Shimano RT66, 6-bolt, 180 mm
Rear BrakeShimano 4-piston hydraulic disc, MT4100 lever, MT420 caliper
Brake Rotor : Shimano RT66, 6-bolt, 203 mm
Chassis and Suspension
FrameOCLV Mountain Carbon main frame & stays, internal storage, tapered head tube, Knock Block, Control Freak internal routing, Carbon Armor, ISCG 05, magnesium rocker link, Mino Link, ABP, Boost148, 130 mm travel
Tyres
Wheels / RimFront : Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15 mm thru axle
Rear : Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 54, 6-bolt, Shimano 8/9/10 freehub, Boost148, 12 mm thru axle
Front TyreBontrager XR4 Team Issue, Tubeless Ready, Inner Strength sidewall, aramid bead, 120 tpi, 29 x 2.40''
Rear TyreBontrager XR4 Team Issue, Tubeless Ready, Inner Strength sidewall, aramid bead, 120 tpi, 29 x 2.40''
Dimensions
Length x Width x Height-- x -- x -- mm
Weight13.69 kg
Accessories
Bontrager BITS Internal Frame Storage Bag
Additional Details
Shock : Fox Performance Float EVOL, 3-position RE:aktiv damper, tuned by Trek Suspension Lab, 210 mm x 55 mm
Max compatible fork travel : 150 mm (561 mm axle-to-crown)
