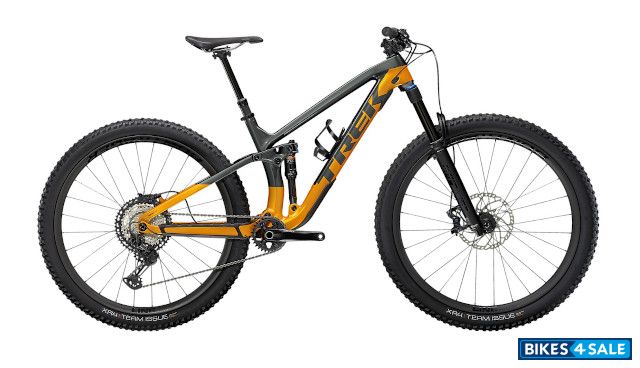

Trek Fuel EX 9.8 XT

Price, review, features and specs

Rate Trek Fuel EX 9.8 XT:
4.0/5 (3 votes)
Add To Compare
Write a Review
Trek Fuel EX 9.8 XT Price $ 5499 [Alabama, United States]

The given price can change depending on the colour, accessories and other features.

Country, City Showroom Price On Road Price
United States, Alabama $ 5499 --
United States, Alaska $ 5499 --
United States, Arizona $ 5499 --
United States, Atlanta $ 5499 --
United States, Austin $ 5499 --
United States, Baltimore $ 5499 --
United States, Boston $ 5499 --
View price in other cities
Buy new Trek Fuel EX 9.8 XT

Book a Test Drive through Bikes4Sale and we will try to get you the best offer for Trek Fuel EX 9.8 XT.

For Exciting Offers, Book a Test Drive
1248
Features
- Internal Storage
- OCLV Mountain Carbon
- Active Braking Pivot
- Control Freak Cable Management
- Complete Tubeless System
- Carbon Care Wheel Loyalty Program
- Suspension Calculator
- Mino Link Adjustable Geometry
Colours

Raw Carbon/Rage Red
Lithium Grey/Factory Orange
Matte Carbon Smoke

Technical Specifications
Vehicle TypeBicycle
Load Carrying CapacityCombined weight of bicycle, rider, and cargo of 300 pounds (136 kg)
StemSize : XS, S - Bontrager Line Pro, 35 mm, Knock Block, Blendr compatible, 0 degree, 35 mm length
Size : M, ML, L, XL - Bontrager Line Pro, 35 mm, Knock Block, Blendr compatible, 0 degree, 45 mm length
HandlebarBontrager Line Pro, OCLV Carbon, 35 mm, 27.5 mm rise, 780 mm width
ForkFox Performance 36, Float EVOL air spring, GRIP damper, tapered steerer, 44 mm offset, Boost110, 15 mm Kabolt axle, 140 mm travel
SeatpostSize : XS, S - Bontrager Line Elite Dropper, 100 mm travel, internal routing, 31.6 mm, 340 mm length
Size : M, ML - Bontrager Line Elite Dropper, 150 mm travel, internal routing, 31.6 mm, 440 mm length
Size : L, XL - Bontrager Line Elite Dropper, 170 mm travel, internal routing, 31.6 mm, 480 mm length
GripBontrager XR Trail Elite, alloy lock-on
CranksetSize : XS, S : Shimano XT M8100, 30T alloy ring, Boost (52 mm chainline), 170 mm length
Size : M, ML, L, XL - Shimano XT M8100, 30T alloy ring, Boost (52 mm chainline), 175 mm length
ChainShimano XT M8100, 12 speed
ShiftersShimano XT M8100, 12 speed
SaddleBontrager Arvada, austenite rails, 138 mm width
HeadsetKnock Block Integrated, 58-degree radius, cartridge bearing, 1-1/8'' top, 1.5'' bottom
Derailleur : RearShimano XT M8100, long cage, 51T max cog
Hub : FrontBontrager alloy, sealed bearing, alloy, 6-bolt, Rapid Drive 108, Shimano MicroSpline freehub, Boost148, 12 mm thru axle
Hub : RearBontrager alloy, sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru axle
CassetteShimano XT M8100, 10-51, 12 speed
Chainrings34T
Bottom BracketShimano MT500, 92 mm, PressFit
Electricals
Battery
Brakes
Front BrakeShimano SLX M7120 4-piston hydraulic disc
Brake Rotor : Shimano RT66, 6-bolt, 180 mm
Rear BrakeShimano SLX M7120 4-piston hydraulic disc
Brake Rear : Shimano RT66, 203 mm, 6-bolt
Chassis and Suspension
FrameOCLV Mountain Carbon main frame & stays, internal storage, tapered head tube, Knock Block, Control Freak internal routing, Carbon Armor, ISCG 05, magnesium rocker link, Mino Link, ABP, Boost148, 130 mm travel
Tyres
Wheels / RimFront : NEW Bontrager Line Elite 30, OCLV Mountain Carbon, Tubeless Ready, 6-bolt, Boost110, 15 mm thru axle
Rear : Bontrager Line Elite 30, OCLV Mountain Carbon, Tubeless Ready, Rapid Drive 108, 6-bolt, Shimano MicroSpline freehub, Boost148, 12 mm thru axle
Front TyreBontrager XR4 Team Issue, Tubeless Ready, Inner Strength sidewall, aramid bead, 120 tpi, 29 x 2.40''
Rear TyreBontrager XR4 Team Issue, Tubeless Ready, Inner Strength sidewalls, aramid bead, 120 tpi, 29 x 2.60''
Dimensions
Length x Width x Height-- x -- x -- mm
Weight13.13 kg
Accessories
Bontrager BITS Internal Frame Storage Bag
Additional Details
Shock : Fox Performance Float EVOL, RE:aktiv with Thru Shaft 3-position damper, tuned by Trek Suspension Lab, 210 mm x 55 mm
Max compatible fork travel : 150 mm (561 mm axle-to-crown)
