Trek Rail Plus 5 Gen 5 Electric Bicycle

Price, features and specs

Rate Trek Rail Plus 5 Gen 5:
4.0/5 (1 vote)
Trek Rail Plus 5 Gen 5 Price $ 4999 [United States]

The given price can change depending on the colour, accessories and other features.

Country, City Showroom Price On Road Price
United States $ 4999 --
Similar Bicycles
Colours

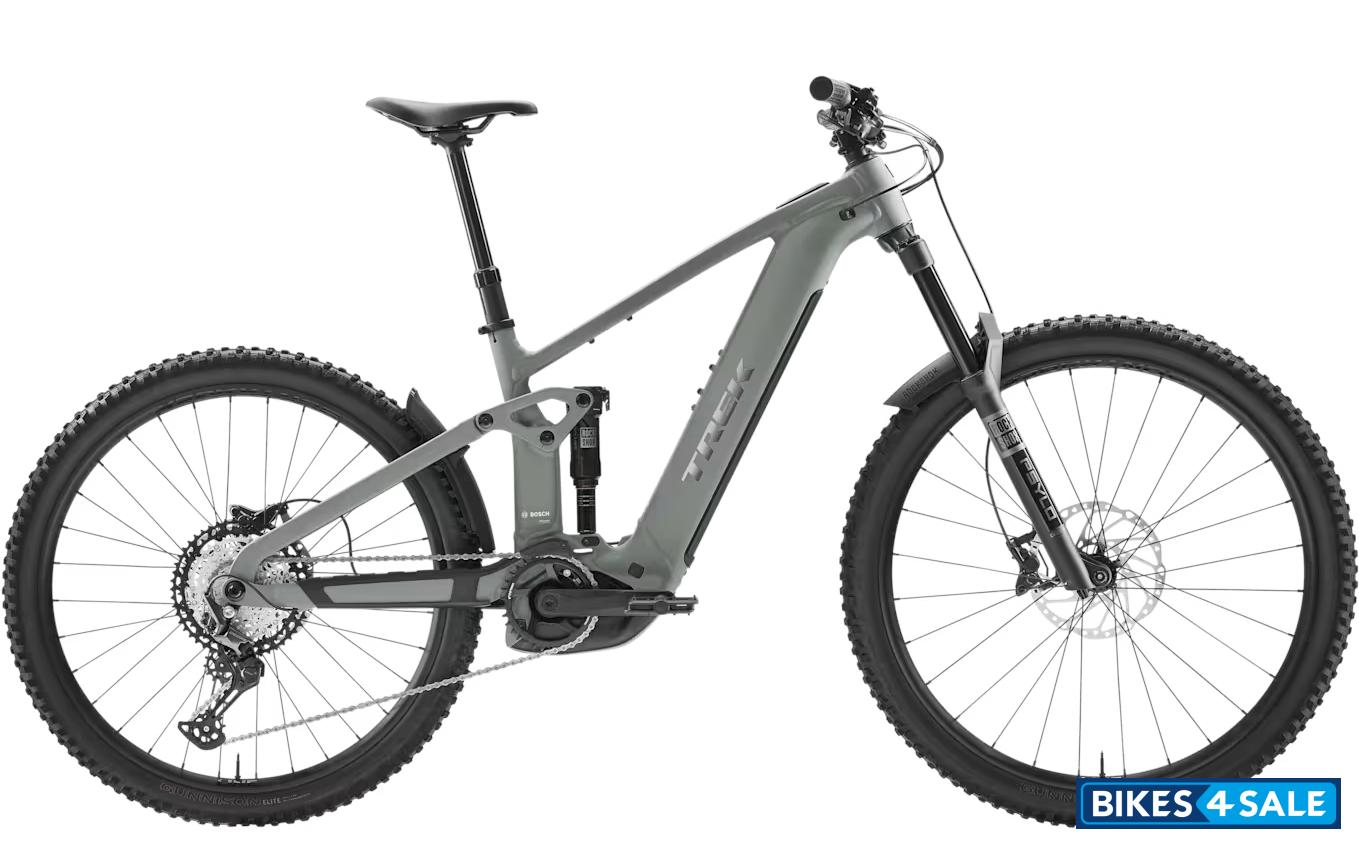

Desert Sage/Brushed Chrome

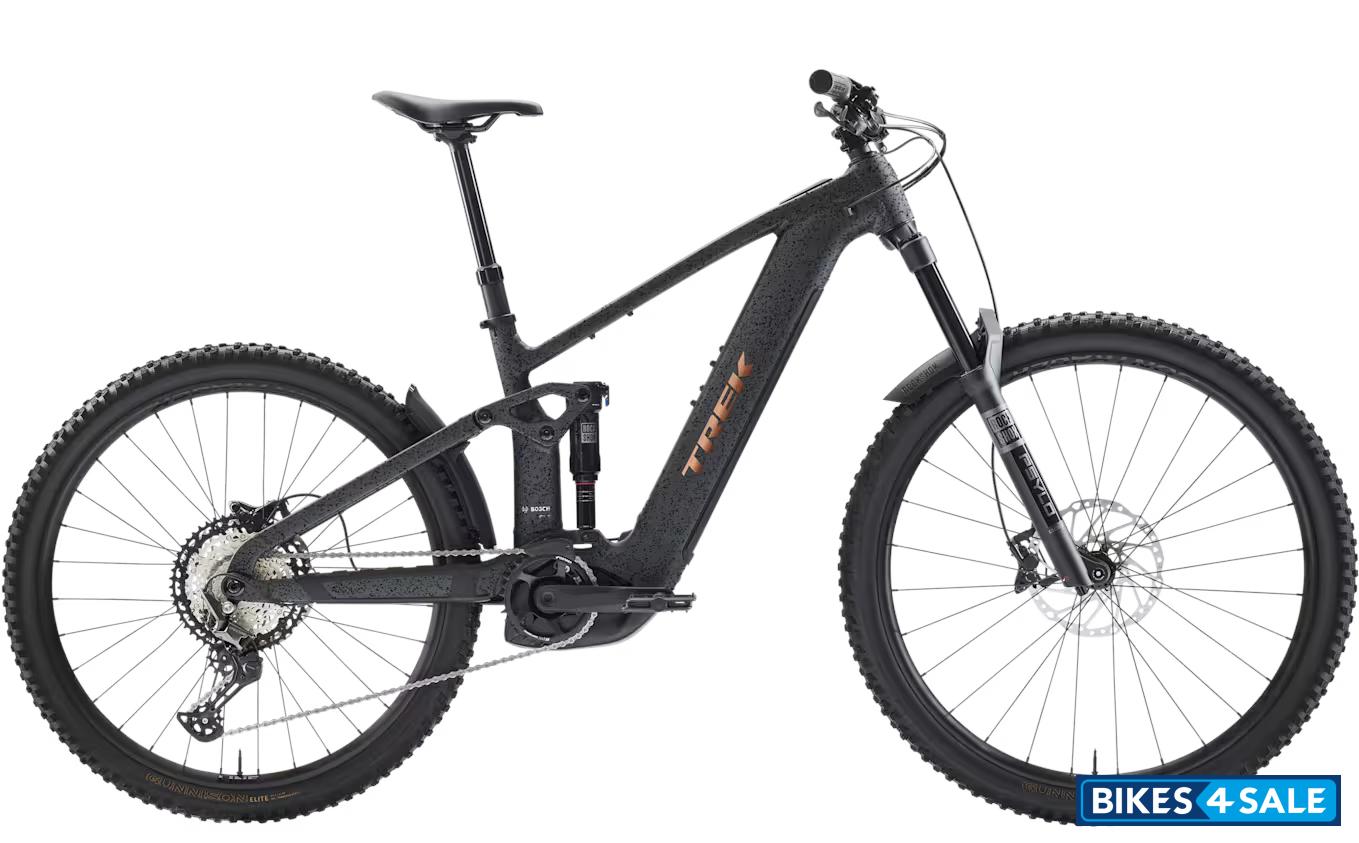

Lithium/Gloss Black Splatter

Technical Specifications
Vehicle TypeBicycle
FuelElectric
Load Carrying Capacity136 kg
StemBontrager Comp, 31.8mm, 7 degree, 35mm length
HandlebarBontrager Comp, alloy, 31.8mm, 40mm rise, 780mm width
ForkRockShox Psylo Silver RC, Solo Air, Motion Control, tapered steerer, 44mm offset, Boost 110, 15mm Maxle Stealth, 160mm travel
SeatpostSize: S
TranzX JD-YSI34, 150mm travel, internal routing, 34.9mm

Size: M, L, XL
TranzX JD-YSI34, 170mm travel, internal routing, 34.9mm
GripBontrager Comp, alloy, 31.8mm, 40mm rise, 780mm width
CranksetFSA alloy, 160mm length
PedalsNylon platform
ChainShimano Deore M6100, 12 speed
ShiftersShimano Deore M6200
SaddleBontrager Verse P3, steel rails
Derailleur : RearShimano Deore M8200, long cage
Hub : FrontShimano TC500 alloy, centerlock, 110x15mm thru axle
Hub : RearShimano TC500 alloy, centerlock, 148x12mm thru axle
CassetteShimano M6200, 10-51, 12 speed
ChainringsE thirteen, 34T, steel
Motor Details
Bosch Performance Line CX (Europe and APAC: 25 km/h, US and ROW: 20 mph / 32 km/h)
Electricals
BatteryBosch PowerTube 800Wh, smart system
ChargerBosch standard 2A, 110V, smart system
ControllerBosch Kiox 400C, mini remote
Brakes
Front BrakeShimano 4-piston hydraulic disc, MT4100 lever, MT420 caliper
Shimano RT64, centerlock, 203mm
Rear BrakeShimano 4-piston hydraulic disc, MT4100 lever, MT420 caliper
Shimano RT64, centerlock, 203mm
Chassis and Suspension
FrameAlpha Platinum Aluminum, Removable Integrated Battery (RIB 2.0), tapered head tube, guided internal routing, Motor Armor, angle-adjust headset, Mino Link adjustable geometry, adjustable leverage rate, 34.9mm seat tube, ABP, UDH, Boost148, 12 mm thru axle, 160 mm travel
Rear SuspensionRockShox Deluxe Select, 205mm x 65mm
Tyres
Wheels / RimSize: S
Bontrager Line TLR 30, 27.5'' Tubeless Ready, 28-hole, Presta valve

Size: M, L, XL
Bontrager Line TLR 30, 29'' Tubeless Ready, 28-hole, Presta valve
Front TyreSize: S
Bontrager Gunnison Elite XR, Tubeless Ready, wire bead, 60 tpi, 27.5x2.40''

Size: M, L, XL
Bontrager Gunnison Elite XR, Tubeless Ready, wire bead, 60 tpi, 29x2.40''
Rear TyreSize: S
Bontrager Gunnison Elite XR, Tubeless Ready, wire bead, 60 tpi, 27.5x2.40''

Size: M, L, XL
Bontrager Gunnison Elite XR, Tubeless Ready, wire bead, 60 tpi, 29x2.40''
Dimensions
Weight24.78 kg
