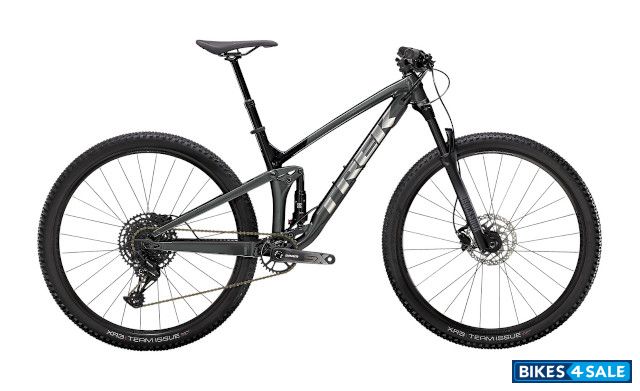

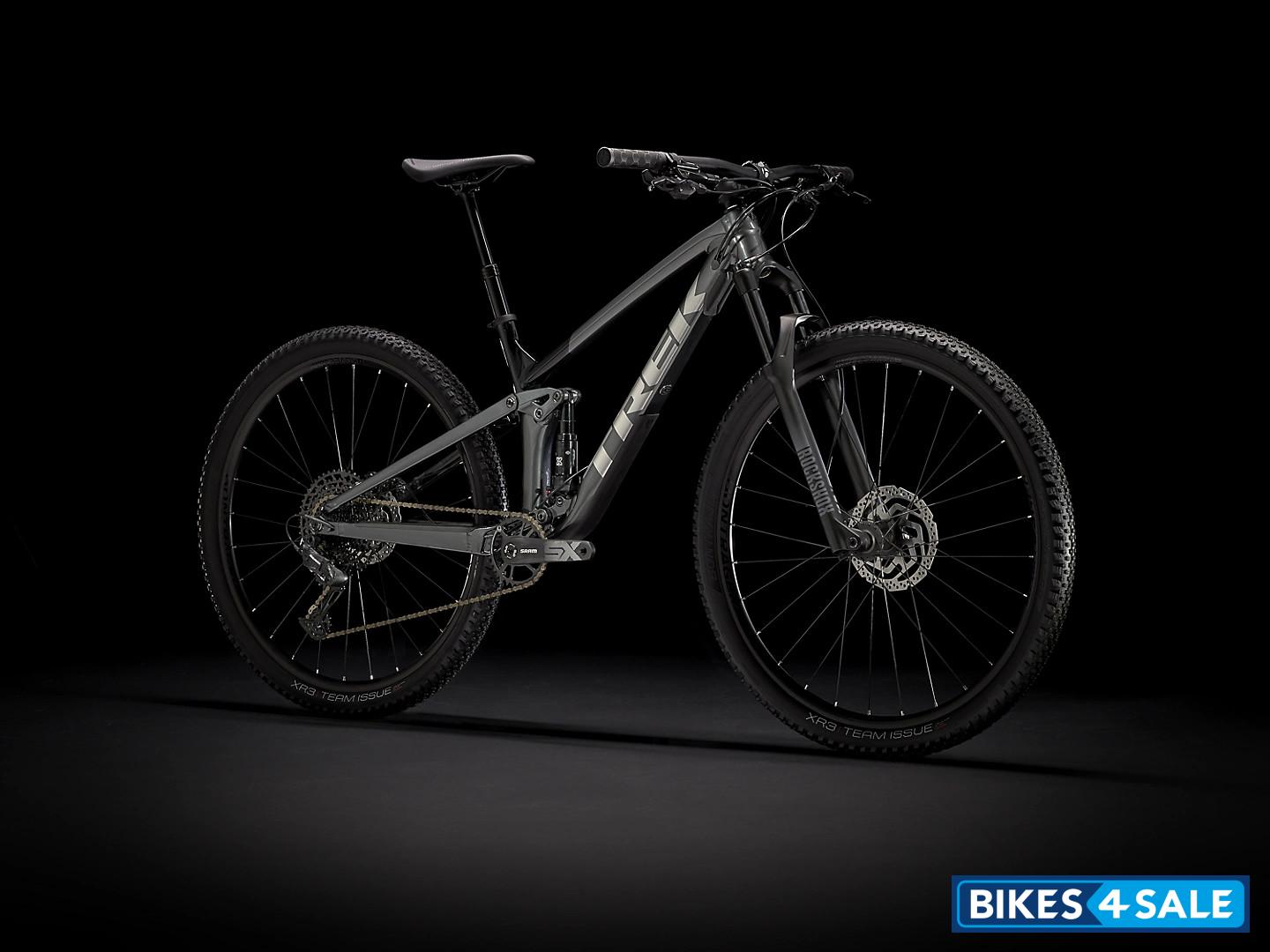

Trek Top Fuel 7 SX

Price, review, features and specs

Rate Trek Top Fuel 7 SX:
4.0/5 (3 votes)
Add To Compare
Write a Review
Trek Top Fuel 7 SX Price $ 2999 [Alabama, United States]

The given price can change depending on the colour, accessories and other features.

Country, City Showroom Price On Road Price
United States, Alabama $ 2999 --
United States, Alaska $ 2999 --
United States, Arizona $ 2999 --
United States, Atlanta $ 2999 --
United States, Austin $ 2999 --
United States, Baltimore $ 2999 --
United States, Boston $ 2999 --
View price in other cities
Buy new Trek Top Fuel 7 SX

Book a Test Drive through Bikes4Sale and we will try to get you the best offer for Trek Top Fuel 7 SX.

For Exciting Offers, Book a Test Drive
77
Features
- Straight Shot downtube
- Knock Block
- Active Braking Pivot
- Control Freak Cable Management
- Complete Tubeless System
- Suspension Calculator
- Mino Link Adjustable Geometry
Colours

Factory Orange/Trek Black
Lithium Grey/Trek Black

Technical Specifications
Vehicle TypeBicycle
Load Carrying CapacityCombined weight of bicycle, rider, and cargo of 300 pounds (136 kg)
StemSize : S, M, M/L - Bontrager Rhythm Comp, 31.8 mm, Knock Block, 0 degree, 60 mm length
Size : L, XL, XXL - Bontrager Rhythm Comp, 31.8 mm, Knock Block, 0 degree, 70 mm length
HandlebarBontrager Comp, alloy, 31.8 mm, 15 mm rise, 750 mm width
ForkRockShox Judy SL, Solo Air spring, Motion Control damper, tapered steerer, 42 mm offset, Boost110, 15 mm Maxle Stealth, 120 mm travel
SeatpostSize : S - TranzX JD-YSP18, 100mm travel, internal routing, 31.6 mm, 361 mm length
Size : M, M/L, L, XL, XXL - TranzX JD-YSP18, 130 mm travel, internal routing, 31.6 mm, 425 mm length
GripBontrager XR Trail Comp, nylon lock-on
CranksetSize : S - SRAM SX Eagle, DUB, 32T steel ring, Boost (52 mm chainline), 170 mm length
Size : M, M/L, L, XL, XXL - SRAM SX Eagle, DUB, 32T steel ring, Boost (52 mm chainline), 175 mm length
ChainSRAM SX Eagle, 12 speed
ShiftersSRAM SX Eagle, 12 speed
SaddleBontrager Arvada, steel rails, 138 mm width
HeadsetKnock Block Integrated, 58-degree radius, cartridge bearing, 1-1/8'' top, 1.5'' bottom
Derailleur : RearSRAM SX Eagle
Hub : RearBontrager alloy, sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru axle
CassetteSRAM PG-1210 Eagle, 11-50, 12 speed
Chainrings36T
Bottom BracketSRAM DUB, 92 mm, PressFit
Electricals
Battery
Brakes
Front BrakeShimano MT200 hydraulic disc
Brake Rotor : Shimano RT26, 6-bolt,180 mm
Rear BrakeShimano MT200 hydraulic disc
Brake Rotor : Shimano RT26, 6-bolt,160 mm
Chassis and Suspension
FrameAlpha Platinum Aluminum, tapered head tube, Knock Block, Control Freak internal routing, downtube guard, magnesium rocker link, Mino Link, ABP, Boost148, 115 mm travel
Tyres
Wheels / RimFront : Bontrager Kovee Comp 23, Tubeless Ready, 6-bolt, Boost110, 15 mm thru axle
Rear : Bontrager Kovee Comp 23, Tubeless Ready, 6-bolt, Shimano 10 freehub, Boost148, 12 mm thru axle
Front TyreBontrager XR3 Team Issue, Tubeless Ready, Inner Strength sidewall, aramid bead, 120tpi, 29 x 2.40''
Rear TyreBontrager XR3 Team Issue, Tubeless Ready, Inner Strength sidewall, aramid bead, 120tpi, 29 x 2.40''
Dimensions
Length x Width x Height-- x -- x -- mm
Weight14.17 kg
Additional Details
Shock : X-Fusion Pro 2, 190 x 45 mm
Suspension lever : Bontrager Drop Lock remote
Max compatible fork travel : 130 mm
