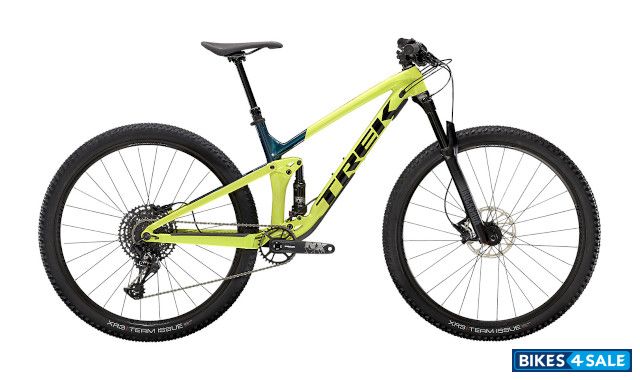

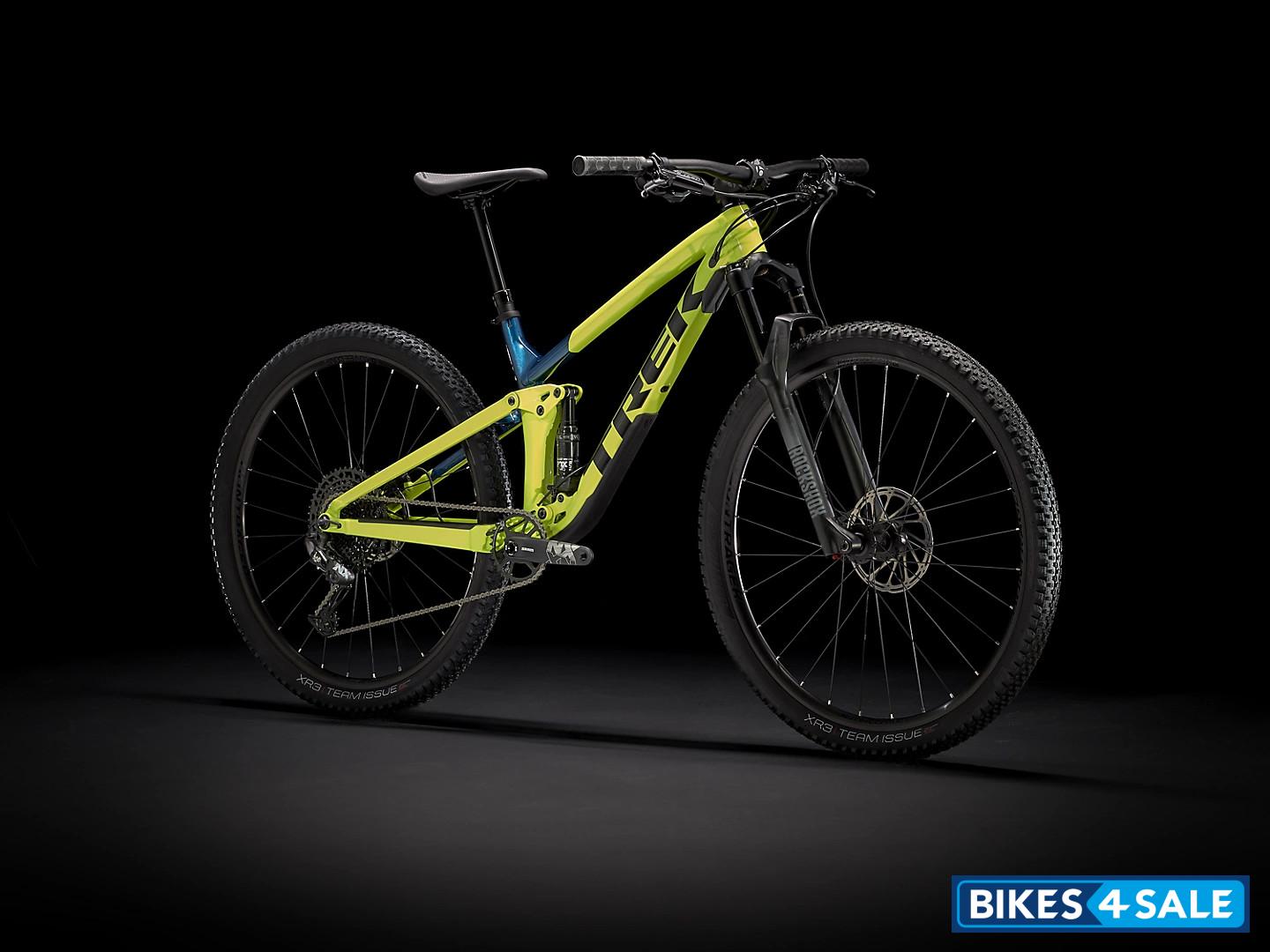

Trek Top Fuel 8 NX

Price, review, features and specs

Rate Trek Top Fuel 8 NX:
3.8/5 (5 votes)
Add To Compare
Write a Review
Trek Top Fuel 8 NX Price $ 3499 [Alabama, United States]

The given price can change depending on the colour, accessories and other features.

Country, City Showroom Price On Road Price
United States, Alabama $ 3499 --
United States, Alaska $ 3499 --
United States, Arizona $ 3499 --
United States, Atlanta $ 3499 --
United States, Austin $ 3499 --
United States, Baltimore $ 3499 --
United States, Boston $ 3499 --
View price in other cities
Buy new Trek Top Fuel 8 NX

Book a Test Drive through Bikes4Sale and we will try to get you the best offer for Trek Top Fuel 8 NX.

For Exciting Offers, Book a Test Drive
621
Features
- Straight Shot downtube
- Knock Block
- Active Braking Pivot
- Control Freak Cable Management
- Complete Tubeless System
- Suspension Calculator
- Mino Link Adjustable Geometry
Colours

Satin Trek Black
Volt/Dark Aquatic

Technical Specifications
Vehicle TypeBicycle
Load Carrying CapacityCombined weight of bicycle, rider, and cargo of 300 pounds (136 kg)
StemSize : S, M, M/L - Bontrager Rhythm Comp, 31.8 mm, Knock Block, 0 degree, 60 mm length
Size : L, XL, XXL - Bontrager Rhythm Comp, 31.8 mm, Knock Block, 0 degree, 70 mm length
HandlebarBontrager Comp, alloy, 31.8 mm, 15 mm rise, 750 mm width
ForkRockShox Recon Gold RL, Solo Air spring, Motion Control damper, tapered steerer, 42 mm offset, Boost110, 15 mm Maxle Stealth, 120 mm travel
SeatpostSize : S - Bontrager Line Dropper, 100 mm travel, internal routing, 31.6 mm, 345 mm length
Size : M, M/L, L, XL, XXL - Bontrager Line Dropper, 150 mm travel, internal routing, 31.6 mm, 440 mm length
GripBontrager XR Trail Comp, nylon lock-on
CranksetSize : S - SRAM NX Eagle, DUB, 32T steel ring, Boost (52 mm chainline), 170 mm length
Size : M, M/L, L, XL, XXL - SRAM NX Eagle, DUB, 32T steel ring, Boost (52 mm chainline), 175 mm length
ChainSRAM NX Eagle, 12 speed
ShiftersSRAM NX Eagle, 12 speed
SaddleBontrager Arvada, steel rails, 138 mm width
HeadsetKnock Block Integrated, 58-degree radius, cartridge bearing, 1-1/8'' top, 1.5'' bottom
Derailleur : RearSRAM NX Eagle
Hub : RearBontrager alloy, sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru axle
CassetteSRAM PG-1230 Eagle, 11-50, 12 speed
Chainrings36T
Bottom BracketSRAM DUB, 92 mm, PressFit
Electricals
Battery
Brakes
Front BrakeSRAM Level T hydraulic disc
Brake Rotor : SRAM CenterLine, 6-bolt, round-edge, 160 mm
Rear BrakeSRAM Level T hydraulic disc
Brake Rotor : SRAM CenterLine, 6-bolt, round edge, 180 mm
Chassis and Suspension
FrameAlpha Platinum Aluminum, tapered head tube, Knock Block, Control Freak internal routing, downtube guard, magnesium rocker link, Mino Link, ABP, Boost148, 115 mm travel
Tyres
Wheels / RimFront : Bontrager Kovee Comp 23, Tubeless Ready, 6-bolt, Boost110, 15 mm thru axle
Rear : Bontrager Kovee Comp 23, Tubeless Ready, 6-bolt, Shimano 10 freehub, Boost148, 12 mm thru axle
Front TyreBontrager XR3 Team Issue, Tubeless Ready, Inner Strength sidewall, aramid bead, 120tpi, 29 x 2.40''
Rear TyreBontrager XR3 Team Issue, Tubeless Ready, Inner Strength sidewall, aramid bead, 120tpi, 29 x 2.40''
Dimensions
Length x Width x Height-- x -- x -- mm
Weight13.66 kg
Additional Details
Shock : Fox Performance Float, 2-position DPS damper, Bontrager DropLock remote, 190 x 45 mm
Suspension lever : Bontrager Drop Lock remote
Max compatible fork travel : 130 mm
