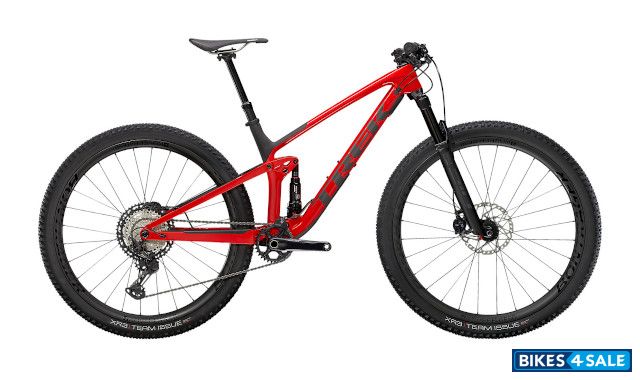

Trek Top Fuel 9.8 XT

Price, review, features and specs

Rate Trek Top Fuel 9.8 XT:
4.0/5 (3 votes)
Add To Compare
Write a Review
Trek Top Fuel 9.8 XT Price $ 5999 [Alabama, United States]

The given price can change depending on the colour, accessories and other features.

Country, City Showroom Price On Road Price
United States, Alabama $ 5999 --
United States, Alaska $ 5999 --
United States, Arizona $ 5999 --
United States, Atlanta $ 5999 --
United States, Austin $ 5999 --
United States, Baltimore $ 5999 --
United States, Boston $ 5999 --
View price in other cities
Buy new Trek Top Fuel 9.8 XT

Book a Test Drive through Bikes4Sale and we will try to get you the best offer for Trek Top Fuel 9.8 XT.

For Exciting Offers, Book a Test Drive
9208
Features
- Straight Shot downtube
- OCLV Mountain Carbon
- Active Braking Pivot
- Control Freak Cable Management
- Complete Tubeless System
- Carbon Care Wheel Loyalty Program
- Suspension Calculator
- Mino Link Adjustable Geometry
Similar Bicycles
Colours

Matte Raw Carbon/Voodoo Trek Black
Gloss Red/Matte Carbon Smoke
Carbon Blue Smoke/Radioactive Coral

Technical Specifications
Vehicle TypeBicycle
Load Carrying CapacityCombined weight of bicycle, rider, and cargo of 300 pounds (136 kg)
StemSize : S, M, M/L - Bontrager Kovee Pro, 35 mm, Knock Block, Blendr compatible, 13 degree, 60 mm length
Size : L, XL - Bontrager Kovee Pro, 35 mm, Knock Block, Blendr compatible, 13 degree, 70 mm length
HandlebarBontrager Line Pro, OCLV Carbon, 35 mm, 15 mm rise, 750 mm width
ForkRockShox SID Select+, DebonAir spring, Charger 2 RL damper, tapered steerer, 44mm offset, Boost110, 15 mm Maxle Stealth, 120 mm travel
SeatpostSize : S - Bontrager Line Elite Dropper, 100 mm travel, internal routing, 31.6 mm, 340 mm length
Size : M, M/L - Bontrager Line Elite Dropper, 150 mm travel, internal routing, 31.6 mm, 440 mm length
Size : L, XL - Bontrager Line Elite Dropper, 170 mm travel, internal routing, 31.6 mm, 480 mm length
GripBontrager XR Trail Elite, alloy lock-on
CranksetSize : S - Shimano XT M8100, 32T alloy ring, Boost (52 mm chainline), 170 mm length
Size : M, M/L, L, XL - Shimano XT M8100, 32T alloy ring, Boost (52 mm chainline), 175 mm length
ChainShimano XT M8100, 12 speed
ShiftersShimano XT M8100, 12 speed
SaddleBontrager Montrose Elite, titanium rails, 138 mm width
HeadsetKnock Block Integrated, 58-degree radius, cartridge bearing, 1-1/8'' top, 1.5'' bottom
Derailleur : RearShimano XT M8100, long cage, 51T max cog
Hub : RearBontrager alloy, sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru axle
CassetteShimano XT M8100, 10-51, 12 speed
Chainrings36T
Bottom BracketShimano MT500, 92 mm, PressFit
Electricals
Battery
Brakes
Front BrakeShimano SLX M7000 hydraulic disc, 180 mm front rotor, 160 mm rear rotor
Brake Rotor : Shimano RT66, 6-bolt, 180 mm
Rear BrakeShimano SLX M7000 hydraulic disc, 180 mm front rotor, 160 mm rear rotor
Brake Rotor : Shimano RT66, 160 mm, 6-bolt
Chassis and Suspension
FrameOCLV Mountain Carbon main frame & stays, tapered head tube, Knock Block, Control Freak internal routing, Carbon Armor, magnesium rocker link, Mino Link, ABP, Boost148, 115 mm travel
Tyres
Wheels / RimFront : Bontrager Kovee Elite 30 carbon, Tubeless Ready, 6-bolt, Boost110, 15 mm thru axle
Rear : Bontrager Kovee Elite 30 carbon, Tubeless Ready, 54T Rapid Drive, 6-bolt, Shimano MicroSpline freehub, Boost148, 12 mm thru axle
Front TyreBontrager XR3 Team Issue, Tubeless Ready, Inner Strength sidewall, aramid bead, 120tpi, 29 x 2.40''
Rear TyreBontrager XR3 Team Issue, Tubeless Ready, Inner Strength sidewall, aramid bead, 120tpi, 29 x 2.40''
Dimensions
Length x Width x Height-- x -- x -- mm
Weight11.83 kg
Additional Details
Shock : RockShox SID Luxe Ultimate, DebonAir spring, Ultimate RL damper, 190 x 45 mm
Suspension lever : Bontrager Drop Lock remote
Max compatible fork travel : 130 mm
