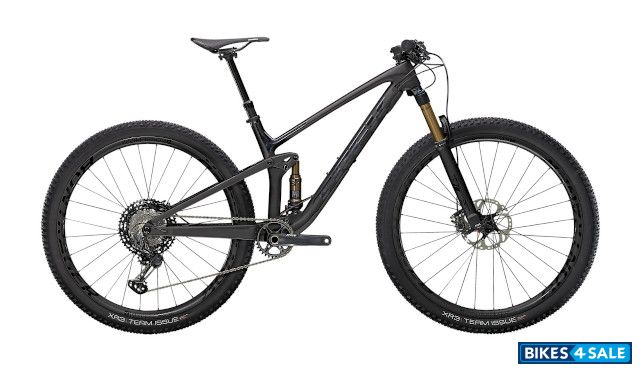

Trek Top Fuel 9.9 XTR

Price, review, features and specs

Rate Trek Top Fuel 9.9 XTR:
4.0/5 (2 votes)
Add To Compare
Write a Review
Trek Top Fuel 9.9 XTR Price $ 8499 [Alabama, United States]

The given price can change depending on the colour, accessories and other features.

Country, City Showroom Price On Road Price
United States, Alabama $ 8499 --
United States, Alaska $ 8499 --
United States, Arizona $ 8499 --
United States, Atlanta $ 8499 --
United States, Austin $ 8499 --
United States, Baltimore $ 8499 --
United States, Boston $ 8499 --
View price in other cities
Buy new Trek Top Fuel 9.9 XTR

Book a Test Drive through Bikes4Sale and we will try to get you the best offer for Trek Top Fuel 9.9 XTR.

For Exciting Offers, Book a Test Drive
1617
Colours

Matte Raw Carbon/Voodoo Trek Black
Gloss Red/Matte Carbon Smoke
Carbon Blue Smoke/Radioactive Coral

Technical Specifications
Vehicle TypeBicycle
Load Carrying CapacityCombined weight of bicycle, rider, and cargo of 300 pounds (136 kg)
StemSize : S, M : Bontrager Kovee Pro, 35 mm, Knock Block, Blendr compatible, 13 degree, 60 mm length
Size : M/L, L, XL : Bontrager Kovee Pro, 35 mm, Knock Block, Blendr compatible, 13 degree, 70 mm length
HandlebarBontrager Line Pro, OCLV Carbon, 35 mm, 15 mm rise, 750 mm width
ForkFox Factory 34 Step-Cast, Float EVOL air spring, FIT4 2-position damper, dual remote lockout, tapered steerer, 44 mm offset, Kashima Coat, Boost110, 15 mm Kabolt axle, 120 mm travel
SeatpostSize : S - Bontrager Line Elite Dropper, 100 mm travel, internal routing, 31.6 mm, 340 mm length
Size : M, M/L - Bontrager Line Elite Dropper, 150 mm travel, internal routing, 31.6 mm, 440 mm length
Size : L, XL - Bontrager Line Elite Dropper, 170 mm travel, internal routing, 31.6 mm, 480 mm length
GripBontrager XR Trail Elite, alloy lock-on
CranksetSize : S - Shimano XTR M9120, 32T alloy ring, Boost (52 mm chainline), 170 mm length
Size : M, M/L, L, XL - Shimano XTR M9120, 32T alloy ring, Boost (52 mm chainline), 175 mm length
ChainShimano XTR M9100, 12 speed
ShiftersShimano XTR M9100, 12 speed
SaddleBontrager Montrose Pro, 7 x 10 mm carbon rails, 138 mm width
HeadsetKnock Block Integrated, 58-degree radius, cartridge bearing, 1-1/8'' top, 1.5'' bottom
Derailleur : RearShimano XTR M9100, Shadow Plus, long cage, 51T max cog
CassetteShimano XTR M9100, 10-51, 12 speed
Chainrings36T
Bottom BracketShimano MT500, 92 mm, PressFit
Electricals
Battery
Brakes
Front BrakeShimano XTR M9100 hydraulic disc
Rear BrakeShimano XTR M9100 hydraulic disc
Chassis and Suspension
FrameOCLV Mountain Carbon main frame & stays, tapered head tube, Knock Block, Control Freak internal routing, Carbon Armor, magnesium rocker link, Mino Link, ABP, Boost148, 115 mm travel
Tyres
Wheels / RimFront : Bontrager Kovee Pro 30 carbon, Tubeless Ready, 6-bolt, Boost110, 15 mm thru axle
Rear : Bontrager Kovee Pro 30 carbon, Tubeless Ready, Rapid Drive 108, 6-bolt, SRAM XD driver, Boost148, 12 mm thru axle
Front TyreBontrager XR3 Team Issue, Tubeless Ready, Inner Strength sidewall, aramid bead, 120tpi, 29 x 2.40''
Rear TyreBontrager XR3 Team Issue, Tubeless Ready, Inner Strength sidewall, aramid bead, 120tpi, 29 x 2.40''
Dimensions
Length x Width x Height-- x -- x -- mm
Weight10.99 kg
Additional Details
Shock : Fox Factory Float, 2-position DPS damper, Kashima Coat, 190 x 45 mm
Suspension lever : Bontrager Drop Lock remote
Max compatible fork travel : 130 mm
