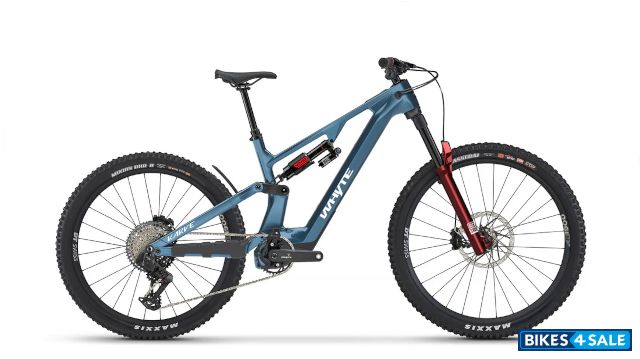

The Whyte Karve Evo RSX is a high-performance carbon e-MTB driven by a massive 150 Nm Avinox motor and an 800Wh battery. Built for extreme trails, it features 180mm RockShox suspension, a "mullet" wheel setup, and a wireless SRAM AXS electronic drivetrain. Powerful four-piston hydraulic brakes complete this heavy-duty package.
Not Available
Sapphire blue (matt)
| Vehicle Type | Bicycle |
| Fuel | Electric |
| Stem | Whyte, 35mm extension, 35mm bar bore |
| Handlebar | Whyte Custom 7050 alloy, 40mm rise, 35mm bar bore, 800mm wide |
| Fork | RockShox ZEB Ultimate, 180mm travel, 44mm offset, Linear XL, Charger 3.2 damper, Fast Black coating, tapered steerer, 110mm x 15mm Boost, Maxle stealth |
| Seat | Whyte Custom |
| Seatpost | TranzX +RAD adjustable dropper post, 34.9mm, frame size specific drop (size S 150mm drop; size M 170mm drop; sizes L-XL 200mm drop) |
| Grip | Whyte Enduro lock-on |
| Crankset | Whyte 155mm long ISIS crank arms, SRAM direct mount, 36T chainring, T-Type |
| Pedals | Fibre reinforced composite platform |
| Chain | SRAM GX T-Type, 12 speed |
| Shifters | SRAM AXS Pod, right, MMX, 12 speed |
| Headset | ZS56 upper / lower headset cups for 1 1/8in upper and 1.5in lower with sealed bearings |
| Derailleur : Rear | SRAM S1000 AXS Eagle, 12 speed |
| Hub : Front | DT Swiss Hybrid HF1900, 110mm x 15mm Boost, six bolt |
| Hub : Rear | DT Swiss Hybrid HF1900, 12mm x 148mm Boost spacing, SRAM XD steel driver, six bolt |
| Spoke | DT Swiss Elemental |
| Cassette | SRAM XS 1275, T-Type, 10-52T, 12 speed |
| Motor Details |
|---|
| Avinox M2S drive unit with 150Nm maximum torque, 1300W of peak power and 250W of nominal power Features five power mode settings including Auto and Boost AXS derailleur powered off motor and featuring SmoothShift |
| Display |
|---|
| Avinox DPC100 OLED display |
| Electricals | |
|---|---|
| Battery | Avinox 800Wh fixed battery, Removeable for maintenance by removing motor |
| Charger | Charger 12A (230V) |
| Brakes | |
|---|---|
| Front Brake | SRAM Maven Silver hydraulic disc brake, four piston, sintered metal pads, 220mm six bolt HS2 rotors |
| Rear Brake | SRAM Maven Silver hydraulic disc brake, four piston, sintered metal pads, 200mm six bolt HS2 rotors |
| Brake Lever | SRAM Maven Silver |
| Chassis and Suspension | |
|---|---|
| Frame | Uni-directional carbon mainframe, ZS56 top and bottom head tube, internal cable routing, 6061 alloy swing arm, Shape.it Link V2 and 12mm x 148mm Boost dropouts, RideWrap frame protection kit fitted as standard |
| Rear Suspension | RockShox Vivid Ultimate RC2T, 230 x 62.5mm, custom tuned for Whyte |
| Tyres | |
|---|---|
| Wheels / Rim | DT Swiss Hybrid HF1900, 29in front, 27.5in rear |
| Front Tyre | Maxxis Assegai WT, TR, 29 x 2.5in 120TPI, EXO+ Sidewall Protection, 3C MaxxGrip, Dual Compound, folding bead (front) |
| Rear Tyre | Maxxis Assegai WT, TR, 29 x 2.5in 120TPI, EXO+ Sidewall Protection, Maxxis Minion DHR 2 WT, TR, 27.5 x 2.5in 120TPI, Double Down casing, 3C MaxxTerra, Dual Compound (rear) |
