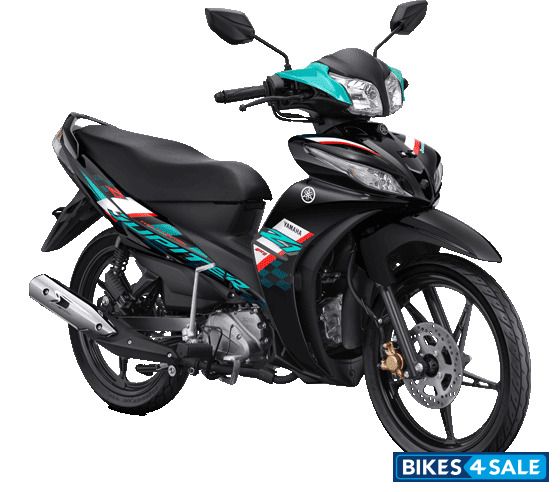

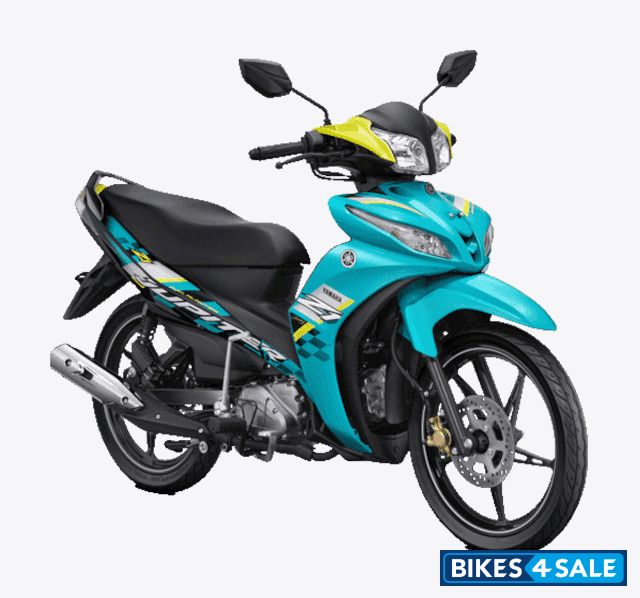

Yamaha Jupiter Z1 Scooter

Price, features and specs

Rate Yamaha Jupiter Z1:
3.0/5 (2 votes)
Yamaha Jupiter Z1 Price Rp 19020000 [Banjarmasin, Indonesia]

The given price can change depending on the colour, accessories and other features.

Country, City Showroom Price On Road Price
Indonesia, Banjarmasin Rp 19020000 --
Features
- Forged Piston
- Aerodynamic Air Flow
- New Striping design
Colours

Blue
Red
Black

Technical Specifications
Vehicle TypeScooter
FuelPetrol
Engine Details4-stroke, SOHC, Single Cylinder / Mendatar
Engine StartingElectric Starter & Kick Starter
Bore x Stroke50,0mm x 57,9mm
Compression Ratio9,3:1
Engine LubricationWet
ClutchWet, Multiplate, Centrifugal automatic
Fuel SystemFuel Injection
IgnitionTCI
Cooling SystemAir cooled
Maximum Power7,4 kW @ 7750 Rpm
Maximum Torque9,8 Nm @ 6750 Rpm
TransmissionConstant mesh, 4-speed
Electricals
BatteryYTZ4V/GTZ4V
Head LampDouble
Tail LampArrow Tail Shaped Light
Brakes
Front BrakeSingle Disc
Rear BrakeDrum
Chassis and Suspension
FrameBackbone
Front SuspensionTelescopic
Rear SuspensionSwing Arm
Tyres
Front Tyre70/90-17 M/C (38P)
Rear Tyre80/90-17 M/C (44P)
Dimensions
Length1935 mm
Width680 mm
Height1065 mm
Seat Height765 mm
Wheelbase1240 mm
Ground Clearance150 mm
Fuel Tank Capacity4.1 litres
Additional Details
Engine Oil Capacity : Total = 1,00 L; Berkala = 0,80 L; Ganti filter oli = 0.85 L
Spark Plug Type : NGK/CR6HSA
