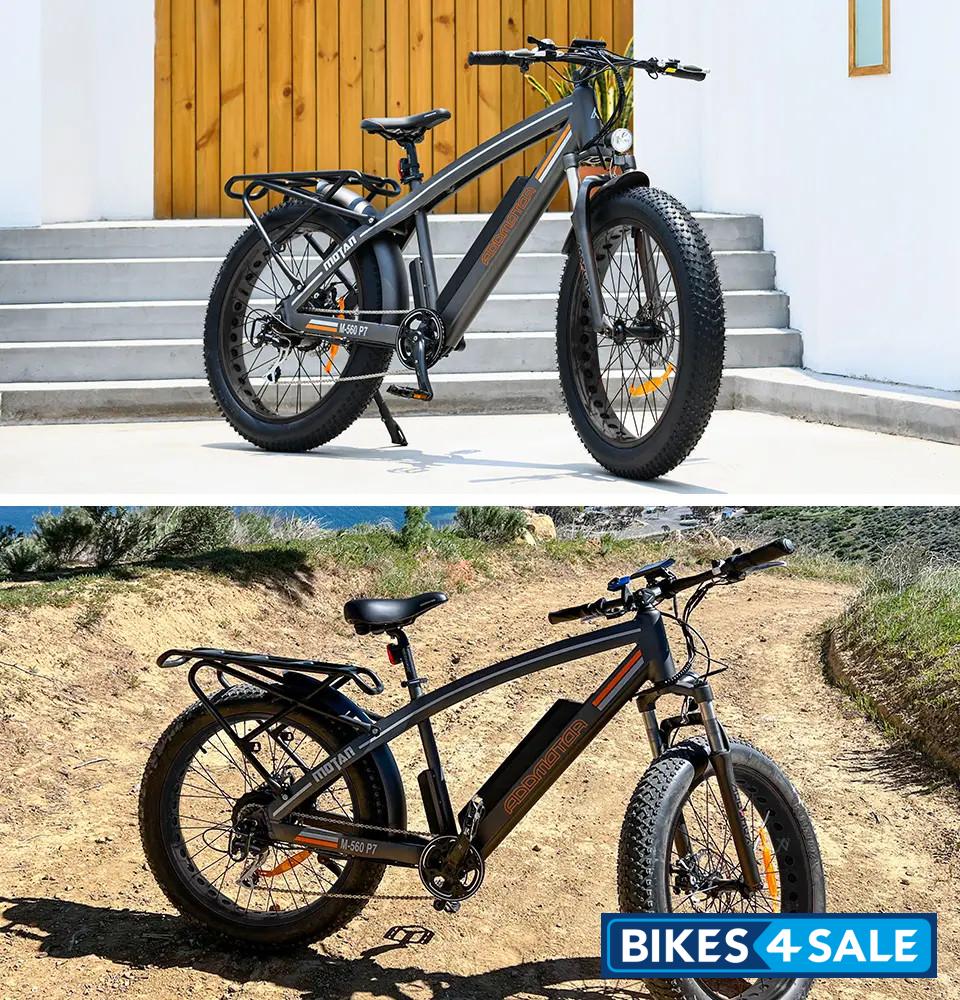

Addmotor Motan M 560 Electric Bicycle

Price, features and specs

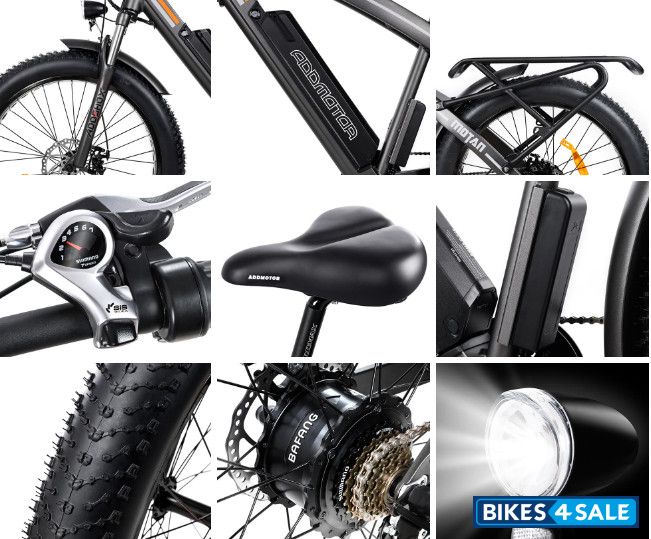

The Addmotor Motan M 560 is a popular all-terrain e-bike that offers an exceptional riding experience. Powered by a Bafang 48V 750W rear-mounted geared hub motor with 80N·M torque, this bike provides impressive acceleration and efficient performance. Its 48V 20.0Ah lithium battery, featuring Samsung cells, delivers a remarkable range of up to 75+ miles per charge, ensuring long-lasting adventures on various terrains.

Constructed with a durable 6061 aluminum alloy frame, the Motan M 560 is built to withstand rugged trails and off-road conditions. Its Kenda 26'' x 4.0'' fat tires provide excellent traction and stability, allowing riders to confidently navigate through challenging environments. The Tektro 180mm disc brakes ensure reliable stopping power, enhancing safety during steep descents or sudden stops.

Equipped with a 5-level pedal assist system and a cadence sensor, this e-bike offers customizable assistance levels, adapting to different riding preferences and terrains. The Addmotor 5-inch LCD display with a USB port provides convenient access to essential information and allows you to charge your devices on the go. With a variety of vibrant color options and a robust payload capacity of 300lbs+55lbs, the Addmotor Motan M 560 is a top choice for riders seeking versatility, performance, and style.

Rate Addmotor Motan M 560:
3.3/5 (3 votes)
Addmotor Motan M 560 Price $ 1699 [California, United States]

The given price can change depending on the colour, accessories and other features.

Country, City Showroom Price On Road Price
United States, California $ 1699 --

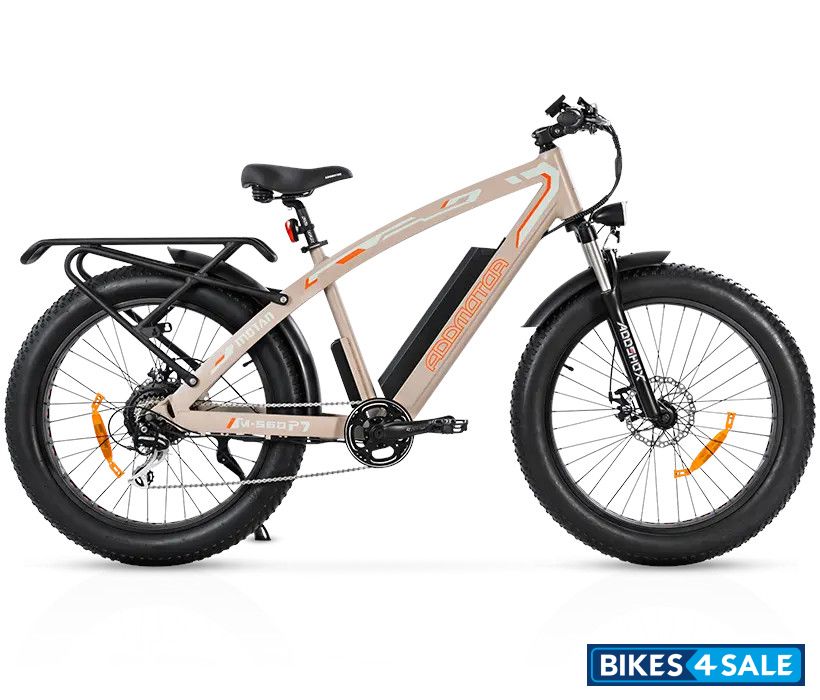

Colours

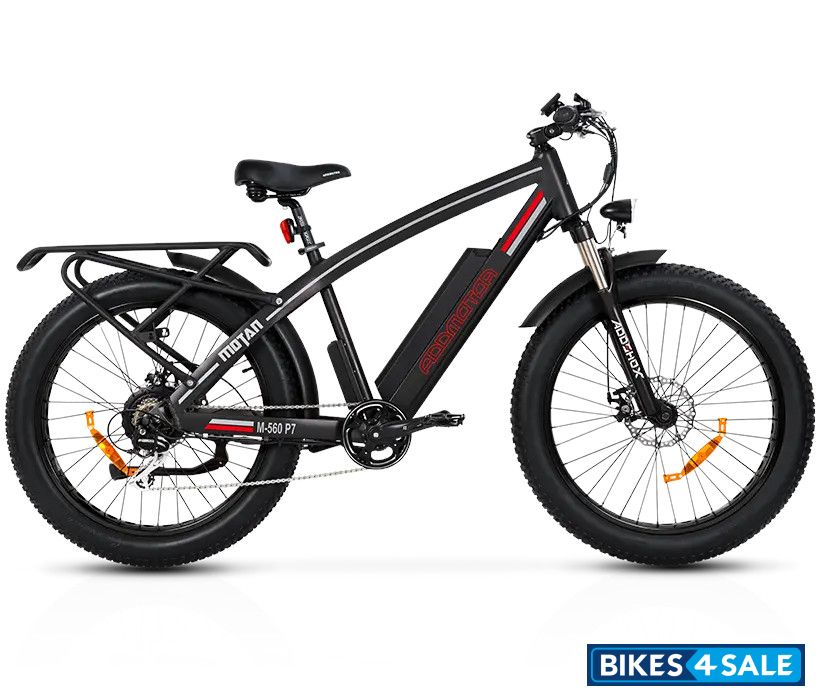

Black

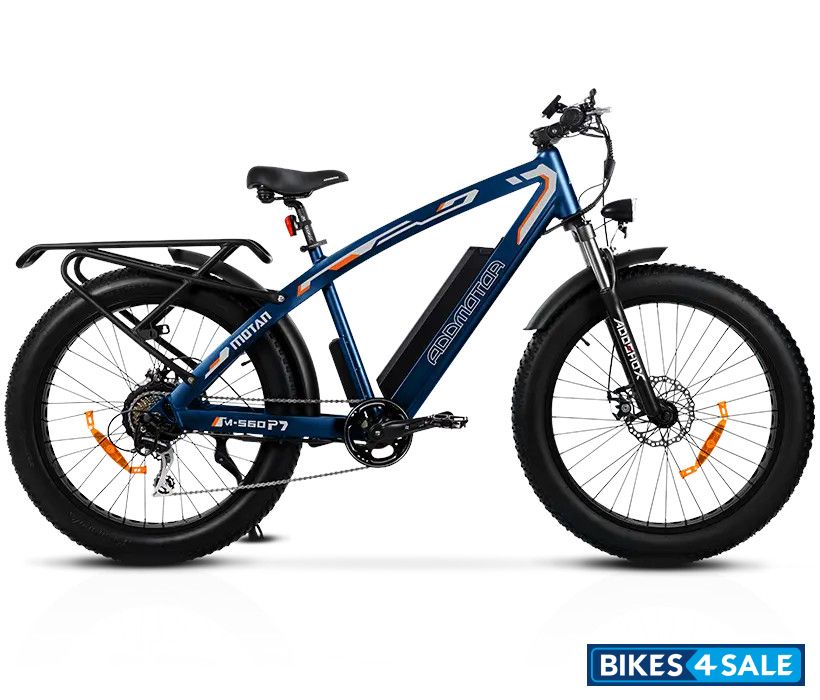

Blue
Orange
White
Olive Green

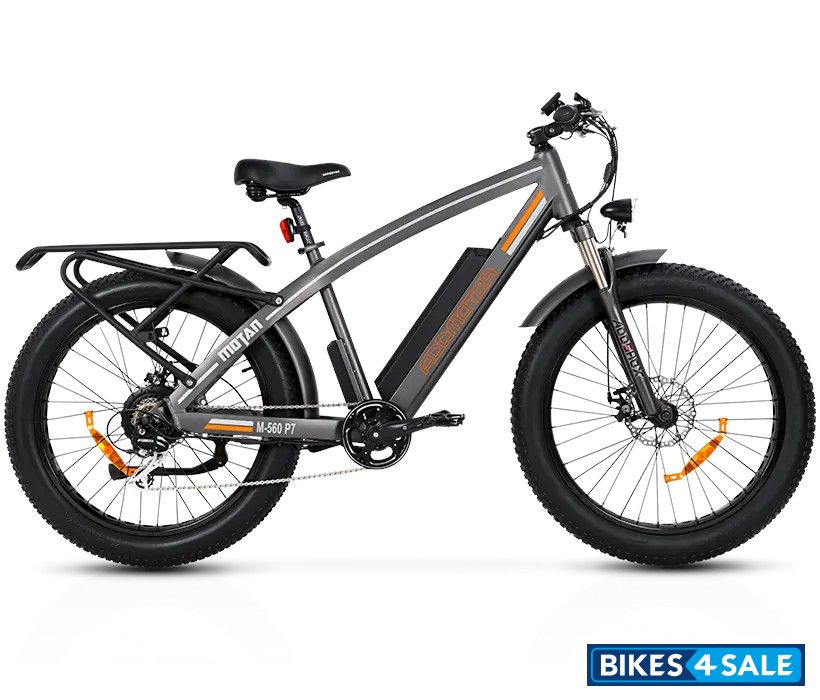

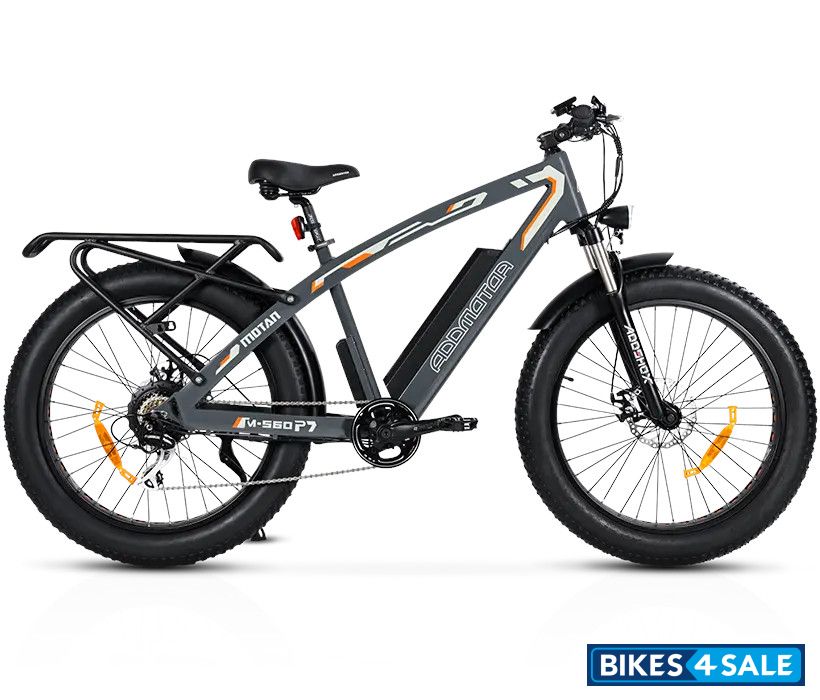

Grey

Technical Specifications
Vehicle TypeBicycle
FuelElectric
Load Carrying Capacity300lbs+55lbs Payload Capacity
StemAluminum Alloy Stem
HandlebarBlack Aluminum Handlebar
ForkAddshox Spring Suspension Fork, 100mm of Travel, Preload Adjustment, ABS+
SeatpostPROMAX Quick Release 30CM
GripErgonomic, Silica Gel
PedalsAluminum Black Pedal
Pedal Assist System - PAS5 Level Pedal Assist, Cadence Sensor
ChainKMC Rust Resistant Chain
SaddleAddmotor Padded Comfortable Saddle
Derailleur : RearShimano Altus 7 Speeds
Motor Details
Bafang 48V 750W Rear-Mounted Geared Hub Motor, 80N·M Torque
Range
Up to 75+ Miles per Charge
Display
Addmotor 5 Inch LCD Display with USB Port
Electricals
Battery48V 20.0Ah Lithium Battery Samsung Cells, Charging Time 5-6 Hours Rated For 800 Charge Cycles
Charger2.5A US Standard Smart Charger
ControllerAddmotor 25A Controller
Head LampPowered by Main Battery and Controlled by Display
Brakes
Front BrakeTektro 180mm Disc Brakes
Rear BrakeTektro 180mm Disc Brakes
Brake LeverTektro Mechanical EL555-RT / EL550-RS
Chassis and Suspension
Frame6061 Aluminum Alloy Frame
Tyres
Wheels / RimSpoke wheels
Front TyreKenda 26'' x 4.0'' Fat Tires, 30TPI
Rear TyreKenda 26'' x 4.0'' Fat Tires, 30TPI
Dimensions
Length1955.8 mm
Seat Height850-1066 mm
Wheelbase1219.2 mm
Weight33.5 kg
Additional Details
Variable Speed Control - 1/2 Twist Throttle
Water-Resistant Connectors and Wiring Harness
Rotors: Tektro MD-M300 180mm F/R
Fenders: Front and Rear
Detachable Sturdy Alloy Rack (24.8x6.3)
Shimano 7 Speeds freewheel
Seat Tube 19"
Standover Height 32"
Handlebar Height 43.5"
Reach 18"
Lowest Seat to Lowest Pedal 28.3"
