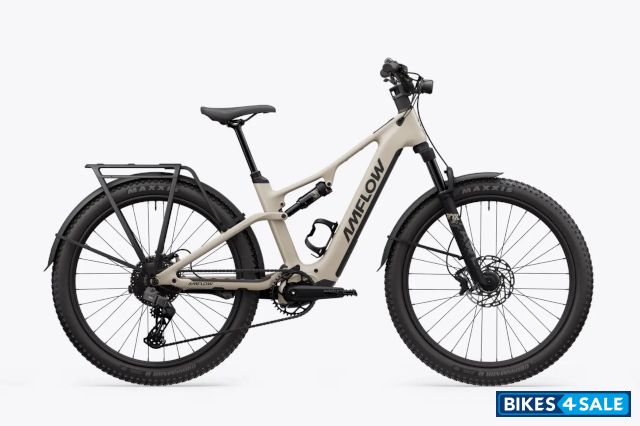

The Amflow TL Carbon is an electric touring bicycle with a lightweight carbon frame, FOX suspension and the Avinox M2 motor delivering up to 125 Nm of peak torque. It also gets a removable battery, electronic shifting and hydraulic disc brakes for a smooth and controlled ride.
Not Available
| Vehicle Type | Bicycle |
| Fuel | Electric |
| Stem | Amflow Touring Bike Split Stem (Clamping Diameter: 35mm, Length: 35mm, Angle: 0°) |
| Handlebar | Amflow Touring Handlebar S/M Size Frame: 720mm Width, 35mm Diameter, 93mm Rise L/XL Size Frame: 740mm Width, 35mm Diameter, 93mm Rise |
| Fork | FOX AWL Sport, 120mm, RAIL 2.0 damper, LSR adjustment, 15×110mm Kabolt, 44mm offset |
| Grip | Amflow Enduro Grip 2 |
| Crankset | Avinox SL Crankset (S/M: 155mm; L/XL: 160mm) |
| Chain | Avinox eGlide T Chain (10S/11S, 118 Links) |
| Saddle | Amflow Touring Saddle |
| Derailleur : Rear | TRP E.A.S.I. RD-T7010E-L, 10/11-Speed, Electronic Rear Derailleur |
| Hub : Front | Alloy, 15×110mm Thru-Axle, 32H, 6-bolt |
| Hub : Rear | Alloy, 12×148mm Thru-Axle, 32H, 6-bolt, 6 Pawls, HG Freehub |
| Cassette | CS-M5243, 10-Speed, 11-43T |
| Chainrings | Avinox Direct Mount Chainring (38T) |
| Motor Details |
|---|
| Avinox M2 Drive Unit: Nominal 110N·m, Peak 125N·m |
| Display |
|---|
| Avinox DPC100, 2-inch OLED Control Display |
| Electricals | |
|---|---|
| Battery | Avinox RS800 Battery (Removable) |
| Charger | Avinox 4A Charger, 168W Output |
| Controller | Avinox Wireless Controller × 2 (One on each side of the handlebar) |
| Brakes | |
|---|---|
| Front Brake | Tektro TKD173 Hydraulic Disc Brakes, 4-Piston Caliper, Customized for Amflow |
| Rear Brake | Tektro TR180-61E, Ø180mm, 2.3mm thickness, with integrated tonewheel for Avinox |
| Chassis and Suspension | |
|---|---|
| Frame | Amflow TL Carbon Frame |
| Rear Suspension | FOX FLOAT Rhythm, LSR adjustment, Amflow TL tuned, 190×45mm |
| Tyres | |
|---|---|
| Wheels / Rim | Front Wheel: Amflow HTA-25 Front Wheel (27.5″) , Rim: Alloy, 27.5″, 25mm Inner Width, 32H Rear Wheel: Amflow HTA-25 Rear Wheel (27.5″) , Rim: Alloy, 27.5″, 25mm Inner Width, 32H |
| Front Tyre | Maxxis 27.5×2.35 Crossmark II Wire Bead/Clincher/EXO/60TPI |
| Rear Tyre | Maxxis 27.5×2.35 Crossmark II Wire Bead/Clincher/EXO/60TPI |
