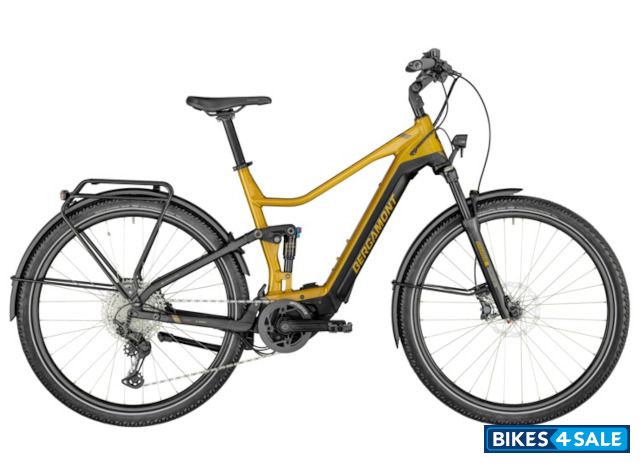

Bergamont E-Horizon FS Elite

Price, review, features and specs

Rate Bergamont E-Horizon FS Elite:
4.0/5 (2 votes)
Add To Compare
Write a Review
Bergamont E-Horizon FS Elite Price

Not Available

Buy new Bergamont E-Horizon FS Elite

Book a Test Drive through Bikes4Sale and we will try to get you the best offer for Bergamont E-Horizon FS Elite.

For Exciting Offers, Book a Test Drive
198
Features
- Perfectly tuned Suntour suspension
- Shimano XT/Deore 1x12 drive train with wide gear range
- High-end, ergonomic contact points: Ergon ST10 saddle, Ergon GP10 lock-on grips
- Bosch Gen. 4 Performance Line CX Cruise Drive Unit
- Bosch Kiox on-board computer offers more connectivity features
Colours

Dirty tangerine/black (shiny/matt)

Technical Specifications
Vehicle TypeBicycle
FuelElectric
Top Speed25 kmph
StemBGM E-Bike, adjustable, for Kiox integration
HandlebarBGM Pro, riserbar, backsweep: 15°, rise: 5 mm
ForkSuntour Mobie 25 Air, RLR DS, 100 mm, 15x100 mm axle
SeatErgon ST10
SeatpostBGM Pro
GripErgon GP10
CranksetFSA CK-320, 42t
PedalsTrekking alloy
ChainKMC e12S
ShiftersShimano Deore, SL-M6100, 1x12-speed, rapidfire plus-shifter
Shimano Deore, SL-M6100, 1x12-speed, rapidfire plus-shifter
HeadsetFSA NO.57SC-1, A-Headset, semi-integrated, tapered
Derailleur : RearShimano Deore XT, RD-M8100, Shadow Plus
Hub : FrontShimano FH-MT410-B, centerlock, disc, 12x148 mm axle
Hub : RearShimano HB-MT400, centerlock, disc, 15x110 mm axle
SpokeSapim Leader
CassetteShimano Deore, CS-M6100, 10-51t
Motor Details
Bosch Drive Unit Performance Line CX Cruise, Gen. 4, 250 W, 36 V
Display
Bosch Kiox
Electricals
BatteryBosch 36 V Li Ion, 625 Wh, PowerTube
Head LampB&M IQ-XS, 70 Lux, LED, E-Bike Version
Tail LampB&M Toplight 2 C, LED
Brakes
Front BrakeShimano Deore XT, BR-M8100, hydraulic disc brake, SM-RT54 rotor: 180/180 mm
Rear BrakeShimano Deore XT, BR-M8100, hydraulic disc brake, SM-RT54 rotor: 180/180 mm
Brake LeverShimano Deore XT, BL-T8100, hydraulic disc brake
Chassis and Suspension
Frame28", ultra lite AL-6061 tubing, PowerTube battery, 80 mm rear travel
Size : 46/50/54/58 cm
Tyres
Wheels / RimRims : Ryde Rival 23, disc, eyelets
Front TyreSchwalbe Hurricane, Addix, reflective stripe, 57-622
Tubes: Schwalbe SV19B Light
Rear TyreSchwalbe Hurricane, Addix, reflective stripe, 57-622
Tubes: Schwalbe SV19B Light
Dimensions
Length x Width x Height-- x -- x -- mm
Weight26 kg
Accessories
Kickstand: Syncros
Additional Details
BB-Set : Bosch, Isis
Rear shock : Suntour UNAir R8, 80 mm, lockout
Assistance Modes : Eco (+60%), Tour (+140%), eMTB (+140 - 340%), Turbo (+340%), Walk Assist (-5 km/h)
Max weight : 140 kg
Fender: Racktime Wingee
Carrier: Racktime / BGM
