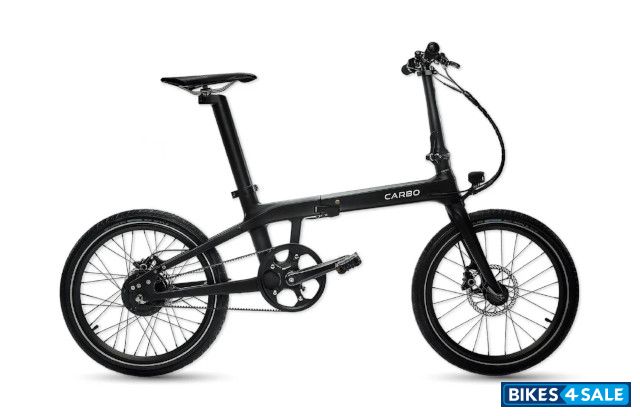

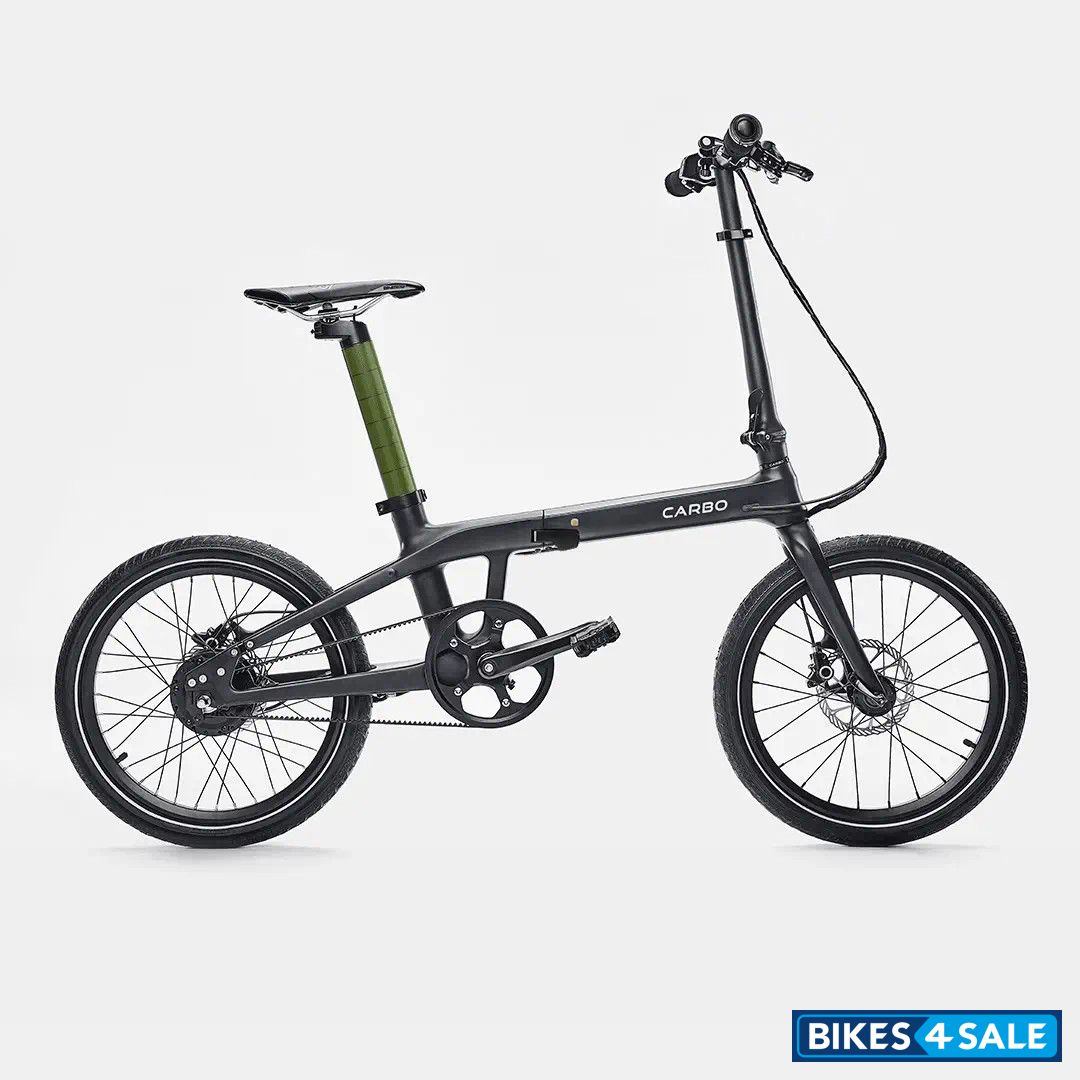

Carbo Model X Electric Bicycle

Price, features and specs

Rate Carbo Model X:
3.5/5 (4 votes)
Carbo Model X Price $ 2699 [United States]

The given price can change depending on the colour, accessories and other features.

Country, City Showroom Price On Road Price
United States $ 2699 --
Features
USB port on battery to charge your smart devices
Technical Specifications
Vehicle TypeBicycle
FuelElectric
TransmissionCarbon belt drive / Gear Ratio: 75/22T
ForkToray Carbon custom
SeatComfort Gel Saddle
GripVelo
PedalsWellgo folding pedals , Sealed bearings
Pedal Assist System - PASBottom Bracket torque and speed sensor I Digitally filtered cadence sensing w/ 52 poles
Saddle1-to-3 Quick Connect / Stainless Steel lock-ring / Water proof
Spoke14G Stainless
Motor Details

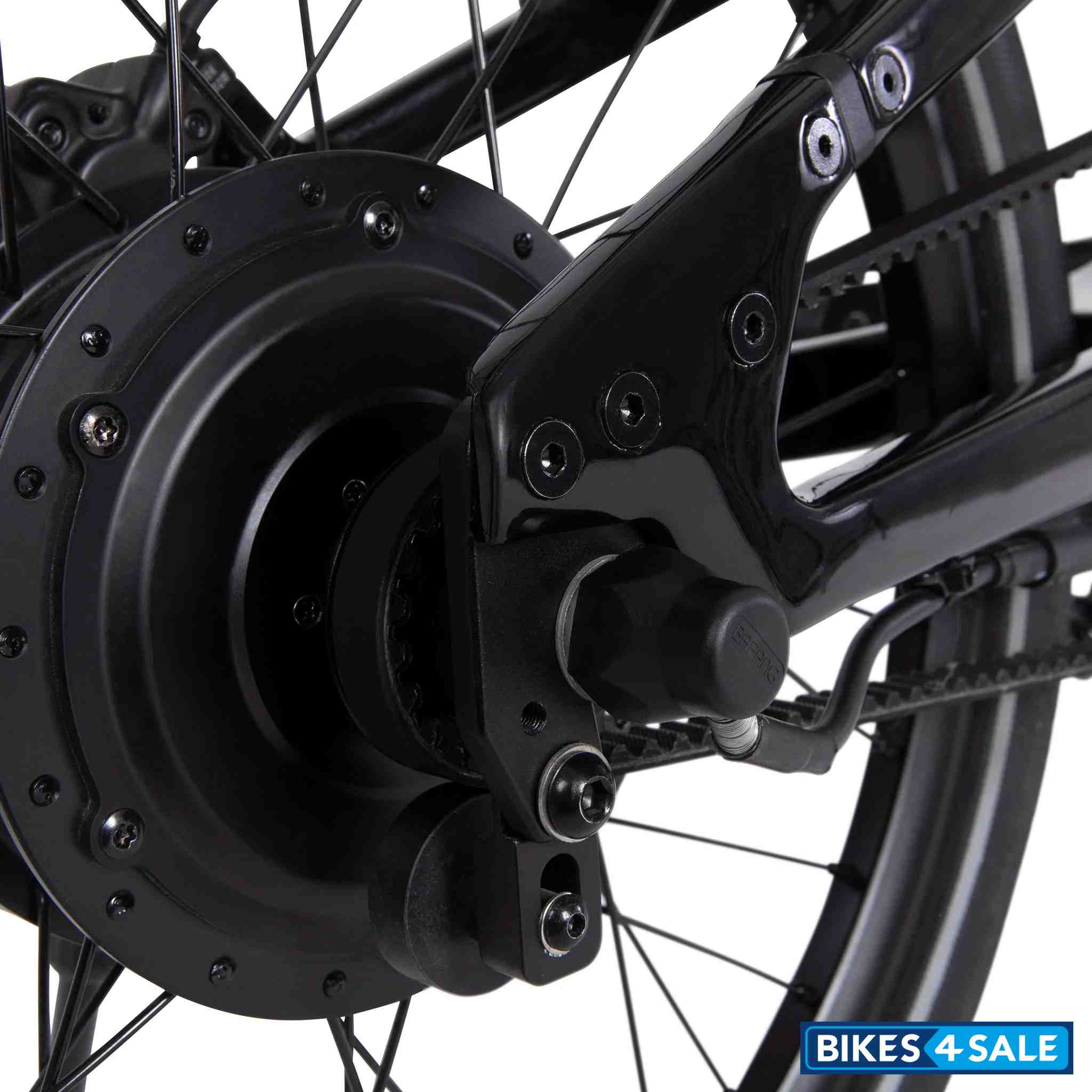

250W high torque hub motor (350W upgrade available)
Range
Up to 35-65 km of assistance depending on the level of assist & battery Ah
Charging Time
3.5 hour recharge time
Display

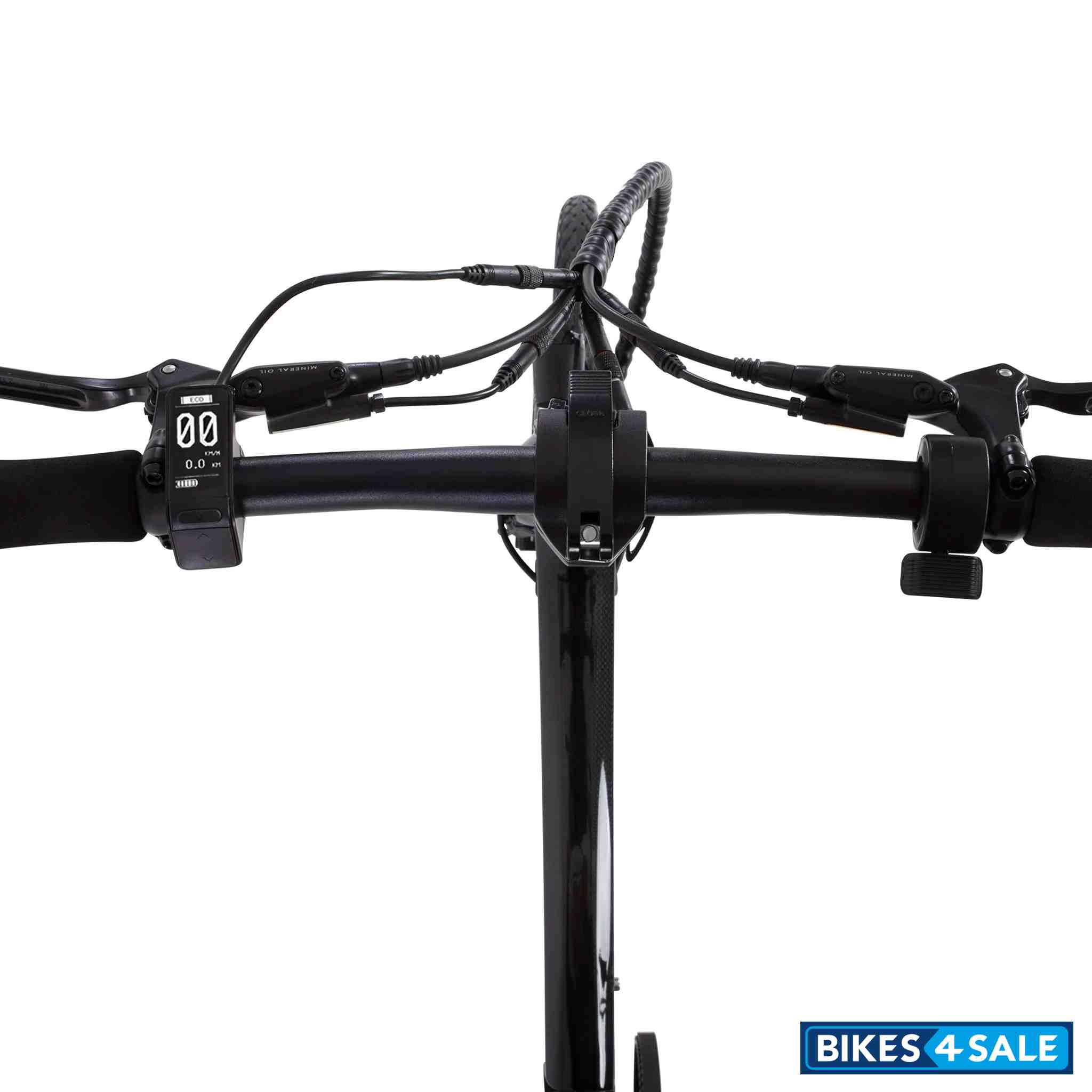

Custom LED display with 5 levels of assist/Walk mode/Bluetooth ready
Electricals
Battery36V x 6.7 Ah Samsung 18650 cells ( 10.5 Ah Upgrade available).
ChargerModiary 2A / UL Certified / On-bike and off bike charging
Controller6 Transistor / Sine wave / Customized tuning algorithm
Head LampBattery integrated

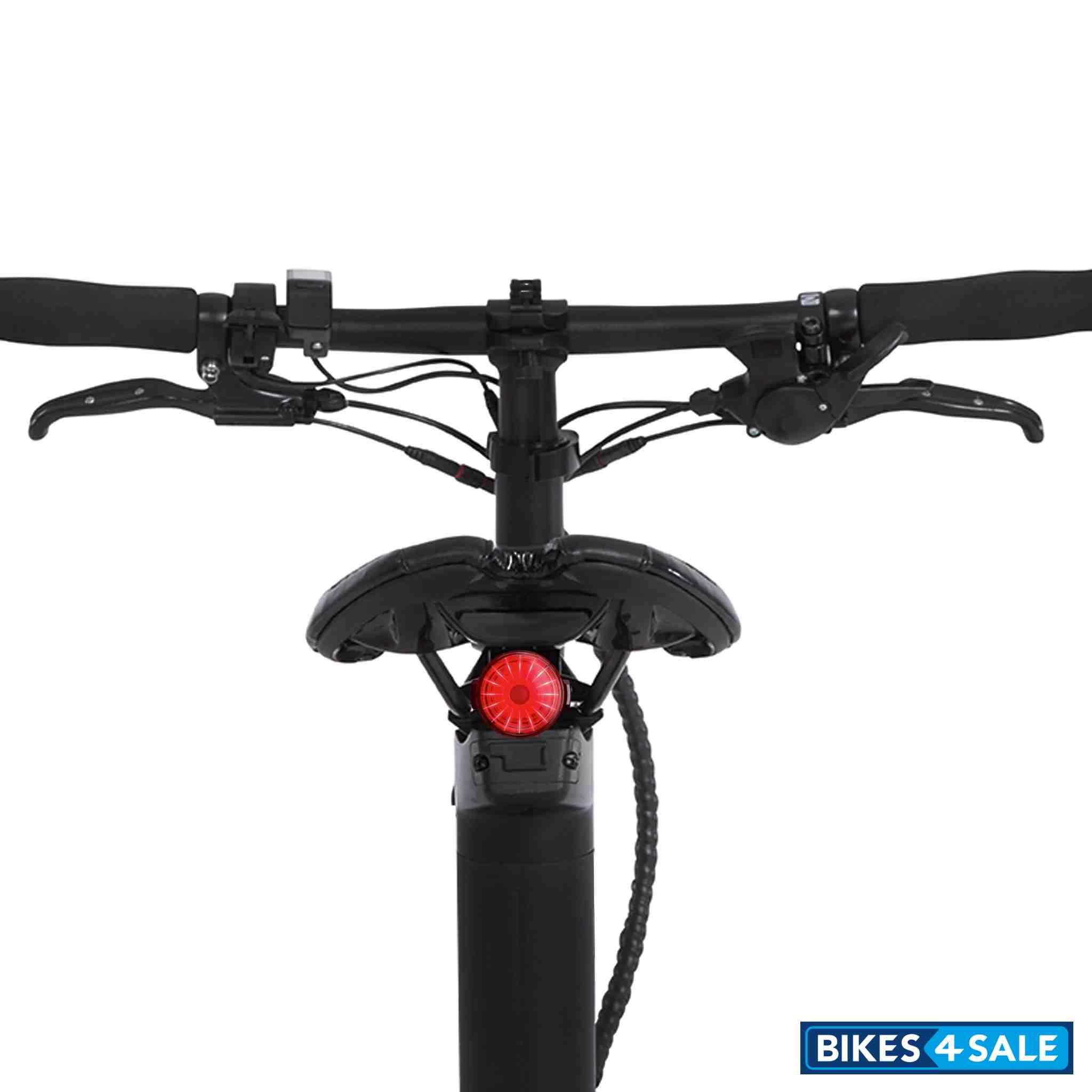

Tail LampExternal
Brakes

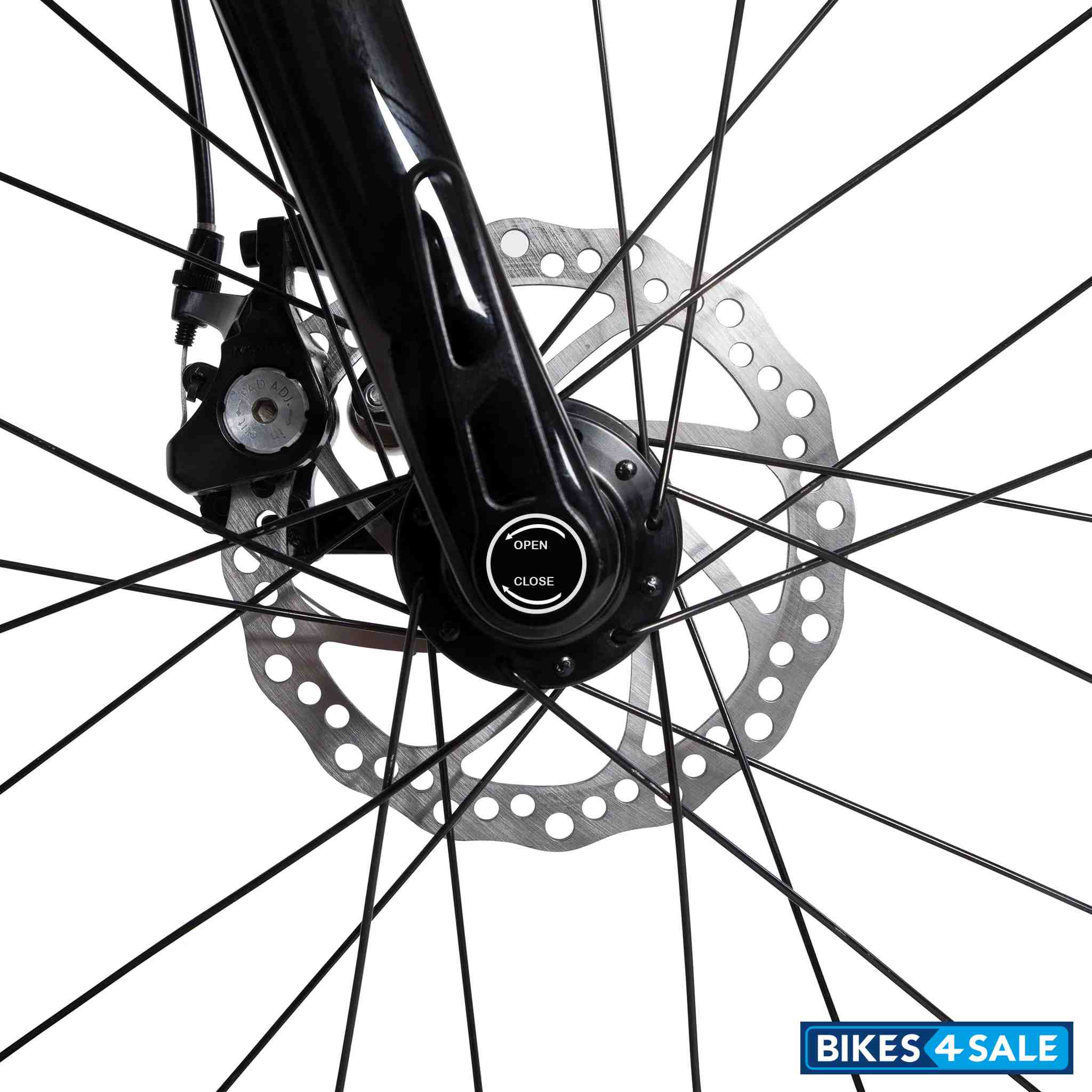

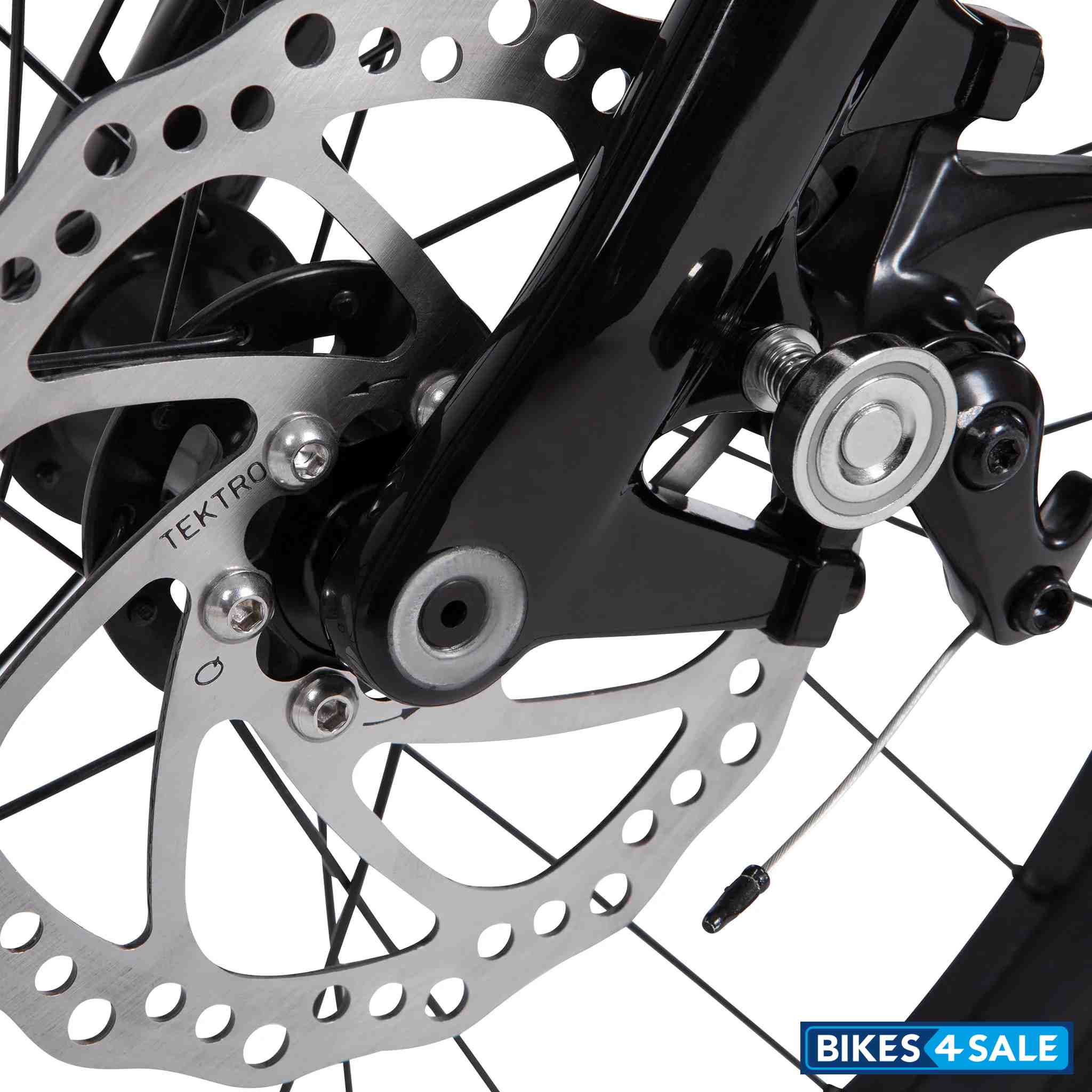

Front BrakeTektro HD-E350 Hydraulic Disc
Rear BrakeTektro HD-E350 Hydraulic Disc
Chassis and Suspension

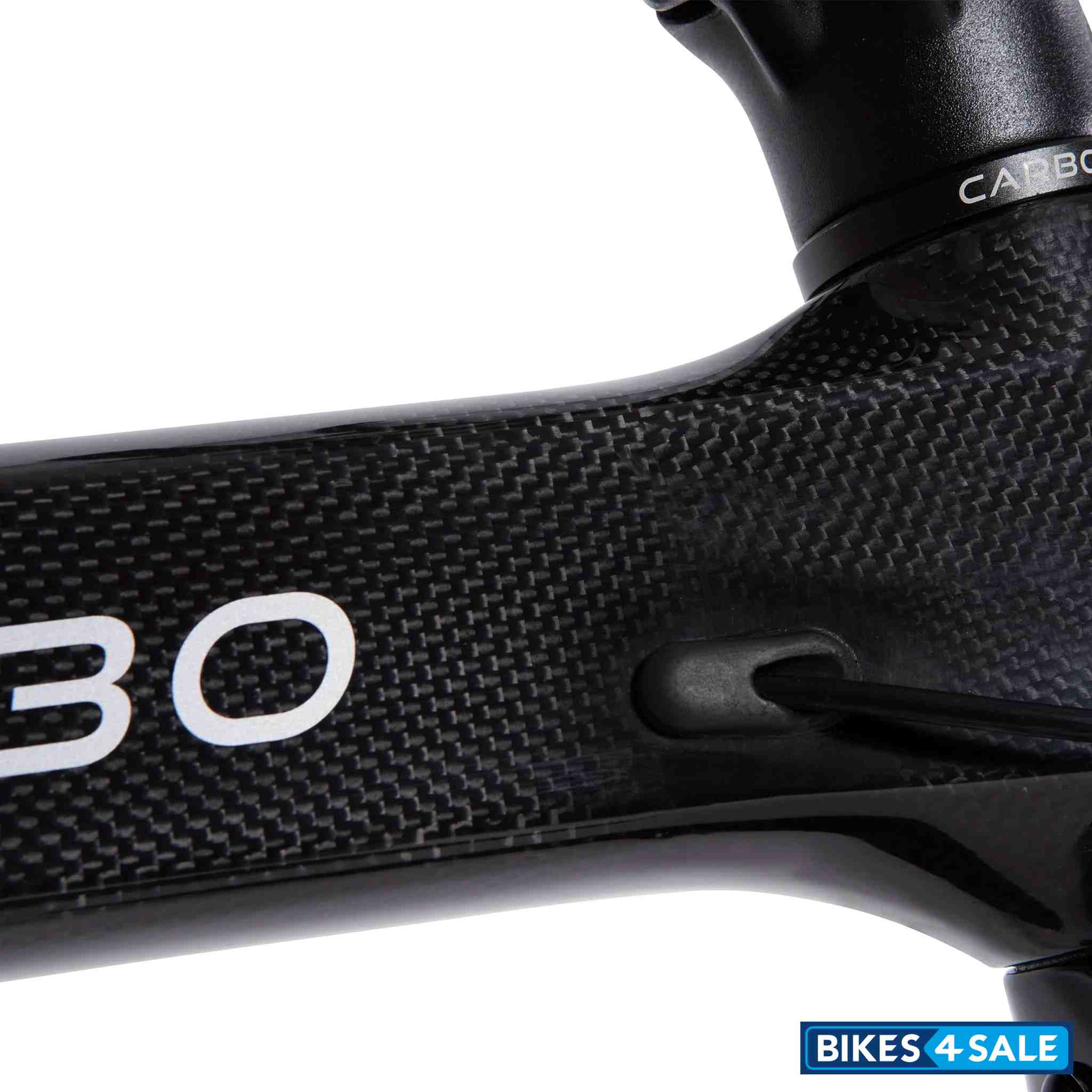

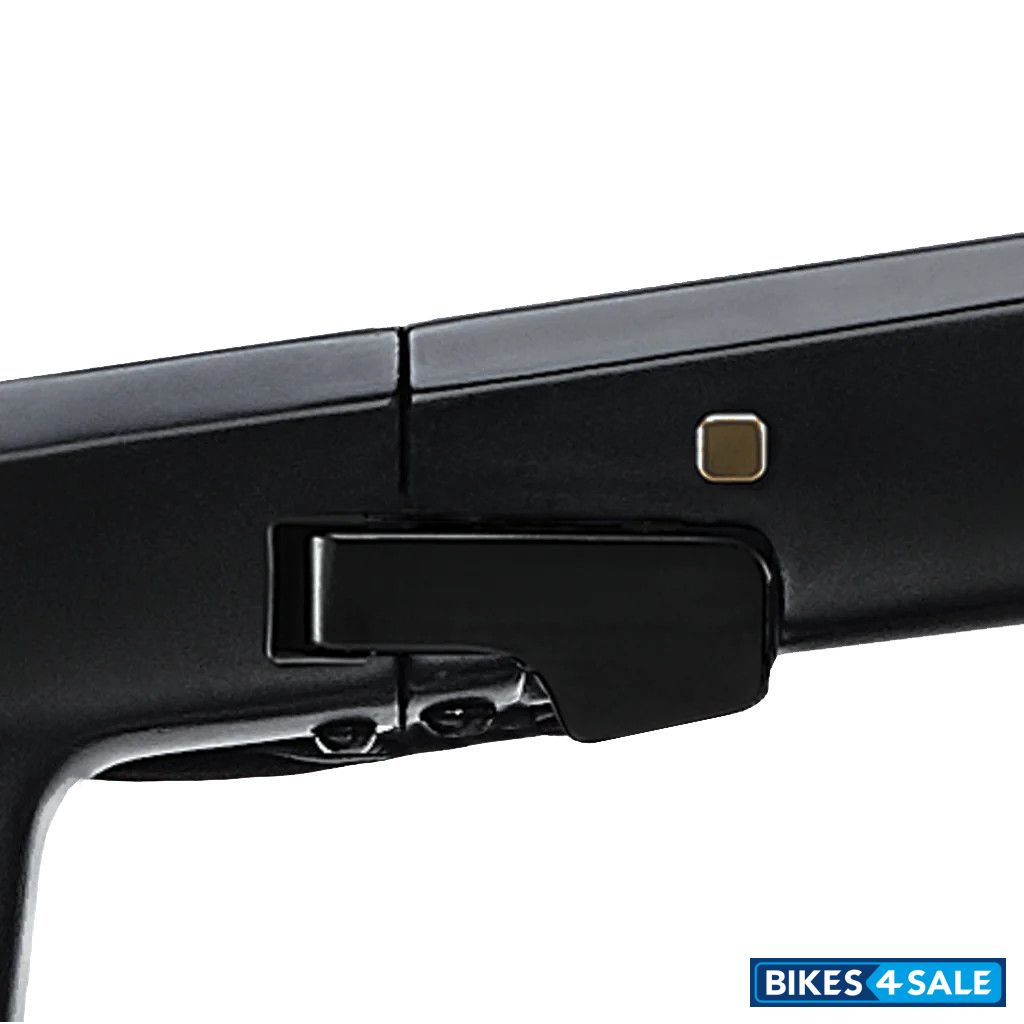

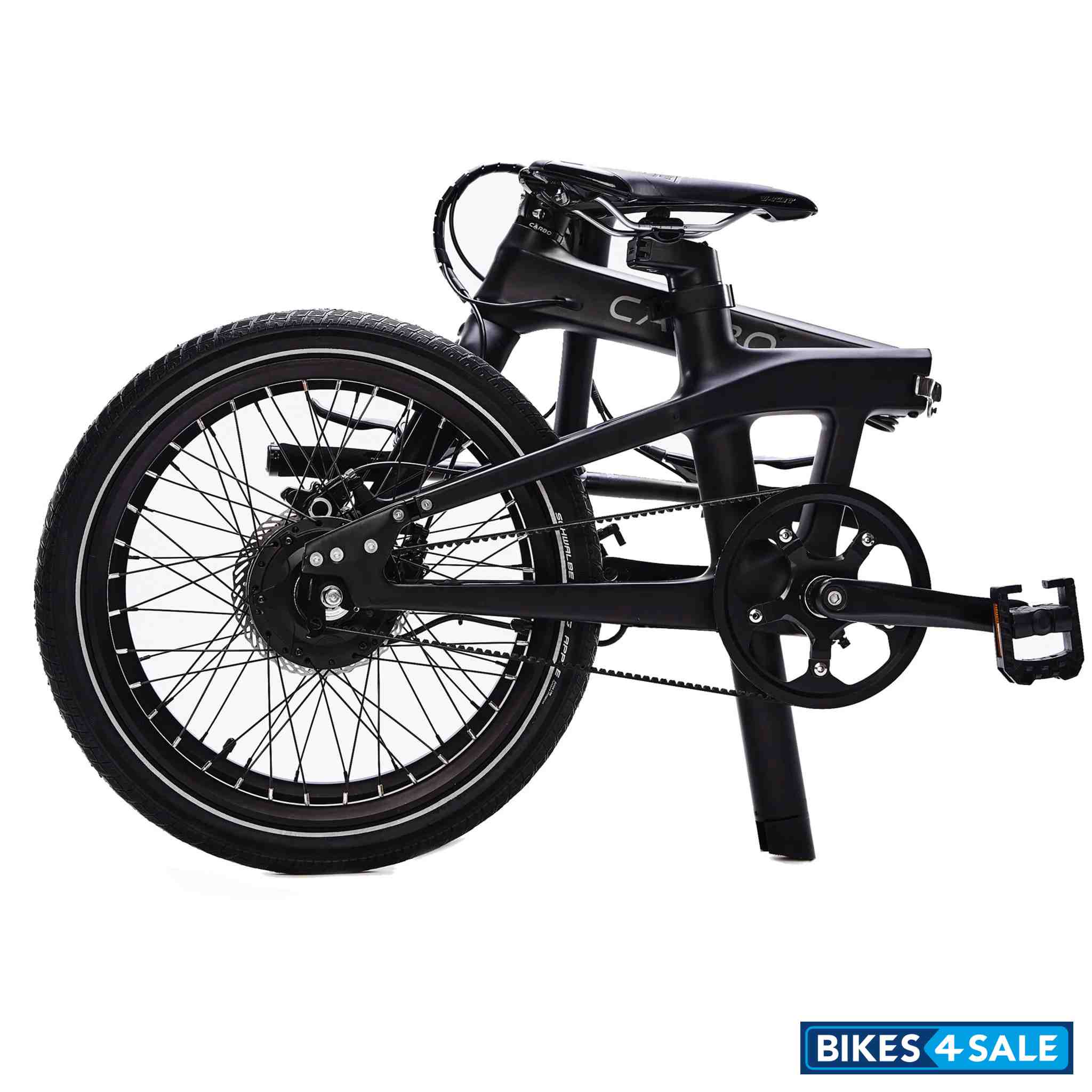

FrameToray Premium Carbon (folding)
Tyres
Wheels / Rim36H Wheels
Front TyreSchwalbe Big Apple / 20 x 2.0 / 36H / E-bike rated
Rear TyreSchwalbe Big Apple / 20 x 2.0 / 36H / E-bike rated
Dimensions
Weight13.3 kg
Additional Details
Throttle: Optional thumb throttle / Right or Left side mountable
Wiring: Quick Connect / Stainless Steel lock-ring / Water proof
PBS and Aluminum mudguard available as an add-on
Aluminum Rack available as an add-on
Vehicle Warranty
5 years coverage on the carbon frame & 2 years on all electric components including the battery
