CFMoto Cforce 520 L ATV

Price, features and specs

Rate CFMoto Cforce 520 L:
3.8/5 (4 votes)
CFMoto Cforce 520 L Price

Not Available

- Handguards, and interchangeable luggage racks with the CF-CONNECT quick-release system add comfort and convenience for longer rides and tougher tasks.
- Remote-control 2500-lb winch and an array of available accessories make the CFORCE 520 an ideal machine to outfit for your adventure.
- Lighter steering force
- 10 inches of ground clearance independent double A-arm suspension with adjustable shocks
- 5 inch digital display and full screen backlight for all-day charity
- Lowest vibration in class
- Ridevision LED Lights
- Foam seats
- More fuel capacity

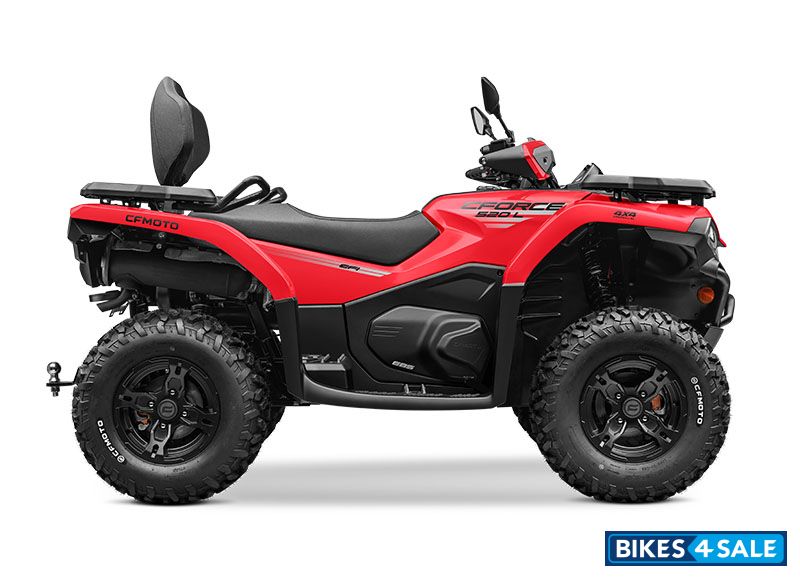

Force Red
Lava Orange

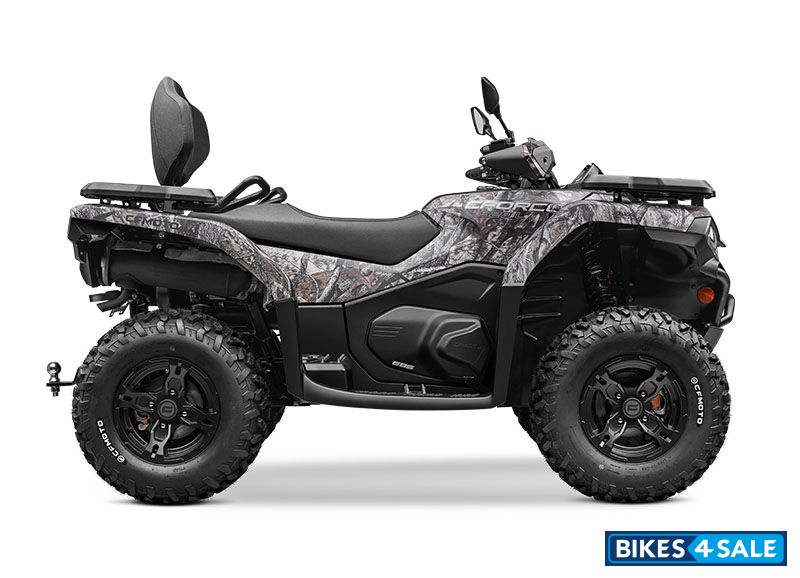

True Timber Camo

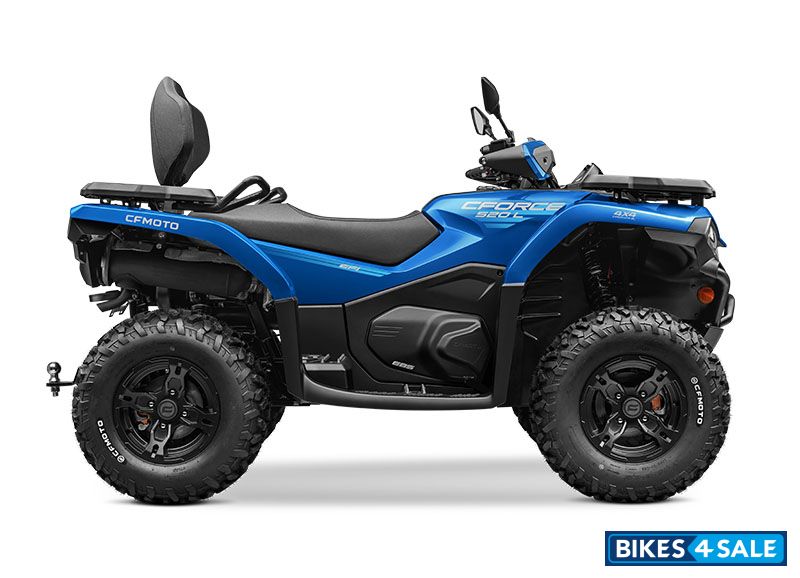

Sky Blue

Technical Specifications
Vehicle TypeATV
Engine Displacement495.00 cc
Engine DetailsSingle-cylinder,4-stroke,SOHC,4-Valve
Engine StartingElectric
Bore x Stroke91mm x 76.5mm
Fuel SystemEFI
Cooling SystemLiquid cooled
Maximum Power34 HP
Maximum Torque39 NM
Drivetrain2WD/4WD/Front differential lock
5 inch digital display and full screen backlight for all-day charity
Head LampLED
Front BrakeFront wheel hydraulic disc +
central axle parking
Chassis and Suspension
Front SuspensionDouble A-arm,
Independent suspension
Rear SuspensionDouble A-arm,
Independent suspension
Wheels / RimFront:12×6.0
Rear: 12×7.5
Front TyreAT25×8.00-12
Rear TyreAT25×10.00-12
Length2386 mm
Width1125 mm
Height1217 mm
Wheelbase1460 mm
Weight240 kg
Kerb Weight365 kg
Ground Clearance262 mm
Fuel Tank Capacity17 litres
Additional Details
Shock Absorber : preload adjustable with oil shock
