CSC XP750-20 Gen-3 Fat Tire E-Bike Bicycle: Price, Review, Specs and Features

Price, review, features and specs

Rate CSC XP750-20 Gen-3 Fat Tire E-Bike:

3.8/5 (4 votes)

Add To Compare
Write a Review

CSC XP750-20 Gen-3 Fat Tire E-Bike Price $ 1768 [Albuquerque, United States]

The given price can change depending on the colour, accessories and other features.

View price in other cities

Buy new CSC XP750-20 Gen-3 Fat Tire E-Bike

Book a Test Drive through Bikes4Sale and we will try to get you the best offer for CSC XP750-20 Gen-3 Fat Tire E-Bike.

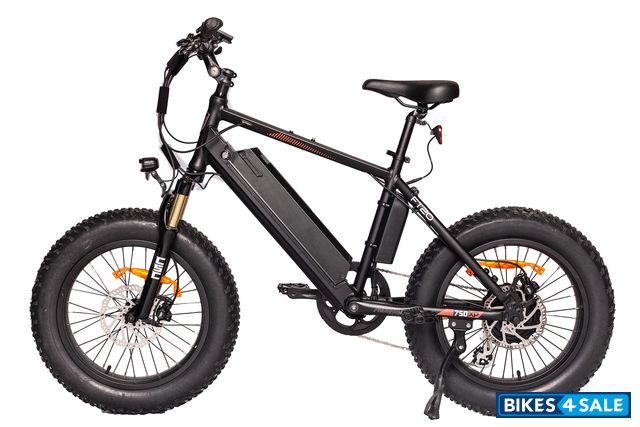

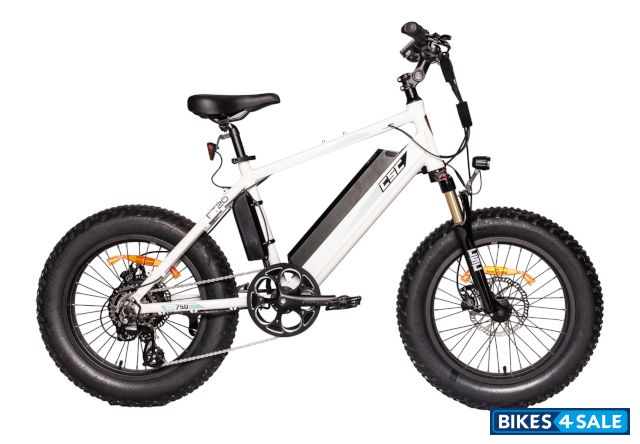

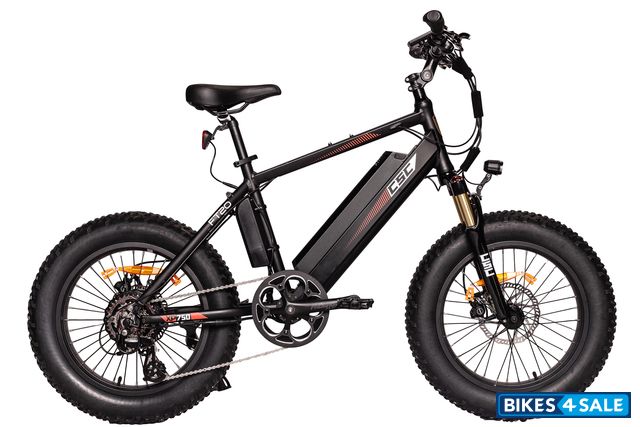

Picture Gallery

Features

- Lockable Battery

Similar Bicycles

Beta eKinder Race 20 Compare

Beta eKinder Race 18 Compare

Beta ekinder Race 16 Compare

Canyon Grail CFR Di2 Compare

Trek Checkpoint SLR 9 AXS Compare

Trek Fuel EXe 9.9 XX AXS T-Type Compare

Colours

Black
White

1331 W Foothill Blvd, Azusa, United States

More Dealers

View all CSC Showrooms

Technical Specifications

Vehicle Type	Bicycle
Fuel	Electric
Maximum Torque	37 lb-ft (80 Newton meters)
Load Carrying Capacity	Max Weight Capacity : 264 pounds
Top Speed	45 kmph
Stem	0°-60° Adjustable angle steering stem
Handlebar	6061 aluminum alloy
Fork	Aluminum alloy, gold-anodized tubes
Seat	Ergonomic saddle with drop-channel:
Crankset	Aluminum alloy, 170 mm length, 48 tooth
Pedals	Aluminum alloy pedal (black)
Pedal Assist System - PAS	Five assist levels, 1:1 cadence pedal assistance
Gear	Shimano 7-speed (DMP 11- to 34- Freewheel gear set), Shimano Acera derailleur

Motor Details
750-watt Bafang geared hub

Range
25 to 45+ miles (dependent on usage)

Charging Time
6-8 hours

Display
Intelligent AP-7 Display

Electricals
Battery	Panasonic 18650 35E 3500mAH, lithium NCA (LiNiCoAlO2) Battery Specs : 48 volts, 16 amp-hours, 768 watt-hours
Charger	54.6V2A 100-240V input
Controller	Intelligent brushless 48V750W
Head Lamp	LED, 3-watt, with USB charger port
Tail Lamp	Dual LED, w/ Flashing Brake Lights

Brakes
Front Brake	Tektro hydraulic E-500 brakes, twin-opposed-piston calipers Brake Rotors : 7.1-inch (180 mm) stainless steel discs
Rear Brake	Tektro hydraulic E-500 brakes, twin-opposed-piston calipers Brake Rotors : 7.1-inch (180 mm) stainless steel discs

Chassis and Suspension
Frame	Aluminum alloy, high-step type
Front Suspension	3.94 inches (100 mm) of travel, 8 levels of damping adjustment plus lockout, preload adjustable

Tyres
Wheels / Rim	20-inch double-wall aluminum alloy, stainless steel 12-gauge spokes
Front Tyre	Kenda, 20 x 4 inches
Rear Tyre	Kenda, 20 x 4 inches

Additional Details
Initiating Mode : Pedal-assist and thumb throttle Instruments : Color IPS 3.2 inch display, battery charge, speedometer, odometer, tripmeters, temperature, max speed, average speed, battery voltage, PAS level

Vehicle Warranty
12 months
