CUBE Kathmandu Hybrid ABS 750

Price, review, features and specs

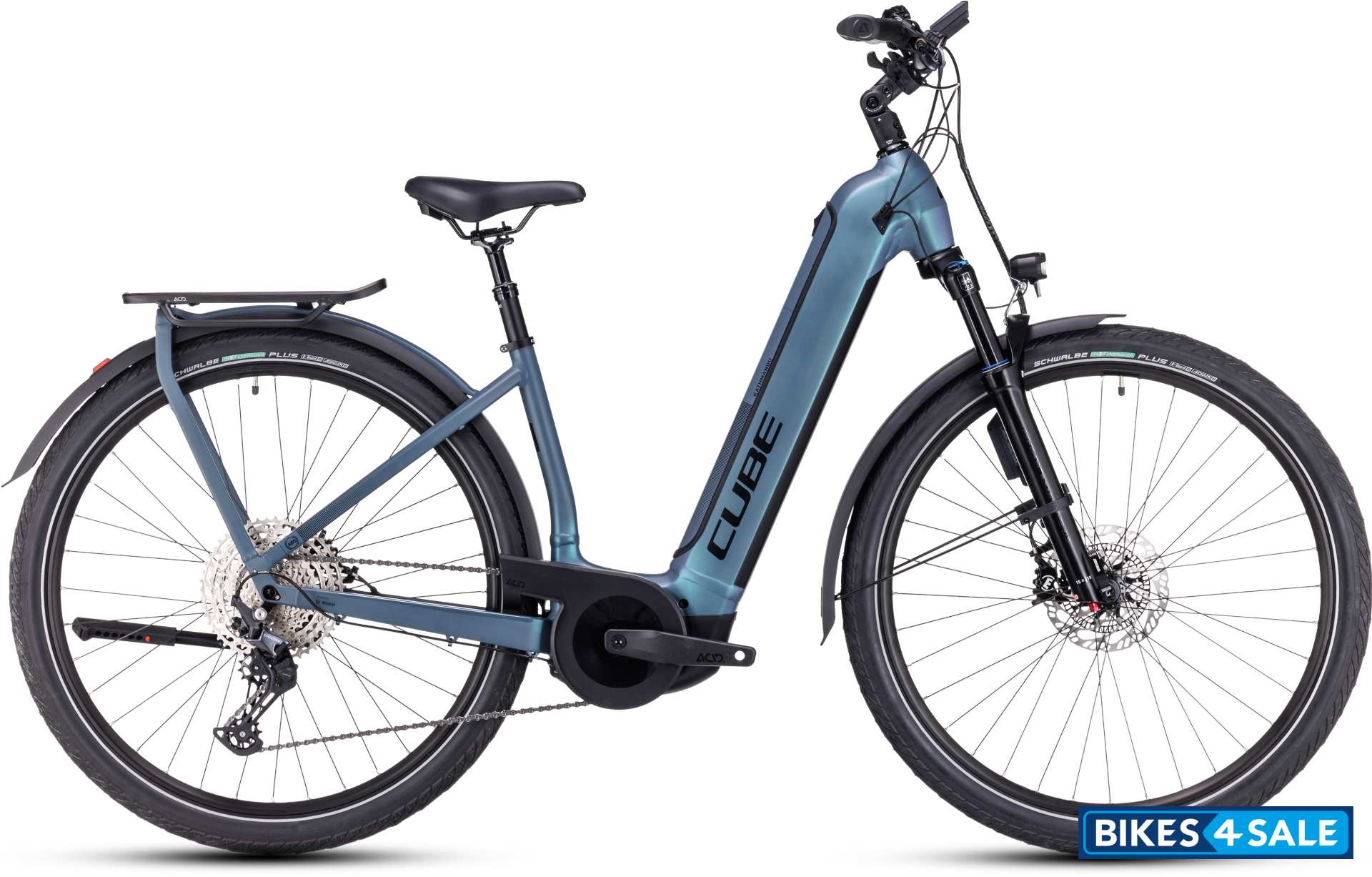

The CUBE Kathmandu Hybrid ABS 750 is an electric bicycle with an aluminium frame that features Gravity Casting Technology and Efficient Comfort Geometry. The frame also has Boost148 technology for increased stability and is equipped with a fully integrated battery and Integrated Carrier 3.0 for added convenience. The bicycle also has Advanced Internal Cable Routing and a 1.5 Headtube (EE: Tapered Headtube) for a clean and sleek appearance.

The maximum power of the motor is 250 watts, and it has a maximum torque of 85 Nm. The stem is a CUBE Comfort Stem Pro, which is adjustable, and the handlebar is a CUBE Comfort Trail Bar, 700mm. The fork is an SR Suntour Mobie 35 EQ Air with ABS technology, Tapered, 15x110mm, and 100mm travel. The seatpost is a CUBE Suspension Seatpost HD with a 30.9mm diameter, and the grip is an ACID Travel Comfort.

The crankset is an ACID E-Crank, 40T, and 175mm (EE: 170mm) in length, and the pedals are ACID PP Trekking. The chain is a Shimano CN-M6100, and the shifters are Shimano Deore SL-M6100-IR, Direct Attach. The saddle is a Natural Fit Sequence Comfort, and the headset is M/Z: ACROS AZF-1035, ICR (Integrated Cable Routing), BlockLock 120°, Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm) // EE: ACROS AZX-1040, BlockLock 135°, Top Zero-Stack 1 1/8" (ZS 44mm), Bottom Zero-Stack 1 1/2" (ZS 56mm).

The rear derailleur is a Shimano Deore RD-M6100-SGS, ShadowPlus, 12-Speed, and the front hub is a Shimano HB-MT400-B, 15mm, Boost, Centerlock, while the rear hub is a Shimano FH-MT410-B, 12mm, Boost, Centerlock. The cassette is a Shimano Deore CS-M6100, 10-51T, and the bicycle comes with an ACID FM Pure Kickstand.

The motor is a Bosch Drive Unit Performance CX Generation 4 (85Nm) Cruise (250Watt), Smart System, and the display is a Bosch Kiox 300. The electricals include a Bosch PowerTube 750 battery and a Bosch 4A charger. The headlamp is a CUBE Shiny 50 Lux, 12V, DC, and the tail lamp is an ACID Mudguard Rear Light PRO-E, 12V, DC. The front brake is a Magura MT C ABS, Hydr. Disc Brake (180/180).

Rate CUBE Kathmandu Hybrid ABS 750:
4.0/5 (3 votes)
Add To Compare
Write a Review
CUBE Kathmandu Hybrid ABS 750 Price $ 4899 [Los Angeles, United States]

The given price can change depending on the colour, accessories and other features.

Country, City Showroom Price On Road Price
United States, Los Angeles $ 4899 --
Buy new CUBE Kathmandu Hybrid ABS 750

Book a Test Drive through Bikes4Sale and we will try to get you the best offer for CUBE Kathmandu Hybrid ABS 750.

For Exciting Offers, Book a Test Drive
By submitting, you agree to our Terms & Conditions.
2451
Features
- Efficient Comfort Geometry
- Fully Integrated Battery system
- Gravity Casting
- Boost 148 rear hub standard
- Integrated Carrier 3.0
- ABS System

Cube Kathmandu Hybrid Abs 750

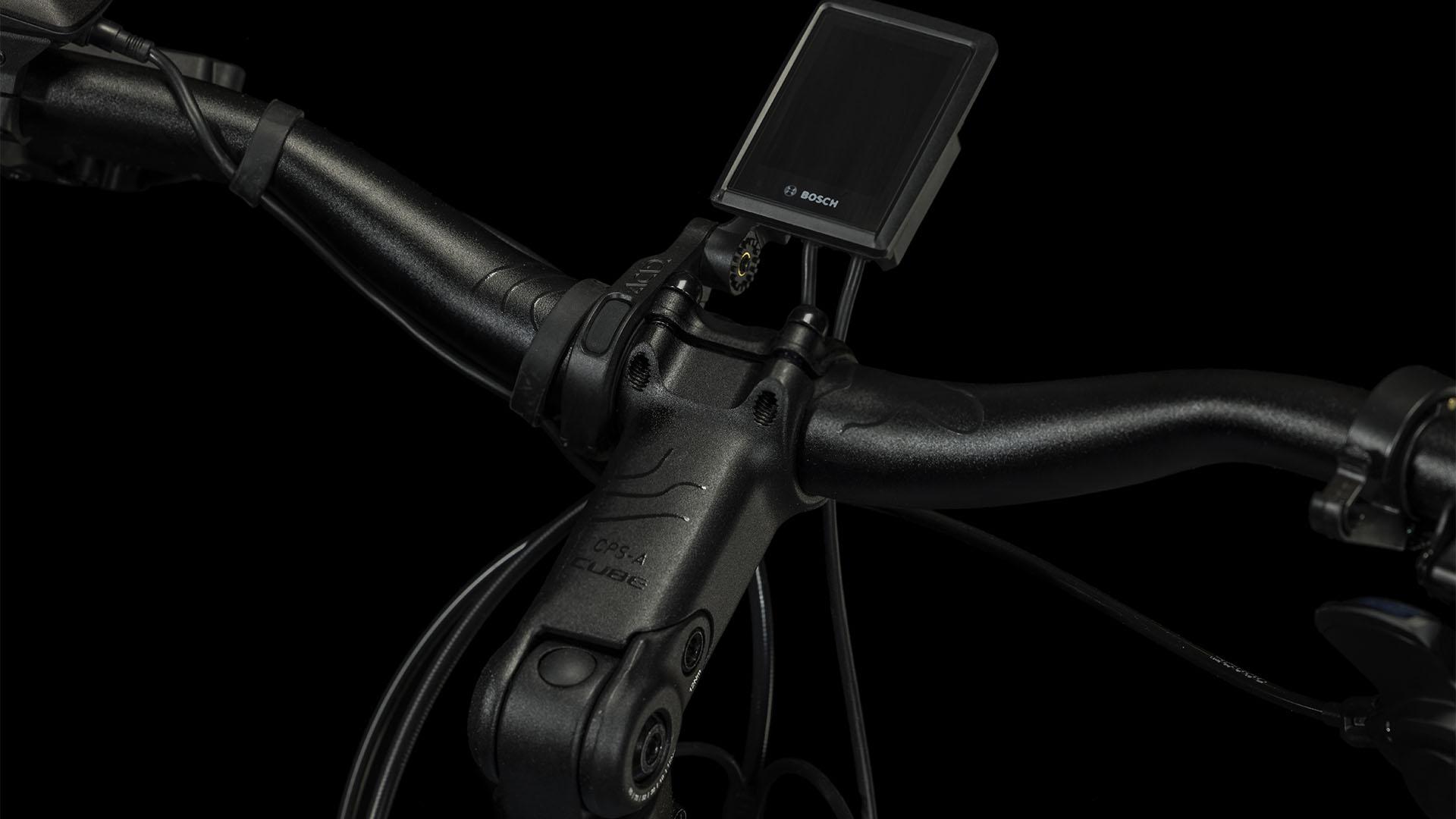

Easy-to-read splash-proof and dust-proof color Display

Cube Kathmandu Hybrid Abs 750

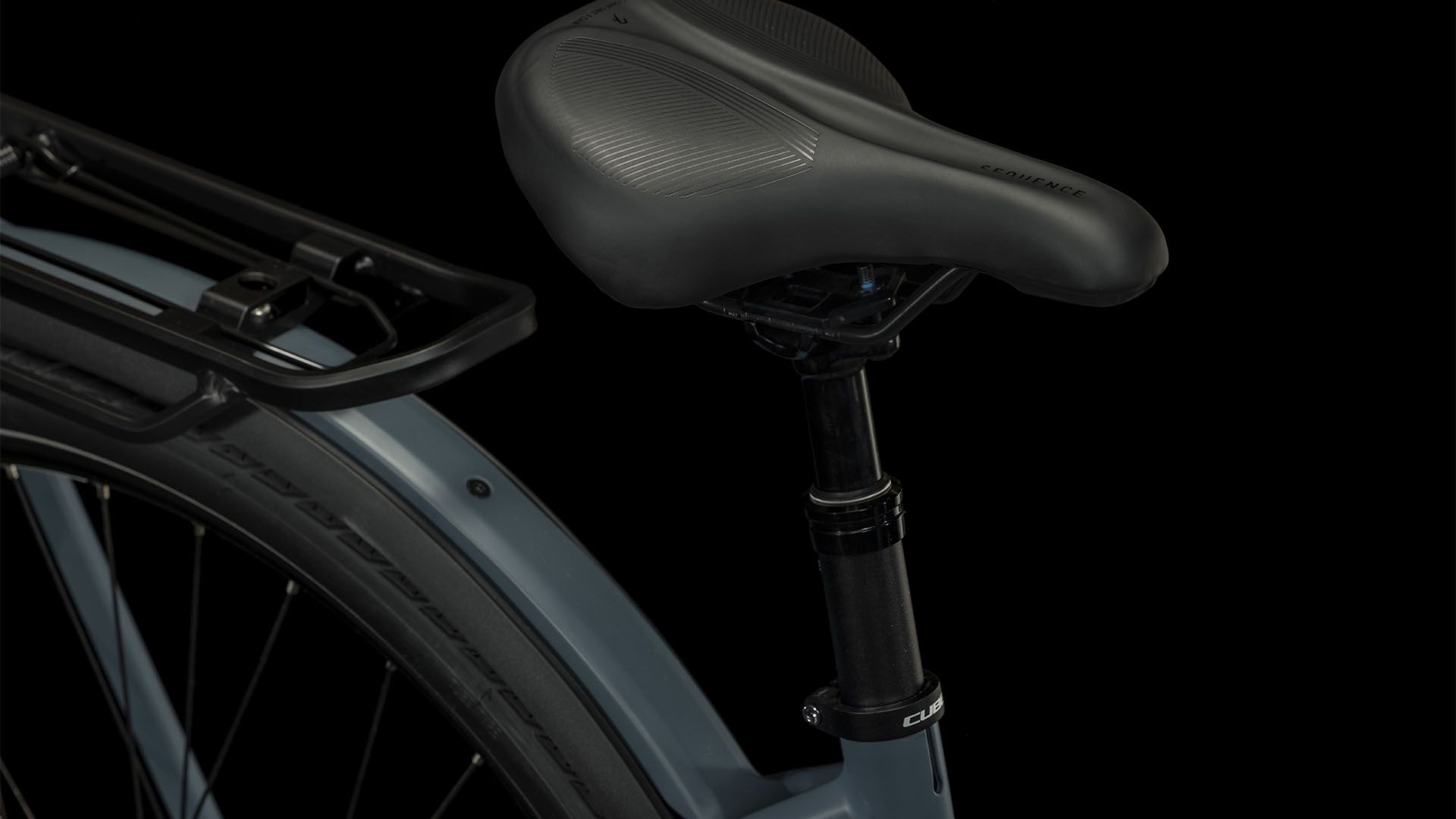

Natural Fit Sequence Comfort Saddle

Cube Kathmandu Hybrid Abs 750

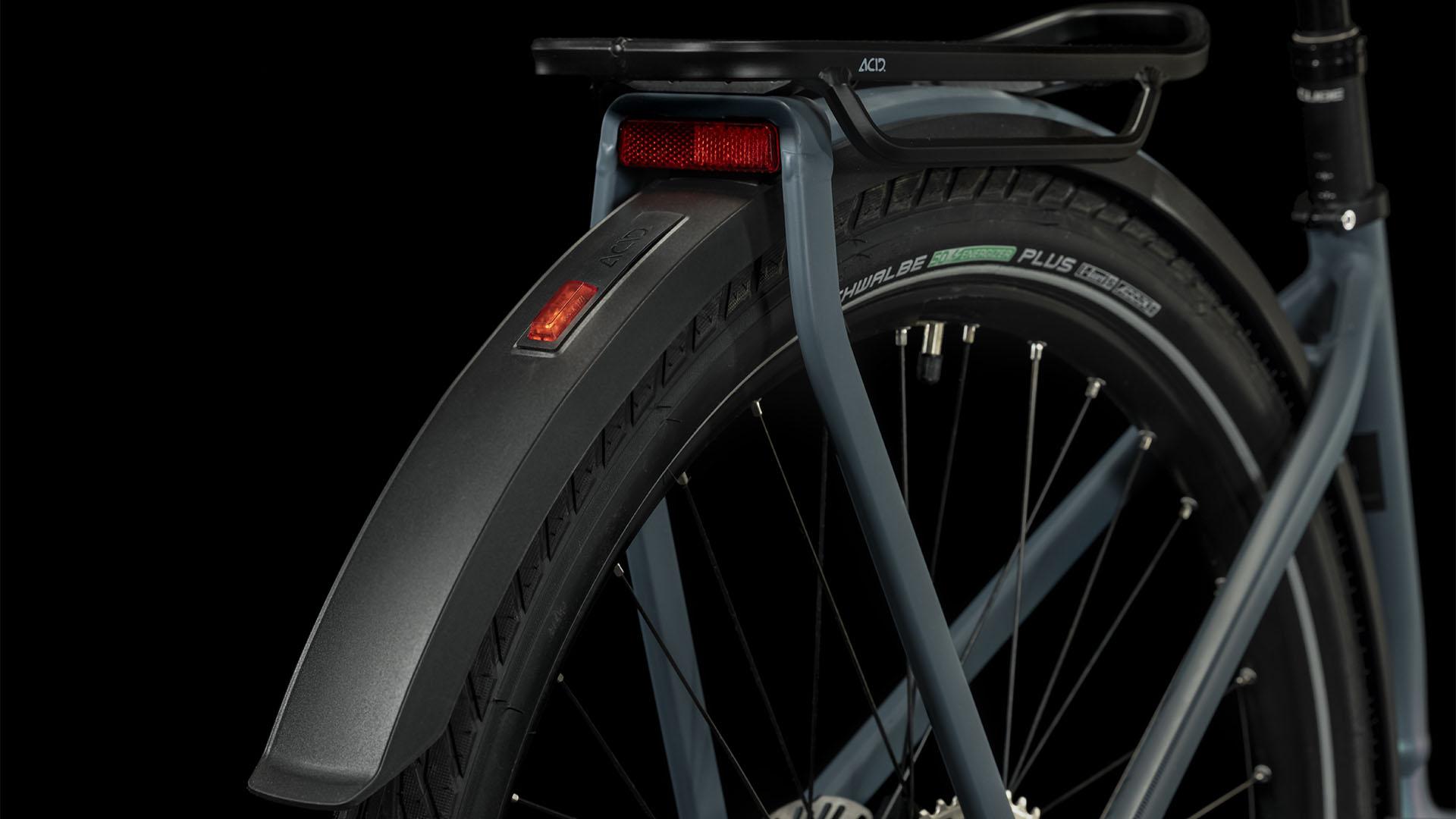

Integrated Carrier 3.0
Similar Bicycles
Colours

Smaragdgrey´n´blue

Technical Specifications
Vehicle TypeBicycle
FuelElectric
Maximum Power250Watt
Maximum Torque85Nm
StemCUBE Comfort Stem Pro, 31.8mm, Adjustable
HandlebarCUBE Comfort Trail Bar, 700mm
ForkSR Suntour Mobie 35 EQ Air, ABS, Tapered, 15x110mm, 100mm
SeatpostCUBE Suspension Seatpost HD, 30.9mm
GripACID Travel Comfort
CranksetACID E-Crank, 40T, 175mm (EE: 170mm)
PedalsACID PP Trekking
ChainShimano CN-M6100
ShiftersShimano Deore SL-M6100-IR, Direct Attach
SaddleNatural Fit Sequence Comfort
HeadsetM/Z: ACROS AZF-1035, ICR (Integrated Cable Routing), BlockLock 120°, Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm) // EE: ACROS AZX-1040, BlockLock 135°, Top Zero-Stack 1 1/8" (ZS 44mm), Bottom Zero-Stack 1 1/2" (ZS 56mm)
Derailleur : RearShimano Deore RD-M6100-SGS, ShadowPlus, 12-Speed
Hub : FrontShimano HB-MT400-B, 15mm, Boost, Centerlock
Hub : RearShimano FH-MT410-B, 12mm, Boost, Centerlock
CassetteShimano Deore CS-M6100, 10-51T
StandACID FM Pure Kickstand
Motor Details
Bosch Drive Unit Performance CX Generation 4 (85Nm) Cruise (250Watt), Smart System
Display
Bosch Kiox 300
Electricals
BatteryBosch PowerTube 750
ChargerBosch 4A
Head LampCUBE Shiny 50 Lux, 12V, DC
Tail LampACID Mudguard Rear Light PRO-E, 12V, DC
Brakes
Front BrakeMagura MT C ABS, Hydr. Disc Brake (180/180)
Chassis and Suspension
FrameAluminium Superlite, Gravity Casting Technology, Efficient Comfort Geometry, Boost148, Fully Integrated Battery, Integrated Carrier 3.0, Advanced Internal Cable Routing, 1.5 Headtube (EE: Tapered Headtube)
Tyres
Wheels / RimRims: CUBE EX23, 36H, Disc, Tubeless Ready
Front TyreSchwalbe Energizer Plus, Performance, Green Guard, 55-622
Rear TyreSchwalbe Energizer Plus, Performance, Green Guard, 55-622
Dimensions
Weight27.6 kg
Additional Details
Size: Men: S (50cm), M (54cm), L (58cm), XL (62cm); Trapeze: S (50cm), M (54cm); Easy Entry: XS (46cm), S (50cm), M (54cm), L (58cm)
Remote: Bosch LED Remote
Mudguards: ACID 65 Integrated Carrier 3.0
Carrier ; ACID Integrated Carrier 3.0, CUBE Adapter Compatible
