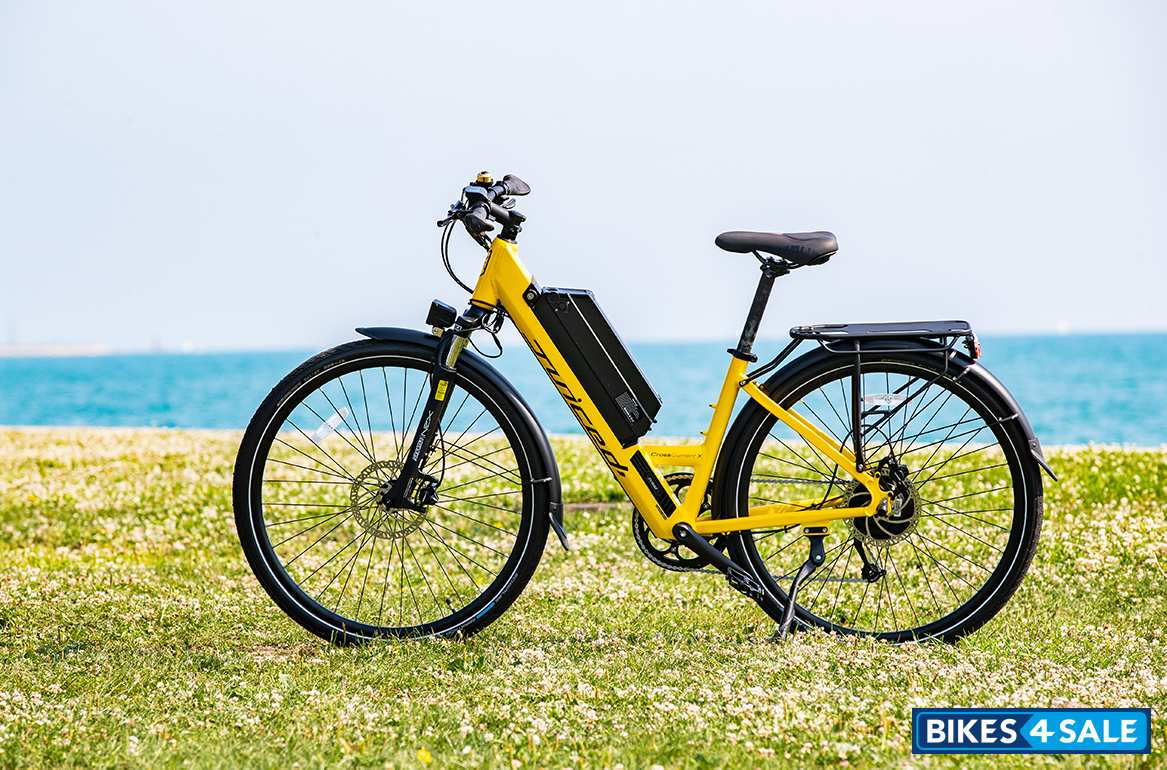

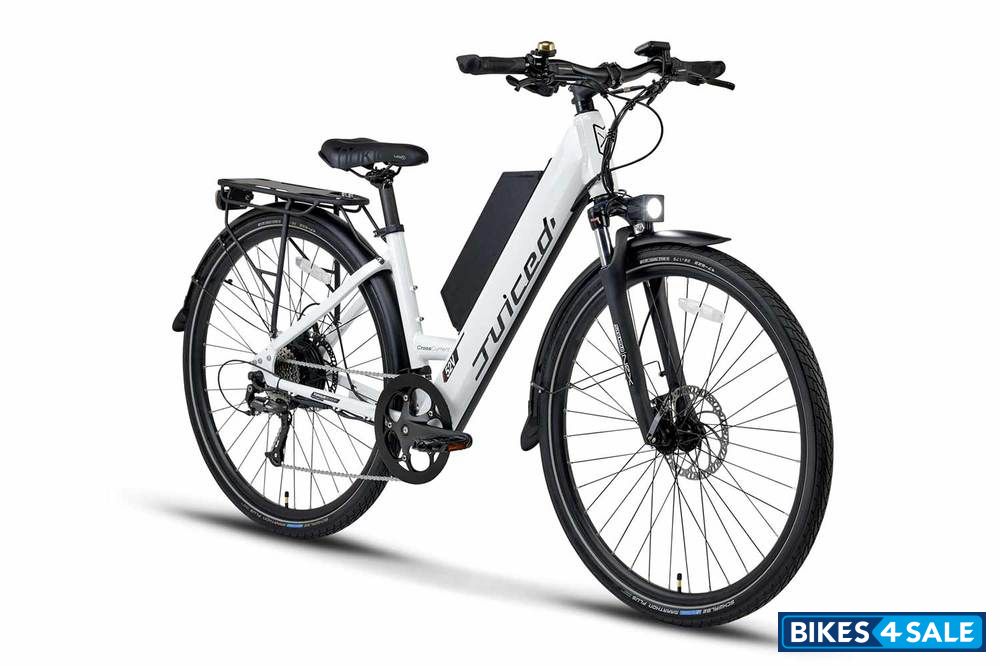

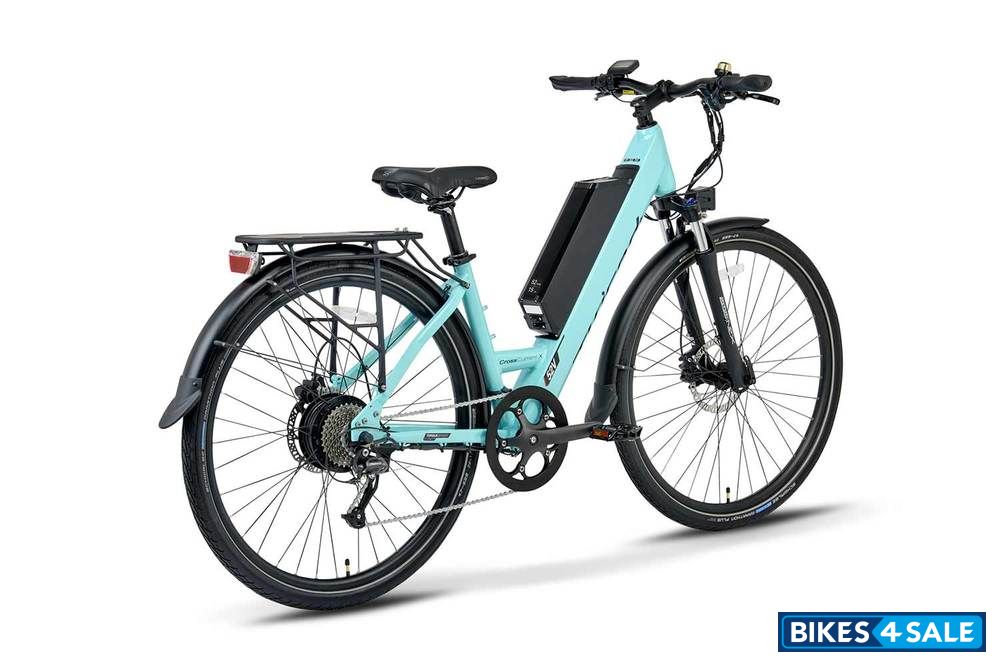

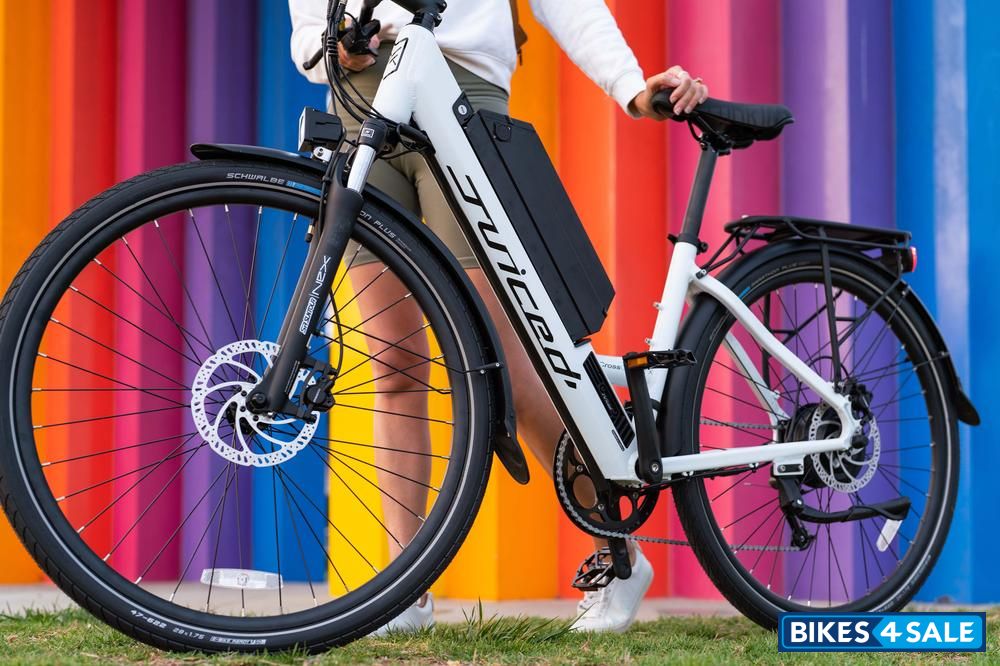

Juiced Bikes CrossCurrent X Step-Through Electric Bicycle

Price, features and specs

Rate Juiced Bikes CrossCurrent X Step-Through:
4.0/5 (2 votes)
Juiced Bikes CrossCurrent X Step-Through Price $ 2199 [Albuquerque, United States]

The given price can change depending on the colour, accessories and other features.

Country, City Showroom Price On Road Price
United States, Albuquerque $ 2199 --
United States, Anchorage $ 2199 --
United States, Atlanta $ 2199 --
United States, Austin $ 2199 --
United States, Baltimore $ 2199 --
United States, Billings $ 2199 --
United States, Birmingham $ 2199 --
United States, Boston $ 2199 --
United States, Bridgeport $ 2199 --
United States, Burlington $ 2199 --
View price in other cities
Buy new Juiced Bikes CrossCurrent X Step-Through

Book a Test Drive through Bikes4Sale and we will try to get you the best offer for Juiced Bikes CrossCurrent X Step-Through.

For Exciting Offers, Book a Test Drive
By submitting, you agree to our Terms & Conditions.
7772
Colours

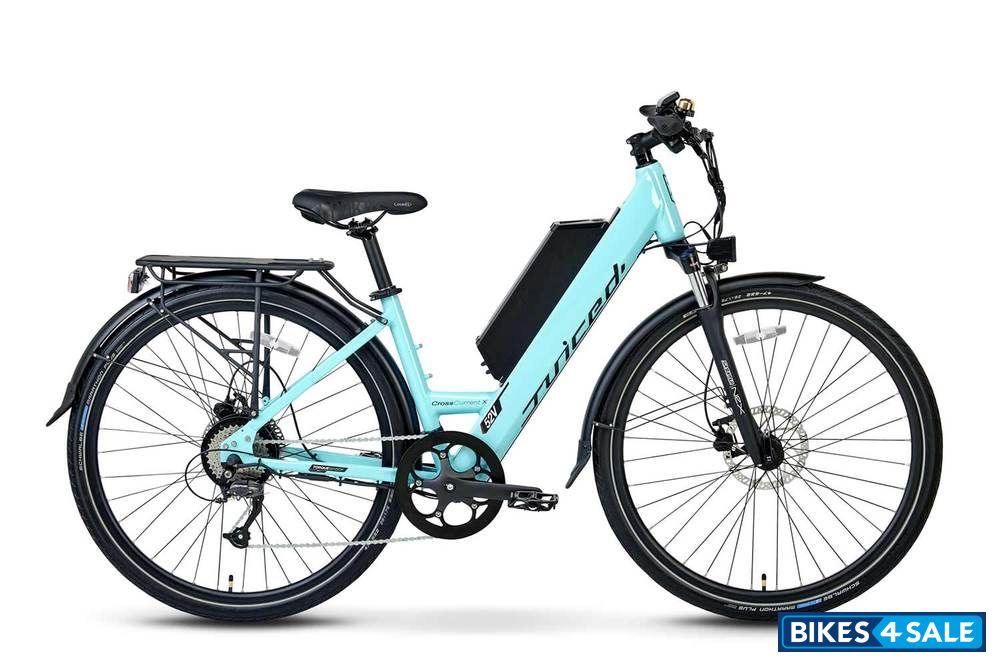

Beach Blue / Glossy

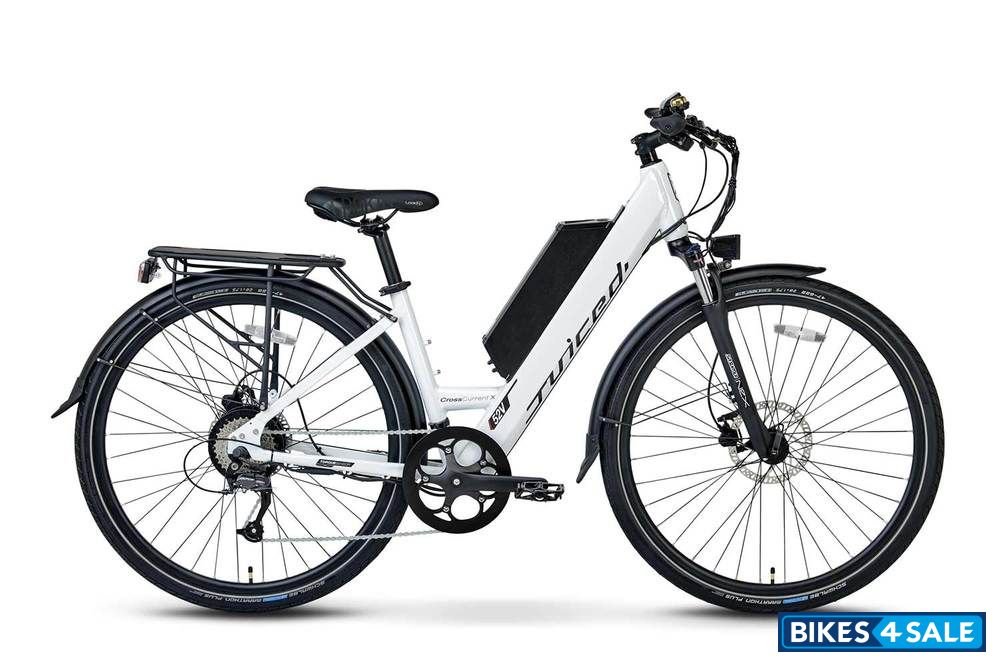

Arctic White / Glossy

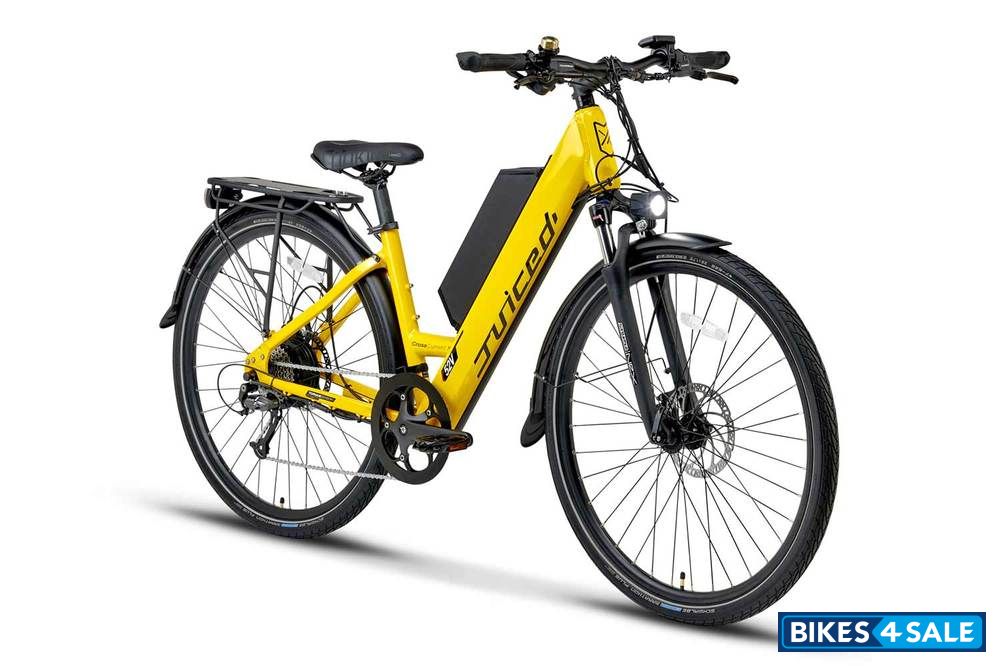

Yellow / Glossy

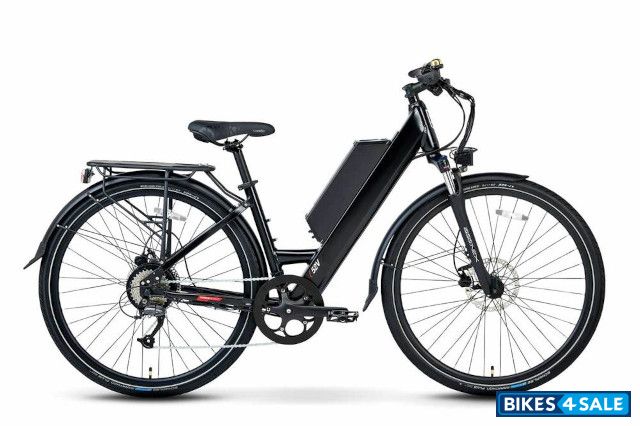

Black / Glossy

Technical Specifications
Vehicle TypeBicycle
FuelElectric
Maximum Power1300 Watts peak power @ 25A
Maximum Torque80 Nm
Load Carrying Capacity275 lbs (125 kg) total payload rating
TransmissionShimano Altus 9 Speed
11-32T | Cassette | Trigger shifter
Top Speed32 kmph
StemPromax Low Rise 680 mm Handlebar
Handle Bar: Promax Stem DA-247 | 80 mm +7 | DEG rise | 31.8 mm clamp
Stem: Promax Handle Bar | 680 mm width | 31.8 mm
ForkSuntour NCX Suspension Fork
Hydraulic lockout
Adjustable spring rate
1-1/8 Threadless
Fender stay mounts
Standard quick release
SeatSelle Royal | Lookin | Gel
SeatpostPromax 31.6 mm seat post diameter
Seat Post Clamp: Promax quick release seat post clamp
GripVelo | Ergonomic lock-on grips | Clamp Diameter 22.2 mm
PedalsPlatform Pedals
Wellgo B249DU
Polymer bearing
ChainKMC K99 BR
Rust Buster
9 Speed Compatible
122 Links
SpokeFront: 12G | Heavy Duty | Stainless | Black | 243 mm
Rear: 12G | Heavy Duty | Stainless | Black | 198 mm
ChainringsPro Wheel 52T
Crank Length: Aluminum CNC | 170 mm
Outside and Inside chain guide
Inside chain catcher to eliminate chain drops
Bottom BracketNeco B910
Axle Length: 164
BB Length: 100 mm
Taper: English Square
Motor Details
750 Watts / Bafang
5:1 Geared hub motor for higher torque output
290 RPM Super high speed winding
Low-drag freewheeling clutch
Shimano cassette standard
Display
LCD Matrix Display
Matrix Display with 120 x 64 Pixels
Customized interface with 3-button layout
7 Levels assist: 0, ECO, 1, 2, 3, SPORT (28 mph), RACE (Unlimited)
Basic and Advanced display modes
Water resistant IP65
Backlit illuminated display
5 Pin quick-connect cable with brass lock-ring
Push button start up
Electricals
Battery52V / 15 Ah Extended Range Battery
52 Volts system (14S6P Configuration)
777 Wh Capacity
LG Chem (Korea)
45 Amp high rate BMS
84 Cells / 18650 Type
Custom designed wide format inclosure
Lockable and removable from the bike
On-bike and off-bike charging capable
8 Amp charge capable
Charger52V / 2 Amps Standard Charger (included)
2 Amps max charge rate
3 Pin XLR Connector
UL Certified
On-bike and off-bike charging
52V / 4 Amps Turbo Charger (optional)
4 Amps max charge rate
3 Pin XLR Connector
UL Certified
On-bike and off-bike charging
Controller9 Transistor / 25 Amp Peak
Sine wave FOC
Customized tuning algorithm
Thermally managed
52V LED light output
Overboost function
Fully potted resistant construction
Cruise control function
Walk function
XT60 connectors
Firmware upgradable
Head LampFront LED Light (included)
1,050 Lum
CREE 7 Watt
10-60V input
Aluminum body design
Powered by main battery
Waterproof design IP69
Display controlled on/off function
Tail LampRear LED Light (included)
Rear LED taillight
Blinking and steady mode
Includes certified reflector
Batteries included
Brakes
Front Brake180 mm Tektro HD-E350 Hydraulic Disc or Logan HD-E500
Rear Brake180 mm Tektro HD-E350 Hydraulic Disc or Logan HD-E500
Chassis and Suspension
FrameSizes: Seat Tube Length
One Size Step-Through: 16.5” (41.9 cm)
6061 Aluminum Heat Treated Frame
Integrated & removable down-tube battery
Custom designed hidden cable channel system
CNC battery compartment
Integrated motor controller heat sink
Step-through frame design
Water bottle cage mount
Rear pannier rack mount
Fender stay mounts
Dual kickstand mounts
Rear SuspensionHardtail Configuration
Tyres
Wheels / RimDouble Walled Aluminum Alloy Rim
36 Hole 19mm inner wheel width
12G / 13G brass grommets
High pressure rim strip
Flat Black
Front TyreSchwalbe Marathon Plus
700C x 45C (45-622) | 28” x 1.75”
Achieves the highest level of puncture protection available
E-Bike Ready (ECE-R75) : Approved and tested for E-bikes up to 50 km/h
GreenGuard layer is 5 mm thick
"Anti-Aging" sidewall
Reflective sidewall strip for better visibility
40-70 PSI Recommended tire pressure
Bead: Wire (non-folding)
Tube: 700c x 45 | Schrader Valve
Rear TyreSchwalbe Marathon Plus
700C x 45C (45-622) | 28” x 1.75”
Achieves the highest level of puncture protection available
E-Bike Ready (ECE-R75) : Approved and tested for E-bikes up to 50 km/h
GreenGuard layer is 5 mm thick
"Anti-Aging" sidewall
Reflective sidewall strip for better visibility
40-70 PSI Recommended tire pressure
Bead: Wire (non-folding)
Tube: 700c x 45 | Schrader Valve
Accessories
Mud Guard Front and rear mud guards Included | Plastic | Flat black
Rear Rack
Custom Designed Rack (included)
Powder coated steel
Pannier rail
Light | Reflector holder
50 lb (25 kg) rack payload
Additional Details
Throttle Control
- Thumb Throttle (included)
- Right or left side mountable
- Throttle set to 20 mph per e-bike regulations
Pedal Sensors
- Advanced Torque and Cadence Dual Sensor
- Torque Sensor (included)
- Rear Drop-out frame-mounted strain gauge
- 1,000 samples per second
- Cadence Sensor (included)
- 104 poles per crank revolution (maximum)
- Digitally filtered output
Vehicle Warranty
1 Year Limited Warranty
