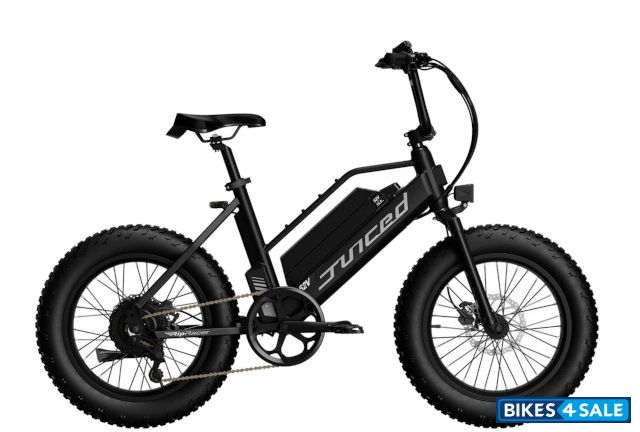

Juiced Bikes RipRacer Class 3

Price, review, features and specs

Rate Juiced Bikes RipRacer Class 3:
4.5/5 (2 votes)
Add To Compare
Write a Review
Juiced Bikes RipRacer Class 3 Price

Not Available

Buy new Juiced Bikes RipRacer Class 3

Book a Test Drive through Bikes4Sale and we will try to get you the best offer for Juiced Bikes RipRacer Class 3.

For Exciting Offers, Book a Test Drive
7232
Features
Key Features
- Units Switching- Triple press the Mode Button to Switch between MPH and KMH.
- Apple AirTag Compartment
- Half Length Twist Throttle

Assist System's Functions
- Throttle-Assist Boost
- Instantly add up to 1,295 Watts (25 Amps) of boost when pedaling and simultaneously holding down the throttle. TAB available in any assist setting from 0 mph up to 20 mph.
- Active Cruise Control Function
- Locks in any speed below 20 mph. Speed will be maintained without pedaling or using the throttle until: the brake is applied, pushing any button or giving additional throttle input. - Pedaling can increase the speed, but e-bike will return to the pre-set speed if pedaling stops.
- Walk Function
- Push-button throttle limited to 6 kmh to assist when pushing or walking bike.
- LED Head Light Control
- Turn on the LED headlight light from the display console. Option to allow the headlight always stay on.
- Display Backlight Control
- Turn on the display's backlight to see the screen at night. Option to allow the headlight to always stay on.
- Torque Sensor Deactivation Function
- Turn off the torque sensor signal. The pedal assist will only use the cadence sensor input.
- Speed Limiter
- Set the maximum speed limit of the throttle or pedal assist system.
- Assist Level Limiter
- Set the maximum assist level that can be selected: ECO, 1, 2, 3, Sport or Race
- Low Voltage Limiter
- Set the lowest voltage allowed by the electric drive system. Used to control how deeply the battery is allowed to discharge.
- Display Brightness Level
- Set the brightness level of the display
- Wheel Circumference Input
- Set the precise wheel circumference in mm.
- Race Track Mode
- Pedal assist is set to the most aggressive setting. The bike is not electronically speed limited. The top speed will be limited only by the power available to the motor. Use this setting on non-public roads only.
- Power Off Delay
- Set the inactivity duration before the bike automatically turns off

Advanced Display Screen Mode
- Toggle Advanced Display Mode to see following real-time metrics:
- Speed
- Trip Distance
- Volts
- Wh/mi Efficiency
- Amps
- Watts
- Controller Temperature
- Odometer
- Amp-Hours
- Watt-Hours
- Assist Level Setting

Battery Features
- IP65 water resistance
- Lockable power button to prevent unwanted tampering
- Fully concealed dual fuse compartment
- Programmable Battery Management System (BMS)
- Modular design for easy serviceability
- Backwards compatible with every 52V Juiced E-bike
Colours

Baja Blue / Glossy
Noir / Matte
Hi-Viz Yellow / Glossy

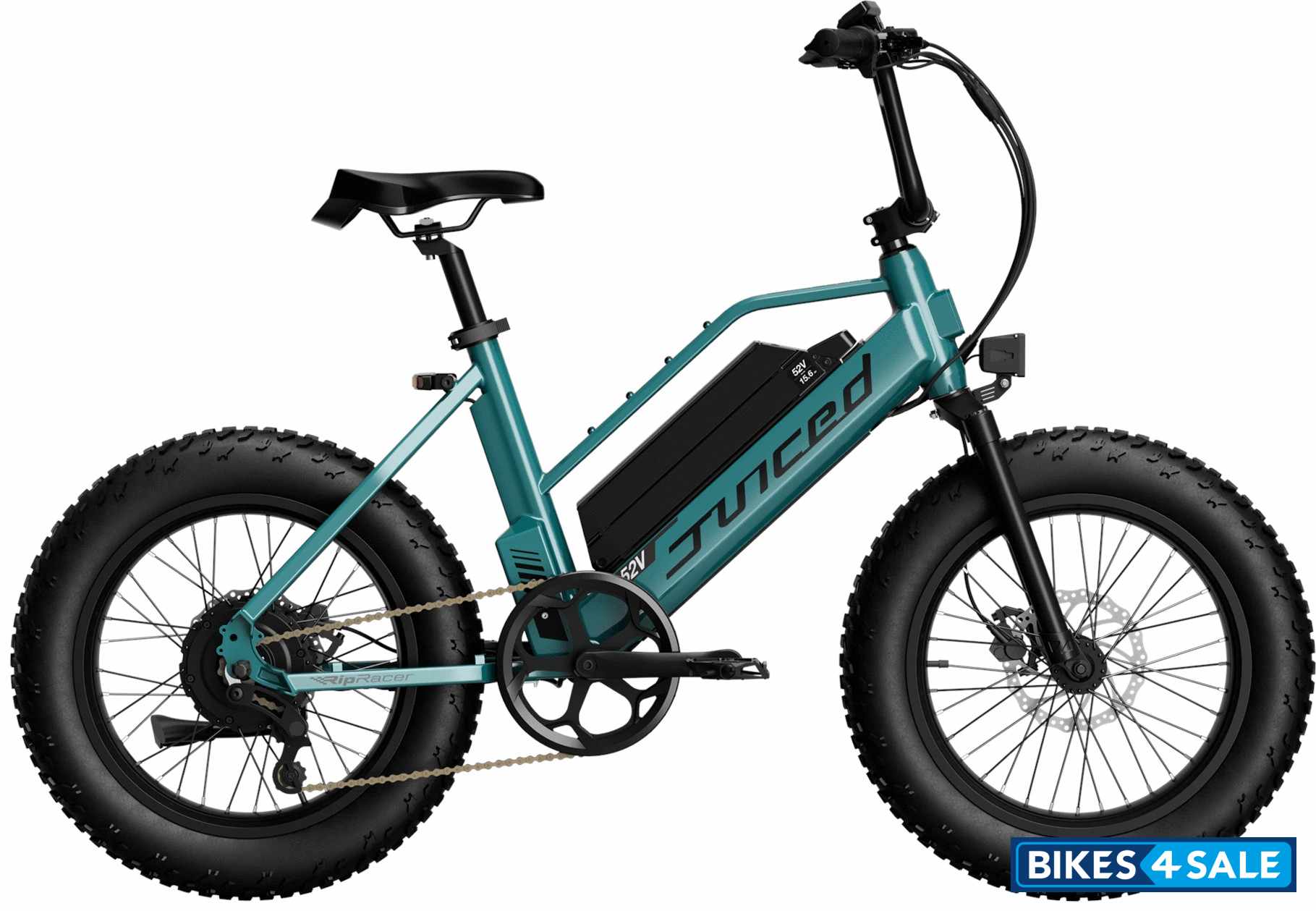

Mystic Green / Glossy

Technical Specifications
Vehicle TypeBicycle
FuelElectric
Maximum Power1300 Watts @ 25A
Maximum Torque80 N.m.
TransmissionSingle Speed
12T-52T High Ratio Gearing
Top Speed45 kmph
HandlebarCustom Designed BMX Style Handlebar
Clamp: 31.8 mm
Stem: 28.6 mm (1-1/8 Threadless )
Length: 40 mm
ForkBMX Style Aluminum Fork
20” Fat Tire
Threadless Type: 25.4 mm
Length: 425 mm
Dropout: 135 mm
SeatpostCustom Designed Seat
Integrated carry handle
Seat Post: 31.6 mm seat post diameter
Length: 30 mm
GripStandard Ergonomic Grip
Clamp Diameter 22.2 mm
Right: 135 mm
Left: 105 mm
Pedals9/16” Platform Pedals
Polymer bearing
ChainSingle Speed
Links: 98
Pitch: 1/2”
SpokeHeavy Duty Stainless
Front: 13G | Black
Rear: 12G | Black
ChainringsPro Wheel 52T
Crank Length: Aluminum CNC | 170 mm
Outside and Inside ABS chain guide
Bottom BracketXR-A01-2 Axle Length: 180 mm
BB Length: 120 mm
Taper: English Square
Motor Details
750 Watts
5:1 Geared hub motor for higher torque output
Low-drag freewheeling clutch
Display
LCD Advanced Matrix Display (W780)
Matrix Display with 120 x 64 Pixels
Customized interface with 3-button layout
7 Levels assist: 0, ECO, 1, 2, 3, SPORT (28 mph), RACE (Unlimited)
Basic and Advanced display modes
Water resistant IP65
Backlit illuminated display
5 Pin quick-connect cable with brass lock-ring
Push button start up
Electricals
Battery52 V / 15.6 Ah (G2 Dockable Battery)
Compatible with the PowerShift Docking System
Integrated Apple AirTag tracker compartment
Built in Battery LED level meter with charge status
35A continuous discharge Performance
Carry handle for easier transporting
Charger52V / 2 Amps Standard Charger (included)
2 Amps max charge rate
6.2 Hours recharge to 80% (15.6 Ah Battery)
3 Pin XLR Connector
UL Certified
On-bike and off-bike charging
52V / 4 Amps Turbo Charger (optional)
3.1 Hours recharge to 80% (15.6 Ah Battery)
4 Amps max charge rate
3 Pin XLR Connector
UL Certified
On-bike and off-bike charging
52V / 8 Amps Advanced Fast Charger (optional)
Grin Tech / Cycle Satiator
8 Amp max charge rate
1.7 Hours recharge to 80% (15.6 Ah Battery)
3 Pin
Controller9 Transistor / 25 Amp Peak
Sine wave FOC
Customized tuning algorithm
Thermally managed
52V LED light output
Overboost function
Fully potted resistant construction
Cruise control function
Walk function
XT60 connectors
Firmware upgradable
Head LampFront LED Light (included)
1,050 Lum
CREE 7 Watt
10-60V input
Aluminum body design
Powered by main battery
Waterproof design IP69
Display controlled on/off function
Tail LampRear LED Light (included)
Always-On and Brake Light Function
Powered by the main battery pack
Brakes
Front BrakeLogan HD-E500 Hydraulic Disc
Rotors: Front: 180 mm | Rear: 180 mm
Pad: B01S Style
Rear BrakeLogan HD-E500 Hydraulic Disc
Rotors: Front: 180 mm | Rear: 180 mm
Pad: B01S Style
Chassis and Suspension
Frame6061 Aluminum Heat Treated Frame
BMX-Style frame design
Integrated & removable down-tube battery
Custom designed hidden cable channel system
CNC battery compartment
Integrated motor controller heat sink
4 x Water bottle cage mount
Rear pannier rack mount
Fender stay mounts
Dual kickstand mounts
275 lbs (120 kg) total payload rating
Rear SuspensionHardtail Configuration
Tyres
Wheels / RimDouble Walled Aluminum Alloy Rim
36 Hole
12G / 13G brass grommets
High pressure rim strip
Flat Black
Front TyreCST Off Road Tires
20” x 4.0”
3 mm Puncture Protection
Max Pressure: 30 psi
Rear TyreCST Off Road Tires
20” x 4.0”
3 mm Puncture Protection
Max Pressure: 30 psi
Dimensions
Length x Width x Height-- x -- x -- mm
Weight24.8 kg
Additional Details
Chain Ring: Pro Wheel 52T
Crank Length: Aluminum CNC | 170 mm( Outside and Inside ABS chain guide)
Pedal Sensors: Cadence Sensor 12 ,Poles per crank revolution
Throttle Control : Half Length Twist Throttle (included)
Default throttle set to 20 mph per e-bike regulations
Vehicle Warranty
1 Year Limited Warranty
