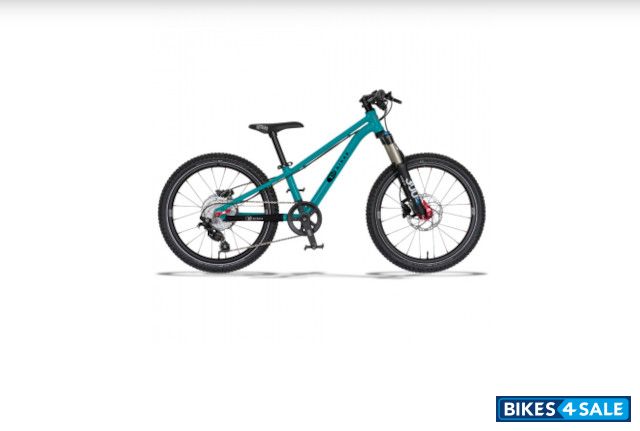

KUbikes 20S Trail

Price, review, features and specs

Rate KUbikes 20S Trail:
4.0/5 (4 votes)
Add To Compare
Write a Review
KUbikes 20S Trail Price 795 [Berlin, Germany]

The given price can change depending on the colour, accessories and other features.

Country, City Showroom Price On Road Price
Germany, Berlin € 795 --
Buy new KUbikes 20S Trail

Book a Test Drive through Bikes4Sale and we will try to get you the best offer for KUbikes 20S Trail.

For Exciting Offers, Book a Test Drive
By submitting, you agree to our Terms & Conditions.
- KUbikes 20S TRAIL with disc brakes and 10 gears for bikers aged 4 and over
- Three great colors: cheeky green, cool matt black and a glittering turquoise glaze.
- Four individually selectable designs: beautiful princess, daring pirate, jumping cheetah or sparkling stars
- Super light aluminum frame including aluminum fork developed by us
- Perfectly tuned frame geometry: sporty driving without losing track
- 10-speed drive for best performance and easy gears
- Lightweight aluminum hubs, double wall rim and crankset
- Lightweight double wall rims for maximum stability
- Threadless aluminum fork with integrated Ahead headset
- Screw grips tested for harmful substances
- 114 mm short aluminum cranks with narrow/wide chainring
- Smooth hydraulic disc brakes
- With chainstay protection made of neoprene

Glaze Pink
Turquoise glitter

Technical Specifications
Vehicle TypeBicycle
Stem52 parts 50mm
CranksetAluminum Length: 114 mm, Black
Chain10 times
ShiftersShimano Deore Rapid Fire
Derailleur : FrontShimano ZEE
Derailleur : RearShimano ZEE
Cassette10 speed 11-36 teeth
ChainringsNarrow/Wide chainring, firmly pressed
Bottom BracketCartridge
Front BrakeConfigurable
Rear BrakeConfigurable
Chassis and Suspension
FrameKUbikes 6061 T6 aluminum
Wheels / RimConfigurable
Front TyreConfigurable
Rear TyreConfigurable
Kerb Weight6.4 kg
Additional Details
Decor : Embossed aluminum plaque, design: stars
Optional: design cheetah, princess, pirate; without badge
Seat clamp : configurable
Handles : 52parts screw grips
Tax rate : KUbikes 1 1/8" integrated, black
Production-related weight deviation of +/- 3% possible.
Maximum rider weight : 45 kg

KUbikes offer various components to choose .
If you are unsure which components are best suited for your desired application, we would like to support you in your choice with the following explanations:

- Schwalbe Black Jack 20 x 1.90: MTB tires for terrain and unpaved paths. Super grip thanks to many tread blocks and best suspension comfort thanks to large air volume.
- Kenda APTOR 20 x 1.75: all-round tire, ideal for asphalt and light terrain. Very light tire with good rolling properties.
- Schwalbe Little Joe 20 x 1.40: All-round tire, ideal for asphalt and paved paths. Narrow, very light tire with very good rolling properties.
Schwalbe Little Joe 20 x 2.0: Very wide MTB tire for off-road and unpaved paths. great grip

- Rigid fork: made of aluminum or carbon
- Suspension fork : Spinner 300 AIR, travel 80 mm, with lockout

- Shimano disc brakes: very smooth-running hydraulic disc brakes with a good pressure point
- Magura MT4 disc brake: very smooth-running hydraulic disc brake, minimal hand force for very good braking effect, minimal weight

Crank /Chainring
- KUbikes aluminum crank, chainring with 28 teeth: Lightest possible gear, enables riding in extremely steep terrain. Pedaling is therefore not always possible when driving downhill. Moderate top speed. Chainring with a special tooth shape that keeps the chain better on the chainring (narrow/wide). Decreases the possibility of dropping the chain
- KUbikes aluminum crank, chainring with 32 teeth: heavier gear than chainring with 28 teeth, enables riding at a higher top speed. Gradeability reduced when driving uphill. Chainring with a special tooth shape that keeps the chain better on the chainring (narrow/wide). Decreases the possibility of dropping the chain

Saddle / Seat post
- 52parts: narrow ergonomic shape, comfortable padding. Seat post aluminum.
- KUbikes Carbon: super light; narrow shape. Carbon seat post.

Seat clamp
- Without quick release: bolt with hexagon socket, tool required to adjust the saddle height, therefore theft-proof to a limited extent
- Quick release: tool-free adjustment of the saddle height and therefore quick adjustment possible at any time

- KUbikes 20 performance: NOVATEC hub red anodized, spokes black, nipples aluminum red, rim 52parts aluminum black (inner width: 23 mm); Wheelset weight: 1.56 kg
- KUbikes 20 SL: 52parts hub red anodized, spokes black butted (2.0 mm - 1.5 mm - 2.0 mm), nipples aluminum red, rim 52parts aluminum black (inner width: 18 mm); Wheelset weight: 1.05 kg

- Plastic Pedals: 52parts; low risk of injury and non-slip.
- Aluminum Pedals Platform: 52parts; low weight,
