Marin 2022 Alpine Trail XR Bicycle: Price, Review, Specs and Features

Price, review, features and specs

Rate Marin 2022 Alpine Trail XR:

3.3/5 (3 votes)

Add To Compare
Write a Review

Marin 2022 Alpine Trail XR Price $ 3999 [New York, United States]

The given price can change depending on the colour, accessories and other features.

Country, City	Showroom Price	On Road Price
United States, New York	$ 3999	--

Buy new Marin 2022 Alpine Trail XR

Book a Test Drive through Bikes4Sale and we will try to get you the best offer for Marin 2022 Alpine Trail XR.

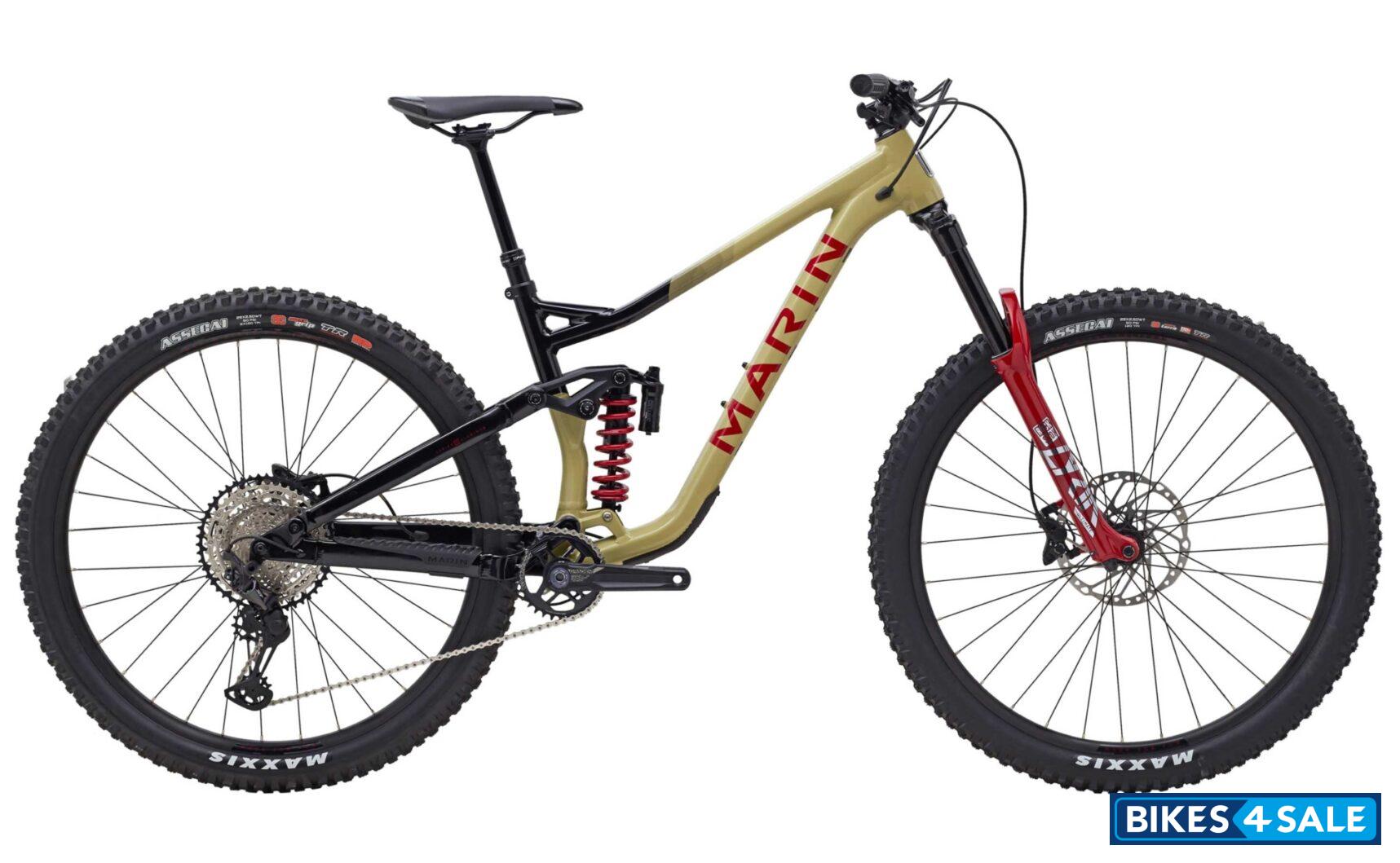

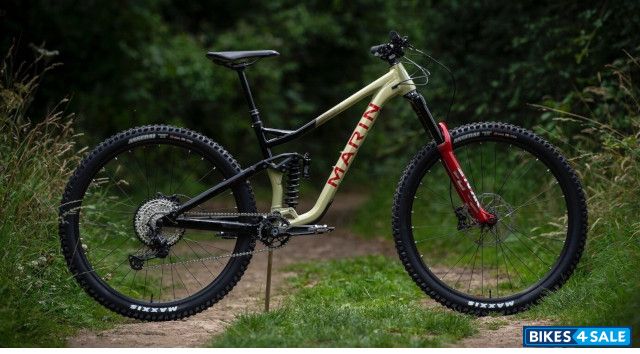

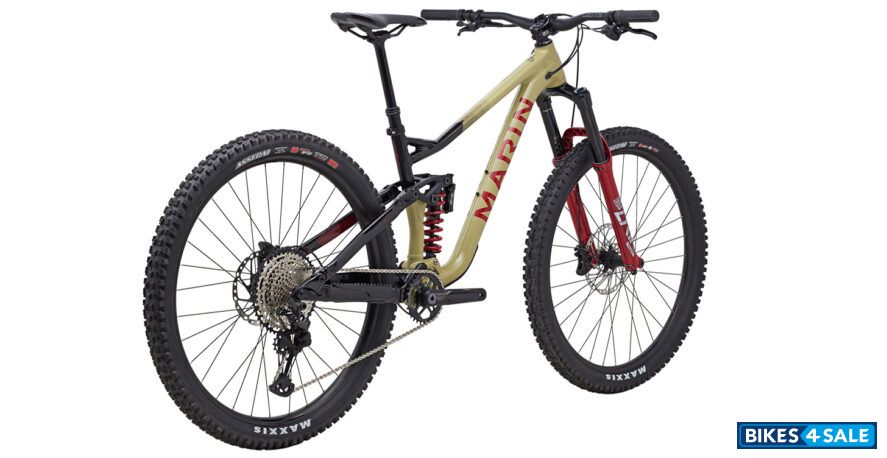

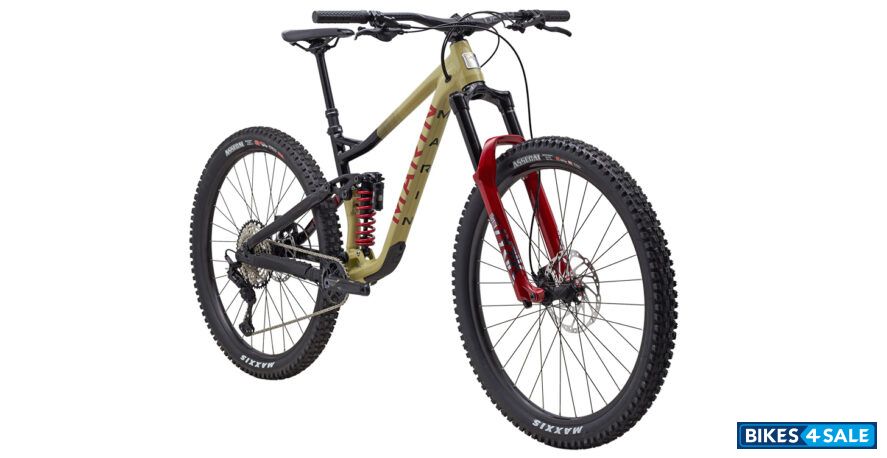

Picture Gallery

Features

- Modern Angles
- Bridgeless Seatstay
- One Piece Forged Rocker

Similar Bicycles

Cannondale Habit 3 Compare

Brother Mr Wooden Compare

Liv Intrigue LT 2 Compare

Canyon Grizl CF SL 8 1by Ekar Compare

ENVE Mog Compare

Pinarello Dogma F Red ETAP AXS Compare

100 Country Center Dr Suite F Colorado United States

1705 Forest Hills Blvd, Arkansas United States

6 Twin Forks Ln Texas United States

2404 Taft St Texas United States

3315 Spring Cypress Rd Suite 5E Texas United States

324 S 6th St Texas United States

More Dealers

View all Marin Showrooms

Technical Specifications

Vehicle Type	Bicycle
Drivetrain	Shimano SLX/XT drivetrain
Stem	Marin CNC Stem, 35 mm Length, 35 mm Bar Bore
Handlebar	Marin 35 mm 7000 Alloy Bar, 780 mm Length, 5 Degree Up, 8 Degree Back
Seatpost	X-Fusion Manic, 1x Composite Remote, Size S 125 mm Travel, Size M and L 150 mm Travel, Size XL 175 mm Travel, 30.9 mm
Grip	Marin Single Clamp Locking
Crankset	FSA Gradient, Modular 1x, 32T Direct Mount Chainring, MegaTooth Technology, Mego EXO Spindle, Boost Spacing
Chain	KMC X-12 Silver and Black
Saddle	Marin Speed Concept
Headset	FSA No 57, Sealed Cartridge Bearings, 1 1/8" x 1 1/2”
Derailleur : Rear	Shimano XT 12-Speed, SGS
Hub : Front	Shimano HF-MT410B, 110 x 15 mm, Centerlock
Hub : Rear	Shimano HB-MT510B, 148 x 12 mm, Centerlock, Microspline Freehub Body
Spoke	14g Black Stainless Steel
Cassette	Shimano SLX M7100 Cassette, 12-Speed, 10-51T
Bottom Bracket	MEGAEVO BB, 73 mm BSA Threaded

Brakes
Front Brake	Shimano BR-MT420, 4-Piston Hydraulic Disc, 203 mm Rotor
Rear Brake	Shimano BR-MT420, 4-Piston Hydraulic Disc, 180 mm Rotor
Brake Lever	Shimano BL-M4100 Hydraulic, I-Spec EV Compatible

Chassis and Suspension
Frame	Series 4 6061 Aluminum Frame, 29” Wheels, 150 mm Travel MultiTrac Suspension Platform, Internal Dropper Post and Rear Derailleur Routing, Chainstay Mounted Post Mount Disc Brake, 148 x 12 mm Boost Thru- Axle, 73 mm Threaded BB w/ ISCG05 Tabs
Front Suspension	RockShox Lyrik Ultimate, 29”, 160 mm of Travel, Air Sprung, Debonair, Charger 2.1, Fast Black Stanchions, 110 x 15 mm Maxle Stealth, 42 mm Offset
Rear Suspension	Rock Shox Super Deluxe Coil Ultimate RCT, Coil Spring, Climb Switch, LS Compression and Rebound Adjustment, 205 x 65 mm, Trunnion Upper Mount, 25 mm x M8 Lower Mount (S/M = 350lb, L/XL = 450lb)

Tyres
Wheels / Rim	Marin Aluminum Double Wall, 29 mm Inner, Sleeved Joint, Disc Specific, Tubeless Compatible
Front Tyre	Maxxis Assegai 29 x 2.5”, MAXX TERRA, EXO+, Tubeless Compatible
Rear Tyre	Maxxis Assegai 29 x 2.5”, MAXX TERRA, EXO+, Tubeless Compatible

Additional Details
Size Range : S, M, L, XL Shift Lever : Shimano SLX 12-Speed, I-Spec EV Bolt-On Thru-Axle Downtube Protector
