MERIDA eBig.Nine 475 Electric Bicycle

Price, features and specs

Rate MERIDA eBig.Nine 475:
4.0/5 (3 votes)
MERIDA eBig.Nine 475 Price $ 3643 [California, United States]

The given price can change depending on the colour, accessories and other features.

Country, City Showroom Price On Road Price
United States, California $ 3643 --
Buy new MERIDA eBig.Nine 475

Book a Test Drive through Bikes4Sale and we will try to get you the best offer for MERIDA eBig.Nine 475.

For Exciting Offers, Book a Test Drive
By submitting, you agree to our Terms & Conditions.
7039
Features
- Lightweight aluminium frame with 29er wheels
- Integrated 750 Wh battery
- Versatile enough for the trail or the commute
- Powerful and refined Shimano EP8 assistance
- Confidence-inspiring mountain bike handling
- Comfort and control enhancing suspension fork
Colours

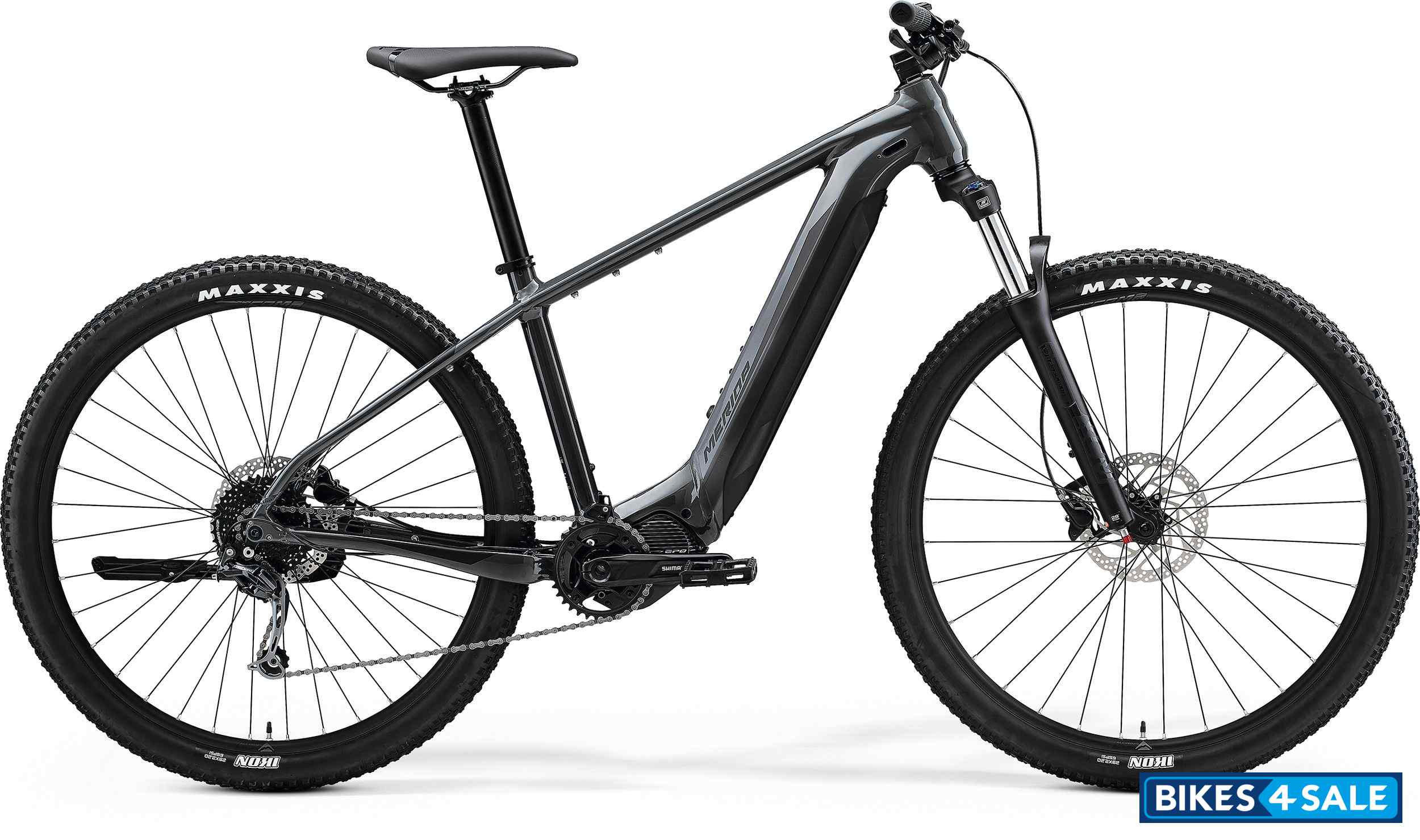

COOL GREY (MATT BLACK)

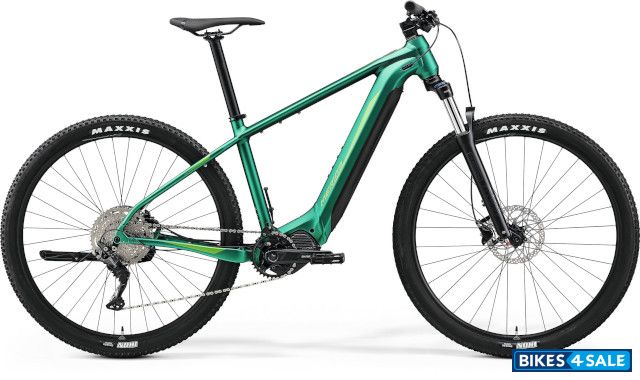

MATT EVERGREEN (GREEN)

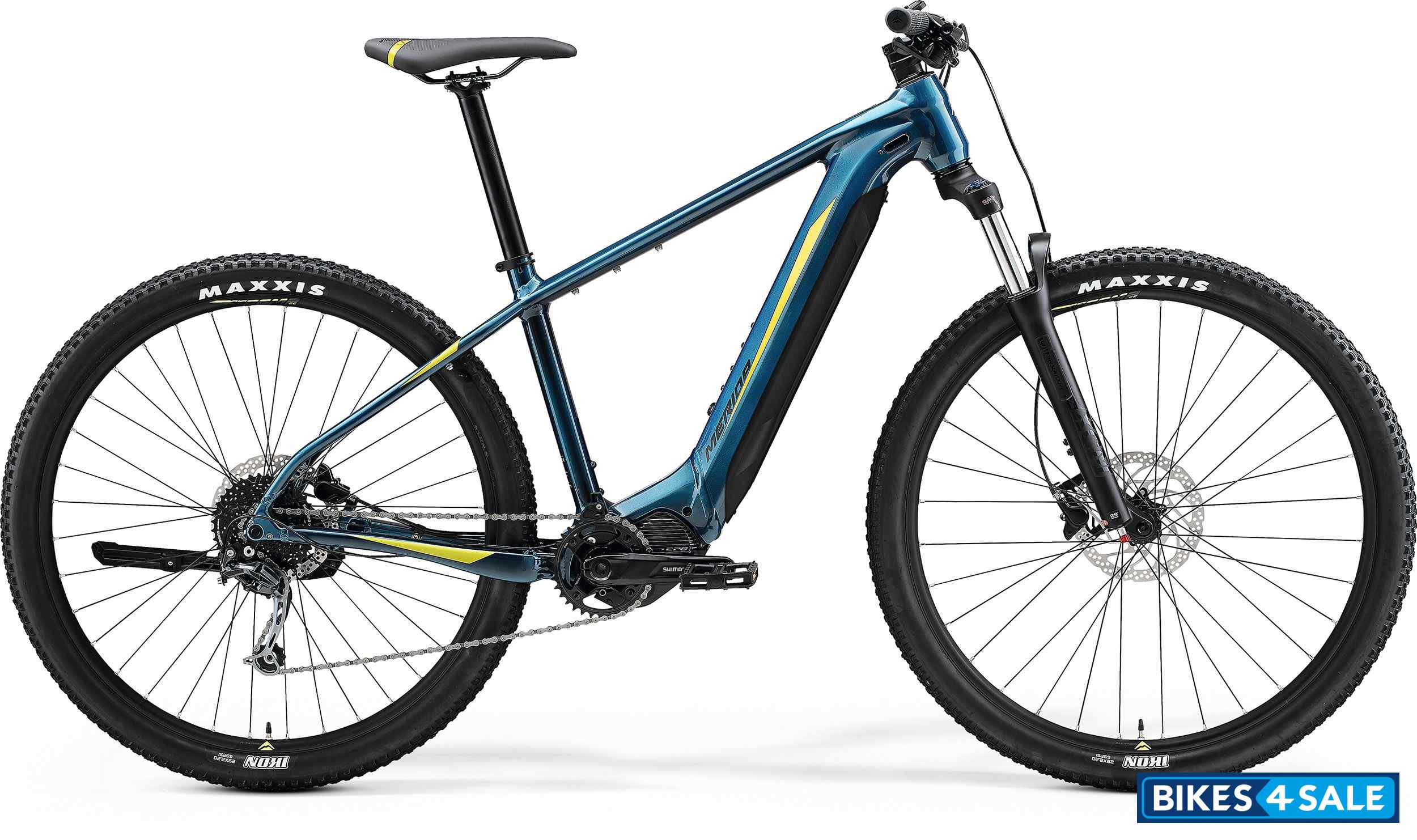

TEAL-BLUE (LIME)

Technical Specifications
Vehicle TypeBicycle
FuelElectric
DrivetrainDrive Unit : Shimano EP8
85 Nm
StemMERIDA EXPERT eTRII
Material: aluminium
35mm diameter
0° stem angle
GoPro & Supernova mount
50 mm
HandlebarMERIDA EXPERT eTR
760mm width
20mm rise
ForkSR Suntour XCM34-Boost LOR DS
100mm
Tapered
51mm fork offset
29x2.4" max wheelsize
SeatpostMERIDA EXPERT CC
Material: aluminium
34.9mm diameter
0mm setback
GripMERIDA EXPERT EC
CranksetShimano FCEM600
165 mm
PedalsVP VPE-537
ChainKMC e10s
ShiftersShimano Deore M4100
SaddleMERIDA COMP SL
V-mount
HeadsetMERIDA 8157
Derailleur : RearShimano Deore M4100
SGS
Hub : FrontShimano MT400-B
110x15mm width front hub
32 spoke holes
Centerlock
Hub : RearShimano MT400-B
148x12mm width rear hub
36 spoke holes
Centerlock
SpokeBlack stainless
StandMassload CL-KA98
Display
Shimano SC-E5003A
Electricals
BatterySimplo Internal Battery
750Wh
Battery Lock : Abus key
Head LampDlight CG-119PG
StVZO
Tail LampDlight CG-404RG
STVZO
Brakes
Front BrakeShimano MT200
2 piston
Rear BrakeShimano MT200
2 piston
Chassis and Suspension
FrameeBIG.NINE LITE III
Material: aluminium
29x2.35" without fender max./ 29"x2.25" with fender max. wheelsize
148x12mm axle standard
Intube
FRAME SIZE S, M, L, XL
Tyres
Wheels / RimMERIDA COMP CC
20mm inner width
Material: aluminium
Front TyreMaxxis Ikon
29x2.2"
kevlar bead
Rear TyreMaxxis Ikon
29x2.2"
kevlar bead
Dimensions
Weight140 kg
Additional Details
Rotors : Shimano RT30 / Shimano RTEM300
180 mm
Seat Clamp : MERIDA EXPERT
ChainWheel : Shimano CRE70-B
34 teeth
FreeWheel : Shimano M5100
11-46 teeth
10 speed
Axles : MERIDA EXPERT TR
including removeable lever, 6/4mm allen key
