MERIDA eBig.Nine 775 EQ

Price, review, features and specs

Rate MERIDA eBig.Nine 775 EQ:
4.0/5 (3 votes)
Add To Compare
Write a Review
MERIDA eBig.Nine 775 EQ Price $ 4857 [Chicago, United States]

The given price can change depending on the colour, accessories and other features.

Country, City Showroom Price On Road Price
United States, Chicago $ 4857 --
Buy new MERIDA eBig.Nine 775 EQ

Book a Test Drive through Bikes4Sale and we will try to get you the best offer for MERIDA eBig.Nine 775 EQ.

For Exciting Offers, Book a Test Drive
By submitting, you agree to our Terms & Conditions.
2932
Features
- Lightweight aluminium frame with 29er wheels
- Integrated 750 Wh battery
- Comfort and control enhancing suspension fork
- Powerful and refined Shimano EP8 assistance
- Confidence inspiring mountain bike handling
- Comes fully equipped with lights, kickstand, rack
and mudguards
Colours

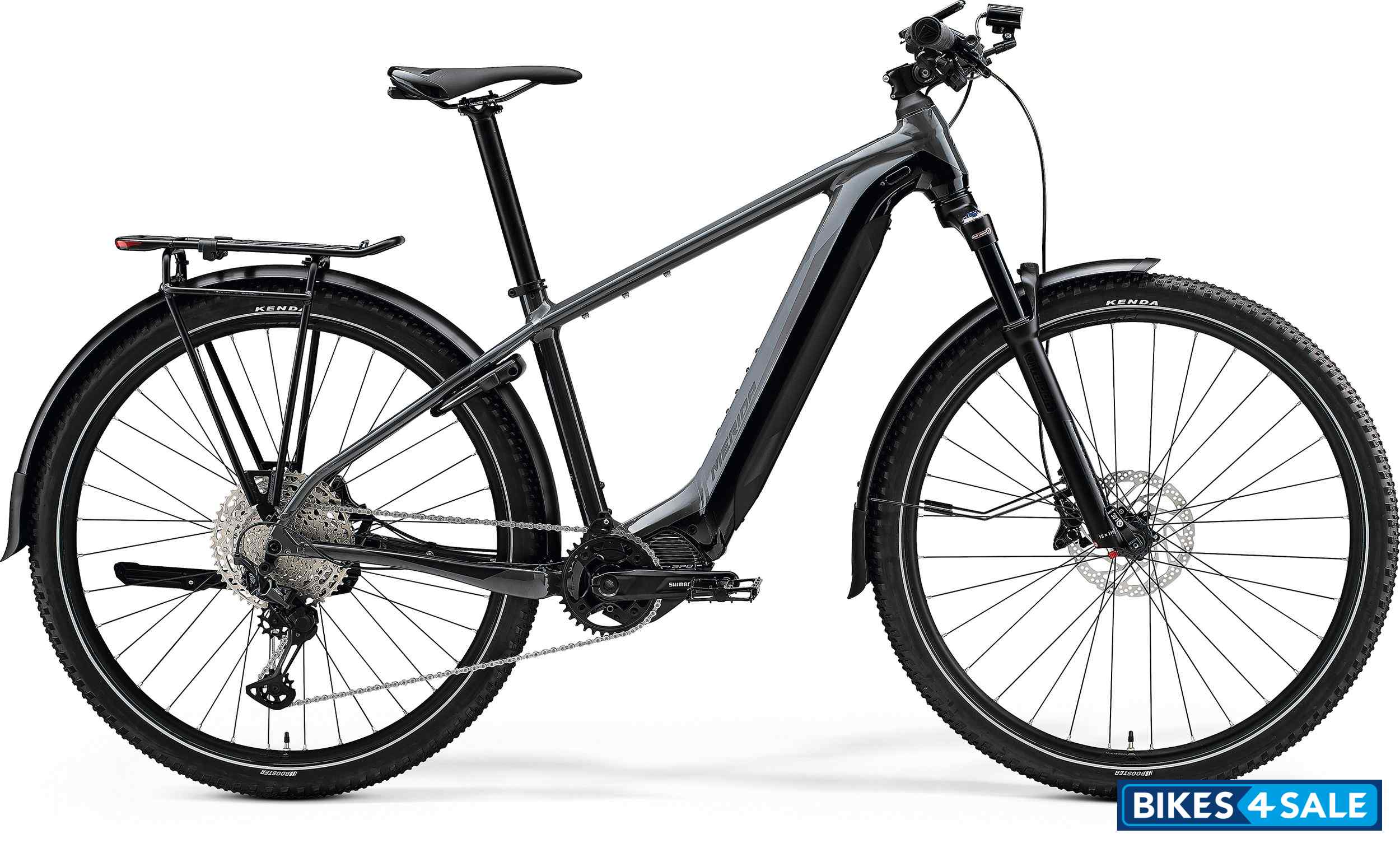

GREY/BLACK

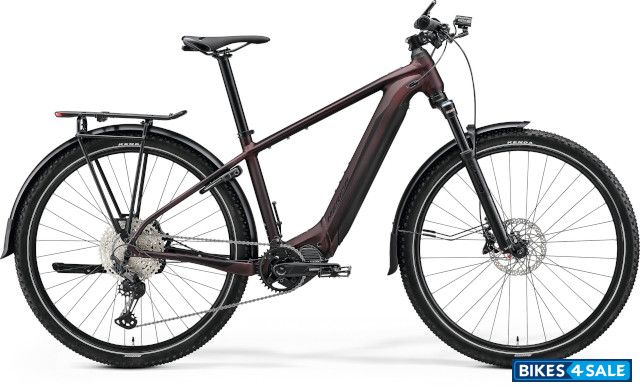

MATT BURGUNDY RED (BLACK)

Technical Specifications
Vehicle TypeBicycle
FuelElectric
DrivetrainDrive Unit : Shimano EP8
85 Nm
StemMERIDA EXPERT CT
Material: aluminium
31.8mm diameter
adjustable
90 mm
HandlebarMERIDA EXPERT CC
Material: aluminium
760mm width
20mm rise
ForkSR Suntour RAIDON34 LOR
Air
100mm suspension travel
Tapered
51mm fork offset
29x2.4" max wheelsize
SeatpostMERIDA EXPERT CC
Material: aluminium
34.9mm diameter
0mm setback
GripMERIDA EXPERT TK
CranksetShimano FCEM600
165 mm
PedalsVP VPE-527
ChainKMC e12T EPT
ShiftersShimano Deore M6100
SaddleMERIDA EXPERT TK
V-mount
incl. MERIDA minitool
HeadsetMERIDA 8155
Derailleur : RearShimano XT RDM8100 Shadow+ 12
Hub : FrontShimano SLX
110x15mm width front hub
32 spoke holes
Centerlock
Hub : RearShimano SLX
148x12mm width rear hub
36 spoke holes
Centerlock
SpokeBlack stainless
StandMassload CL-KA98
Display
Shimano SC-E6100
Electricals
BatterySimplo Internal Battery
750Wh
Battery Lock : Abus key
Head LampLezyne E-Bike Power E115
StVZO
X-Lock stem Mount
Tail LampSpanninga Commuter Glow XE
STVZO
Integrated in MERIDA MIK HD carrier
Brakes
Front BrakeShimano M4100
4 piston
Rear BrakeShimano M4100
4 piston
Chassis and Suspension
FrameeBIG.NINE LITE III
Material: aluminium
29x2.35" without fender max./ 29"x2.25" with fender max. wheelsize
148x12mm axle standard
Intube
FRAME SIZE S, M, L, XL
Tyres
Wheels / RimMERIDA COMP CC
20mm inner width
Material: aluminium
Front TyreKenda Booster
29x2.2"
Wire
Rear TyreKenda Booster
29x2.2"
Wire
Dimensions
Weight140 kg
Additional Details
Rotors : Shimano RT30 / Shimano RTEM300
180 mm
Seat Clamp : MERIDA EXPERT
ChainWheel : Shimano CRE70-12-B
36 teeth
FreeWheel : Shimano M6100
10-51 teeth
12 speed
Axles : MERIDA EXPERT TR
including removeable lever, 6/4mm allen key
Carrier : MERIDA MA008-1
spring clamp
Spanninga GLOW XE rear light
FENDER Sunnywheel SW-FA311-65A/ SW-FA311-65E1
FRAME LOCK : Abus 5650 LH-3 lock
