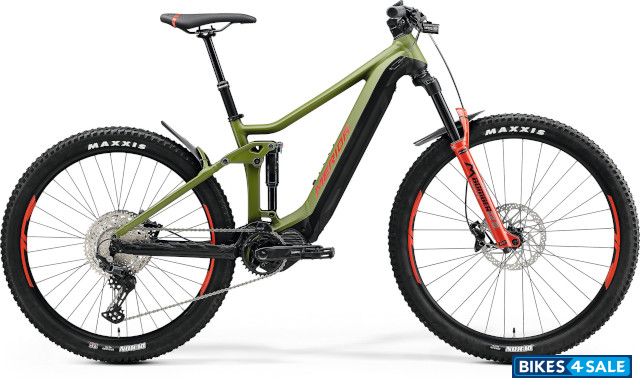

MERIDA eOne - Forty 500

Price, review, features and specs

Rate MERIDA eOne - Forty 500:
4.0/5 (3 votes)
Add To Compare
Write a Review
MERIDA eOne - Forty 500 Price $ 4964 [Chicago, United States]

The given price can change depending on the colour, accessories and other features.

Country, City Showroom Price On Road Price
United States, Chicago $ 4964 --
Buy new MERIDA eOne - Forty 500

Book a Test Drive through Bikes4Sale and we will try to get you the best offer for MERIDA eOne - Forty 500.

For Exciting Offers, Book a Test Drive
By submitting, you agree to our Terms & Conditions.
9995
Features
- Tough all-aluminium chassis with integrated 630 Wh battery
- Mixed wheel size setup with 140/130 mm travel split
- Wide range Shimano drivetrain
- Powerful Shimano EP8 drive unit
- Quality Marzocchi and SR Suntour suspension
- Powerful four-piston brakes
Colours

METALLIC TEAL (BLACK)
MATT GREEN/BLACK (RACE RED)
SILK DARK SILVER/BLACK

Technical Specifications
Vehicle TypeBicycle
FuelElectric
DrivetrainShimano EP8
85Nm
StemMERIDA EXPERT eTRII
Material: aluminium
35mm diameter
0° stem angle
GoPro & Supernova mount
50 mm
HandlebarMERIDA EXPERT eTR
780mm width
20mm rise
ForkMarzocchi Z2 eMTB+
Air
140mm suspension travel
Tapered
51mm fork offset
29x2.6" max wheelsize
SeatpostMERIDA COMP TR
30.9mm diameter
0mm setback
S/M 100mm travel seatpost - L/XL 125mm travel seatpost - XXL 150mm travel seatpost
GripMERIDA EXPERT EC
CranksetShimano FCEM600
165 mm
PedalsVP VPE-537
ChainKMC e11S EPT
ShiftersShimano SL -MT500-IL / Shimano Deore M5100
SaddleMERIDA COMP SL
V-mount
HeadsetMERIDA 8152
Derailleur : RearShimano Deore RDM5100 11
Hub : FrontShimano MT400-B
110x15mm width front hub
32 spoke holes
Centerlock
Hub : RearShimano MT400-B
148x12mm width rear hub
36 spoke holes
Centerlock
SpokeBlack stainless
Display
Shimano SC-E5003A
Electricals
BatteryShimano E8036 630Wh / Shimano E8035 504Wh for S only
Head LampLezyne E-Bike Power E115
StVZO
Reverse MERIDA Custom Mount
Tail LampDlight CG - 214RG
STVZO
USB
Brakes
Front BrakeShimano M4100
4 piston
Rear BrakeShimano M4100
4 piston
Chassis and Suspension
FrameeONE - FORTY LITE III
Material: aluminium
133mm suspension travel
27.5x2.8" max. wheelsize
148x12mm axle standard
Intube
FRAME SIZE : S, M, L, XL, XXL
Tyres
Wheels / RimMERIDA COMP TR
29mm inner width
Material: aluminium
Tubeless ready (tubeless tape and valves not included)
Front TyreMaxxis Rekon
29x2.4"
Wire
DUAL
Rear TyreMaxxis Rekon
27.5x2.6"
Wire
EXO
Dimensions
Weight140 kg
Additional Details
Shock : SR Suntour EDGE
Lockout
Rotors : Shimano RT30/Shimano RTEM300
203 mm
Seat Clamp : MERIDA EXPERT
ChainWheel : Shimano CRE70-B
34 teeth
FreeWheel : Shimano M5100
11-51 teeth
11 speed
Axles : MERIDA EXPERT TR
including removeable lever, 6/4mm allen key
Fender : C093-02F + C093-02R
