MERIDA eOne-Sixty 575

Price, review, features and specs

Rate MERIDA eOne-Sixty 575:
3.8/5 (4 votes)
Add To Compare
Write a Review
MERIDA eOne-Sixty 575 Price $ 6999 [Chicago, United States]

The given price can change depending on the colour, accessories and other features.

Country, City Showroom Price On Road Price
United States, Chicago $ 6999 --
Buy new MERIDA eOne-Sixty 575

Book a Test Drive through Bikes4Sale and we will try to get you the best offer for MERIDA eOne-Sixty 575.

For Exciting Offers, Book a Test Drive
By submitting, you agree to our Terms & Conditions.
1501
Features
- Tough all-aluminium chassis with integrated 750 Wh battery
- Marzocchi fork and Fox rear suspension
- Mixed wheel size setup with 160/150 mm travel split
- Powerful Shimano EP8 drive unit
- High-quality Shimano brakes and wide range drivetrain
- Multiple award and test winning frame geometry
Colours

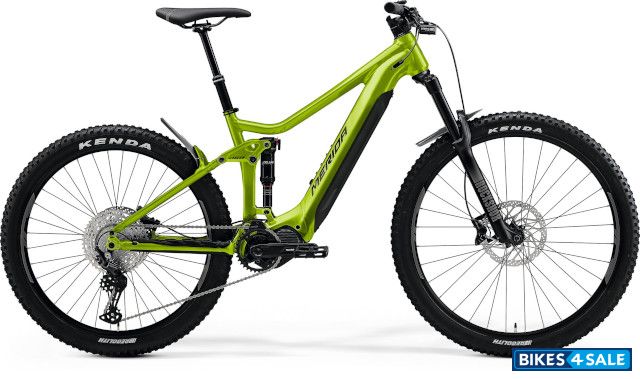

SILK GREEN (BLACK)

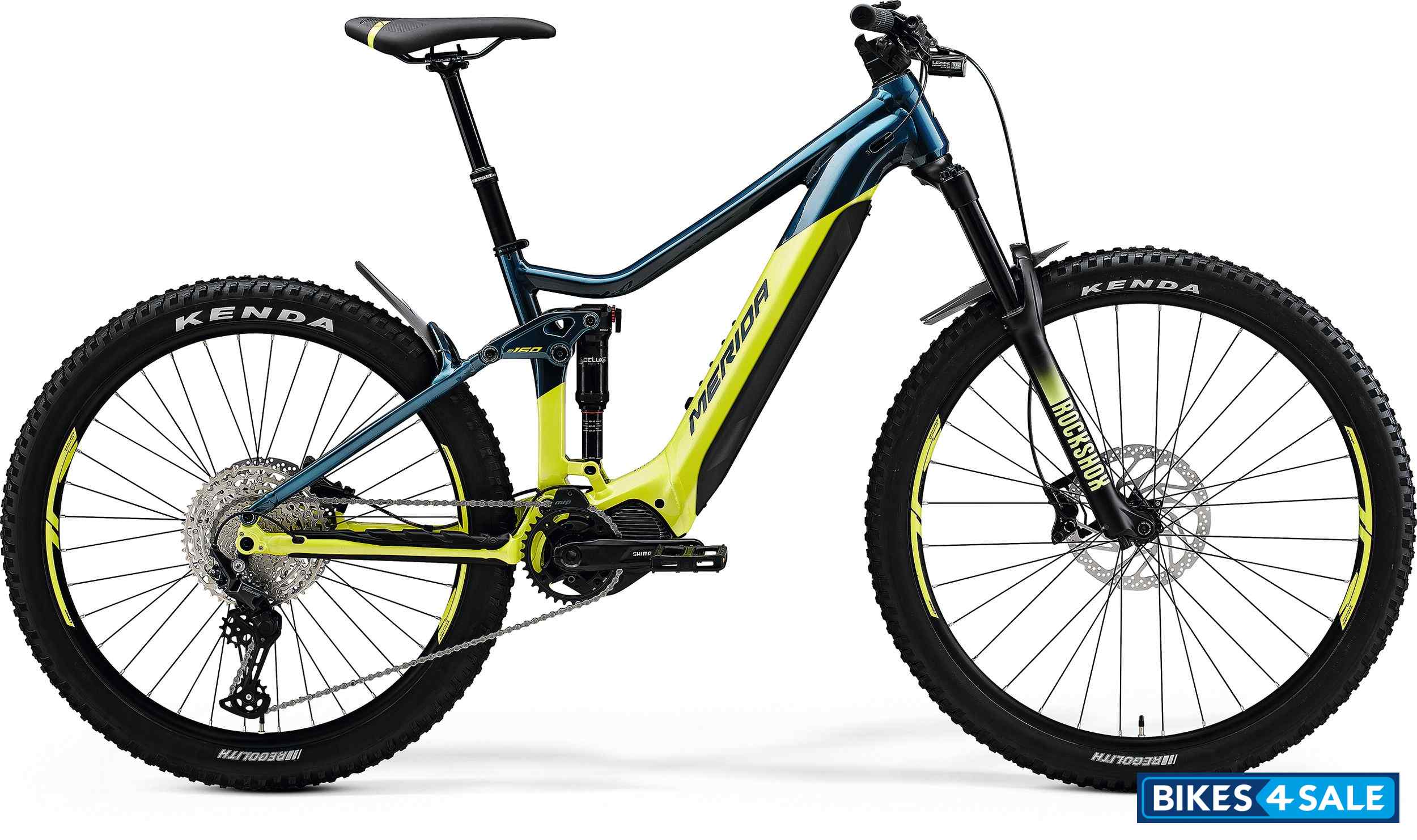

TEAL-BLUE/LIME

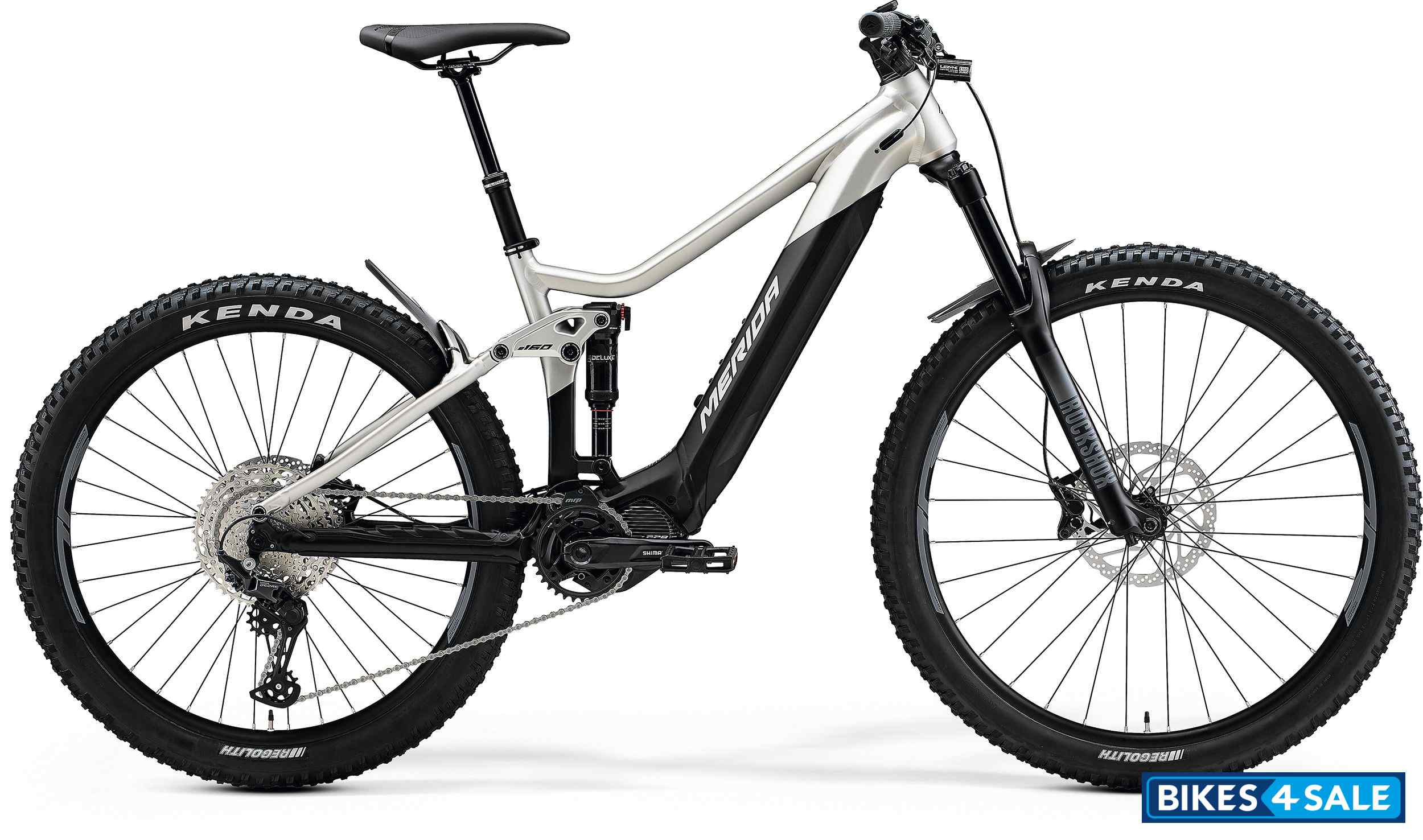

MATT TITAN/BLACK

Technical Specifications
Vehicle TypeBicycle
FuelElectric
DrivetrainDrive Unit : Shimano EP8
85 Nm
StemMERIDA EXPERT eTRII
Material: aluminium
35mm diameter
0° stem angle
GoPro and Supernova mount
40 mm
HandlebarMERIDA EXPERT eTR
780mm width
20mm rise
ForkRock Shox 35 Gold RL
Air
160mm suspension travel
Tapered
51mm fork offset
29x2.8" max wheelsize
SeatpostMERIDA COMP TR
30.9mm diameter
0mm setback
XS/S 100mm travel seatpost - M/L 125mm travel seatpost - XL 150mm travel seatpost
GripMERIDA EXPERT EC
CranksetCrank : Shimano FCEM600
165 mm
PedalsVP VPE-537
ChainKMC e11S EPT
ShiftersShimano SL -MT500-IL / Shimano Deore M5100
SaddleMERIDA COMP SL
V-mount
HeadsetMERIDA 8152
Derailleur : RearShimano Deore RDM5100 11
Hub : FrontShimano MT400-B
110x15mm width front hub
32 spoke holes
Centerlock
Hub : RearShimano MT400-B
148x12mm width rear hub
36 spoke holes
Centerlock
SpokeBlack stainless
Display
Shimano SC-E5003A
Electricals
BatterySimplo Internal Battery
750Wh
Head LampLezyne E-Bike Power E115
StVZO
Reverse MERIDA Custom Mount
Tail LampDlight CG - 214RG
STVZO
USB
Brakes
Front BrakeShimano M4100
4 piston
Rear BrakeShimano M4100
4 piston
Chassis and Suspension
FrameeONE - SIXTY LITE III
Material: aluminium
150mm suspension travel
27.5x2.8" max. wheelsize
148x12mm axle standard
Intube
FRAME SIZE : S, M, L, XL
Tyres
Wheels / RimMERIDA COMP TR
29mm inner width
Material: aluminium
Tubeless ready (tubeless tape and valves not included)
Front TyreKenda Regolith
29x2.4"
Wire
Rear TyreKenda Regolith
27.5x2.6"
Wire
Dimensions
Length x Width x Height-- x -- x -- mm
Weight140 kg
Additional Details
Shock : Rock Shox Super Deluxe Select +
Platform
Rotors : Shimano RT30 / Shimano RTEM300
203 mm
Seat Clamp : MERIDA EXPERT
ChainWheel : Shimano CRE70B
34 teeth
FreeWheel : Shimano M5100
11-51 teeth
11 speed
Axles : MERIDA EXPERT TR
Including removeable lever, 6/4mm allen key
Fender : C093-02F + C093-02R
