MERIDA eOne -Sixty 775 Electric Bicycle

Price, features and specs

Rate MERIDA eOne -Sixty 775:
3.5/5 (4 votes)
MERIDA eOne -Sixty 775 Price $ 6258 [California, United States]

The given price can change depending on the colour, accessories and other features.

Country, City Showroom Price On Road Price
United States, California $ 6258 --
Buy new MERIDA eOne -Sixty 775

Book a Test Drive through Bikes4Sale and we will try to get you the best offer for MERIDA eOne -Sixty 775.

For Exciting Offers, Book a Test Drive
By submitting, you agree to our Terms & Conditions.
8317
Features
- Tough all-aluminium chassis with integrated 750 Wh battery
- Marzocchi fork and Fox rear suspension
- Mixed wheel size setup with 160/150 mm travel split
- Powerful Shimano EP8 drive unit
- High-quality Shimano brakes and LinkGlide drivetrain
- Multiple award and test winning frame geometry

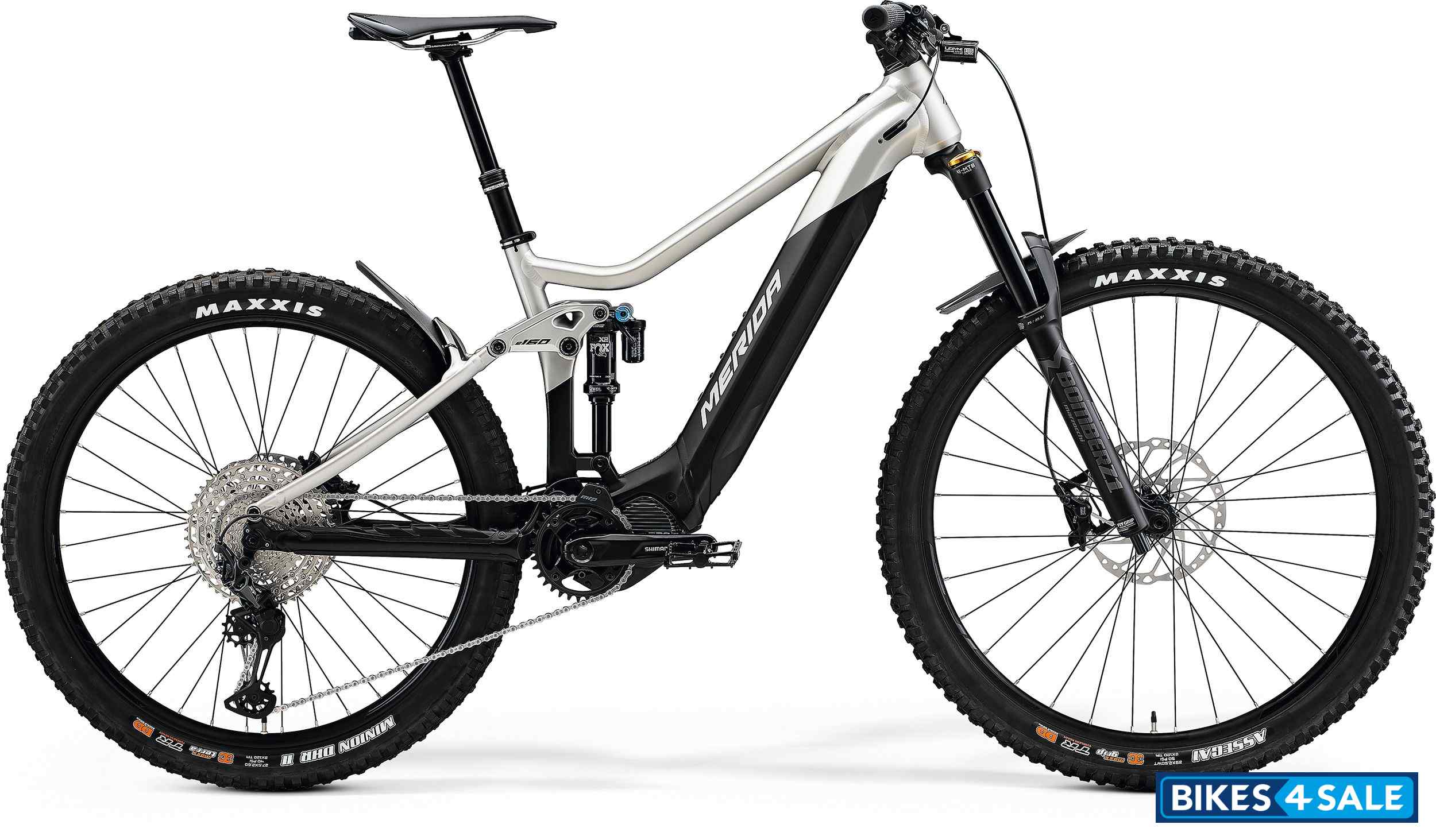

Colours

MATT TITAN/BLACK

Technical Specifications
Vehicle TypeBicycle
FuelElectric
DrivetrainDrive Unit : Shimano EP8
85 Nm
StemMERIDA EXPERT eTRII
Material: aluminium
35mm diameter
0° stem angle
GoPro and Supernova mount
40 mm
HandlebarMERIDA EXPERT eTR
780mm width
20mm rise
ForkMarzocchi Z1 Ebike +
Air
160mm suspension travel
Tapered
51mm fork offset
29x2.6" max wheelsize
SeatpostMERIDA EXPERT TR
30.9mm diameter
0mm setback
XS 100mm travel seatpost - S 125mm travel seatpost - M 150mm travel seatpost - L/XL 170mm travel seatpost
GripMERIDA EXPERT EC
CranksetCrank : Shimano FCEM600
165 mm
PedalsVP VPE-527
ChainKMC e12T EPT
ShiftersShimano SL -MT500-IL / Shimano Deore M6100
SaddleMERIDA EXPERT CC
V-mount
incl. MERIDA minitool
HeadsetMERIDA 8152
Derailleur : RearShimano XT RDM8100 Shadow+ 12
Hub : FrontShimano XT
110x15mm width front hub
32 spoke holes
Centerlock
Hub : RearShimano XT
148x12mm width rear hub
36 spoke holes
Centerlock
SpokeBlack stainless
Display
Shimano SC-E7000
Electricals
BatterySimplo Internal Battery
750Wh
Head LampLezyne E-Bike Power E115
StVZO
Reverse MERIDA Custom Mount
Tail LampDlight CG - 214RG
STVZO
USB
Brakes
Front BrakeShimano SLX
4 piston
Rear BrakeShimano SLX
4 piston
Chassis and Suspension
FrameeONE - SIXTY LITE III
Material: aluminium
150mm suspension travel
27.5x2.8" max. wheelsize
148x12mm axle standard
Intube
FRAME SIZE : S, M, L, XL
Tyres
Wheels / RimMERIDA EXPERT TR
29mm inner width
Material: aluminium
Tubeless ready (tubeless tape and valves not included)
Front TyreMaxxis Assegai
29x2.5 "
Fold
TR EXO+ 3C MaxxGrip
Rear TyreMaxxis DHR II
27.5x2.6 "
Fold
3C EXO+ TR
Dimensions
Weight140 kg
Additional Details
Shock : FOX Float DPX2 Performance
Platform
Rotors : Shimano RT64 / Shimano RTem600
203 mm
Seat Clamp : MERIDA EXPERT
ChainWheel : Shimano CRE80-12 -B
34 teeth
FreeWheel : Shimano M6100
10-51 teeth
12 speed
Axles : MERIDA EXPERT TR
Including removeable lever, 6/4mm allen key
Fender : C093-02F + C093-02R
