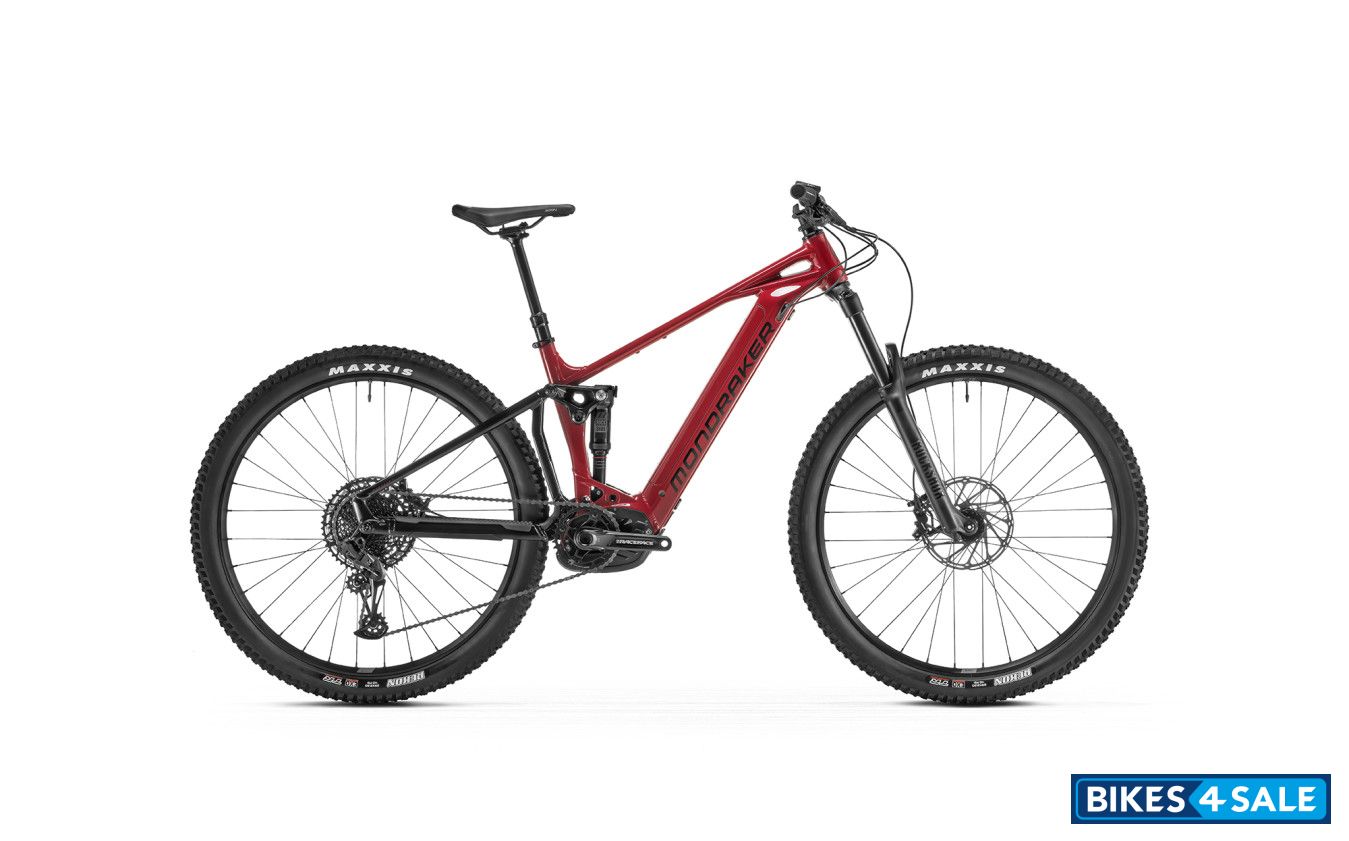

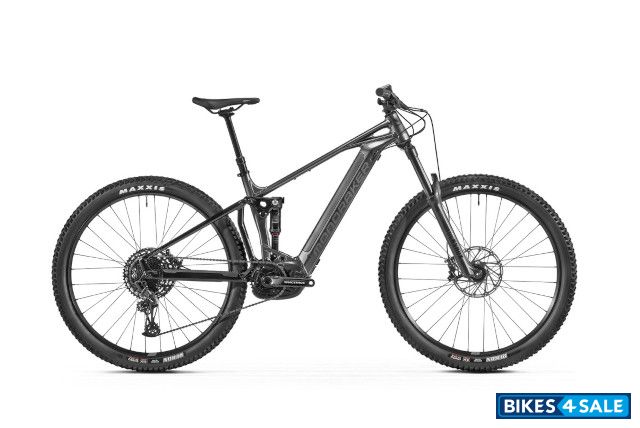

Mondraker Chaser 29

Price, review, features and specs

Rate Mondraker Chaser 29:
4.5/5 (2 votes)
Add To Compare
Write a Review
Mondraker Chaser 29 Price

Not Available

Buy new Mondraker Chaser 29

Book a Test Drive through Bikes4Sale and we will try to get you the best offer for Mondraker Chaser 29.

For Exciting Offers, Book a Test Drive
4757
Similar Bicycles
Colours

Red
Black

Technical Specifications
Vehicle TypeBicycle
FuelElectric
HandlebarONOFF Sulfur 1.0 double butted 6061 alloy, height: 20mm, width: 800mm, 9th backsweep, 5th upsweep, diameter 31.8mm
ForkRockShox 35 Silver TK 29, 160mm, TurnKey, Solo Air, tapered tube, Boost 15x110mm axle, 35mm steel rods, 44mm offset. Settings: compression down to lock, rebound, air preload
ChainSRAM SX Eagle, 12v, Powerlock
SaddleFIZIK Terra Aidon X5 145mm
Derailleur : RearSRAM SX Eagle, Type 3 needle bearing clutch, cage lock, 1x12v long cage, X-ACTUATION 1: 1
Hub : FrontFormula EHL148, Boost 12x148mm, sealed bearings, IS 6 bolt
Hub : RearFormula DC711, Boost 15x110mm, sealed bearings, IS 6 bolt
SpokeSRAM X-SYNC 2 Eagle 34T, steel, Narrow / Wide, 104 BCD
Motor Details
Bosch Performance Line CX Cruise (25Km / h) GEN4
Electricals
BatteryBosch Powertube 625Wh
Brakes
Front BrakeSRAM G2 R, 4-piston caliper, IS 200mm one-piece 6-bolt Centerline rotor, organic pads
Rear BrakeSRAM G2 R, 4-piston caliper, IS 200mm one-piece 6-bolt Centerline rotor, organic pads
Brake LeverSRAM G2 R, tool-free reach adjustment
Chassis and Suspension
Frame
Tyres
Wheels / Rim
Front TyreMaxxis Rekon 29x2.6, tubeless ready, dual compound, EXO shell, 60TPI, folding bead
Rear TyreMaxxis Rekon 29x2.6, tubeless ready, dual compound, EXO shell, 60TPI, folding bead
Dimensions
Length x Width x Height-- x -- x -- mm
Additional Details
Pinions : SRAM PG-1210, 11-50T, 12v
Derailleur hanger : Mondraker M068
Controls - change buttons :SRAM Trigger SX Eagle, 12v, X-ACTUATION 1: 1
Shank :ONOFF Internally wired prong, diameter 31.6mm, size: S 387x125mm, M: 425x150mm, L / XL: 465x170mm
Power : ONOFF Sulfur FG 30mm 0º, forged 6061 alloy, for 31.8mm handlebars
Connecting rods : Race Face Aeffect ebike, 165mm
Radios : CN inox round
Cuffs : ONOFF Diamond, 1 lock-on, 135mm
Shock absorber : RockShox Deluxe Select R Debonair, 205x65mm. Settings: low rebound, air preload. Trunnion top anchor, 25x10mm bottom bushings.
Damper adjustment : Light Compression, Light Bounce, 1 Token
Sizes : S: 380mm / M: 420mm / L: 450mm / XL: 490mm
Fork remote control : RockShox OneLoc
