Mondraker Dune RR Electric Bicycle Price, Specs and Features

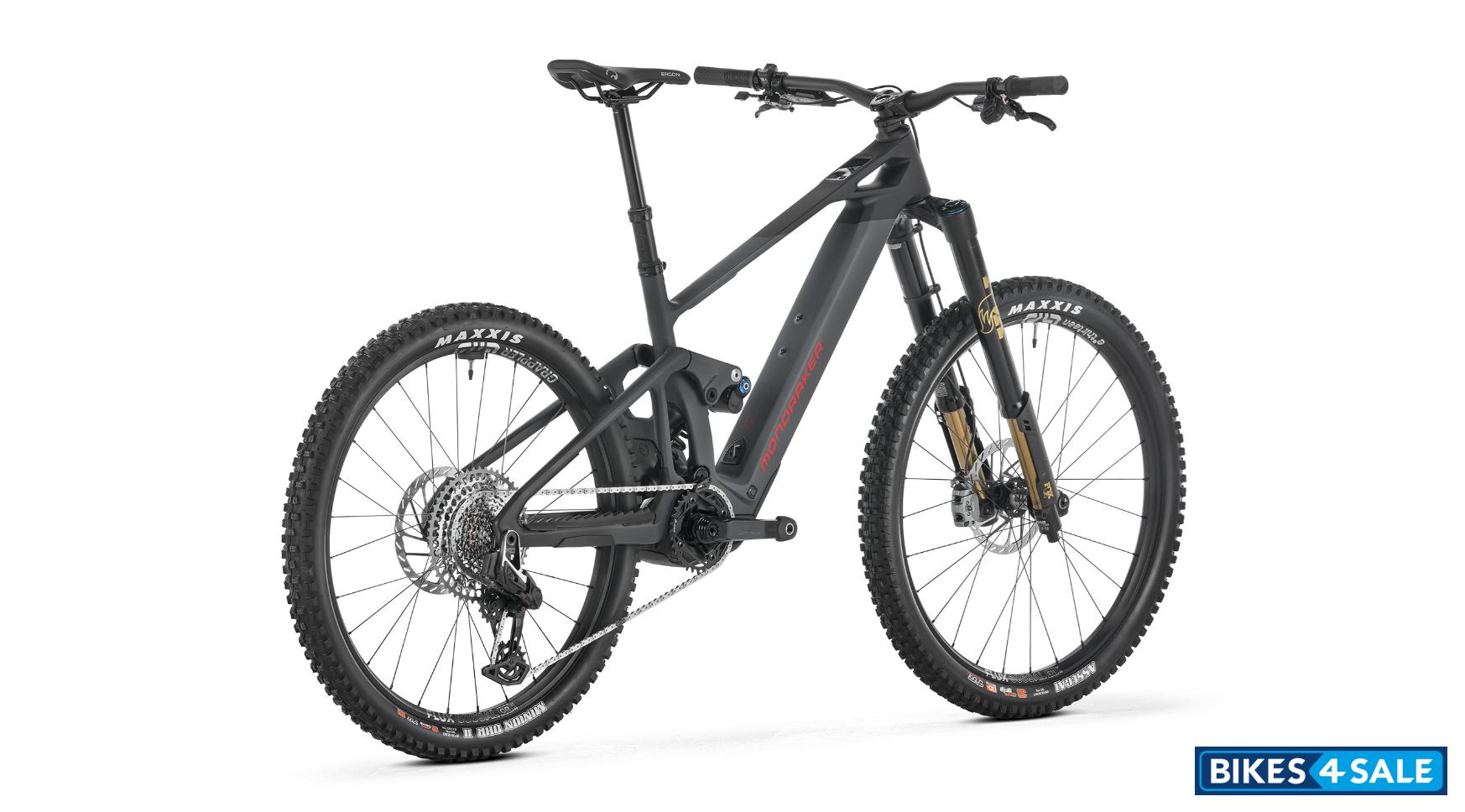

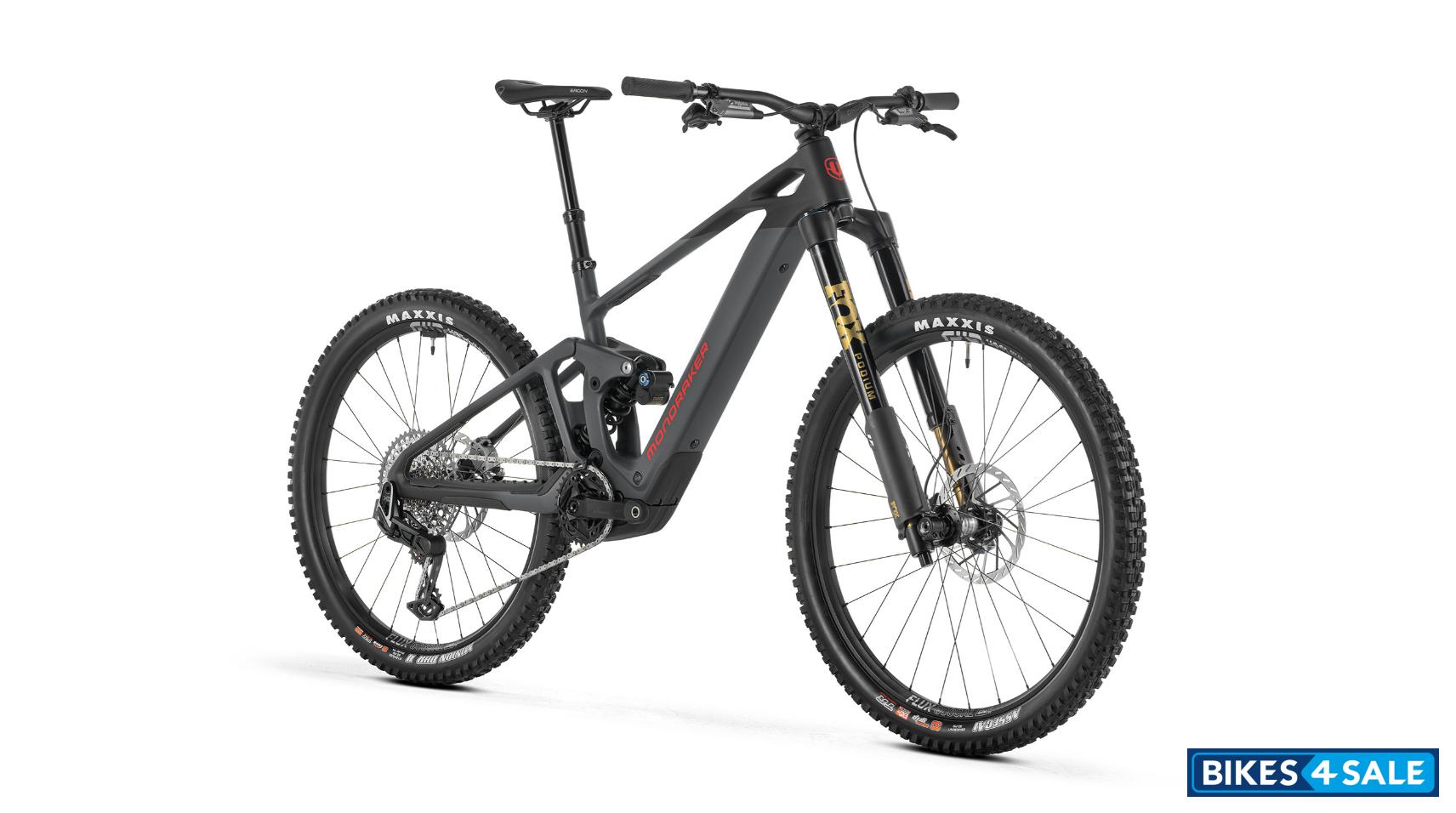

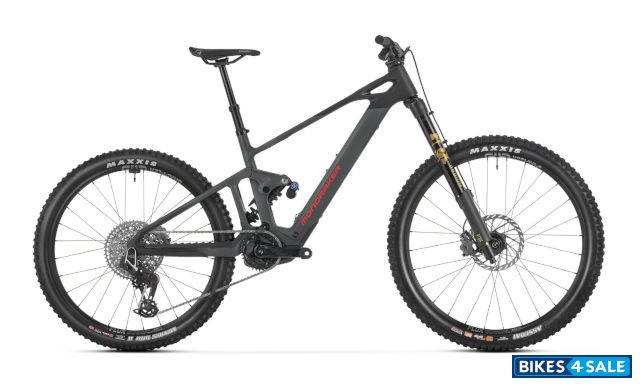

The Mondraker Dune RR is a lightweight "superlight" enduro e-bike weighing just 20.5 kg, built on a Stealth Air full carbon frame with a mullet wheel setup. Powered by the agile Bosch Performance Line SX motor, it features long-travel Fox Factory Kashima suspension and a wireless Sram X0 Eagle AXS drivetrain. This high-performance build is rounded out with heavy-duty Sram Maven Bronze brakes for ultimate control on aggressive descents.

Rate Mondraker Dune RR:

4.0/5 (3 votes)

Compare
Write a Review

Mondraker Dune RR Price

Not Available

Picture Gallery

Mondraker Dealers

BIOBIKE

Calle Lanzarote Nº 15 Local – 1 Spain

Contact Dealer

Bikeobiker

AVENIDA FRANCISCO AGUIRRE, 426, TALAVERA DE LA REINA Spain

Contact Dealer

More Dealers

View all Mondraker Showrooms

View All Showrooms

Technical Specifications

Vehicle Type	Bicycle
Fuel	Electric
Stem	Onoff S6 30mm 0º, 6061 forged alloy + CNC, 31.8mm barbore
Handlebar	Onoff S6 1.0 Carbon, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 38mm rise.
Fork	Fox Podium 29 GRIPX2 Factory Kashima, 170mm, tapered steerer tube, Boost 20x110mm Kabolt axle, 44mm offset. Settings: high and low-speed compression, high and low-speed rebound, air preload
Seatpost	Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 140-115mm (388-235mm), M size: 160-135mm (428-255mm), L size: 180-155mm (468-275mm), XL size: 210-185mm (528-305mm)
Grip	Onoff Desert Pro, CNC lock-on, 135mm. L and XL: Thicker size
Crankset	E.13 Helix Race Alloy E*Spec Plus, All sizes: 160mm
Chain	Sram GX Eagle T-Type, 12s, Powerlock
Shifters	Sram Eagle AXS Pod MMX, 12s
Saddle	Ergon Enduro SPS20
Headset	Acros custom IS52/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs without blocklock
Derailleur : Rear	Sram X0 Eagle AXS T-Type,12s
Hub : Front	e*thirteen Boost 20x110mm, triple-sealed, fully machined aluminum, IS 6 bolts
Hub : Rear	e*thirteen Superboost 12x148mm, Sidekick,12°/15°/18° Adjustable Deadband, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, HG freehub
Spoke	e*thirteen Sapim D-light / Brass
Cassette	Sram XS-1275, 10-52T, T-Type, 12s
Chainrings	Sram X-Sync 2 Eagle 34T T-Type, steel, narrow-wide, 104 BCD CL55

Motor Details
Bosch Performance Line SX (25Km/h) GEN4 SMART SYSTEM Diagonal, Wide

Display
Kiox 400C / Bosch Mini Remote

Electricals
Battery	Bosch Compact Powertube 400Wh

Brakes
Front Brake	Sram Maven Bronze, 18 and 19.5-millimeter 4-piston caliper, HS2 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
Rear Brake	Sram Maven Bronze, 18 and 19.5-millimeter 4-piston caliper, HS2 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
Brake Lever	Sram Maven Bronze , SwingLink and lever pivot bushings, tools-free reach adjust

Chassis and Suspension
Frame	Stealth Air full Carbon, Updated Zero Suspension System, Mullet, 165mm travel, Forward Geometry, internal & non removable battery, Boost 12x148mm rear axle, UDH, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, exclusive plastic motor covers.
Rear Suspension	Fox DHX2 Factory Kashima, 205x65mm. Settings: high and low-speed compression, high and low-speed rebound, spring preload. Super light steel (SLS) spring. Trunnion top mount, 30x8mm bottom bushings

Tyres
Wheels / Rim	e thirteen Grappler Flux, IW30 Hookless, 6069 Welded Aluminum, 30mm internal width, tubeless ready, 28 spokes
Front Tyre	Maxxis Assegai 29x2.5WT, tubeless ready, 3C Maxx Grip compound, DH casing, 60x2TPI, folding bead
Rear Tyre	Maxxis Minion DHR II 27’5x2.5 WT, tubeless ready, 3C MaxxTerra compound, DD protection, 2x120TPI, folding bead

Dimensions
Weight	20.5 kg
