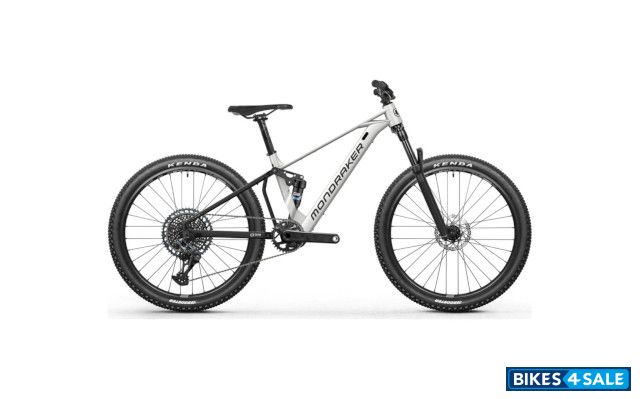

Mondraker F-Play 26

Price, review, features and specs

Rate Mondraker F-Play 26:
4.5/5 (4 votes)
Add To Compare
Write a Review
Mondraker F-Play 26 Price

Not Available

Buy new Mondraker F-Play 26

Book a Test Drive through Bikes4Sale and we will try to get you the best offer for Mondraker F-Play 26.

For Exciting Offers, Book a Test Drive
6951
Similar Bicycles
Technical Specifications
Vehicle TypeBicycle
FuelElectric
ForkX-Fusion Velvet RL 26, 120mm, air spring, tapered tube, 9x100mm axle, 32mm alloy rods, 41mm offset. Settings: Lock, Rebound, Air Preload
ChainSRAM SX Eagle, 12v, Powerlock
SaddleSDG Fly JR
Derailleur : RearSRAM SX Eagle, Type 3 needle bearing clutch, cage lock, 1x12v long cage, X-ACTUATION 1: 1
Hub : FrontMahle-Ebikemotion X-35
Hub : RearFormula DC20LW, 9x100mm, cone bearings, IS 6 bolt
Bottom BracketSRAM DUB BSA, sealed bearings, 73mm
Motor Details
Mahle-Ebikemotion X-35
Display
Mahle-Ebikemotion
Electricals
BatteryMahle-Ebikemotion Internal 250Wh
Brakes
Front BrakeSRAM Level, two-piece caliper, one-piece IS 160mm 6-bolt Centerline rotor, organic pads
Rear BrakeSRAM Level, two-piece caliper, one-piece IS 160mm 6-bolt Centerline rotor, organic pads
Brake LeverSRAM Level, reach adjust with tools, lever axle with bushings
Chassis and Suspension
Frame
Tyres
Wheels / Rim
Front TyreKenda Booster 26x2.4 single compound, 30TPI, rigid bead
Rear TyreKenda Booster 26x2.4 single compound, 30TPI, rigid bead
Dimensions
Length x Width x Height-- x -- x -- mm
Additional Details
Pinions : SRAM XG-1230, 11-50T, 12v
Derailleur hanger : Mondraker M073
Damper adjustment : A-Tune light compression
Controls - change buttons :SRAM Trigger SX Eagle, 12v, X-ACTUATION 1: 1
Shank : MDK XC 0-R, 6061 T6 Alloy, diameter 31.6mm, length 350mm
Power : ONOFF Sulfur FG 30mm 0º, forged 6061 alloy, for 31.8mm handlebars
Connecting rods : SRAM SX Eagle, DUB axle, Direct Mount, 155mm
Radios : CN inox round
Cuffs : ONOFF Diamond, 1 lock-on
Shock absorber : X-Fusion 02PRO R, 210x55mm. Settings: low rebound, air preload. Lower and upper 45x8mm bushings.
Sizes : One size: 350mm
