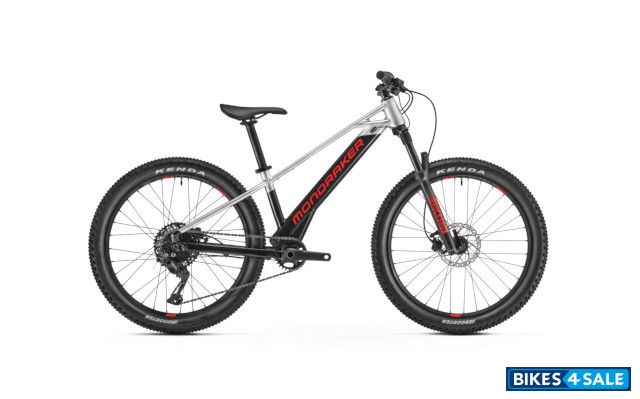

Mondraker Play 24

Price, review, features and specs

Rate Mondraker Play 24:
4.4/5 (5 votes)
Add To Compare
Write a Review
Mondraker Play 24 Price

Not Available

Buy new Mondraker Play 24

Book a Test Drive through Bikes4Sale and we will try to get you the best offer for Mondraker Play 24.

For Exciting Offers, Book a Test Drive
6862
Technical Specifications
Vehicle TypeBicycle
FuelElectric
HandlebarMDK XC 1.0, 6061 alloy, rise: 25mm, width: 580mm, 9th backsweep, 5th upsweep, 31.8mm bore
ForkRockShox Judy Silver TK 26, 100mm, TurnKey, Solo Air, tapered tube, 9x100mm axle, 30mm steel rods, 40mm offset. Settings: compression down to lock, rebound, air preload
ChainSRAM PC1110 11s, Powerlock
SaddleSDG Fly JR
Derailleur : RearSRAM NX, 11s, long cage, X-ACTUATION 1: 1
Hub : FrontMahle-Ebikemotion X-35
Hub : RearFormula DC20LW, 9x100mm, cone bearings, IS 6 bolt
Spoke28T, steel
Bottom BracketProwheel BSA, 73mm
Motor Details
Mahle-Ebikemotion X-35
Display
Mahle-Ebikemotion
Electricals
BatteryMahle-Ebikemotion Internal 250Wh
Brakes
Front BrakeSRAM Level, two-piece caliper, one-piece IS 160mm 6-bolt Centerline rotor, organic pads
Rear BrakeSRAM Level, two-piece caliper, one-piece IS 160mm 6-bolt Centerline rotor, organic pads
Brake LeverSRAM Level, reach adjust with tools, lever axle with bushings
Chassis and Suspension
FramePlay 24 6061 Alloy Stealth Evo, hydroformed tubing, non-removable internal battery, tapered head tube, HHG internal wiring system, BSA bottom bracket, 9mm QR rear axle, designed for single crankset.
Tyres
Wheels / Rim
Front TyreKenda Booster 24x2.4 single compound, 30TPI, rigid bead
Rear TyreKenda Booster 24x2.4 single compound, 30TPI, rigid bead
Dimensions
Length x Width x Height-- x -- x -- mm
Additional Details
Pinions : SRAM PG 1030 11-42T, 11s
Derailleur hanger : Mondraker M073
Damper adjustment : A-Tune light compression
Controls - change buttons : SRAM trigger NX 11v, X-ACTUATION 1: 1
Shank : MDK XC 0-R, 6061 T6 Alloy, diameter 31.6mm, length 350mm
Power :ONOFF Sulfur FG 30mm 0º, forged 6061 alloy, for 31.8mm handlebars
Connecting rods : Prowheel, Direct Mount, 127mm
Radios : CN inox round
Cuffs : ONOFF Twin, 1 lock-on, 135mm
Sizes : One size: 320mm
