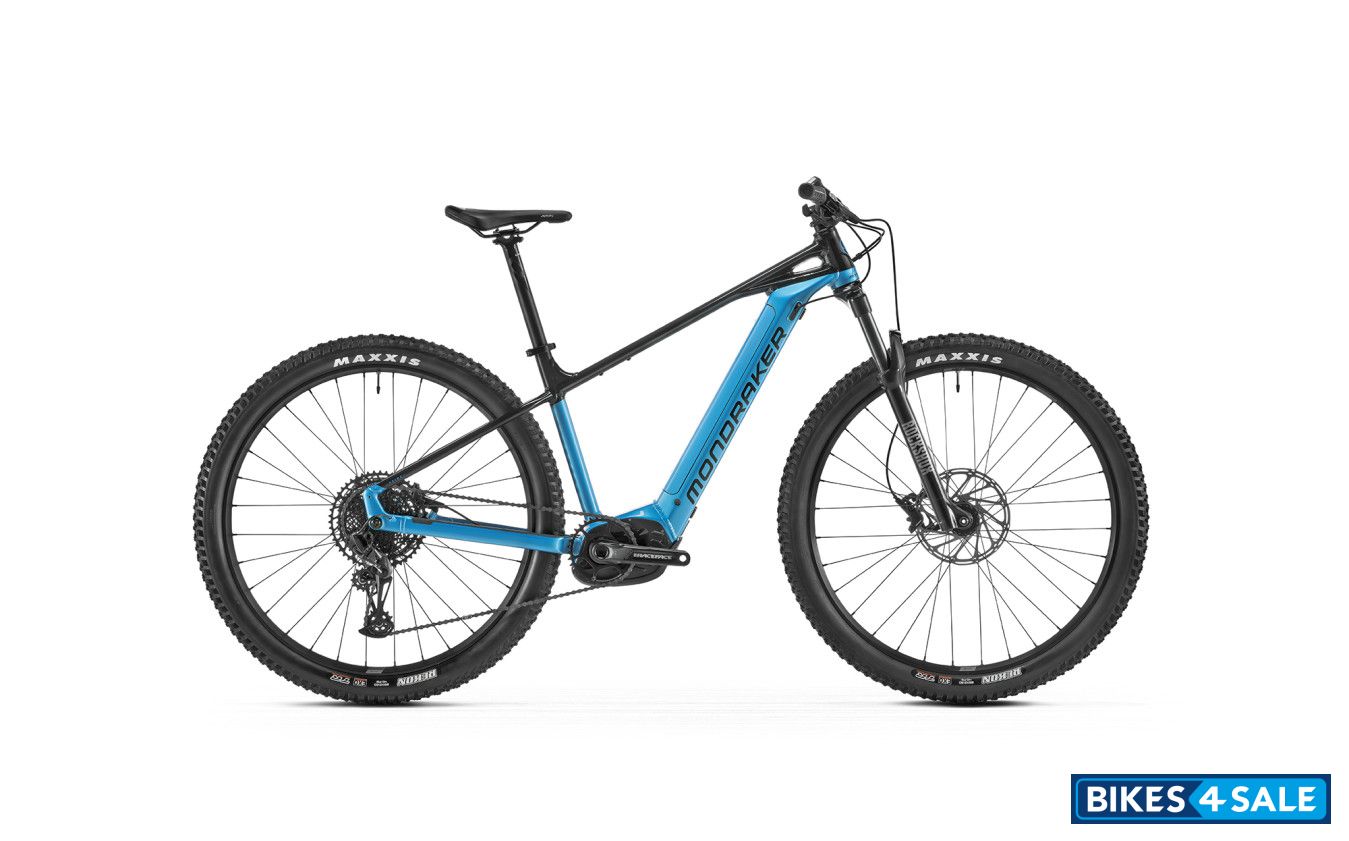

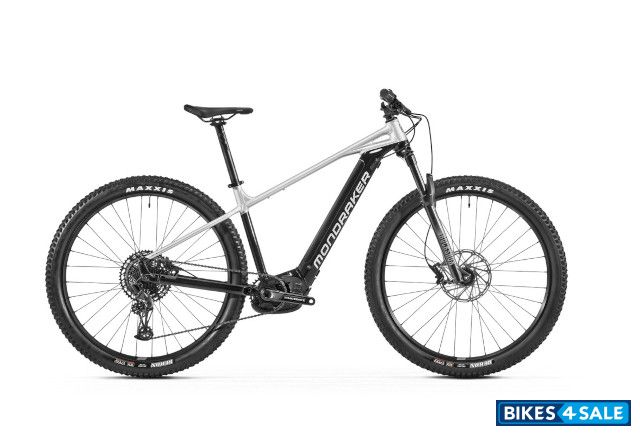

Mondraker Prime Plus

Price, review, features and specs

Rate Mondraker Prime Plus:
4.5/5 (2 votes)
Add To Compare
Write a Review
Mondraker Prime Plus Price

Not Available

Buy new Mondraker Prime Plus

Book a Test Drive through Bikes4Sale and we will try to get you the best offer for Mondraker Prime Plus.

For Exciting Offers, Book a Test Drive
1703
Similar Bicycles
Technical Specifications
Vehicle TypeBicycle
FuelElectric
Top Speed25 kmph
ForkRockShox Recon Silver RL 29, 120mm, Motion control, Solo Air, tapered tube, Boost 15x110mm axle, 42mm offset. Settings: compression down to lock, rebound, air preload
ChainSRAM SX Eagle, 12v, Powerlock
Derailleur : RearSRAM SX Eagle, Type 3 needle bearing clutch, cage lock, 1x12v long cage, X-ACTUATION 1: 1
Hub : FrontFormula DC711, Boost 15x110mm, sealed bearings, IS 6 bolt
Hub : RearFormula EHL148, Boost 12x148mm, sealed bearings, IS 6 bolt
SpokeSRAM X-SYNC 2 Eagle 34T, steel, Narrow / Wide, 104 BCD
Motor Details
Bosch Performance Line CX Cruise (25Km / h) GEN4
Display
Bosch Purion
Electricals
BatteryBosch Powertube 625Wh
Brakes
Front BrakeSRAM Level T, two-piece caliper, one-piece IS 200mm 6-bolt Centerline rotor, organic pickups
Rear BrakeSRAM Level T, two-piece caliper, one-piece IS 180mm 6-bolt Centerline rotor, organic pickups
Brake LeverSRAM Level T, Direct Link actuation, reach adjust with tools, lever spindle with bushings
Chassis and Suspension
Frame
Tyres
Wheels / Rim
Front TyreMaxxis Rekon + 27.5x2.8, tubeless ready, dual compound, EXO shell, 60TPI, folding bead
Rear TyreMaxxis Rekon + 27.5x2.8, tubeless ready, dual compound, EXO shell, 60TPI, folding bead
Dimensions
Length x Width x Height-- x -- x -- mm
Additional Details
Pinions : SRAM PG-1210, 11-50T, 12v
Derailleur hanger : Mondraker M068
Controls - change buttons :SRAM Trigger SX Eagle, 12v, X-ACTUATION 1: 1
Shank : ONOFF Sulfur 0-R, 6061 T6 Alloy, 3D forged, diameter 31.6mm, length 400mm
Power : ONOFF Sulfur FG 30mm 0º, forged 6061 alloy, for 31.8mm handlebars
Connecting rods : Race Face Aeffect ebike, 165mm
Radios : CN inox round
Cuffs : ONOFF Diamond, 1 lock-on, 135mm
Shock absorber : RockShox Deluxe Select R Debonair, 205x65mm. Settings: low rebound, air preload. Trunnion top anchor, 25x10mm bottom bushings.
Sizes : XS: 380mm / S: 390mm / M: 430mm / L: 470mm / XL: 510mm
