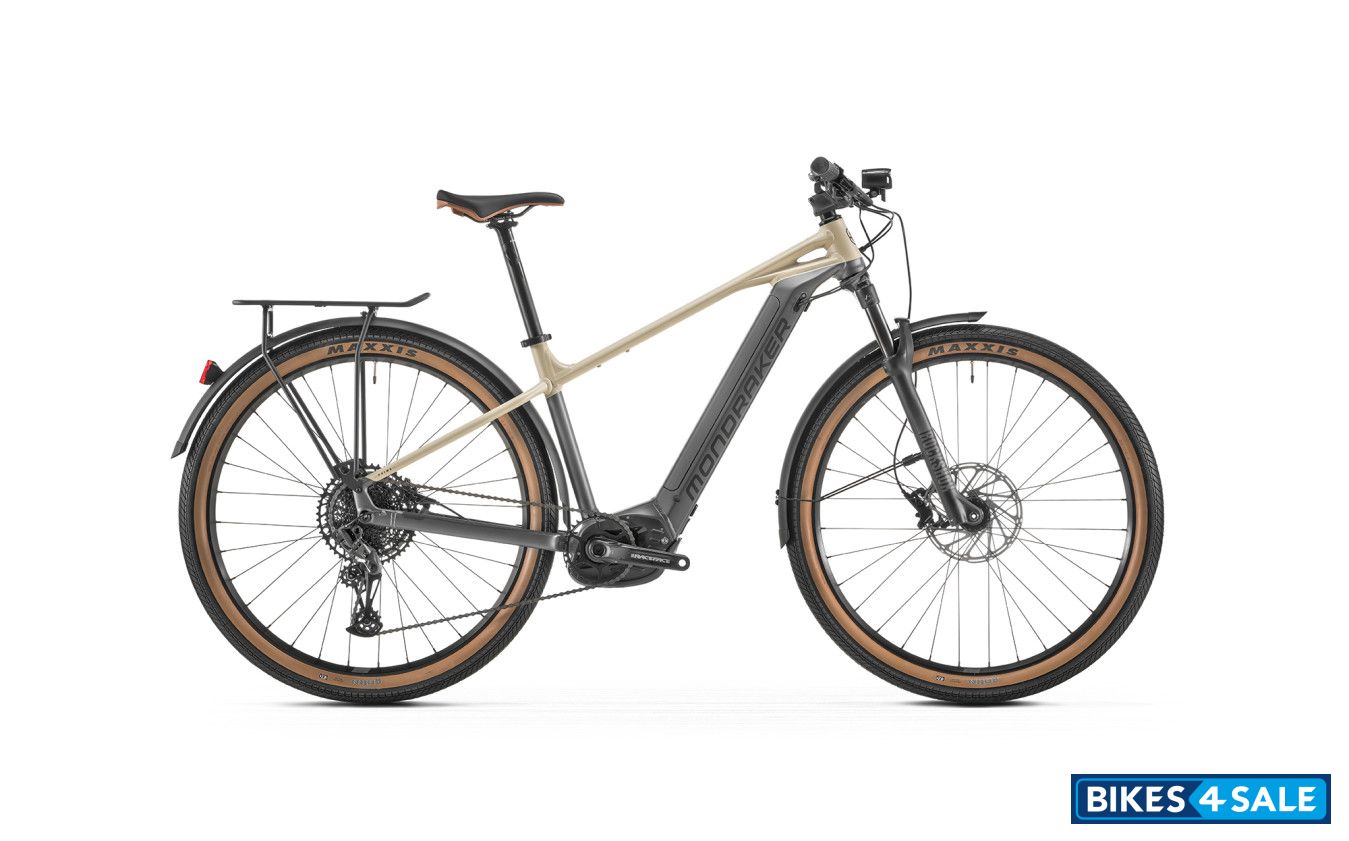

Mondraker Prime X Electric Bicycle

Price, features and specs

Rate Mondraker Prime X:
4.7/5 (3 votes)
Mondraker Prime X Price

Not Available

Technical Specifications
Vehicle TypeBicycle
FuelElectric
Load Carrying Capacity25kg
Top Speed25 kmph
HandlebarONOFF Sulfur 1.0 double butted 6061 alloy, height: 20mm, width: 680mm, 9th backsweep, 5th upsweep, diameter 31.8mm
ForkRockShox Recon Silver RL 29, 120mm, Motion control, Solo Air, tapered tube, Boost 15x110mm axle, 42mm offset. Settings: compression down to lock, rebound, air preload
ChainSRAM SX Eagle, 12v, Powerlock
SaddleFIZIK Terra Aidon X5 145mm
Derailleur : RearSRAM SX Eagle, Type 3 needle bearing clutch, cage lock, 1x12v long cage, X-ACTUATION 1: 1
Hub : FrontFormula EHL148, Boost 12x148mm, sealed bearings, IS 6 bolt
Hub : RearFormula DC711, Boost 15x110mm, sealed bearings, IS 6 bolt
SpokeSRAM X-SYNC 2 Eagle 34T, steel, Narrow / Wide, 104 BCD
StandKickstand: Massload KSA18-40.
Motor Details
Bosch Performance Line CX Cruise (25Km / h) GEN4
Display
Bosch Purion
Electricals
BatteryBosch Powertube 625Wh
Head Lamp50LUX DC 6-12V, made of waterproof alloy.
Tail LampMounted on fenders with reflector, e-bike 6-12V version
Brakes
Front BrakeSRAM Level T, two-piece caliper, one-piece IS 200mm 6-bolt Centerline rotor, organic pickups
Rear BrakeSRAM Level T, two-piece caliper, one-piece IS 180mm 6-bolt Centerline rotor, organic pickups
Brake LeverSRAM Level T, Direct Link actuation, reach adjust with tools, lever spindle with bushings
Chassis and Suspension
FrameTapered Prime 6061 Xtralite Alloy, Forward Geometry, removable internal battery, tapered head tube, 12x148mm Boost rear axle, integrated dropout speed sensor.
Tyres
Front TyreMaxxis Grifter 29x2.5, single compound, 60TPI, stiff bead, flesh colored flank
Rear TyreMaxxis Grifter 29x2.5, single compound, 60TPI, stiff bead, flesh colored flank
Accessories
Mudguards: MDK black alloy.
Carrier: MDK alloy rear carrier
Additional Details
Pinions : SRAM PG-1210, 11-50T, 12v
Derailleur hanger : Mondraker M068
Controls - change buttons :SRAM Trigger SX Eagle, 12v, X-ACTUATION 1: 1
Shank : ONOFF Sulfur 0-R, 6061 T6 Alloy, 3D forged, diameter 31.6mm, length 400mm
Power : MDK Urban 35mm, forged 6061 alloy, for 31.8mm handlebars
Connecting rods : Race Face Aeffect ebike, 165mm
Radios : CN inox round
Cuffs : ONOFF Shaper
Shock absorber : RockShox Deluxe Select R Debonair, 205x65mm. Settings: low rebound, air preload. Trunnion top anchor, 25x10mm bottom bushings.
Sizes : XS: 380mm / S: 390mm / M: 430mm / L: 470mm / XL: 510mm
