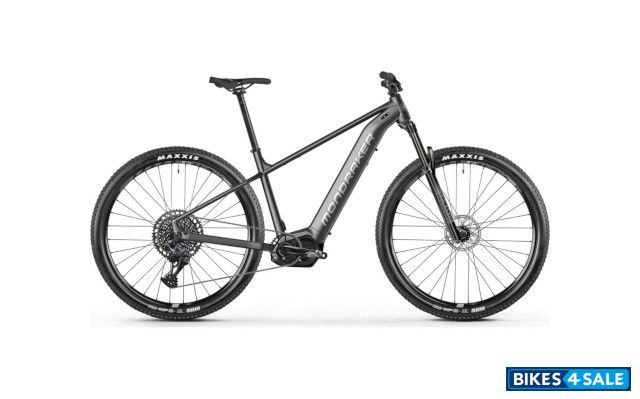

Mondraker Thundra

Price, review, features and specs

Rate Mondraker Thundra:
4.7/5 (3 votes)
Add To Compare
Write a Review
Mondraker Thundra Price

Not Available

Buy new Mondraker Thundra

Book a Test Drive through Bikes4Sale and we will try to get you the best offer for Mondraker Thundra.

For Exciting Offers, Book a Test Drive
1702
Features
Optional external battery: Simplo 360Wh
Technical Specifications
Vehicle TypeBicycle
FuelElectric
HandlebarONOFF Sulfur 1.0 double butted 6061 alloy, height: 20mm, width: 780mm, 9th backsweep, 5th upsweep, diameter 31.8mm
ForkRockShox Recon Silver RL 29, 120mm, Motion control, Solo Air, tapered tube, Boost 15x110mm axle, 42mm offset. Settings: compression down to lock, rebound, air preload
ChainSRAM SX Eagle, 12v, Powerlock
SaddleFIZIK Terra Aidon X5 145mm
Derailleur : RearSRAM SX Eagle, Type 3 needle bearing clutch, cage lock, 1x12v long cage, X-ACTUATION 1: 1
Hub : FrontFormula DC711, Boost 15x110mm, sealed bearings, IS 6 bolt
Hub : RearFormula EHL148, Boost 12x148mm, sealed bearings, IS 6 bolt
SpokeSRAM X-SYNC 2 Eagle 34T, steel, Narrow / Wide, 104 BCD
Motor Details
Shimano STEPS E7000
Display
Shimano STEPS E5003
Electricals
BatterySimplo internal 630Wh
Brakes
Front BrakeSRAM Level T, two-piece caliper, one-piece IS 200mm 6-bolt Centerline rotor, organic pickups
Rear BrakeSRAM Level T, two-piece caliper, one-piece IS 180mm 6-bolt Centerline rotor, organic pickups
Brake LeverSRAM Level T, Direct Link actuation, reach adjust with tools, lever spindle with bushings
Chassis and Suspension
FrameThundra 6061 Xtralite Alloy tapered, Forward Geometry, internal non-removable battery, tapered head tube, 12x148mm Boost rear axle, integrated dropout speed sensor. * Optional additional external battery.
Tyres
Wheels / Rim
Front TyreMaxxis Rekon 29x2.6, tubeless ready, dual compound, EXO shell, 60TPI, folding bead
Rear TyreMaxxis Rekon 29x2.6, tubeless ready, dual compound, EXO shell, 60TPI, folding bead
Dimensions
Length x Width x Height-- x -- x -- mm
Accessories
Mudguards: MDK black alloy.
Carrier: MDK alloy rear carrier
Additional Details
Pinions : SRAM PG-1210, 11-50T, 12v
Derailleur hanger : Mondraker M068
Controls - change buttons :SRAM Trigger SX Eagle, 12v, X-ACTUATION 1: 1
Shank : ONOFF Sulfur 0-R, 6061 T6 Alloy, 3D forged, diameter 31.6mm, length 400mm
Power : ONOFF Sulfur FG 30mm 0º, forged 6061 alloy, for 31.8mm handlebars
Connecting rods : FSA, 165mm
Radios : CN inox round
Cuffs : ONOFF Diamond, 1 lock-on, 135mm
Shock absorber : RockShox Deluxe Select R Debonair, 205x65mm. Settings: low rebound, air preload. Trunnion top anchor, 25x10mm bottom bushings.
Sizes : XS: 380mm / S: 390mm / M: 430mm / L: 470mm / XL: 510mm
