- Carbon Fiber Battery Case
- Suspension for Any Terrain
- Fox Dropper Seat Post
- Low Frame Stand Over

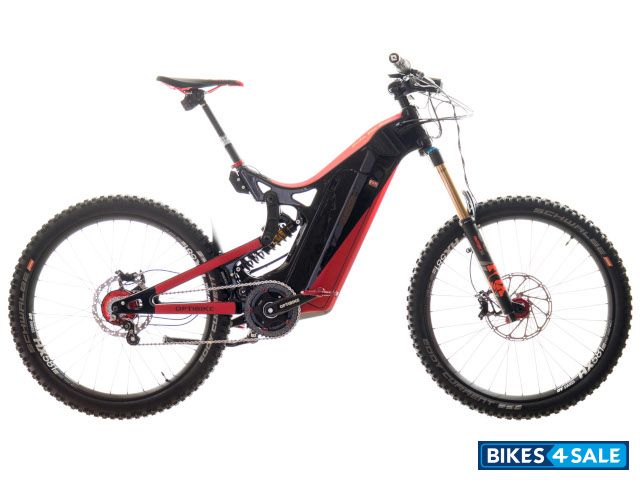

- Elegant Carbon Fiber Frame
- Offroad Only in Power Levels 4 and 5
- Highest Quality Components
Max Range at 36 MPH : 28 Miles @ 36 MPH (Offroad) (220LB rider with pedaling)
Max Range at 28 MPH: 56 Miles @ 28 MPH (Class 3) (220LB rider with pedaling)
Max Range at 20 MPH: 126 Miles @ 20 MPH (Class 2) (220LB rider with pedaling)
Max Range at 15 MPH: 180 Miles @ 15 MPH (Class 2) (220LB rider with pedaling)
Display
Optibike custom LCD display with 5 power levels, cycle computer functions, battery gauge, and headlight control with backlight.
Electricals
Battery
Removable 52 Volt 31.5 Ah (1600 Watt Hour) Battery (38% larger than old R15)
Head Lamp

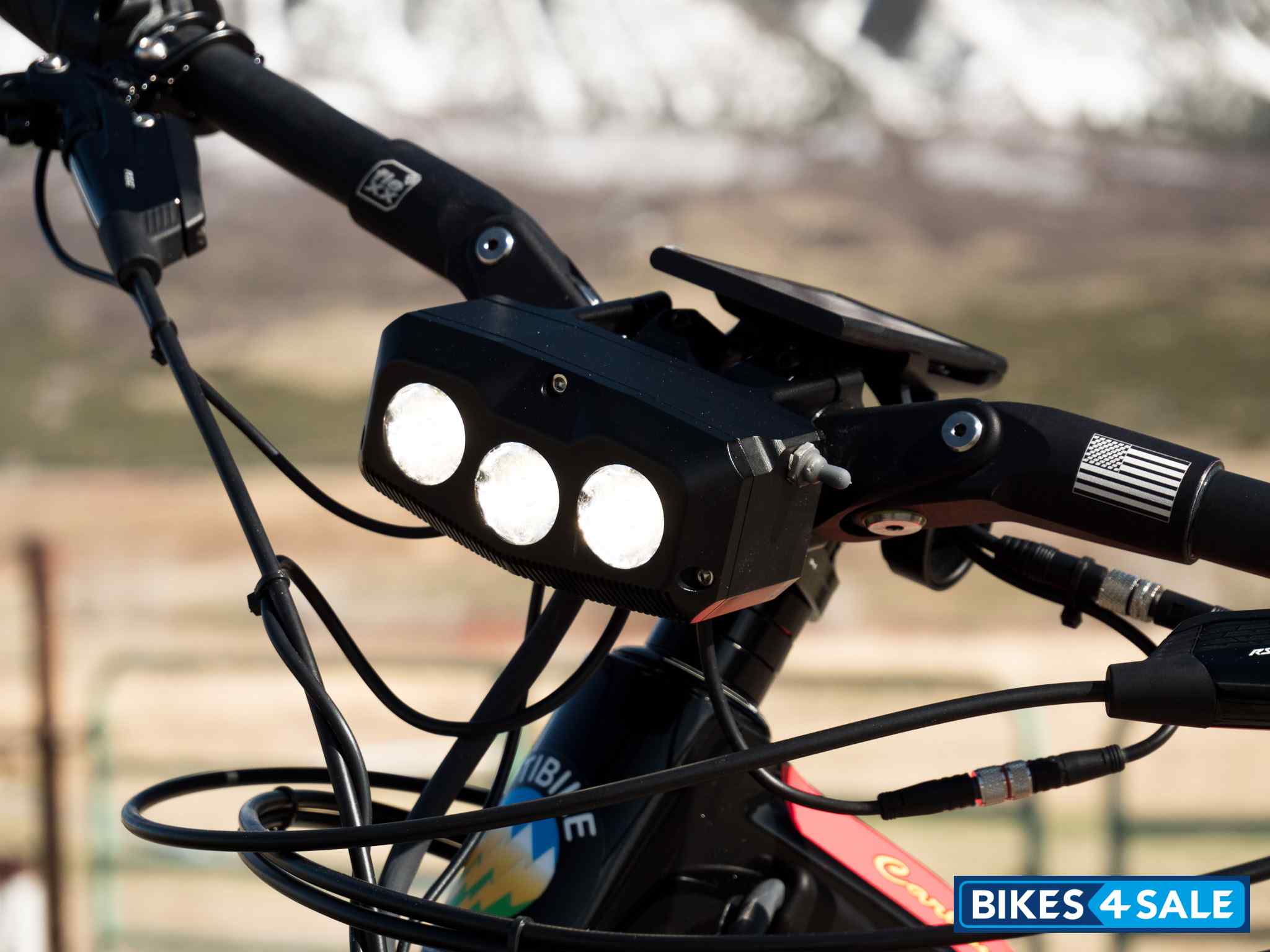

Integrated 2800 Lumen LED Headlight with high/low switch.
Tail Lamp
Integrated LED Taillight.
Brakes
Front Brake
SRAM Code RSC Hydraulic Disc Brakes with 203mm rotors
Chassis and Suspension
Frame
Full Carbon Fiber Frame, Swingarm, and Battery Case
Size: 28"
Front Suspension
Factory Series 36 FLOAT 29 160 GRIP2 HSC/LSC HSR/LSR 110mm Axle 1.5 T Kashima Matte Black Standard Chassis 51mm rake
Rear Suspension
Cane Creek DBcoil CS Shock
Tyres
Wheels / Rim
Front Wheel : DT Swiss 240S 15mm x 110mm Hub hand laced to DT Swiss XM521 27.5" 35mm wide rim with DP Brakes 203mm rotor
Rear Wheel: Rohloff Speedhub 500/14-Speed A12 148mm wide, Laced to DT Swiss XM521 27.5" 35mm wide rim, 13 tooth sprocket with 203mm rotor
Front Tyre
Schwalbe Smart Sam 27.5" x 2.6"
Rear Tyre
Schwalbe Smart Sam 27.5" x 2.6"
Dimensions
Weight
32.6kg
Additional Details
Power Levels : 5 Power Levels
Power Control : Half Twist Throttle
Rider Weight : 99.2 Kg
