Pedego Trail Tracker Electric Bike Fat Tire Bicycle: Price, Review, Specs and Features

Rate Pedego Trail Tracker Electric Bike Fat Tire:

3.3/5 (3 votes)

Add To Compare
Write a Review

Pedego Trail Tracker Electric Bike Fat Tire Price $ 4495 [Boulder, United States]

The given price can change depending on the colour, accessories and other features.

Country, City	Showroom Price	On Road Price
United States, Boulder	$ 4495	--

Buy new Pedego Trail Tracker Electric Bike Fat Tire

Book a Test Drive through Bikes4Sale and we will try to get you the best offer for Pedego Trail Tracker Electric Bike Fat Tire.

For Exciting Offers, Book a Test Drive

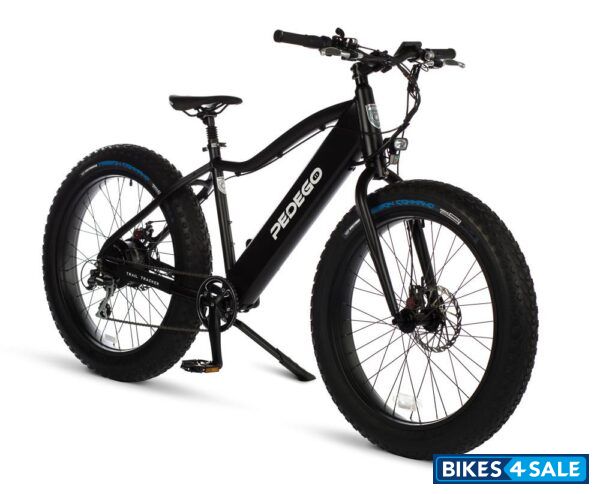

Picture Gallery

Features

- 4” Wide Tires
- Suspension Seatpost
- Integrated Battery
- Quality Components
- PedalSense
- Front Light
- Comfort & Performance
- Throttle

Colours

Black
Blue
Red
Lime Green

Pedego Dealers

Pedego HQ

11310 Slater Avenue, Fountain Valley United States

Contact Dealer

More Dealers

View all Pedego Showrooms

View All Showrooms

Technical Specifications

Vehicle Type	Bicycle
Fuel	Electric
Top Speed	32 kmph
Stem	BLACK 3D FORGED ALUMINUM ALLOY; 80MM LENGTH; 7° RISE; 31.8MM HANDLEBAR CLAMP DIAMETER; 1 ⅛ (28.6MM) THREADLESS STEERER TUBE CLAMP DIAMETER.
Handlebar	BLACK MTB RISER; ALUMINUM ALLOY; 31.8MM STEM CLAMP DIAMETER; 9° BACKSWEEP, 5° UPSWEEP; 20MM RISE; 720MM WIDTH.
Fork	26” FAT TIRE RIGID HIGH TENSILE STEEL; 1 ⅛”-1 ½” TAPERED THREADLESS STEERER TUBE; QUICK RELEASE 15MM X 150MM THRU-AXLE; DISC BRAKE MOUNTS.
Seatpost	BLACK 27.2MM X 350MM COIL SPRUNG SUSPENSION SEATPOST WITH 40MM OF TRAVEL AND ADJUSTABLE PRELOAD.
Grip	PEDEGO RUBBER LOCK ON GRIPS; DIAMOND GRIP PATTERN.
Crankset	BLACK 3 PIECE CRANK WITH 5X130MM 52T CHAINRING; 170MM FORGED ALUMINUM CRANK ARMS; INTEGRATED DOUBLE CHAINRING GUARD.
Pedals	BLACK PEDEGO ALUMINUM PLATFORM PEDAL; 9/16” SPINDLE; POLYMER DU BUSHING; INTEGRATED PEDAL REFLECTORS.
Chain	KMC X10-EPT 10 SPEED; RUSTBUSTER TREATMENT; 132 LINKS.
Shifters	SRAM GX 10-SPEED TRIGGER SHIFTER; SRAM X-GLIDE™ SHIFTING, EXACT ACTUATION™ FOR PRECISE AND DEPENDABLE 10-SPEED PERFORMANCE.
Saddle	MTB STYLE WITH SINGLE DENSITY LIGHTWEIGHT FOAM; CHROMOLY RAILS; CENTER CHANNEL RELIEF; 270MM L X 144MM W.
Headset	BLACK ZERO STACK SEMI-INTEGRATED; 1 ⅛” - 1 ½” THREADLESS TAPERED; ZS44/28.6 \| ZS56/40.
Derailleur : Rear	SRAM GX 10-SPEED REAR DERAILLEUR; EXACT ACTUATION™ FOR PRECISE AND DEPENDABLE 10-SPEED PERFORMANCE; CAGE LENGTH = SHORT.
Spoke	FRONT : BLACK 13 GAUGE HEAVY DUTY STAINLESS STEEL SPOKES WITH BRASS NIPPLES. REAR : BLACK 12 GAUGE HEAVY DUTY STAINLESS STEEL SPOKES WITH BRASS NIPPLES.
Cassette	SRAM PG-1030 10-SPEED CASSETTE,11-36T; SMOOTH, POWERGLIDE II™ TECHNOLOGY PROVIDES SUPER-SMOOTH SHIFTING BETWEEN GEARS; DURABLE NICKEL CHROME FINISH.
Bottom Bracket	100MM X 167MM SQUARE TAPER SPINDLE WITH SEALED CARTRIDGE BEARINGS; INTEGRATED TORQUE SENSOR.
Stand	BLACK URSUS KAISER 69; ALUMINUM ALLOY CENTER KICKSTAND; ADJUSTABLE LENGTH COMPOSITE FOOT.

Motor Details
BLACK 48V BRUSHLESS GEARED REAR HUB MOTOR; 749 WATT NOMINAL POWER RATING; 60NM TORQUE; QUICK DISCONNECT CABLE WITH WATERPROOF CONNECTION

Display
3.5” BACKLIT LCD SCREEN WITH CANBUS COMMUNICATION; 4 BUTTONS TO CONTROL ELECTRONICS, TOGGLE INFO DISPLAYED, AND CUSTOMIZE SETTINGS; USB CHARGING PORT; WATERPROOF THREADED CONNECTION; CUSTOM PEDALSENSE SOFTWARE.

Electricals
Battery	48 VOLT 14 AMP HOUR WITH PREMIUM LITHIUM ION 18650 CELLS; SMART BIKE TECHNOLOGY WITH CANBUS COMMUNICATION; AUTO SLEEP FUNCTION.
Charger	PEDEGO 2 AMP SMART CHARGER WITH A COMPLETELY SEALED CASE AND CHARGE INDICATOR LIGHT.
Controller	48 VOLT 20 AMP SINE WAVE CONTROLLER WITH CUSTOM PEDALSENSE® SOFTWARE AND WATERPROOF CONNECTIONS.
Head Lamp	LED WITH ADJUSTABLE MOUNT 60 LUX

Brakes
Front Brake	STAR UNION 2 PISTON FORGED ALUMINUM HYDRAULIC DISC BRAKE; MINERAL OIL BRAKE FLUID.
Rear Brake	STAR UNION 2 PISTON FORGED ALUMINUM HYDRAULIC DISC BRAKE; MINERAL OIL BRAKE FLUID.
Brake Lever	STAR UNION 3 FINGER LEVER; CAST ALUMINUM WITH MOTOR CUTOFF SWITCH FOR MAXIMUM SAFETY.

Chassis and Suspension
Frame	6061-T6 ALUMINUM ALLOY; 1 ⅛”-1 ½” TAPERED HEAD TUBE; INTEGRATED DOWNTUBE BATTERY MOUNT; INTERNAL / EXTERNAL CABLE AND WIRE ROUTING.

Tyres
Wheels / Rim	26” X 3” FAT TIRE EXTRA STRENGTH DOUBLE WALL; LIGHTWEIGHT ALUMINUM ALLOY; 12G X 36 HOLE.
Front Tyre	VEE RUBBER MISSION COMMAND 26” X 4.0”; MULTI PURPOSE RUBBER COMPOUND, 58 A DUROMETER; WIRE BEAD; 8-20 PSI; 26 X 4.0” VEE RUBBER INNER TUBE, SCHRADER VALVE.
Rear Tyre	VEE RUBBER MISSION COMMAND 26” X 4.0”; MULTI PURPOSE RUBBER COMPOUND, 58 A DUROMETER; WIRE BEAD; 8-20 PSI; 26 X 4.0” VEE RUBBER INNER TUBE, SCHRADER VALVE.

Dimensions
Weight	26 kg

Additional Details
THROTTLE : CUSTOM PEDEGO TWIST AND GO THROTTLE WITH COLOR LED ASSIST INDICATOR FOR MAXIMUM SAFETY; THREADED WATERPROOF CONNECTION. PEDALSENSE : FREE RIDE MODE (NO POWER), FIVE LEVELS OF PEDAL ASSIST WITH THROTTLE OVERRIDE, AND TORQUE OR CADENCE MODE, THROTTLE ONLY MODE. PADS : LOW NOISE RESIN BRAKE PADS WITH STEEL BACKING PLATE, OFFER SAFETY TOGETHER WITH EXCELLENT PERFORMANCE IN ALL SITUATIONS. TOOL KIT : CUSTOM PEDEGO TOOL KIT: 6” ADJUSTABLE WRENCH (UP TO 15MM), 12/13G SPOKE WRENCH, T25 TORX WRENCH, 6MM HEX WRENCH, 5MM HEX WRENCH WITH #2 PHILLIPS SCREWDRIVER, 4MM HEX WRENCH.

Additional Details

THROTTLE : CUSTOM PEDEGO TWIST AND GO THROTTLE WITH COLOR LED ASSIST INDICATOR FOR MAXIMUM SAFETY; THREADED WATERPROOF CONNECTION.
PEDALSENSE : FREE RIDE MODE (NO POWER), FIVE LEVELS OF PEDAL ASSIST WITH THROTTLE OVERRIDE, AND TORQUE OR CADENCE MODE, THROTTLE ONLY MODE.
PADS : LOW NOISE RESIN BRAKE PADS WITH STEEL BACKING PLATE, OFFER SAFETY TOGETHER WITH EXCELLENT PERFORMANCE IN ALL SITUATIONS.
TOOL KIT : CUSTOM PEDEGO TOOL KIT: 6” ADJUSTABLE WRENCH (UP TO 15MM), 12/13G SPOKE WRENCH, T25 TORX WRENCH, 6MM HEX WRENCH, 5MM HEX WRENCH WITH #2 PHILLIPS SCREWDRIVER, 4MM HEX WRENCH.
