Raleigh Misceo iE Step Thru Bicycle: Price, Review, Specs and Features

Price, review, features and specs

Rate Raleigh Misceo iE Step Thru:

4.0/5 (1 vote)

Add To Compare
Write a Review

Raleigh Misceo iE Step Thru Price $ 1800 [Washington, United States]

The given price can change depending on the colour, accessories and other features.

Country, City	Showroom Price	On Road Price
United States, Washington	$ 1800	--

Buy new Raleigh Misceo iE Step Thru

Book a Test Drive through Bikes4Sale and we will try to get you the best offer for Raleigh Misceo iE Step Thru.

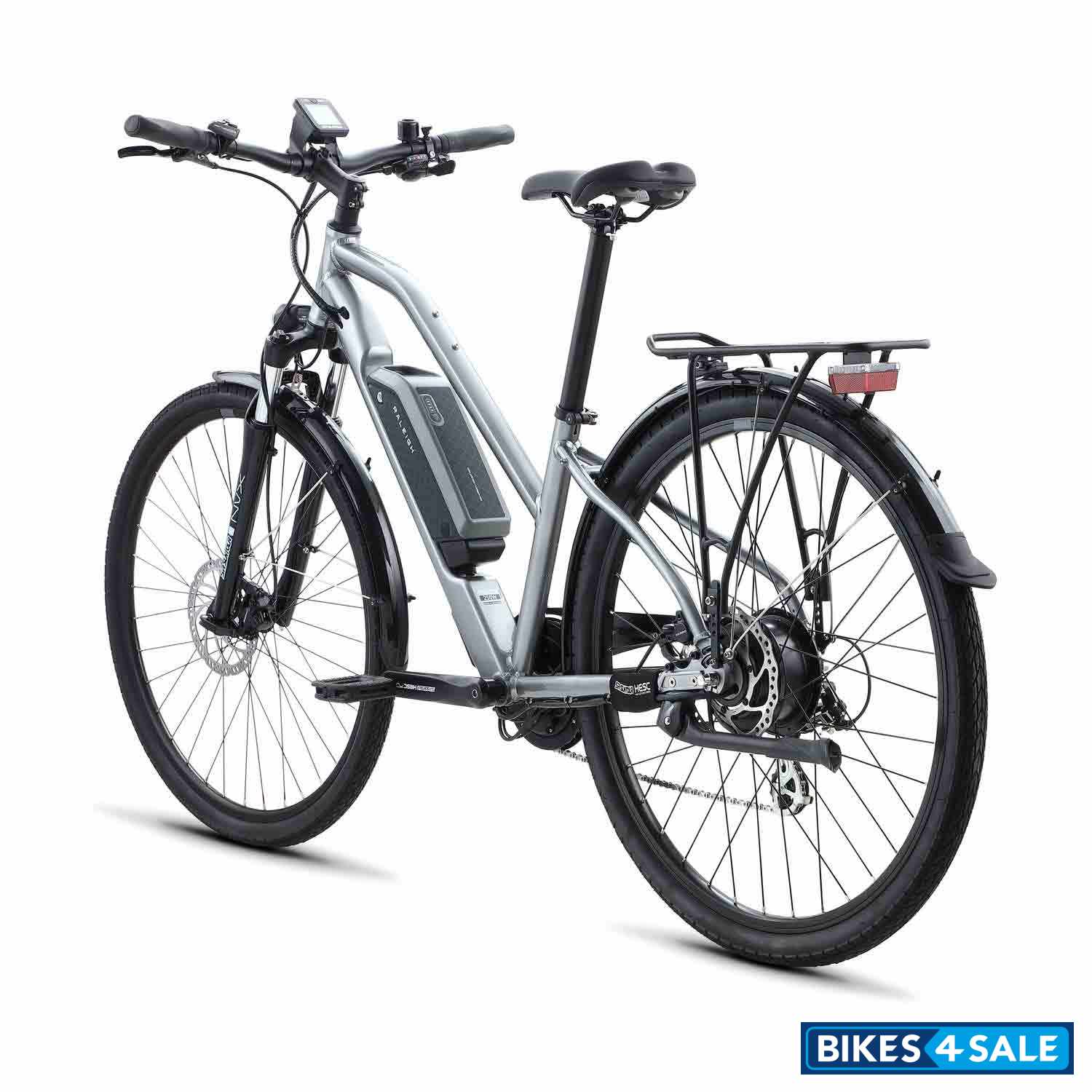

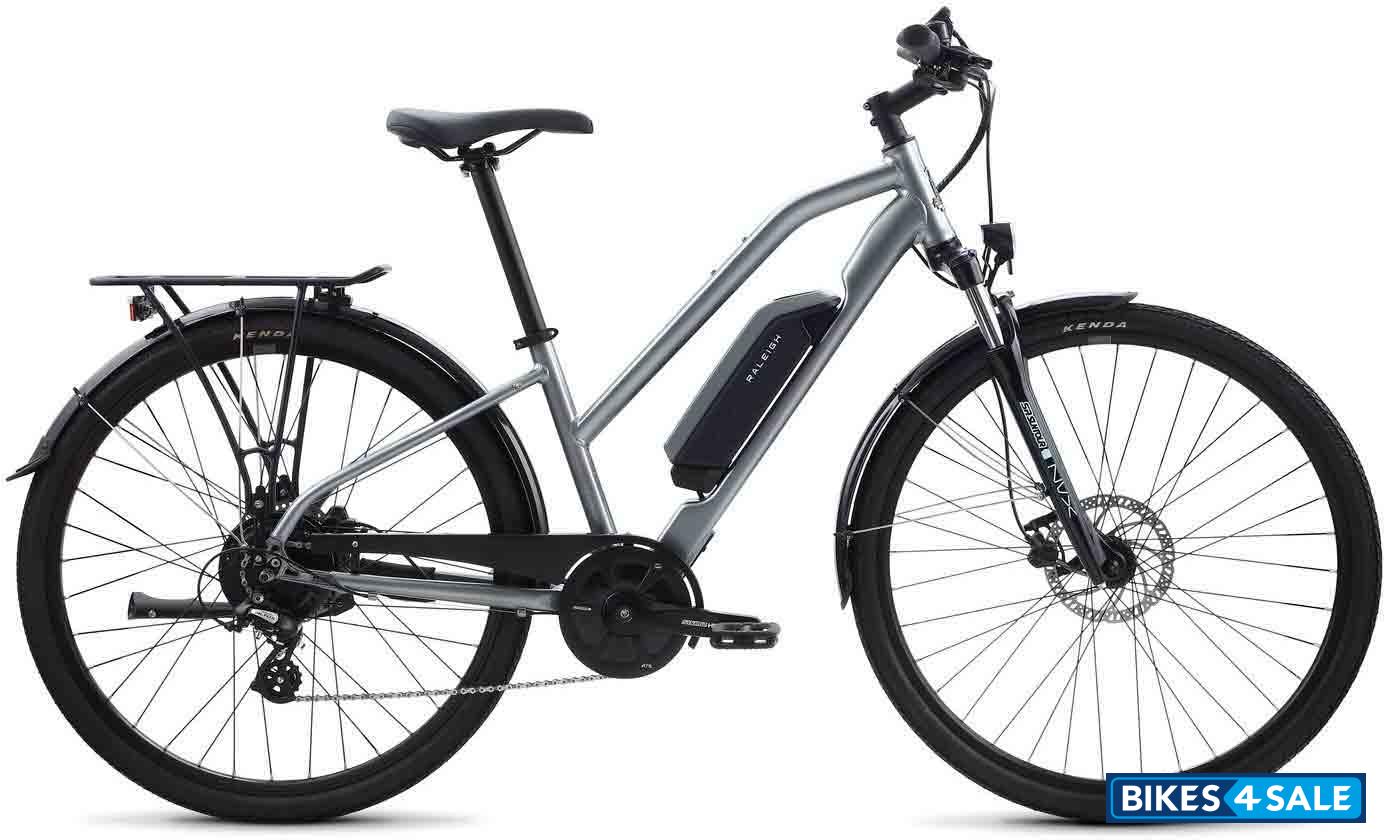

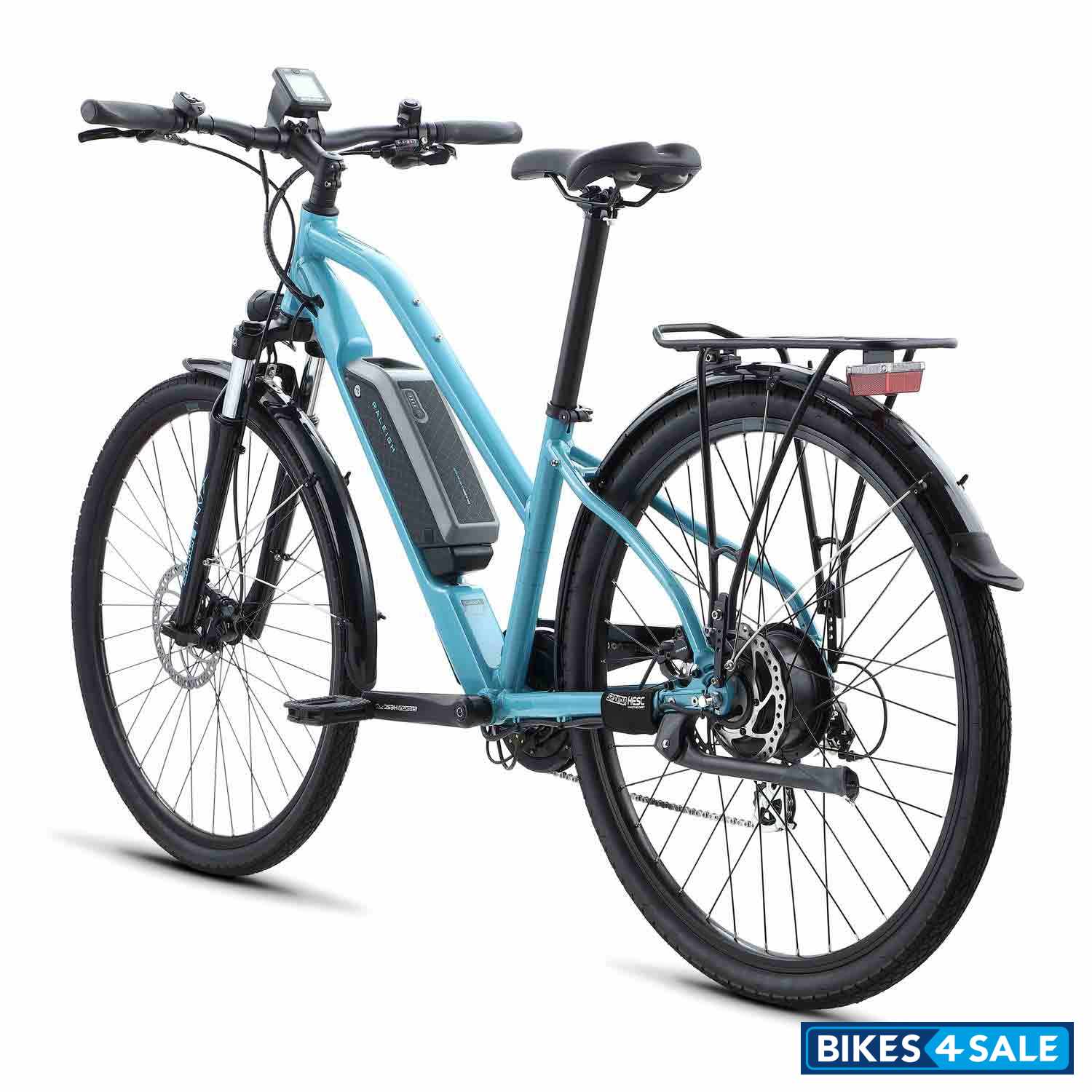

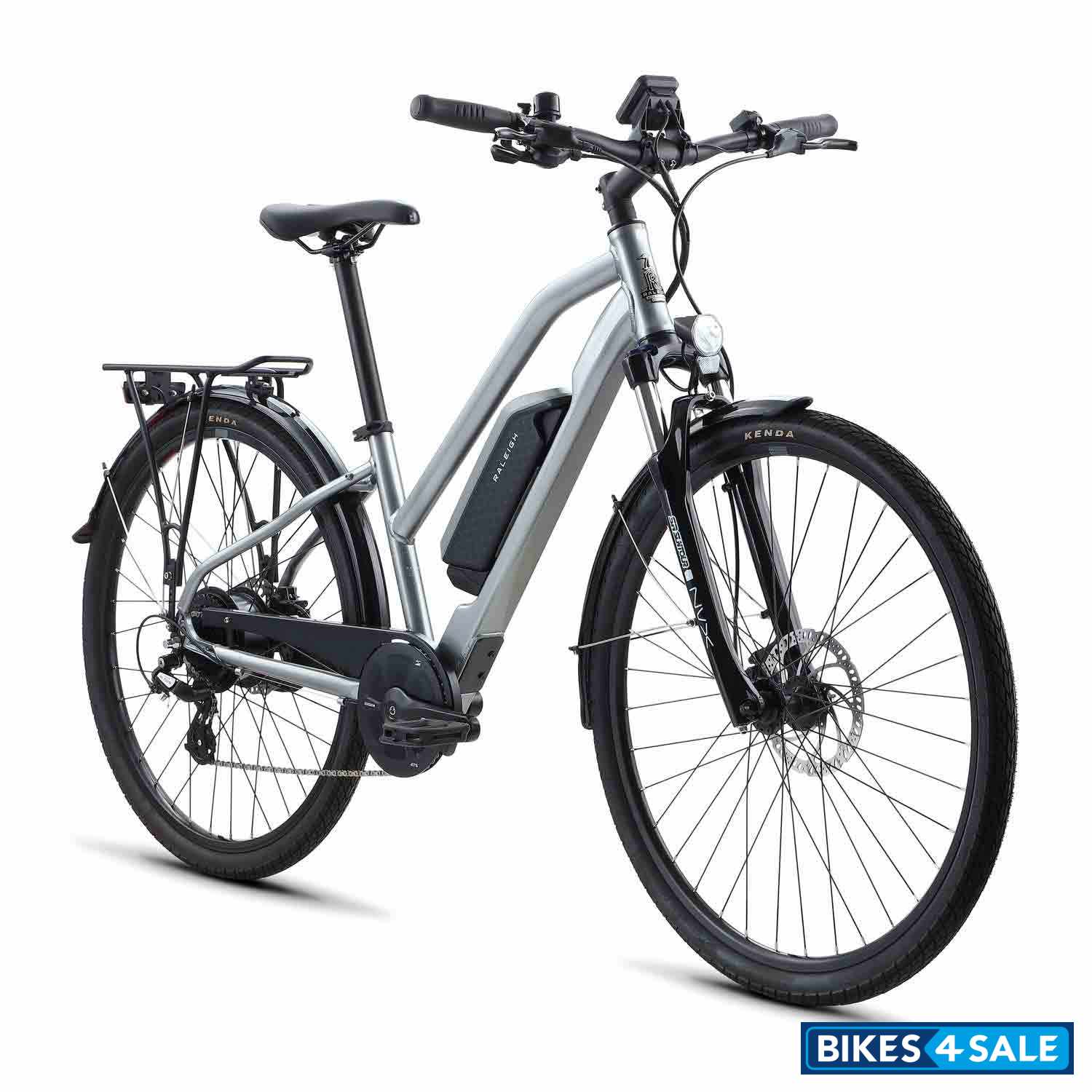

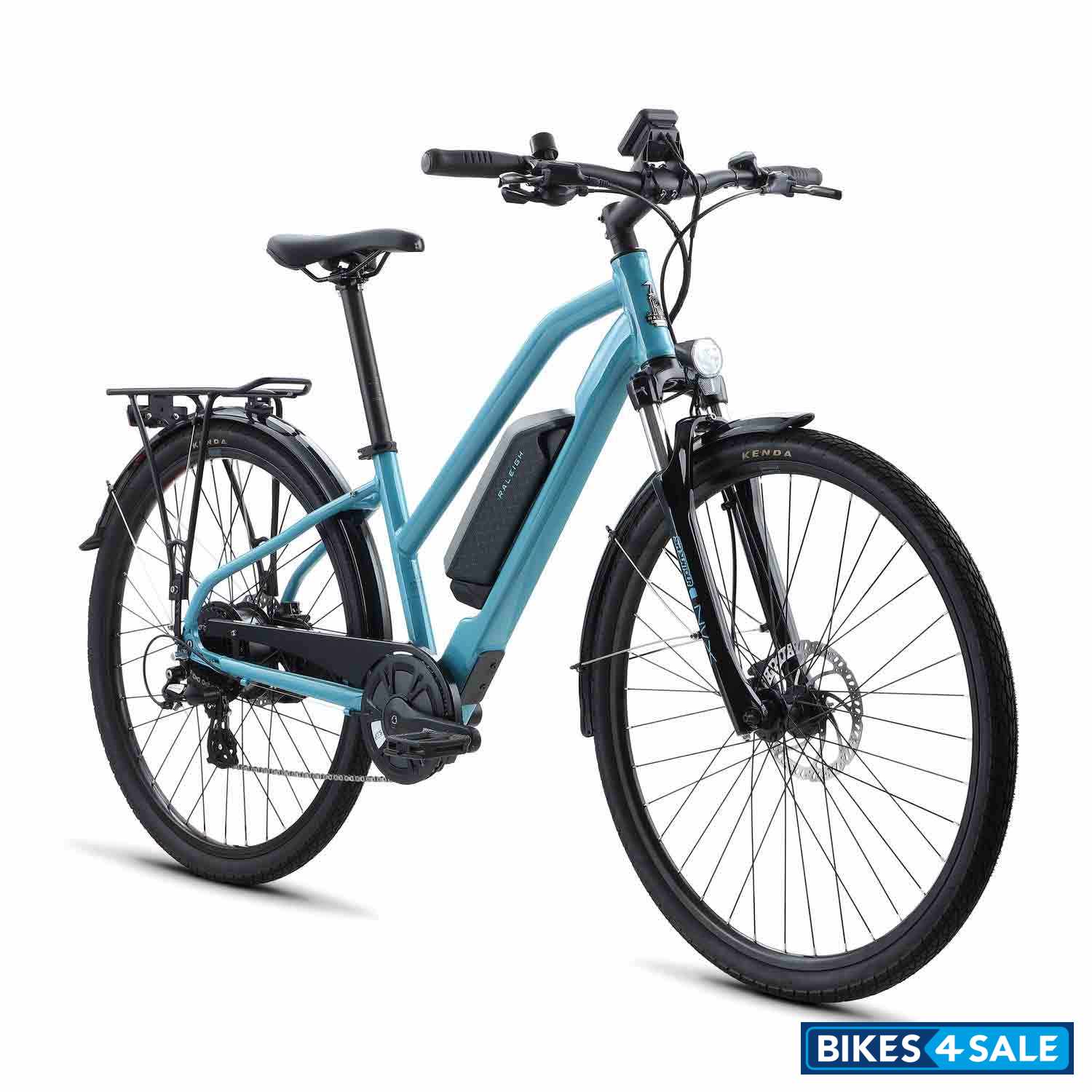

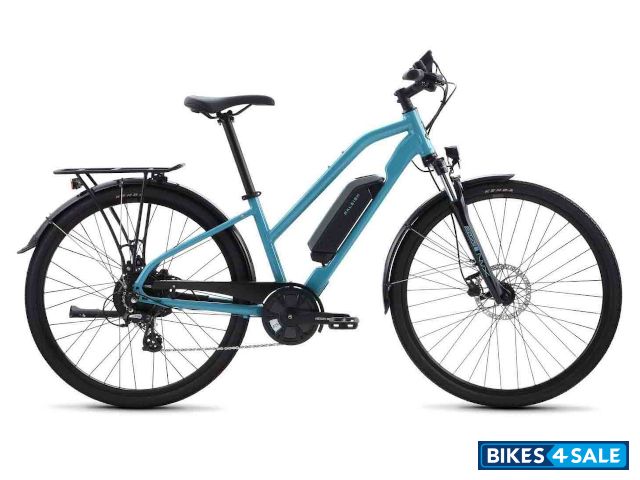

Picture Gallery

Similar Bicycles

Beta eKinder Race 20 Compare

Beta eKinder Race 18 Compare

Beta ekinder Race 16 Compare

Canyon Grail CFR Di2 Compare

Trek Checkpoint SLR 9 AXS Compare

Trek Fuel EXe 9.9 XX AXS T-Type Compare

Colours

Blue
Silver

6004 South 190th Street, Suite 101 Washington United States

More Dealers

View all Raleigh Showrooms

Technical Specifications

Vehicle Type	Bicycle
Fuel	Electric
Stem	Raleigh Aluminum Alloy, 7 Degree Rise
Handlebar	Raleigh Alloy Bars, 15 mm Rise, 9 Degree Bend
Fork	SR Suntour NVS-DS Suspension Fork, 75 mm Travel
Seat	Raleigh Custom Ergo Performance
Seatpost	Raleigh Aluminum Alloy, Forged Head, 350 mm
Grip	Raleigh Comfort Control
Crankset	SR Suntour Alloy Black, 170 mm, with Torque, Cadence and Speed Sensor
Pedals	Resin Body Urban, Black
Chain	KMC X8
Shifters	Shimano Altus SL-M315, 8 Speed
Headset	Semi-Integrated, Sealed Mechanism
Derailleur : Rear	Shimano Altus RD-M310, 8 Speed
Hub : Front	SR Suntour E25 Performance Rear Hub, 36 Hole, Bolt-on
Hub : Rear	Formula, 36 Hole, W/QR
Spoke	Black w/Silver Nipples
Sprocket	42 Tooth w/Double Chainguard

Motor Details
SR Suntour E25 Performance Rear Hub Brushless DC Motor, 250W (400W max), 60 Nm Torque

Range
15mi (24km) to 62mi (100km)

Display
SR Suntour Li-Ion 410Wh Downtube Mounted, w/Lockset

Electricals
Battery	SR Suntour Li-Ion 410Wh Downtube Mounted, w/Lockset

Brakes
Front Brake	Tektro Hydraulic Disc, 180 mm Rotors
Rear Brake	Tektro Hydraulic Disc, 180 mm Rotors
Brake Lever	Tektro 2 Finger Lever

Chassis and Suspension
Frame	Lightweight Hyrdoformed 7005 Alloy, Internal Cable Routing

Tyres
Wheels / Rim	700c Alloy Double Wall, Anodized Black, 36 Hole
Front Tyre	Kenda K-1172, Blackwall, 700 x 45c
Rear Tyre	Kenda K-1172, Blackwall, 700 x 45c

Accessories
Alloy Rear Rack, Steel Fenders, LED Lights Front & Rear, Alloy Bell, Adjustable Kickstand

Additional Details
Cogset : Shimano HG-31, 11-34 Tooth, 8 Speed Extras : Alloy Rear Rack, Black Fenders, LED Lights Front & Rear, Alloy Bell, Adjustable Kickstand Max Assisted Speed : 20 mph (32 kph)
