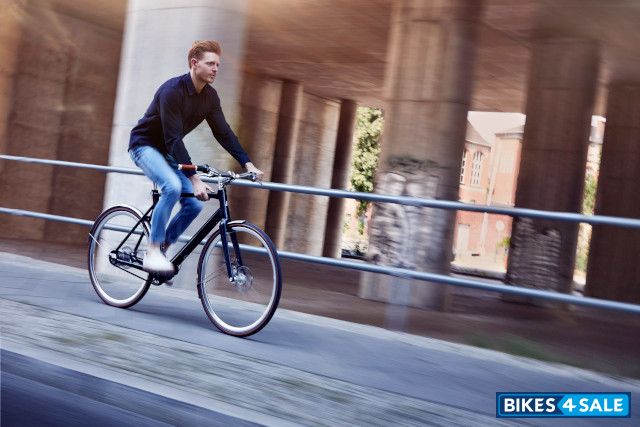

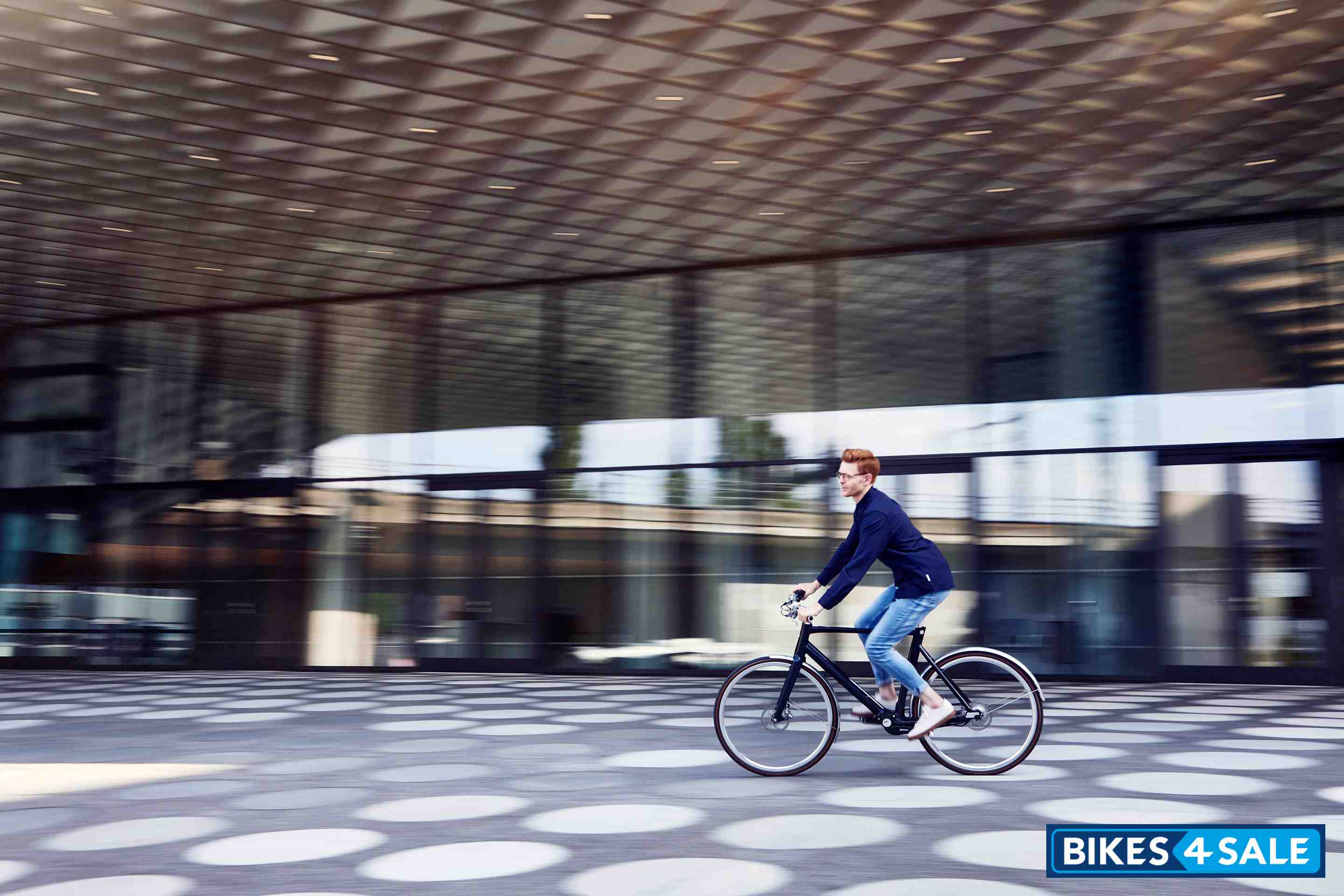

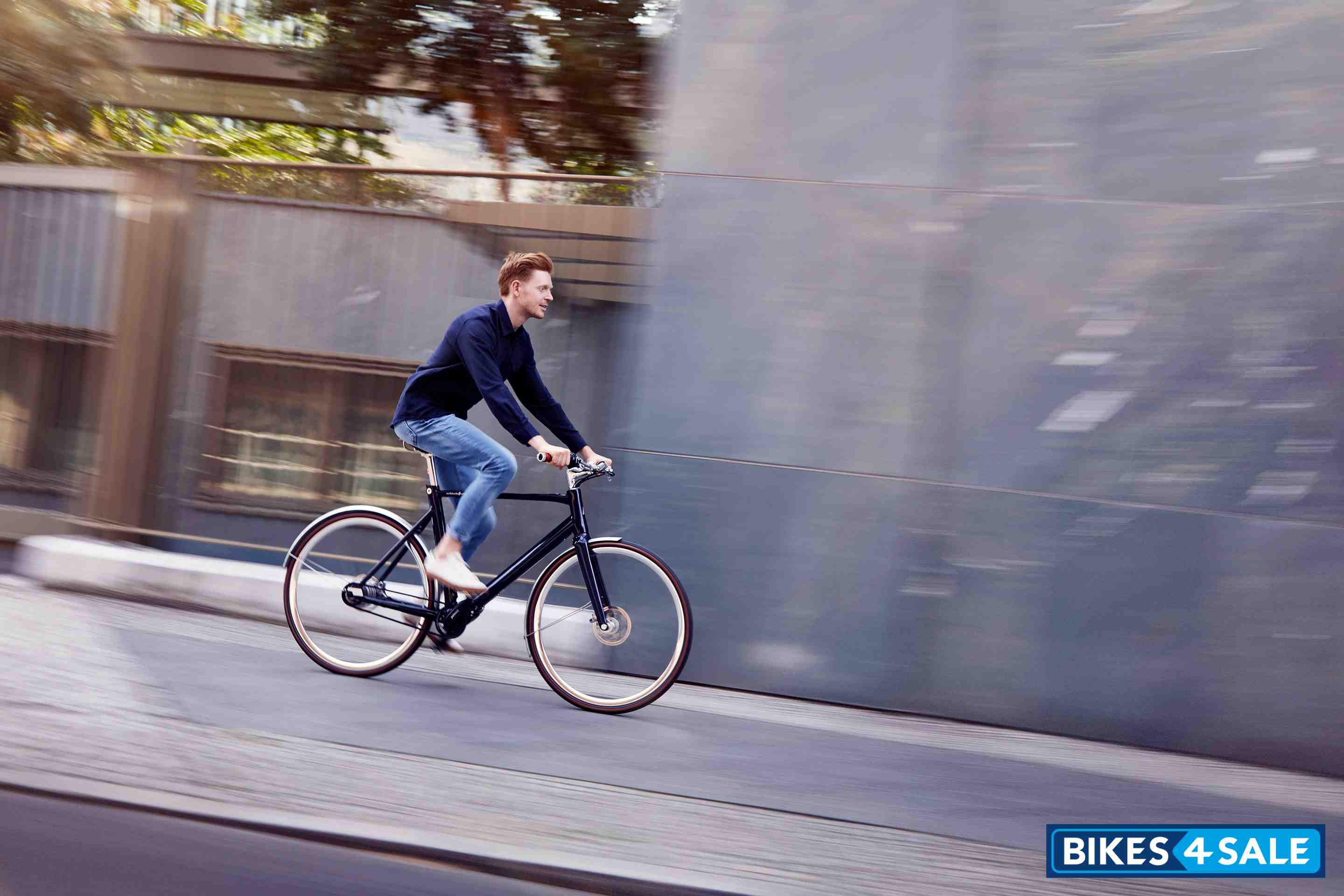

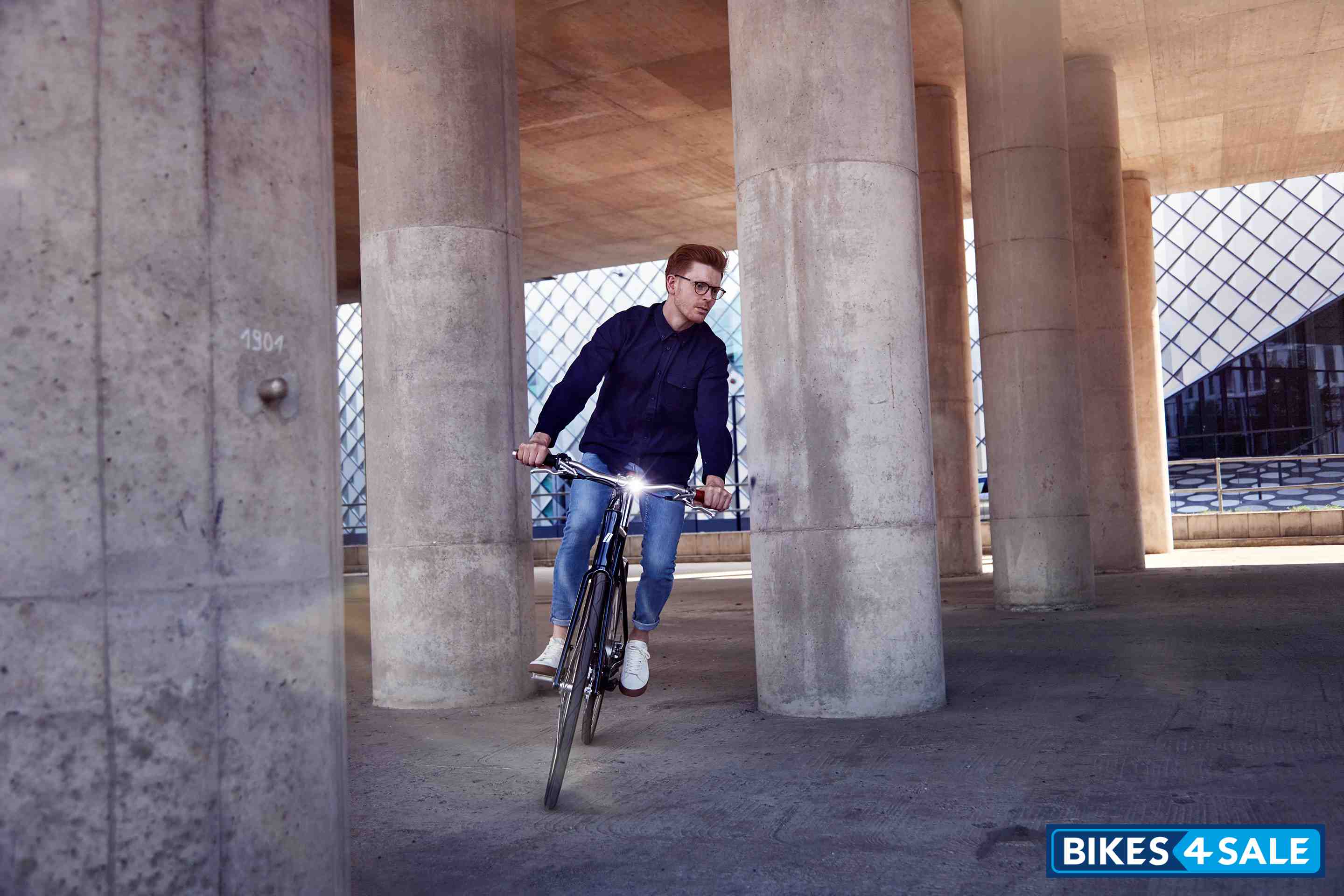

Schindelhauer Arthur VI/IX Electric Bicycle

Price, features and specs

Rate Schindelhauer Arthur VI/IX:
4.3/5 (3 votes)
Schindelhauer Arthur VI/IX Price 4995 [Hamburg, Germany]

The given price can change depending on the colour, accessories and other features.

Country, City Showroom Price On Road Price
Germany, Hamburg € 4995 --
Features
- Motor and light control at the touch of a button on the frame or app
- Maintenance free, Whisper quiet and Clean
Colours

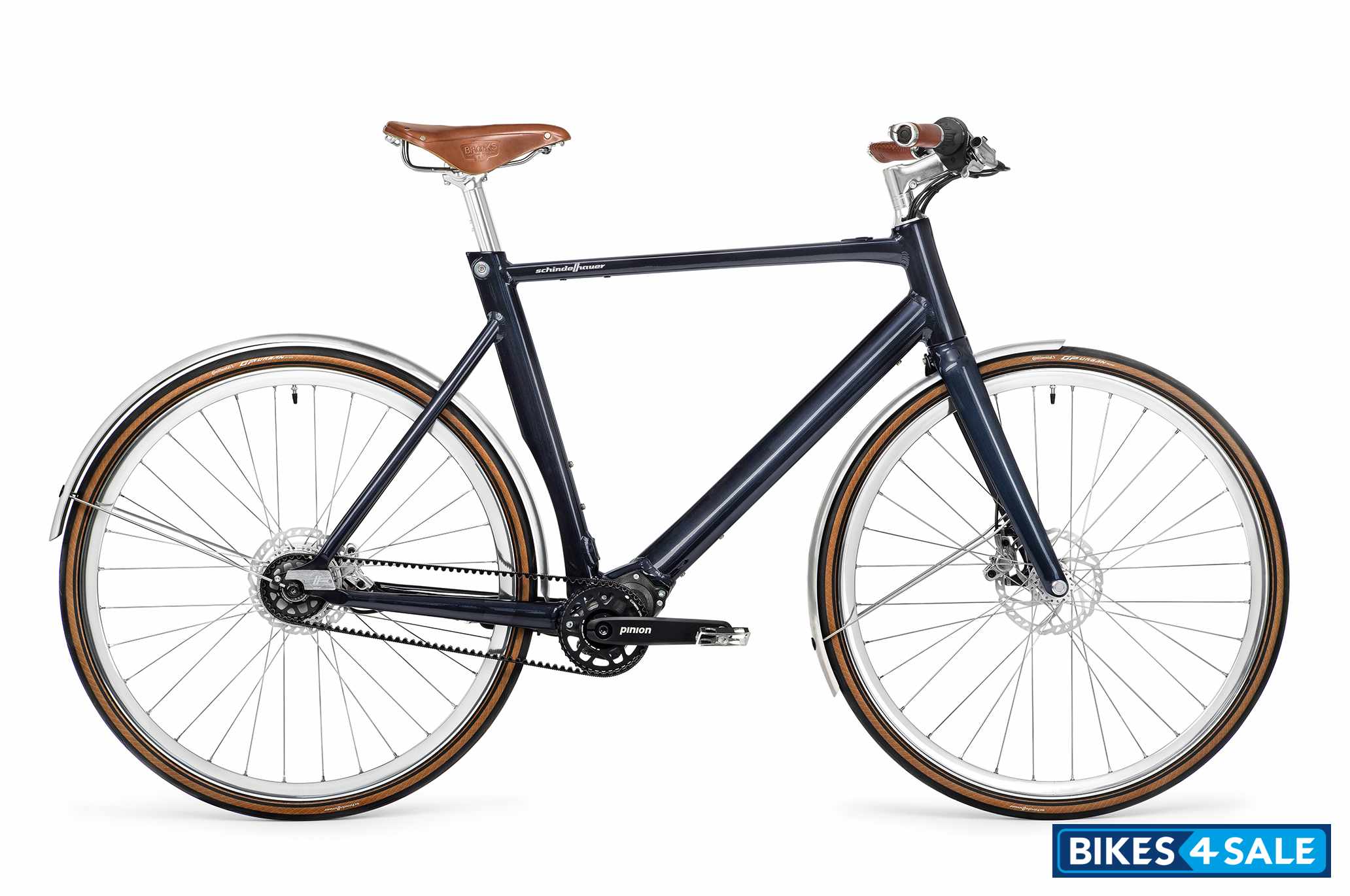

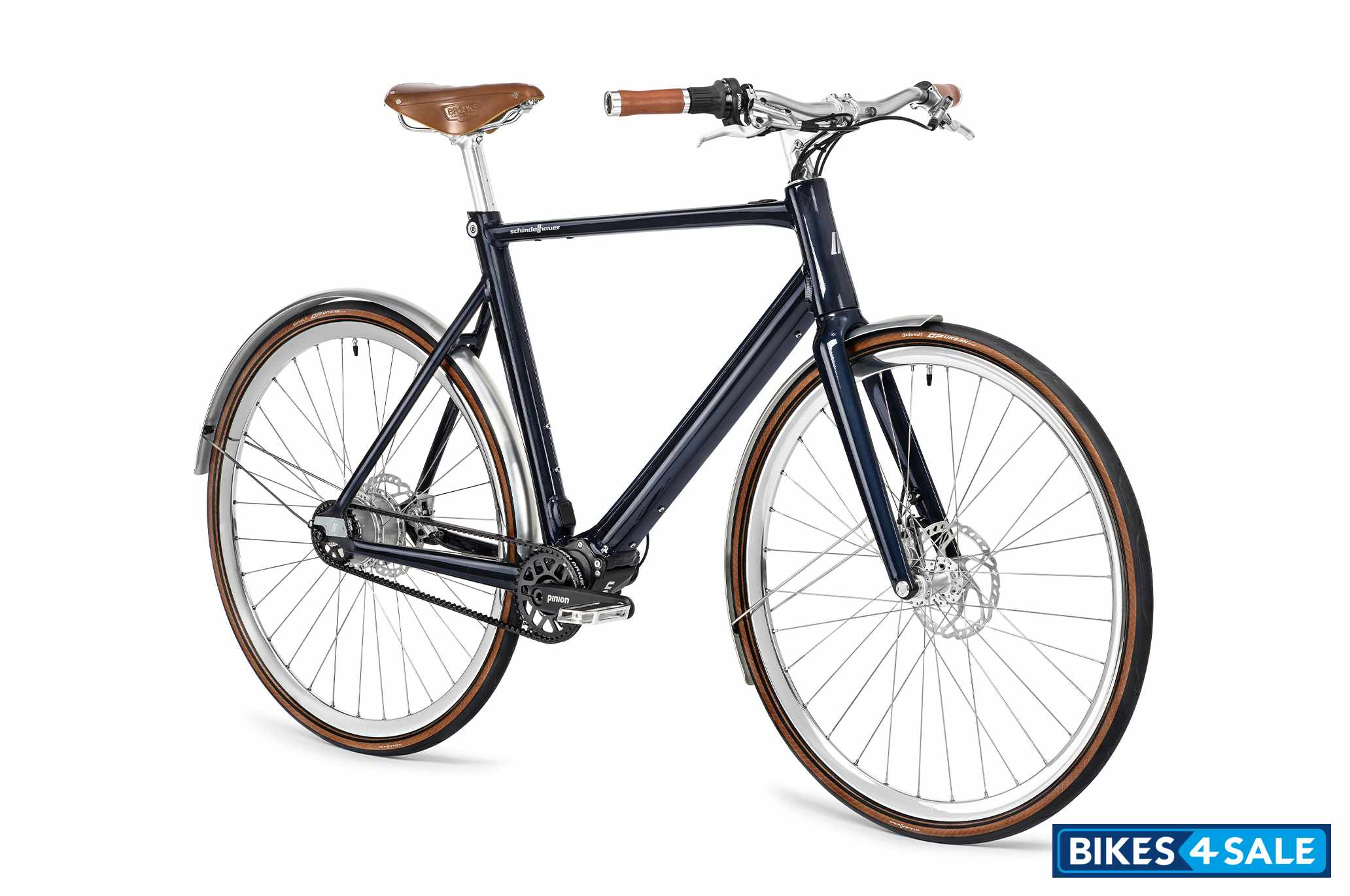

Midnight Blue

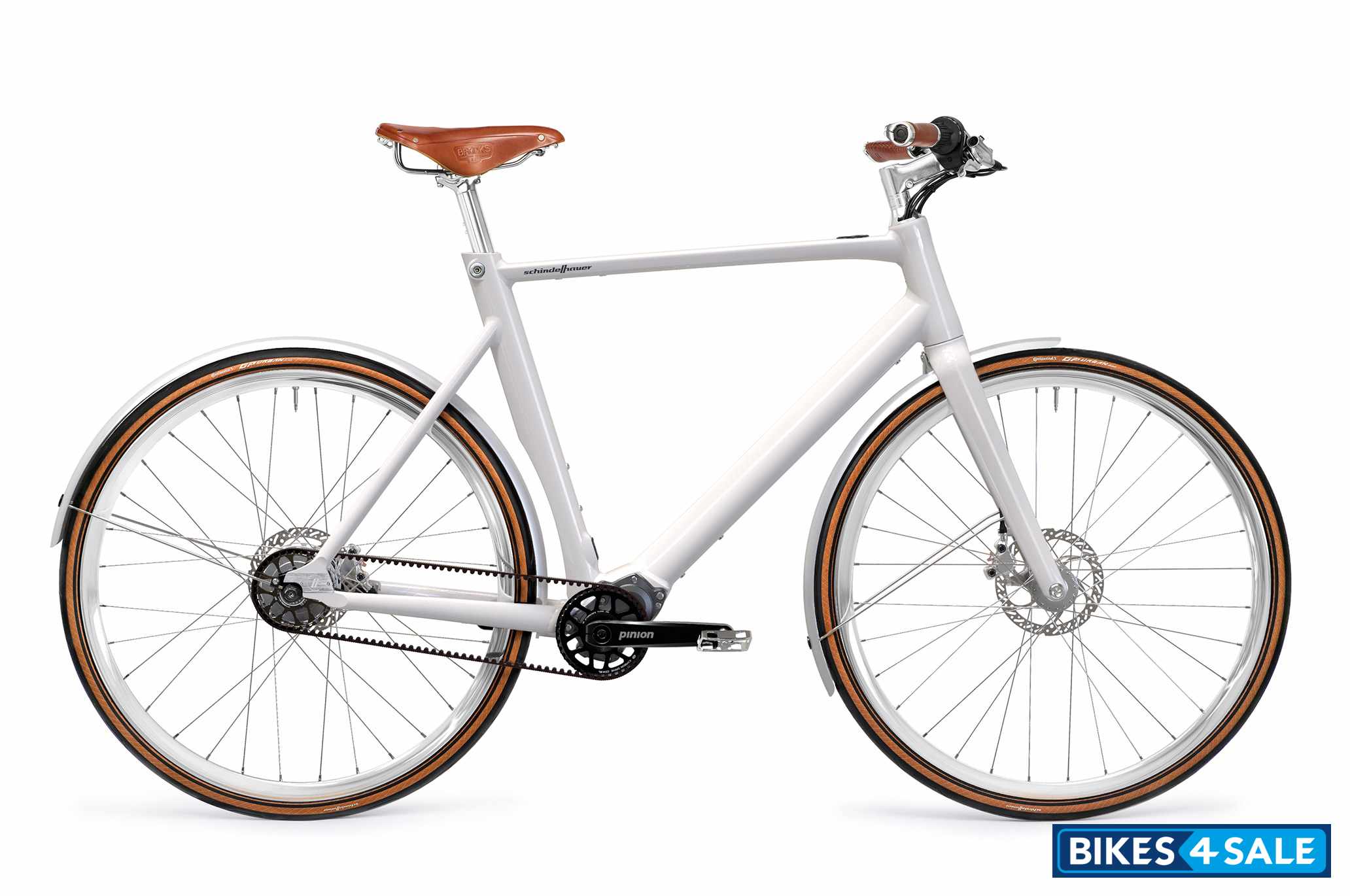

Creamy White

Technical Specifications
Vehicle TypeBicycle
FuelElectric
Maximum Power250 W
Maximum Torque40 NM
Load Carrying CapacityPermitted Total Weight : 130 kg (bike + rider + luggage)
Transmission6 or 9-speed Pinion C-Line gearbox
DrivetrainGates Carbon Drive CDX, front 39T, rear 34T/28T, timing belt 118T/115T
Top Speed25 kmph
StemSatori - Stealth, aluminum
HandlebarLightSkin Wien – handlebars with integrated headlight
ForkHydroformed aluminum fork (tapered)
SeatpostLightSkin - seat post with integrated rear light
GripSchindelhauer – Ergo leather grips
CranksetPinion
PedalsSchindelhauer - Urban pedal, aluminum, CNC milled
SaddleBrooks – B17 (chrome frame)
SpokeSapim - Race spokes
Bottom BracketPinion
Motor Details
Mahle-ebikemotion – Motor HUB Drive M1
Electricals
BatteryMahle-ebikemotion - Intube battery with approx. 250 Wh energy content
Brakes
Front BrakeShimano - Alfine, disc brake (hydraulic), 160mm
Rear BrakeShimano - Alfine, disc brake (hydraulic), 160mm
Chassis and Suspension
FrameAluminum (AL6061-T6)
Size : S, M, L
Tyres
Wheels / RimAlexrims - CXD26 rims with eyelets
Front TyreContinental-GP Urban Classic 35-622
Rear TyreContinental-GP Urban Classic 35-622
Dimensions
Weight15.7 kg
Additional Details
Tax rate : Acros-ICR 1.5''
On-board computer : Mahle ebikemotion – iWoc one with Bluetooth and ANT+
Circuit : Pinion - gear unit, C-Line 6-/9-speed (XR)
Impellers : Schindelhauer - high flange front wheel hub disc
Fenders : Curana CLIte
Porter : Rear rack mounting possible
Other specifications : Stand mounting possible , Bottle or lock holder assembly possible
