Suzuki KingQuad 500AXi Power Steering ATV

Price, features and specs

Rate Suzuki KingQuad 500AXi Power Steering:
4.0/5 (2 votes)
Suzuki KingQuad 500AXi Power Steering Price $ 8749 [Chicago, United States]

The given price can change depending on the colour, accessories and other features.

Country, City Showroom Price On Road Price
United States, Chicago $ 8749 --
United States, Houston $ 8749 --
United States, Los Angeles $ 8749 --
United States, New York $ 8749 --
United States, Orlando $ 8749 --
Colours

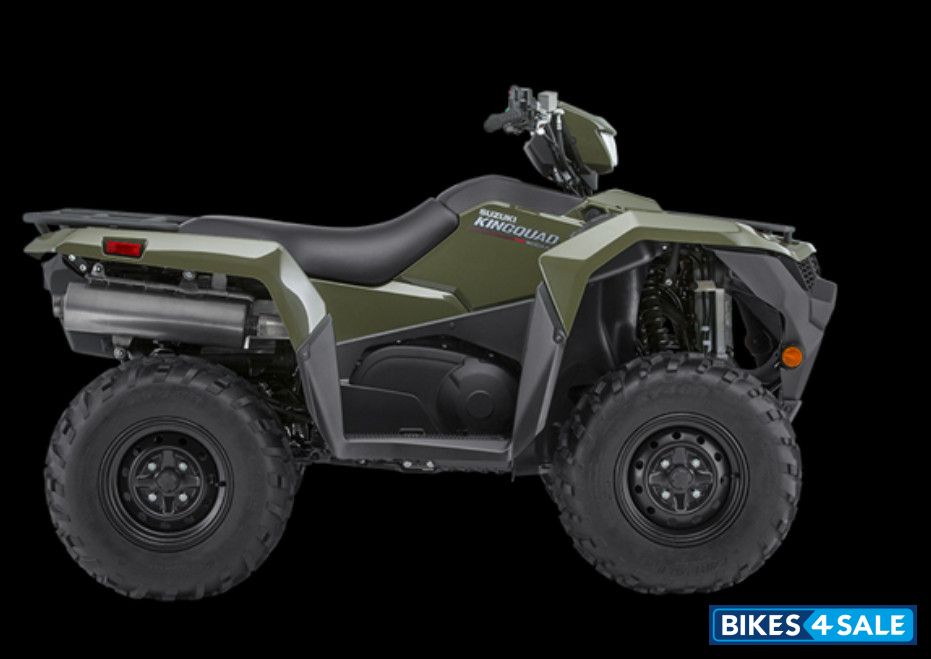

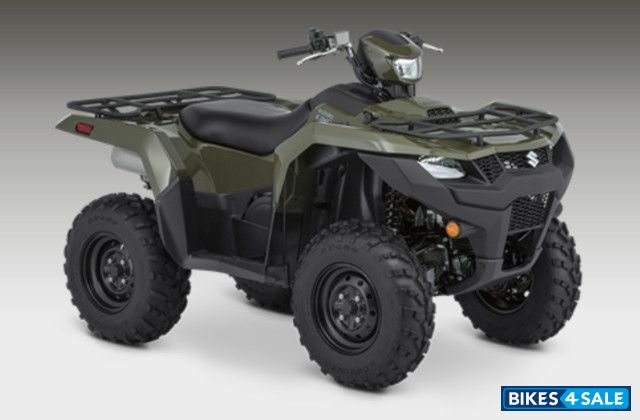

Terra Green

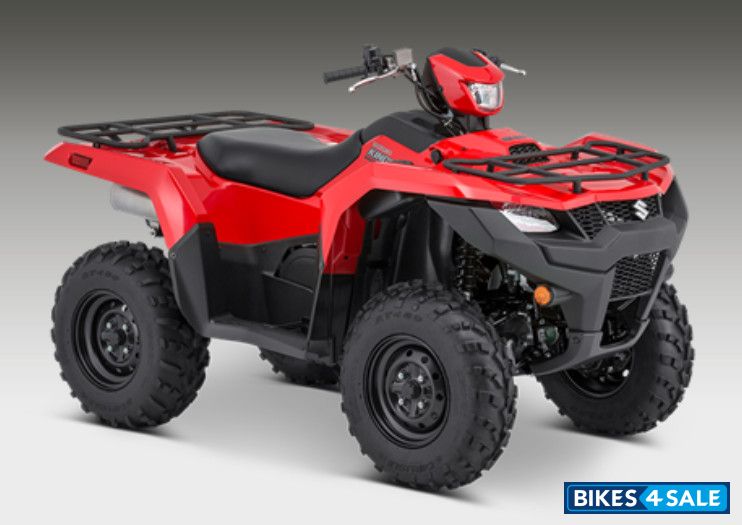

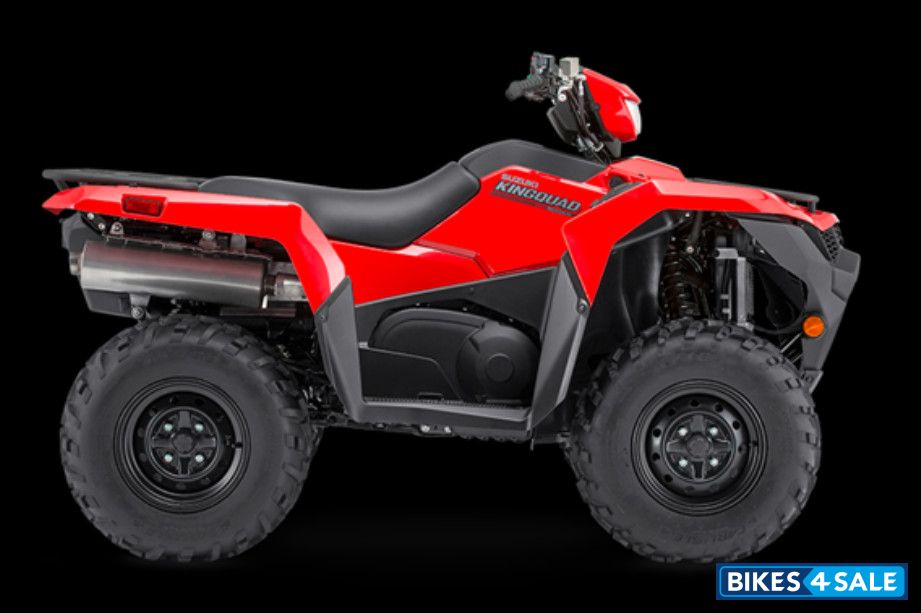

Flame Red

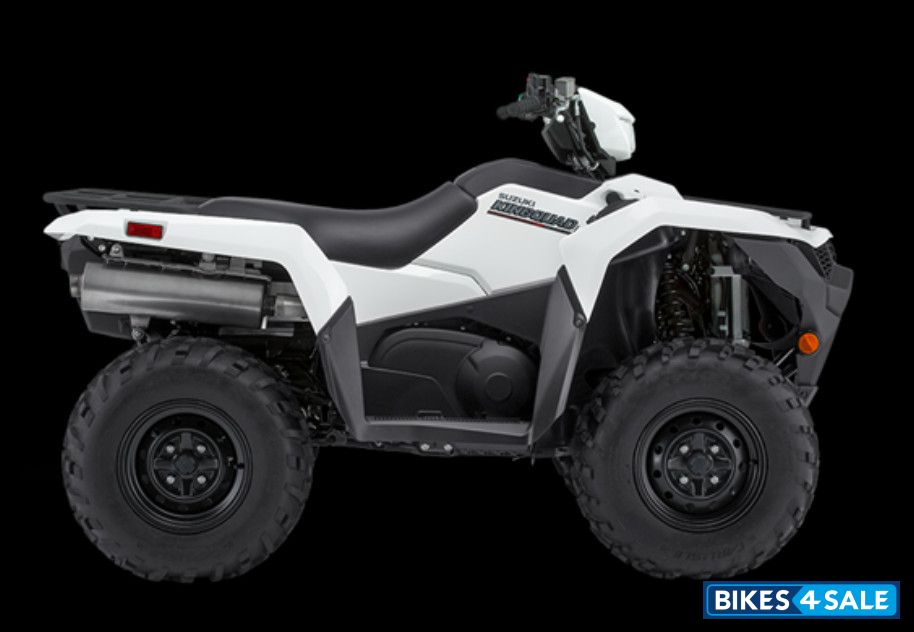

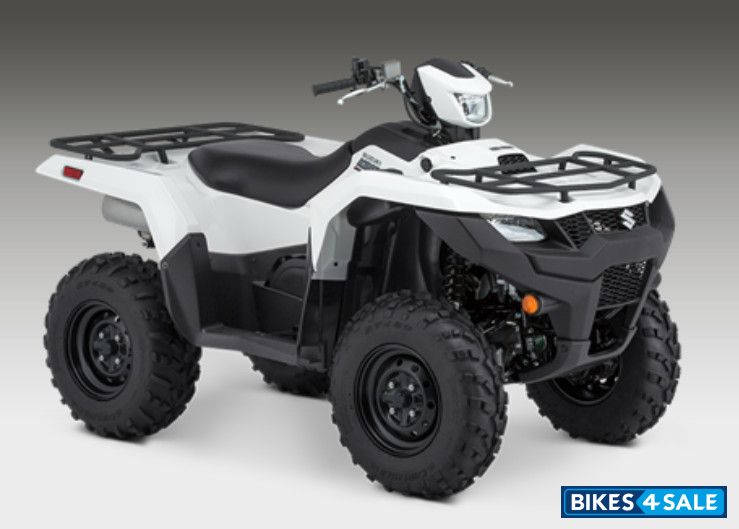

Solid Special White

Technical Specifications
Vehicle TypeATV
FuelPetrol
Engine Displacement493.00 cc
Engine Details4-stroke, liquid-cooled, 4-valve, OHC single cylinder
Engine StartingElectric
Bore x Stroke87.5mm x 82.0mm
Compression Ratio9.9:1
Engine LubricationWet sump
ClutchDry shoe, automatic, centrifugal type
Fuel SystemSuzuki electronic fuel injection
IgnitionElectronic ignition
Cooling Systemliquid-cooled
TransmissionAutomatic variable ratio (V-belt), with high/low-range, and reverse
Electricals
Head Lamp12V 35/35W x 2 fender-mounted, 12V 35W x 1 handlebar-mounted
Tail LampLED
Brakes
Front BrakeDisc brakes, twin rotors
Rear BrakeSealed oil-bathed multi-disc
Chassis and Suspension
Front SuspensionIndependent, double wishbone, coil spring, gas charged and oil damped with 5-way preload adjustable shock absorbers
Rear SuspensionIndependent, double wishbone, coil spring, gas charged and oil damped with 5-way preload adjustable shock absorbers
Tyres
Front TyreAT25 x 8-12**, tubeless type x 2
Rear TyreAT25 x 10-12**, tubeless type x 2
Dimensions
Length2150 mm
Width1215 mm
Height1285 mm
Seat Height920 mm
Wheelbase1285 mm
Weight920 kg
Ground Clearance260 mm
Fuel Tank Capacity17.5 litres
Vehicle Warranty
12-month unlimited-mileage limited warranty
