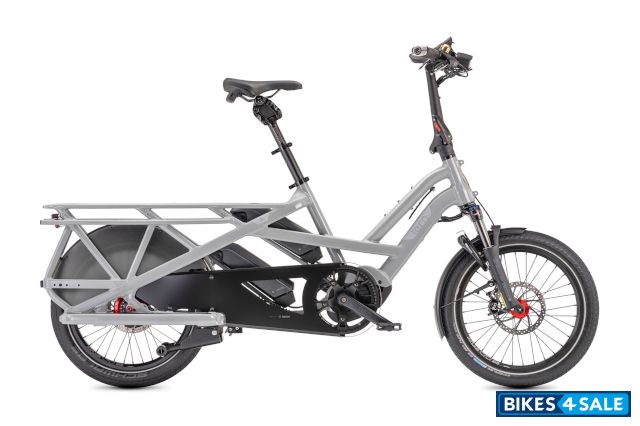

Tern GSD R14

Price, review, features and specs

Rate Tern GSD R14:
3.0/5 (2 votes)
Add To Compare
Write a Review
Tern GSD R14 Price

Not Available

Buy new Tern GSD R14

Book a Test Drive through Bikes4Sale and we will try to get you the best offer for Tern GSD R14.

For Exciting Offers, Book a Test Drive
4413
Colours

Forge Gray

Technical Specifications
Vehicle TypeBicycle
FuelElectric
StemTern Andros, adjustable, forged construction, patented technology
HandlebarTern Sweep, 6061-AL, Tern Andros adapted
ForkSuntour custom for Tern, 1.5" tapered Chromoly steerer, 32 mm stanchions, Thru-axle, 70 mm travel, EFBE approved: 200 kg
SeatpostCane Creek Thudbuster G4, Tern Telescope, 34.9/30.9 mm
GripErgon
CranksetTern GSD custom, Gates CDX CNC machined beltring
PedalsUrban with non-slip surface, sealed bearings
ChainGates Carbon Drive CDX belt
ShiftersRohloff E14, e-shift 14 spd
SaddleTern GSD by Velo, with rear handle
HeadsetTern Flux Pro Taper, 1.5", angular contact bearings, Physis integrated
Hub : FrontTern Atlas, Boost Thru-Axle, Cargo-optimized design, sealed cartridge bearing
Hub : RearRohloff E14, 526% range, Boost
SpokeStainless steel, 13G
CassetteGates CDX, precision CNC machined cog
Motor Details
Bosch Cargo Line, 400% Assist, 85 Nm Torque, max speed 25 kph (EU); max speed 20 mph (US)
Range
1000 Wh: 102-206 km (63-128 mi)
Display
Bosch Intuvia, Rohloff integrated shifting w/ auto downshift
Electricals
BatteryBosch Dual Battery system, 1000 Wh
Charger220V, 4A (EU); 100-240V, 4A (US)
Head LampIgnis Headlight, Ultra wide 700 lumens, Hi/Lo Beam
Tail LampRearStop Brake Light, Always on brake light
Brakes
Front BrakeMagura MT5, 4-piston hydraulic disc, 180 mm rotor, Sport pads
Rear BrakeMagura MT5, 4-piston hydraulic disc, 180 mm rotor, Sport pads
Brake LeverMagura MT5 e-stop, hydraulic, with brake sensor
Chassis and Suspension
FrameTern GSD, 6061-AL, patented MultiTruss design, EFBE Tri-Test approved: 200 kg
Tyres
Wheels / RimSize : 20" wheels
Rims : Tern Atlas, ultra wide 36 mm, dual reinforced joint
Front TyreSchwalbe Big Ben Plus, 55-406, Green Guard puncture protection, Reflex
Rear TyreTern x Schwalbe Super Moto-X, 62-406, Green Guard puncture protection, Reflex
Dimensions
Length x Width x Height-- x -- x -- mm
Weight37.26 kg
Accessories
BELL : Pitch Plus, brass
CHAINGUARD : Tern Custom, full chain cover
KICKSTAND : Atlas Lockstand, w/ remote unlock, patented technology
LUGGAGE SOCKET : Combo Mount
FENDERS : Integrated Wheel Guard, AL6061, w/ Side Skirt
RACK(S) : Frame integrated, heavy duty design
ACCESSORY : ABUS, keyed-alike with Bosch battery
Additional Details

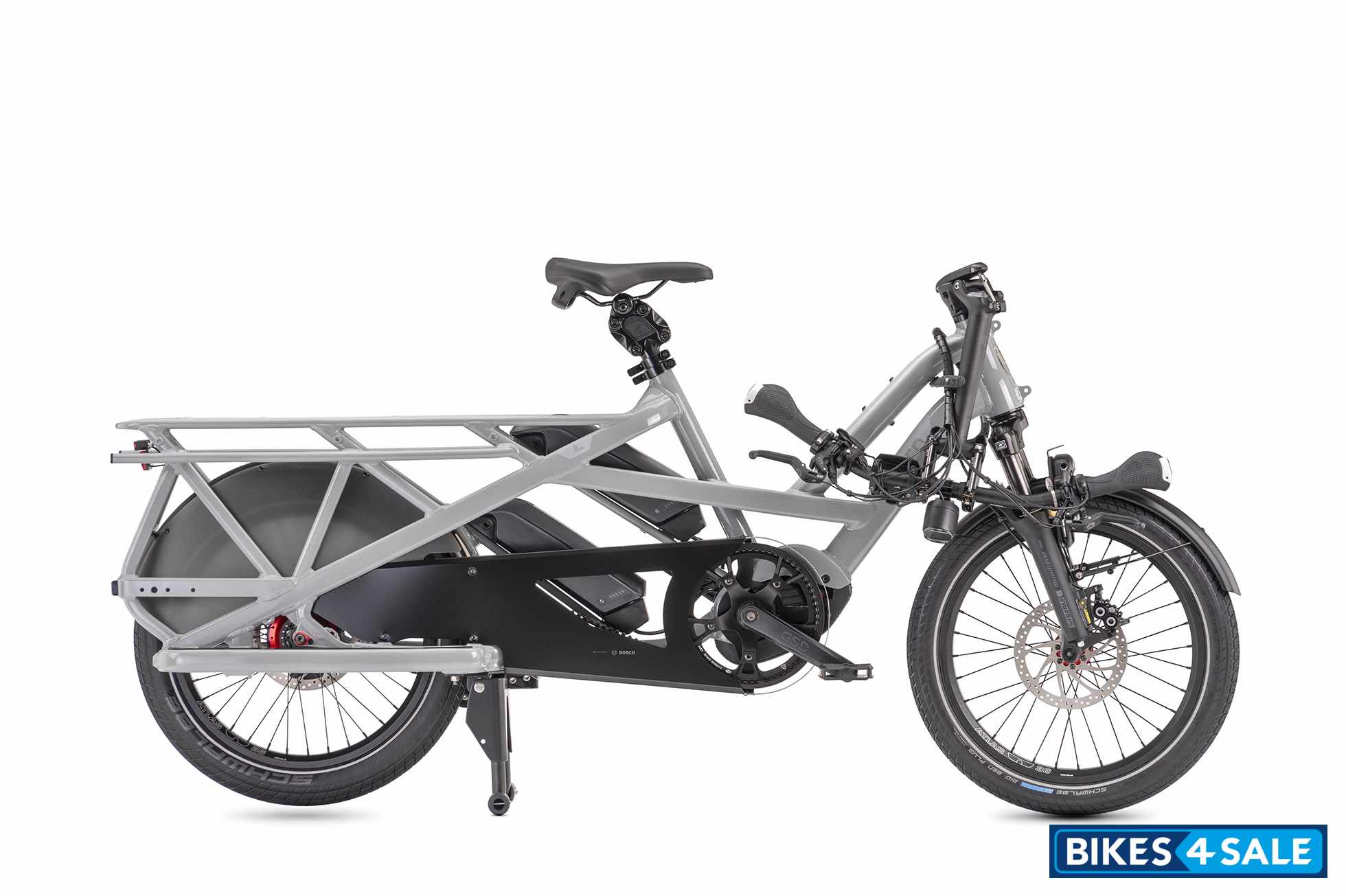

FOLDING SIZE : 176 x 40.5 x 87 cm (69.3" x 15.9" x 34.3")
FOLDING TIME : 5 sec
FRAME SIZES : 186 cm (Total Length)
GEAR INCHES : 19" - 102" (1.54 - 8.10 m)
DISTANCE: SEATPOST TO HANDLEBAR : Min: 490 mm (19.3") Max: 590 mm (22")
DISTANCE: SADDLE TO PEDAL : Min: 690 mm (27.2") Max: 1050 mm (41.3")
SUGGESTED RIDER HEIGHT : 150 - 195 cm (4'11" - 6'5")
MAX GROSS VEHICLE WEIGHT : 200 kg (440 lb)
MAX RIDER WEIGHT : 120 kg (264 lb)
HANDLEPOST : Tern Physis 3D, 3D forged, 5 patented technologies, 12°, 290 mm
BOTTOM BRACKET : Motor integrated
SHIFTER CABLE & HOUSING : Rohloff E14, e-shift
