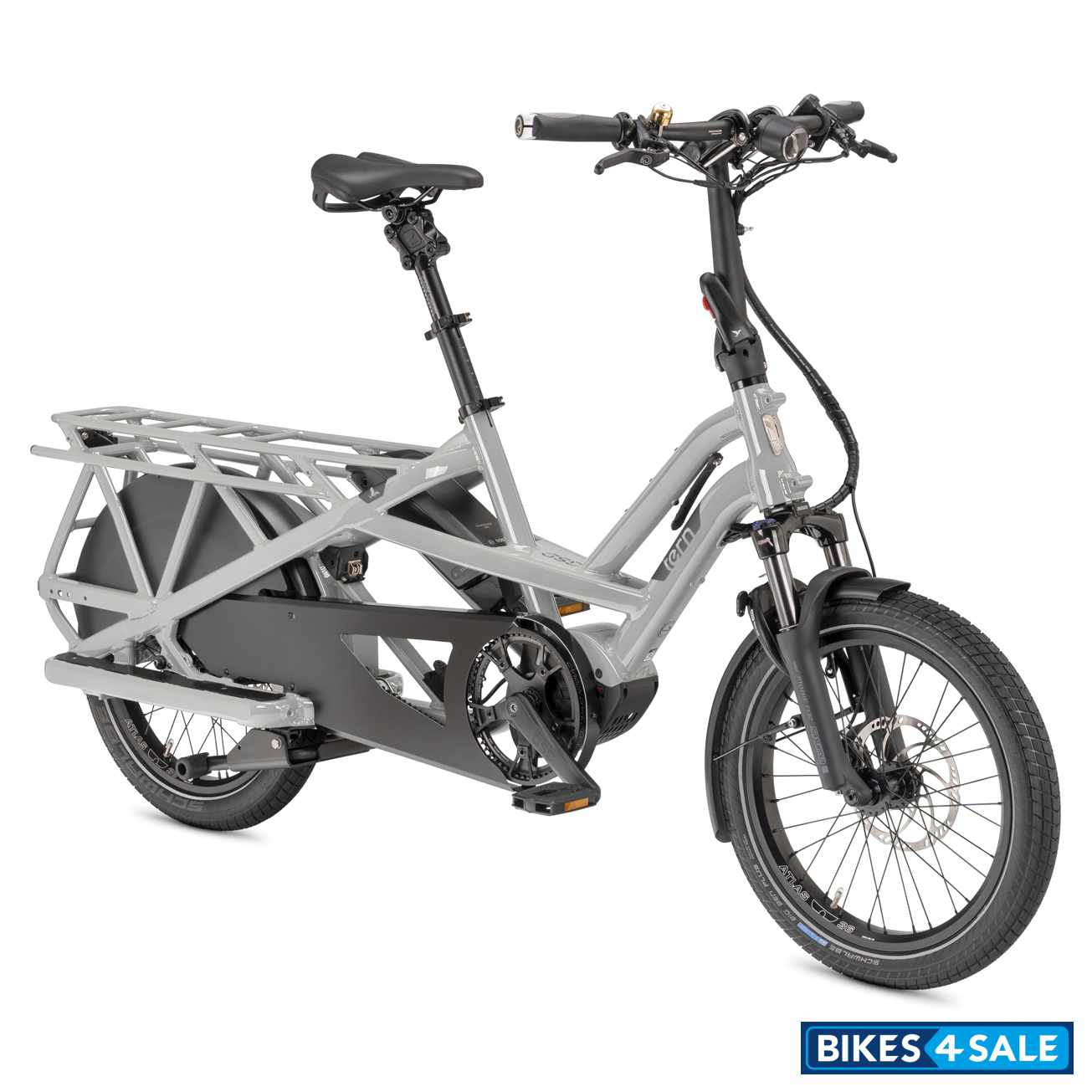

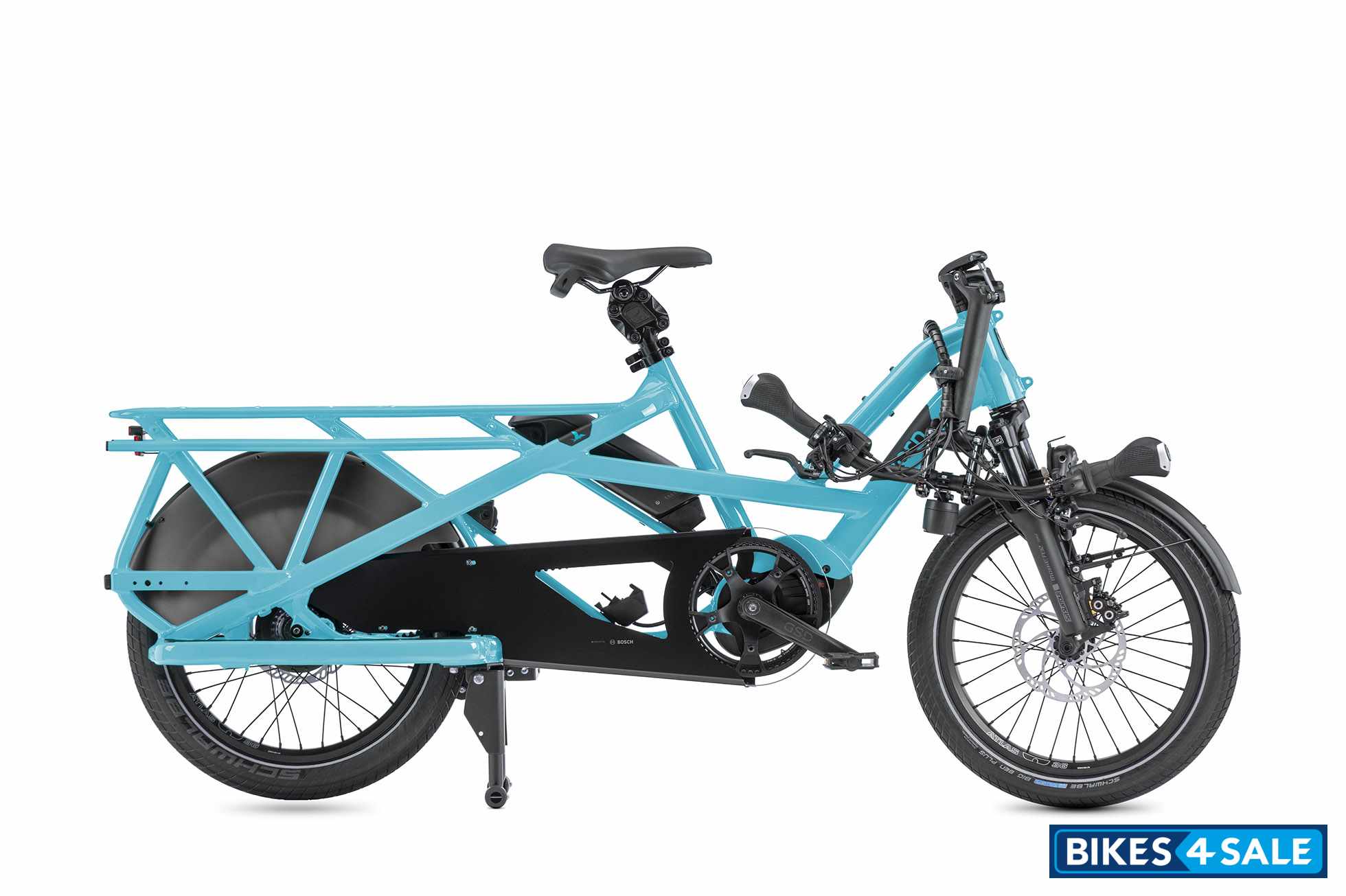

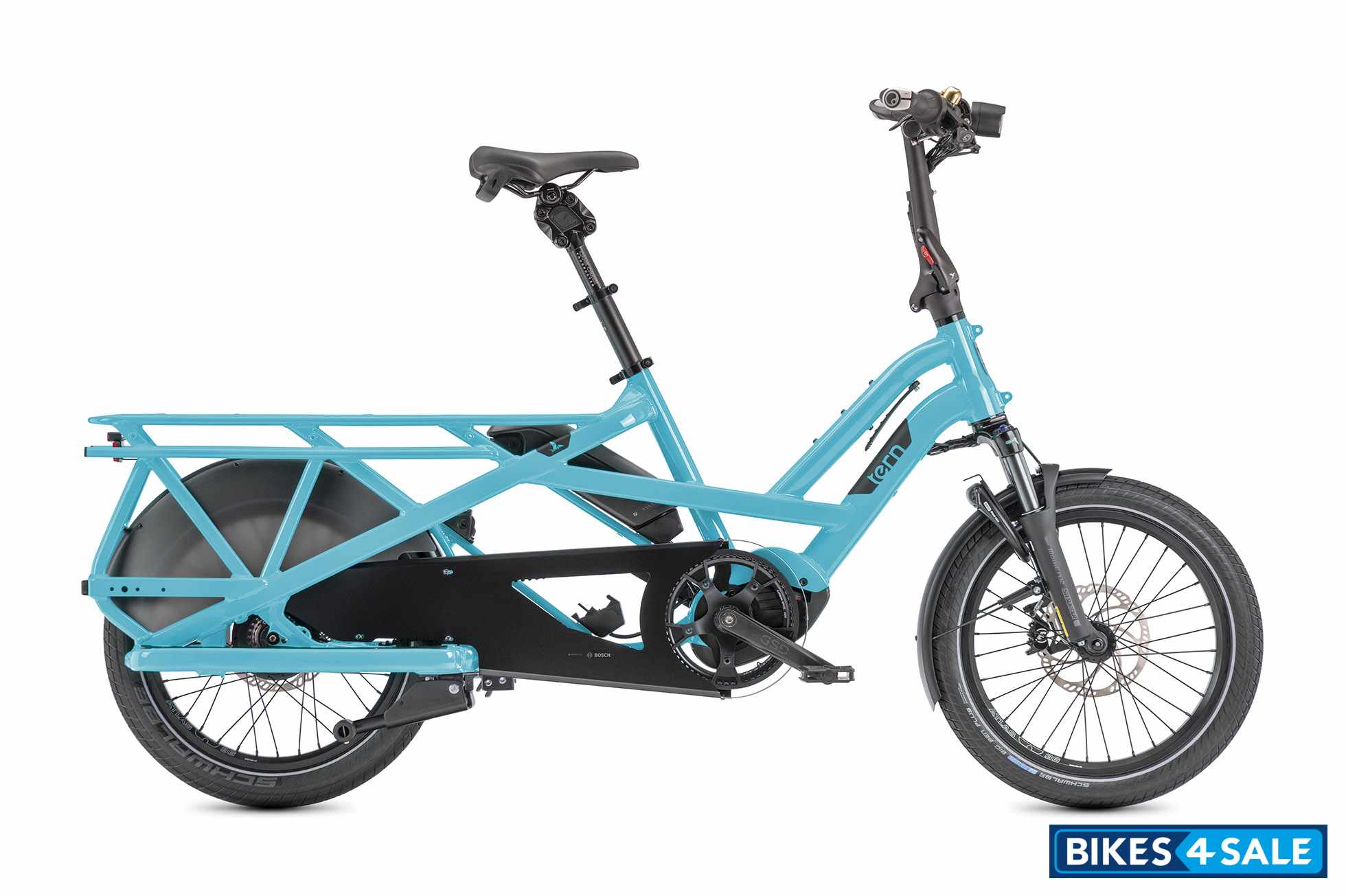

Tern GSD S00 LX

Price, review, features and specs

Rate Tern GSD S00 LX:
3.5/5 (2 votes)
Add To Compare
Write a Review
Tern GSD S00 LX Price

Not Available

Buy new Tern GSD S00 LX

Book a Test Drive through Bikes4Sale and we will try to get you the best offer for Tern GSD S00 LX.

For Exciting Offers, Book a Test Drive
985
Colours

Beetle Blue
Rhino Grey

Tern GSD S00 LX
Tern GSD S00 LX
Tern GSD S00 LX
Technical Specifications
Vehicle TypeBicycle
FuelElectric
StemTern Andros, adjustable, forged construction, patented technology
HandlebarTern Sweep, 6061-AL, Tern Andros adapted
ForkSuntour custom for Tern, 1.5" tapered Chromoly steerer, 32 mm stanchions, Thru-axle, 70 mm travel, EFBE approved: 200 kg
SeatpostCane Creek Thudbuster G4, Tern Telescope, 34.9/30.9 mm
GripErgon
CranksetTern GSD custom, Gates CDX CNC machined beltring
PedalsUrban with non-slip surface, sealed bearings
ChainGates Carbon Drive CDX belt
ShiftersEnviolo, Twist
SaddleTern GSD by Velo, with rear handle
HeadsetTern Flux Pro Taper, 1.5", angular contact bearings, Physis integrated
Hub : FrontTern Atlas, Boost Thru-Axle, Cargo-optimized design, sealed cartridge bearing
Hub : RearEnviolo SP, 380% continuously variable range, Boost
SpokeStainless steel, 13G
CassetteGates CDX, precision CNC machined cog
Motor Details
Bosch Cargo Line, 400% Assist, 85 Nm Torque, max speed 25 kph (EU); max speed 20 mph (US)
Range
500 Wh: 50-101 km (31-63 mi); 1000 Wh: 102-206 km (63-128 mi)
Display
Bosch Purion, 4 mode selectable, walk assist
Electricals
BatteryBosch Dual Battery system, 500 Wh or 1000 Wh
Charger220V, 4A (EU); 100-240V, 4A (US)
Head LampIgnis Headlight, Ultra wide 700 lumens, Hi/Lo Beam
Tail LampRearStop Brake Light, Always on brake light
Brakes
Front BrakeMagura MT5, 4-piston hydraulic disc, 180 mm rotor, Sport pads
Rear BrakeMagura MT5, 4-piston hydraulic disc, 180 mm rotor, Sport pads
Brake LeverMagura MT5 e-stop, hydraulic, with brake sensor
Chassis and Suspension
FrameTern GSD, 6061-AL, patented MultiTruss design, EFBE Tri-Test approved: 200 kg
Tyres
Wheels / Rim20" wheels
Tern Atlas, ultra wide 36 mm, dual reinforced joint
Front TyreSchwalbe Big Ben Plus, 55-406, Green Guard puncture protection, Reflex
Rear TyreTern x Schwalbe Super Moto-X, 62-406, Green Guard puncture protection, Reflex
Dimensions
Length x Width x Height-- x -- x -- mm
Weight34.8 kg
Accessories
SPEEDS : Continuously Variable 380%
FENDERS : Integrated Wheel Guard, AL6061, w/ Side Skirt
RACK(S) : Frame integrated, heavy duty design
ABUS, keyed-alike with Bosch battery
Additional Details
FOLDING SIZE : 176 x 40.5 x 87 cm (69.3" x 15.9" x 34.3")
FOLDING TIME : 5 sec
FRAME SIZES : 186 cm (Total Length)
GEAR INCHES : 26" - 99" (2.08 - 7.91 m)
DISTANCE: SEATPOST TO HANDLEBAR : Min: 490 mm (19.3") Max: 590 mm (22")
DISTANCE: SADDLE TO PEDAL : Min: 690 mm (27.2") Max: 1050 mm (41.3")
SUGGESTED RIDER HEIGHT : 150 - 195 cm (4'11" - 6'5")
MAX GROSS VEHICLE WEIGHT : 200 kg (440 lb)
MAX RIDER WEIGHT : 120 kg (264 lb)
SEATPOST CLAMP : Tern Collar, 6061-AL, 2pc
SHIFTER CABLE & HOUSING : Jagwire LEX-SL, slick treatment, alloy ferrules
