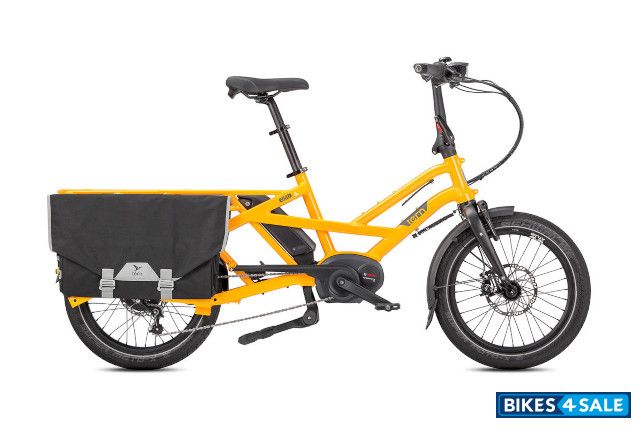

Tern GSD S00

Price, review, features and specs

GSD S00 Price for Dual battery, 1000Wh is $5,799

Rate Tern GSD S00:
3.5/5 (2 votes)
Add To Compare
Write a Review
Tern GSD S00 Price

Not Available

Buy new Tern GSD S00

Book a Test Drive through Bikes4Sale and we will try to get you the best offer for Tern GSD S00.

For Exciting Offers, Book a Test Drive
4273
Colours

Mango

Technical Specifications
Vehicle TypeBicycle
FuelElectric
Maximum Torque75 ~Nm
StemTern Andros (G2), adjustable, forged construction, patented technology
HandlebarTern Sweep, 27 degrees, 6061-AL, Tern Andros adapted
ForkTern GSD, 1.5" Taper, Boost Thru-Axle, 110 mm, 7005-AL
SeatpostTern Telescope, 34.9 mm, 2014-AL
GripErgon GC10, for swept bar
CranksetTern GSD custom, forged 6061-AL DH crankarm
PedalsUrban with non-slip surface, sealed bearings
ChainKMC for eBike, EPT corrosion resistant coating
ShiftersEnviolo CA, Twist
SaddleTern GSD, with rear handle
HeadsetTern Flux Pro Taper, 1.5", angular contact bearings, Physis integrated
Derailleur : RearChain tensioner, dual-pulley
Hub : FrontEnviolo Cargo Groupset, 380% continuously variable gear range, Boost Thru-Axle
Hub : RearTern Atlas, Boost Thru-Axle, sealed cartridge bearing
SpokeStainless steel, 13G
CassetteSprocket 20 TOOTH
Motor Details
Bosch Performance CX, 36 V/250 W, max speed 25 kph (EU); max speed 20 mph (US)
Range
500 Wh: 50-100 km (32-62 mi); 1000 Wh: 100-200 km (62-125 mi)
Display
Bosch Purion, 4 mode selectable, walk assist
Electricals
BatteryBosch Dual Battery system, 500 Wh or 1000 Wh
ChargerBosch Standard Charger
Head LampTern Valo Direct, integrated, 41 lux/150 lumens
Tail LampHerrmans H-Trace, for eBike
Brakes
Front BrakeMagura MT5, 4-piston hydraulic disc, 180 mm rotor
Rear BrakeMagura MT5, 4-piston hydraulic disc, 180 mm rotor
Brake LeverMagura, hydraulic
Chassis and Suspension
FrameTern GSD, 7005-Al, patented MultiTruss design
Tyres
Wheels / RimSize : 20" wheels
Rims: Tern Atlas, ultra wide 36 mm, dual reinforced joint
Front TyreTern x Schwalbe Super Moto-X, 62-406, Green Guard puncture protection, Reflex
Rear TyreTern x Schwalbe Super Moto-X, 62-406, Green Guard puncture protection, Reflex
Dimensions
Length x Width x Height-- x -- x -- mm
Weight32.5 kg
Accessories
BELL: Aluminum
CHAINGUARD: SKS Chainblade
KICKSTAND: Heavy-duty double stand
LUGGAGE SOCKET: Combo Mount
Additional Details
SPEEDS : Continuously Variable 380%

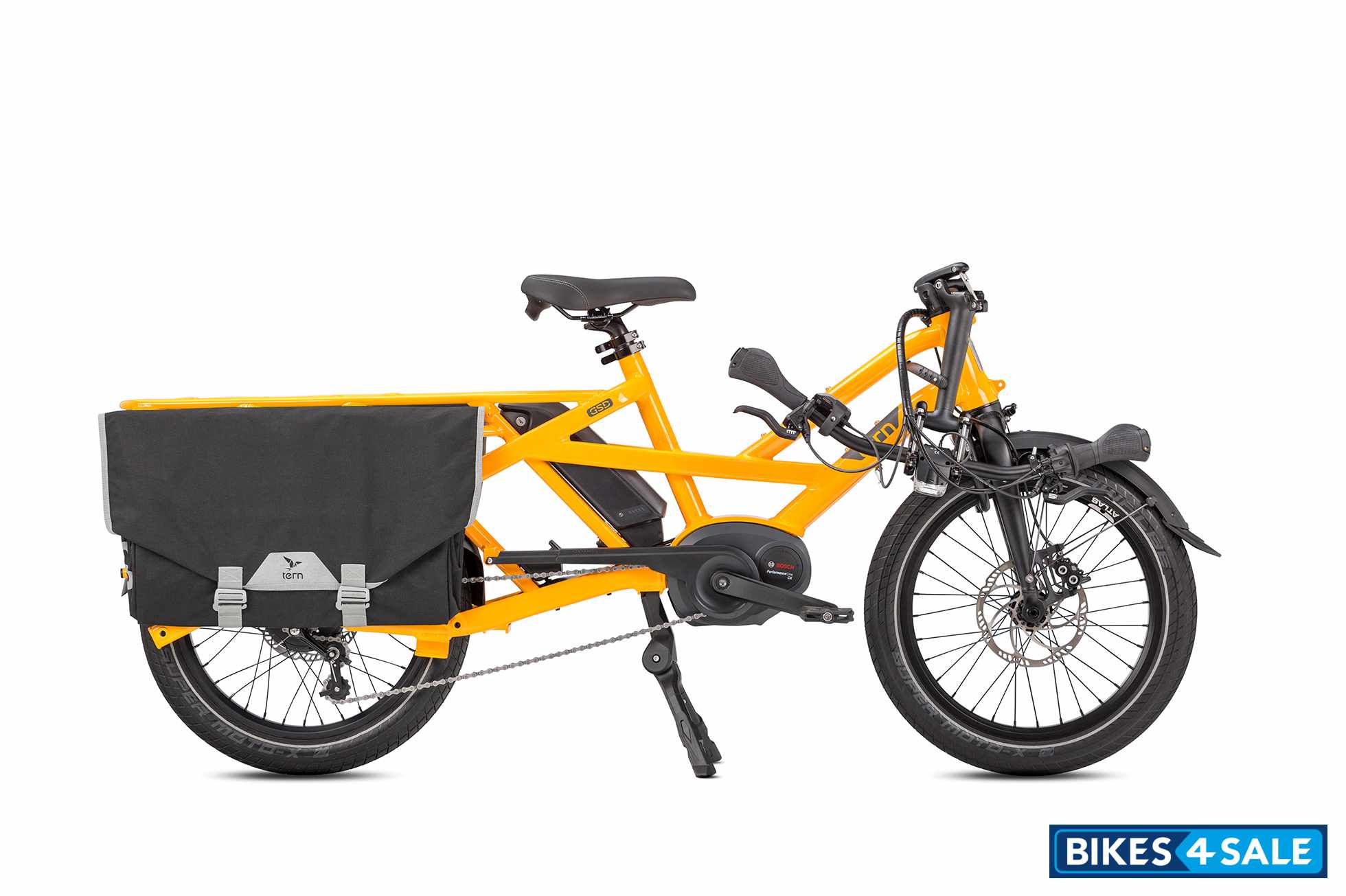

FOLDING SIZE : 173 x 40.5 x 83 cm (68" x 15.9" x 32.7")
FOLDING TIME : 5 sec
FRAME SIZES : 181 cm (Total Length)
GEAR INCHES : 26" - 99" (2.08 - 7.91 m)
DISTANCE: SEATPOST TO HANDLEBAR : Min: 490 mm (19.3") Max: 560 mm (22")
DISTANCE: SADDLE TO PEDAL : Min: 690 mm (27.2") Max: 1120 mm (44.1")
SUGGESTED RIDER HEIGHT : 150 - 195 cm (4'11" - 6'5")
MAX GROSS VEHICLE WEIGHT : 200 kg (440 lb)
MAX RIDER WEIGHT : 120 kg (264 lb)
