Tern GSD S10 LX

Price, review, features and specs

Rate Tern GSD S10 LX:
3.5/5 (2 votes)
Add To Compare
Write a Review
Tern GSD S10 LX Price

Not Available

Buy new Tern GSD S10 LX

Book a Test Drive through Bikes4Sale and we will try to get you the best offer for Tern GSD S10 LX.

For Exciting Offers, Book a Test Drive
1796
Colours

Dragon Fruit

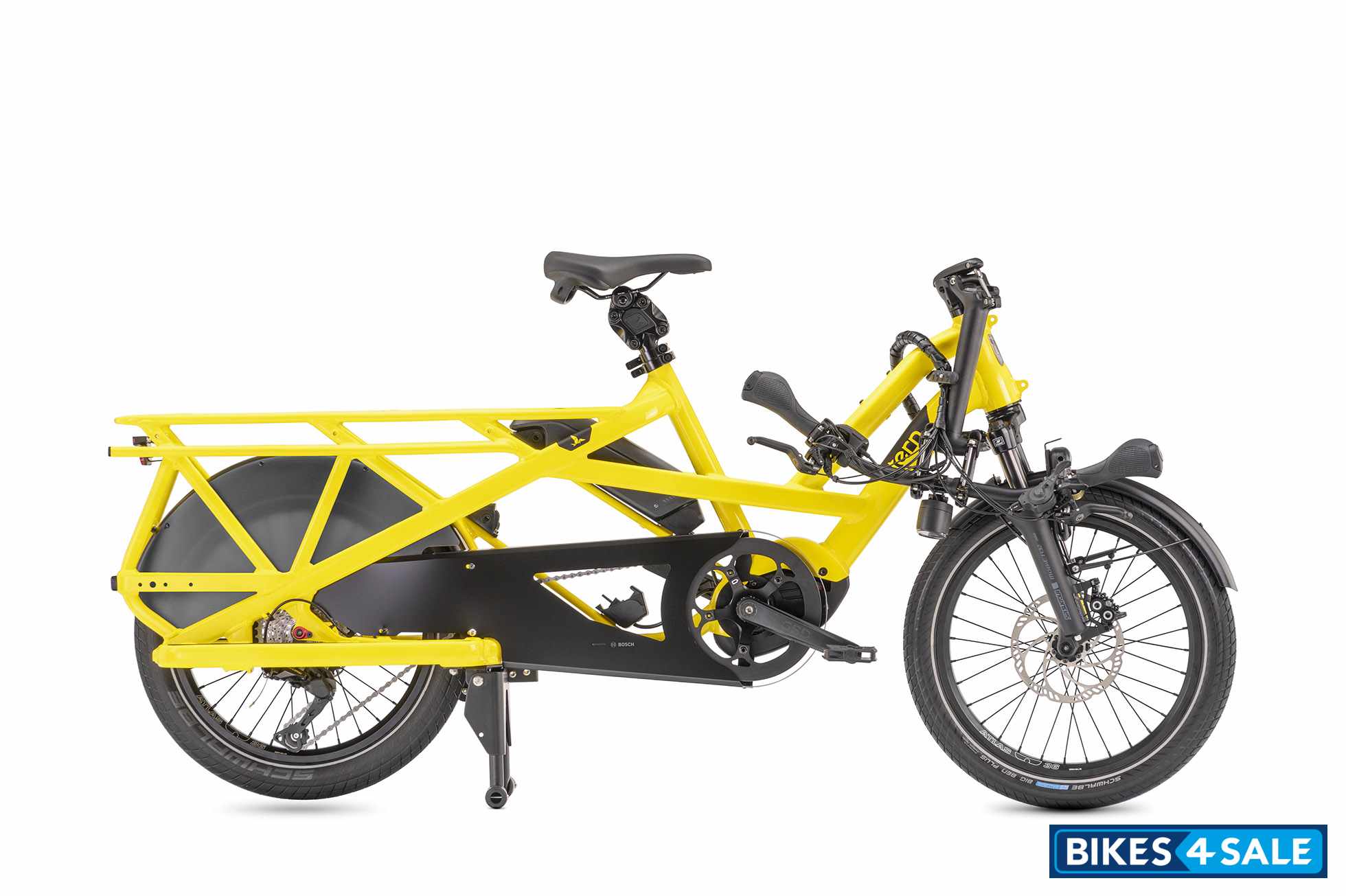

School Bus Yellow

Tern GSD S10 LX
Tern GSD S10 LX
Tern GSD S10 LX
Tern GSD S10 LX
Tern GSD S10 LX
Tern GSD S10 LX
Tern GSD S10 LX
Technical Specifications
Vehicle TypeBicycle
FuelElectric
StemTern Andros, adjustable, forged construction, patented technology
HandlebarTern Sweep, 6061-AL, Tern Andros adapted
ForkSuntour custom for Tern, 1.5" tapered Chromoly steerer, 32 mm stanchions, Thru-axle, 70 mm travel, EFBE approved: 200 kg
SeatpostCane Creek Thudbuster G4, Tern Telescope, 34.9/30.9 mm
GripErgon
CranksetTern GSD custom, forged 6061-AL DH crankarm
PedalsUrban with non-slip surface, sealed bearings
Chain10 spd, DHT for eBike, GST corrosion resistant coating
ShiftersShimano Deore, 1 x 10 spd
SaddleTern GSD by Velo, with rear handle
HeadsetTern Flux Pro Taper, 1.5", angular contact bearings, Physis integrated
Derailleur : RearShimano Deore Shadow+
Hub : FrontTern Atlas, Boost Thru-Axle, Syntace X-12 standard, Cargo-optimized design
Hub : RearTern Atlas, Boost Thru-Axle, Cargo-optimized design, sealed cartridge bearing
SpokeStainless steel, 13G
Motor Details
Bosch Cargo Line, 400% Assist, 85 Nm Torque, max speed 25 kph (EU); max speed 20 mph (US)
Range
500 Wh: 52-105 km (32-65 mi); 1000 Wh: 102-206 km (63-128 mi)
Display
Bosch Purion
Electricals
BatteryBosch Dual Battery system, 500 Wh/1000 Wh
Charger220V, 4A (EU); 100-240V, 4A (US)
Head LampIgnis Headlight, Ultra wide 700 lumens, Hi/Lo Beam
Tail LampRearStop Brake Light, Always on brake light
Brakes
Front BrakeMagura MT5, 4-piston hydraulic disc, 180 mm rotor, Sport pads
Rear BrakeMagura MT5, 4-piston hydraulic disc, 180 mm rotor, Sport pads
Brake LeverMagura MT5 e-stop, hydraulic, with brake sensor
Chassis and Suspension
FrameTern GSD, 6061-AL, patented MultiTruss design, EFBE Tri-Test approved: 200 kg
Tyres
Wheels / RimSize : 20" wheels
Wheel : Tern Atlas, heavy duty cargo wheel
Rims : Tern Atlas, ultra wide 36 mm, dual reinforced joint
Front TyreSchwalbe Big Ben Plus, 55-406, Green Guard puncture protection, Reflex
Rear TyreTern x Schwalbe Super Moto-X, 62-406, Green Guard puncture protection, Reflex
Dimensions
Length x Width x Height-- x -- x -- mm
Weight33.58 kg
Accessories
BELL : Pitch Plus, brass
CHAINGUARD : Tern Custom, full chain cover
KICKSTAND : Atlas Lockstand, w/ remote unlock, patented technology
LUGGAGE SOCKET : Combo Mount
FENDERS: Integrated Wheel Guard, AL6061, w/ Side Skirt
RACK(S) : Frame integrated, heavy duty design
ABUS, keyed-alike with Bosch battery
Additional Details
FOLDING SIZE : 176 x 40.5 x 87 cm (69.3" x 15.9" x 34.3")
FOLDING TIME : 5 sec
FRAME SIZES : 186 cm (Total Length)
GEAR INCHES : 26" - 99" (2.08 - 7.91 m)
DISTANCE: SEATPOST TO HANDLEBAR : Min: 490 mm (19.3") Max: 590 mm (22")
DISTANCE: SADDLE TO PEDAL : Min: 690 mm (27.2") Max: 1050 mm (41.3")
SUGGESTED RIDER HEIGHT : 150 - 195 cm (4'11" - 6'5")
MAX GROSS VEHICLE WEIGHT : 200 kg (440 lb)
HANDLEPOST : Tern Physis 3D, 3D forged, 5 patented technologies, 12°, 290 mm
SEATPOST CLAMP : Tern Collar, 6061-AL, 2pc
BRAKE CABLE & HOUSING : Magura, hydraulic
