Tern GSD S10

Price, review, features and specs

Rate Tern GSD S10:
4.0/5 (2 votes)
Add To Compare
Write a Review
Tern GSD S10 Price $ 4799 [Los Angeles, United States]

The given price can change depending on the colour, accessories and other features.

Country, City Showroom Price On Road Price
United States, Los Angeles $ 4799 --
United States, New York $ 4799 --
United States, San Diego $ 4799 --
Buy new Tern GSD S10

Book a Test Drive through Bikes4Sale and we will try to get you the best offer for Tern GSD S10.

For Exciting Offers, Book a Test Drive
3341
Colours

Gloss Beetle Blue

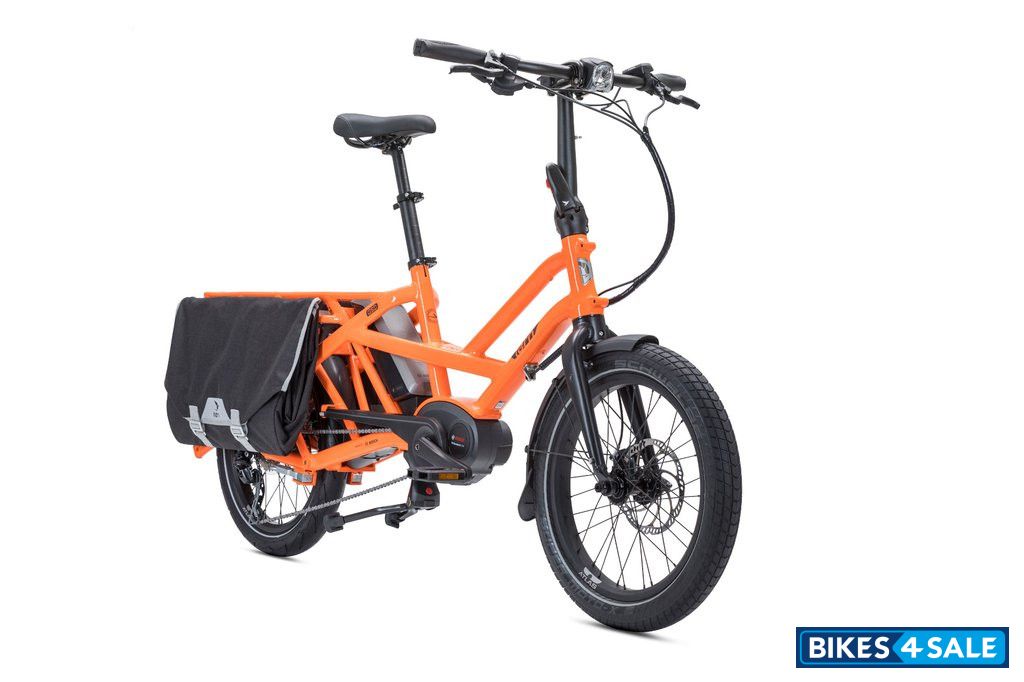

Orange

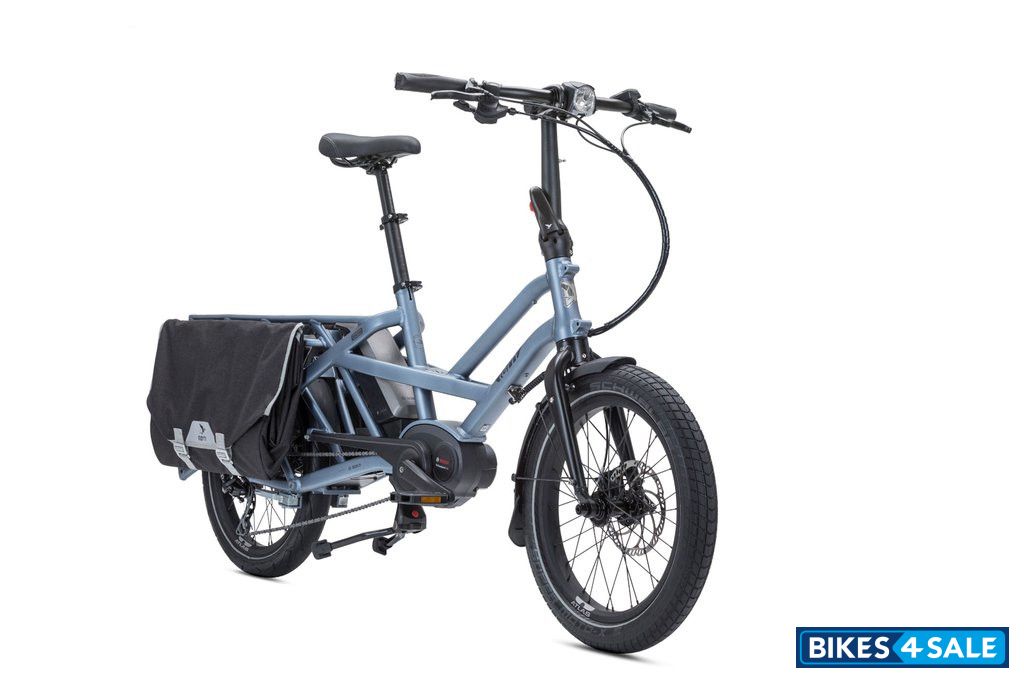

Matte Silver/Blue

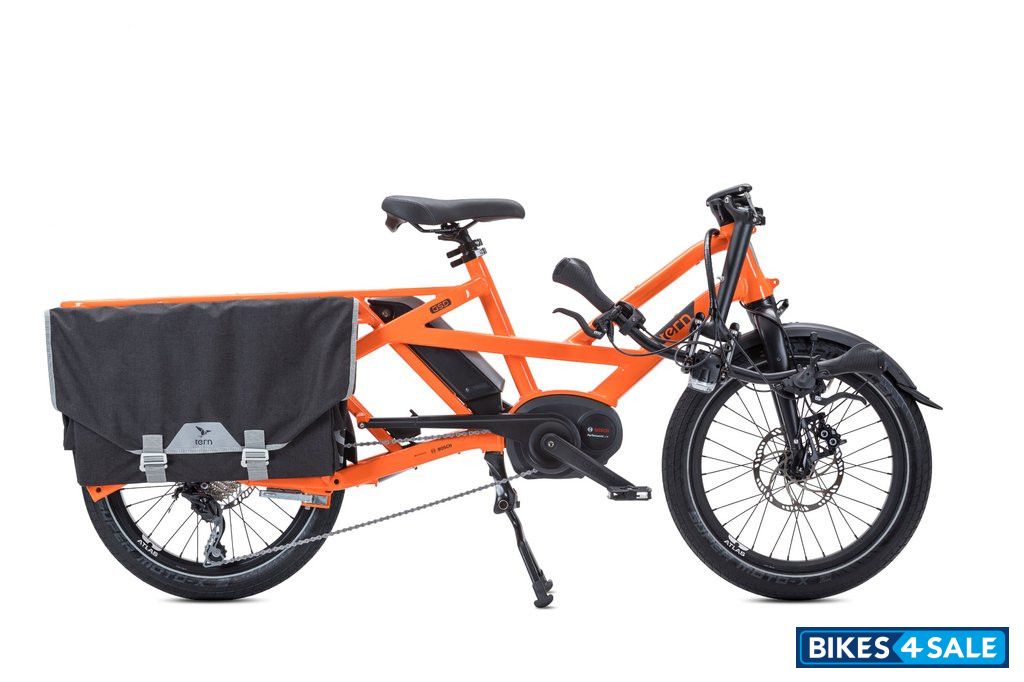

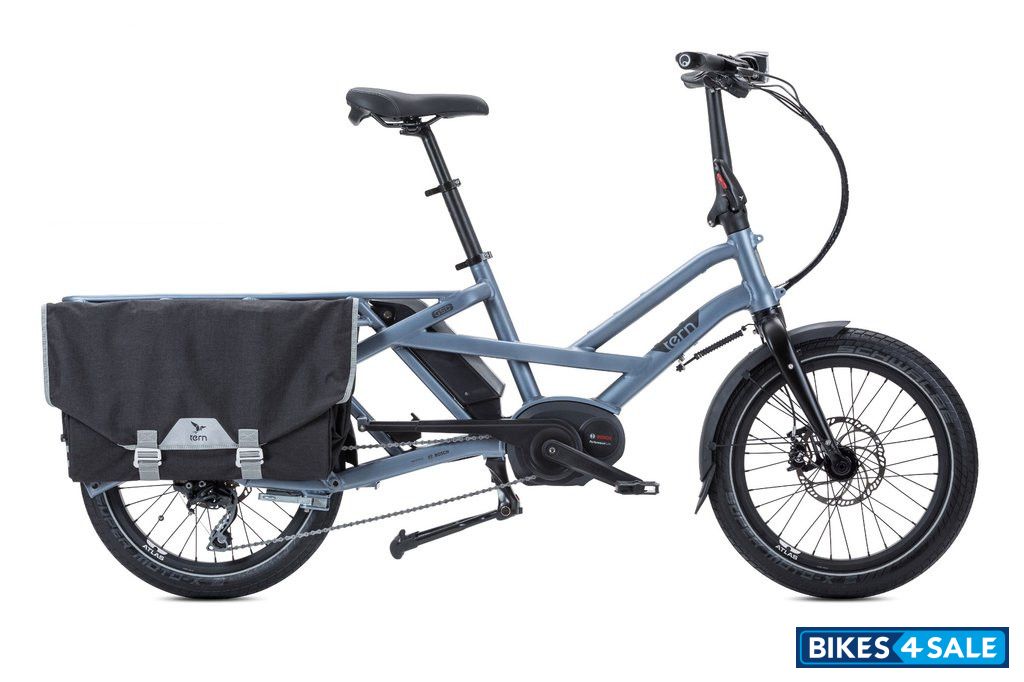

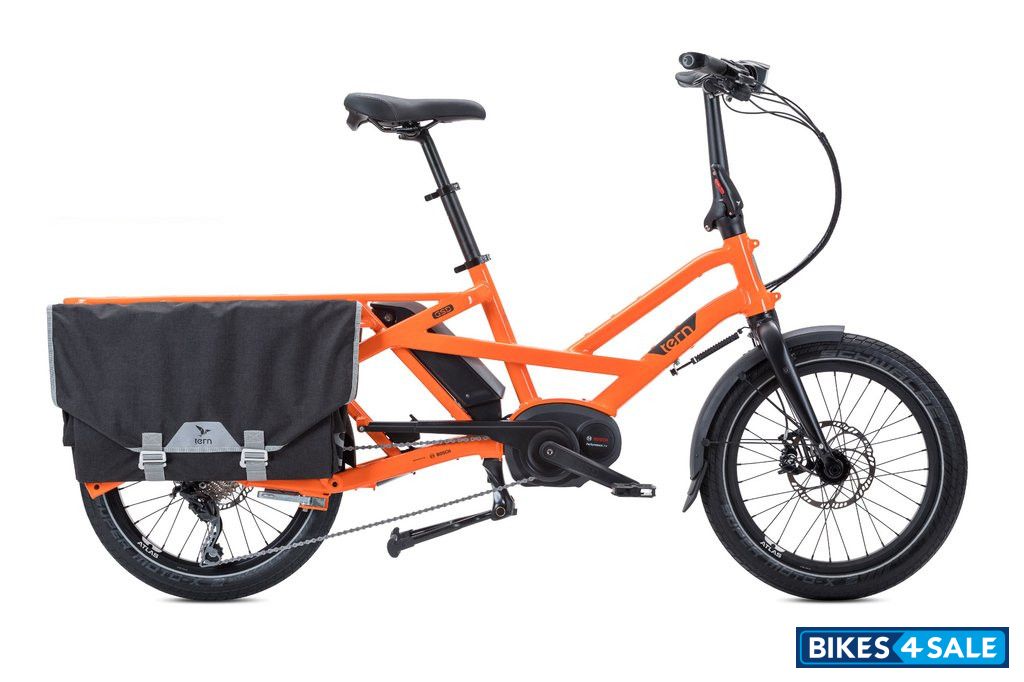

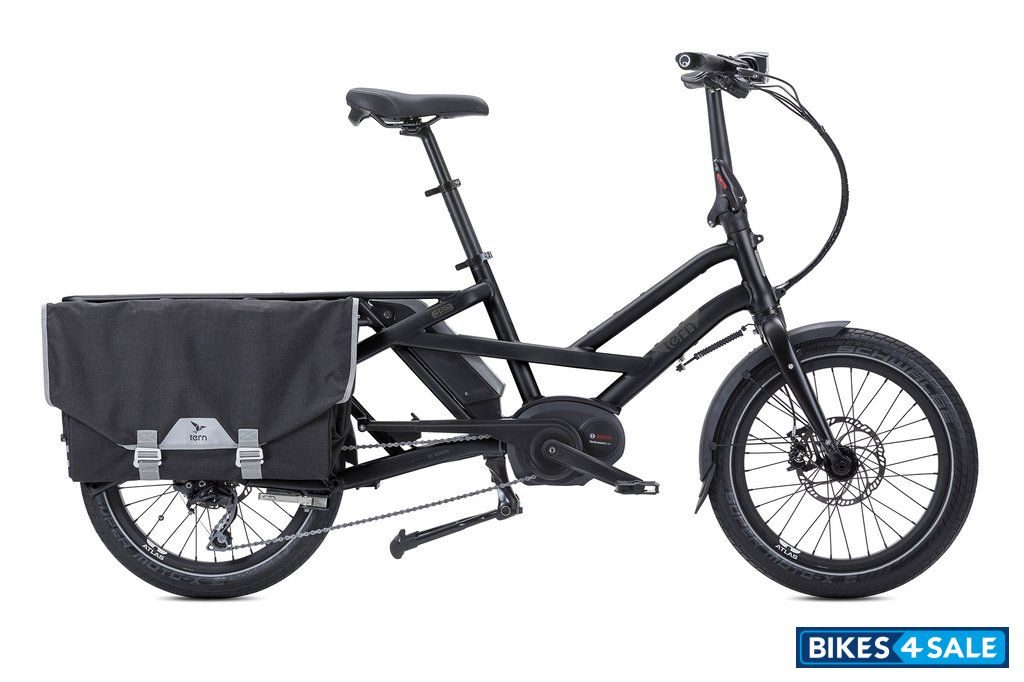

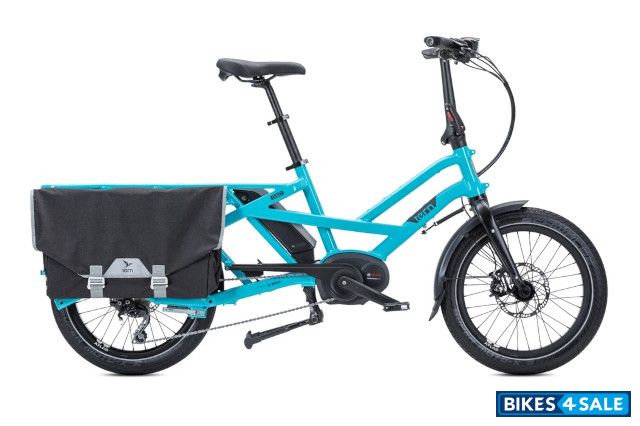

Tern GSD S10
Tern GSD S10
Tern GSD S10
Tern GSD S10
Tern GSD S10
Tern GSD S10
Tern GSD S10
Tern GSD S10
Technical Specifications
Vehicle TypeBicycle
FuelElectric
StemTern Andros (G2), adjustable, forged construction, patented technology
HandlebarTern Sweep, 27 degrees, 6061-Al, Tern Andros adapted
ForkTern GSD, 1.5" Taper, Boost Thru-axle, 110 mm, 7005-AL
SeatpostTern Telescope, 34.9 mm, 2014-Al
GripErgon, for swept bar
CranksetTern GSD custom, forged 6061-AL DH crankarm
PedalsUrban with non-slip surface, sealed bearings
Chain10 spd, DHT for eBike, GST corrosion resistant coating
ShiftersShimano Deore, 1 x 10 spd
SaddleTern GSD, with rear handle
HeadsetTern Flux Pro Taper, 1.5", angular contact bearings, Physis integrated
Derailleur : RearShimano Deore Shadow+
Hub : FrontTern Atlas, Boost thru-axle, Syntace X-12 standard, ebike reinforced design
Hub : RearTern Atlas, Boost thru-axle
SpokeStainless steel, 13G
CassetteShimano 11-36T, 10 spd
Motor Details
Bosch Cargo Line, 400% Assist, 85 Nm Torque, max speed 25 kph (EU); max speed 20 mph (US)
Range
400 Wh: 42-85 km (26-53 mi); 900 Wh: 97-195 km (60-121 mi)
Display
Bosch Purion, 4 mode selectable, walk assist
Electricals
BatteryBosch Dual Battery system, 400wh/900wh
Charger220V, 4A (EU); 100-240V, 4A (US)
Head LampTern Valo, integrated, 41 lux/150 lumens
Tail LampHerrmans H-Trace, for eBike
Brakes
Front BrakeMagura MT5, 4-piston hydraulic disc, 180 mm rotor
Rear BrakeMagura MT5, 4-piston hydraulic disc, 180 mm rotor
Brake LeverMagura, hydraulic
Chassis and Suspension
FrameTern GSD, 7005-Al, patented MultiTruss design
Tyres
Wheels / RimSize : 20"
Rims :
Front TyreTern x Schwalbe Super Moto-X, 62-406, Green Guard puncture protection, Reflex
Rear TyreTern x Schwalbe Super Moto-X, 62-406, Green Guard puncture protection, Reflex
Dimensions
Length x Width x Height-- x -- x -- mm
Weight27 kg
Accessories
Bell : Aluminum
Chainguard : SKS Chainblade
Pedal Holder : Yes
Kickstand : Heavy-duty double stand, 80 kg capacity
Luggage Socket : Barrel Mount
Additional Details
Speeds : 1 x 10
Flatpack Dimensions : 71" x 16" x 33”
Fold Time : 5 seconds
Frame Size : One size
Gear Inches : 29" - 95"
Distance : Seatpost to Handlebar Min: 24.8" / Max: 27.2"
Distance : Saddle to Pedal Min: 19.3" / Max: 22"
Suggested Rider Height : 4'11" - 6'5"
Max Gross Weight : 400 lb
Handlepost : Tern Physis 3D (G2), 3D forged, 5 patented technologies
Shifter Cable & Housing : Jagwire LEX-SL, slick treatment, alloy ferrules
