Tern HSD S Plus

Price, review, features and specs

Rate Tern HSD S Plus:
4.0/5 (2 votes)
Add To Compare
Write a Review
Tern HSD S Plus Price $ 5199 [Chicago, United States]

The given price can change depending on the colour, accessories and other features.

Country, City Showroom Price On Road Price
United States, Chicago $ 5199 --
United States, Los Angeles $ 5199 --
United States, New York $ 5199 --
Buy new Tern HSD S Plus

Book a Test Drive through Bikes4Sale and we will try to get you the best offer for Tern HSD S Plus.

For Exciting Offers, Book a Test Drive
6806
Features
- Next-generation Bosch® Performance Line motor with Intuvia display
- 500 Wh battery for a range of up to 118 km (74 mi)
- Integrated automatic shifting
- Enviolo Sport 380 hub
- Custom Suntour suspension fork
- Cane Creek® Thudbuster ST suspension seatpost
- Magura® MT4 hydraulic disc brakes
- Gates Carbon Drive® CDX belt
- Abus® keyed-alike frame lock
- Fits riders from 150 to 195 cm (4’11” – 6’5”)
- Fits one Thule® Yepp Maxi, Yepp Nexxt Maxi, or Bobike® GO Maxi child seat—no adapters needed
- ETA mid 2020
Colours

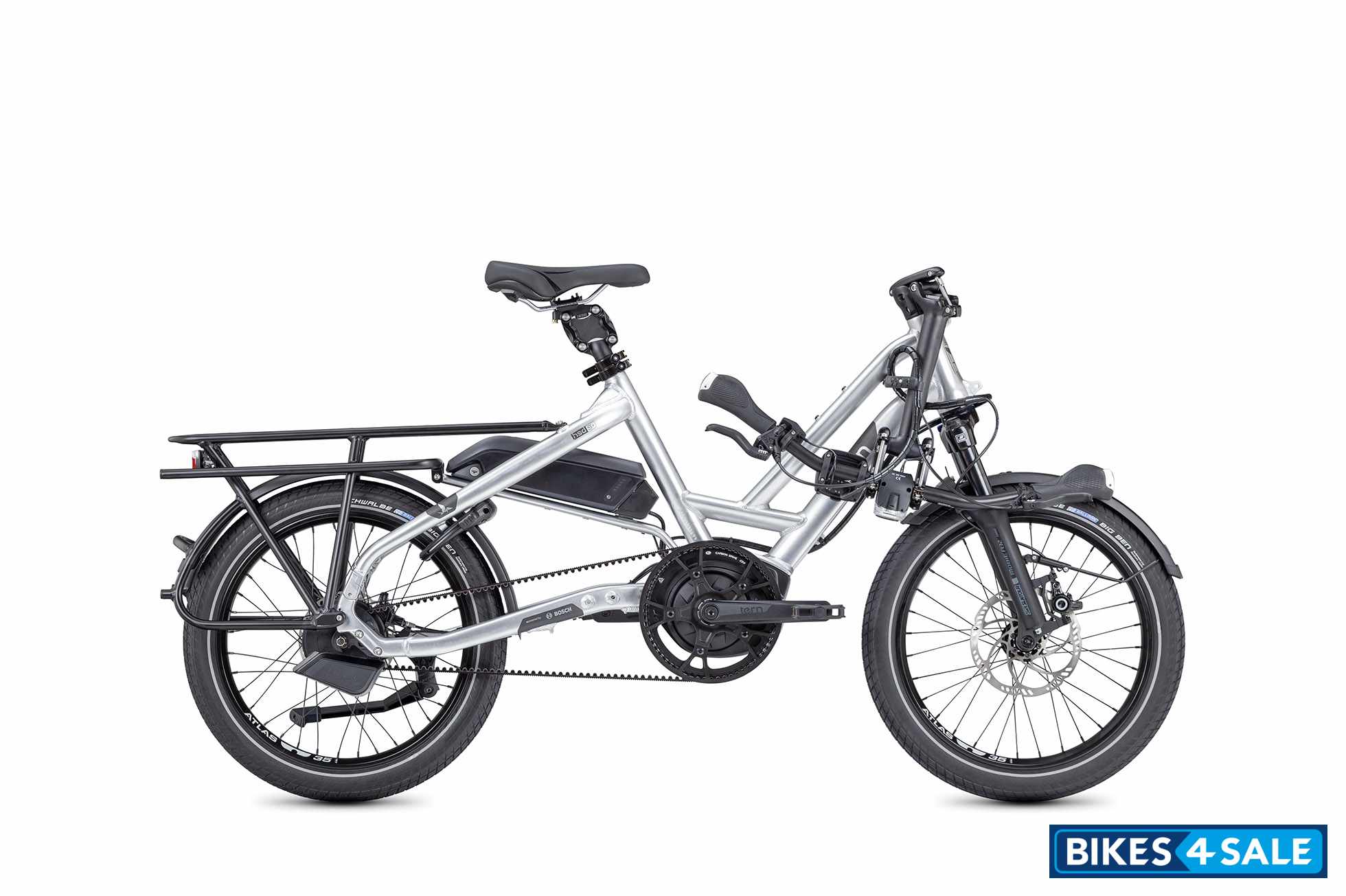

Shake Polish

Tern HSD S Plus
Tern HSD S Plus
Tern HSD S Plus
Tern HSD S Plus
Tern HSD S Plus
Tern HSD S Plus
Technical Specifications
Vehicle TypeBicycle
FuelElectric
StemTern Andros (G2), adjustable, forged construction, patented technology
HandlebarTern Sweep, 6061-AL, Tern Andros adapted
ForkSuntour custom for Tern, 1.5" tapered Chromoly steerer, 32 mm stanchions, Thru-axle, 70 mm travel, EFBE tested for 170 kg
SeatpostCane Creek Thudbuster ST, Tern Telescope, 34.9/30.9 mm
GripErgon
CranksetTern HSD custom, Gates CDX CNC machined beltring
PedalsUrban with non-slip surface, sealed bearings
ChainGates Carbon Drive CDX belt
ShiftersEnviolo AUTOMATiQ
SaddleTern HSD
HeadsetTern Flux Pro Taper, 1.5", angular contact bearings, Physis integrated
Hub : FrontIntegrated automatic shifting (more info soon)
Hub : RearNovatec, Thru-axle, sealed bearings
SpokeStainless steel, double-butted
CassetteGates CDX, precision CNC machined cog
Motor Details
Bosch Performance (Gen 3), max speed 25 kph (EU); max speed 20 mph (US)
Range
51-118 km (32-74 mi)
Display

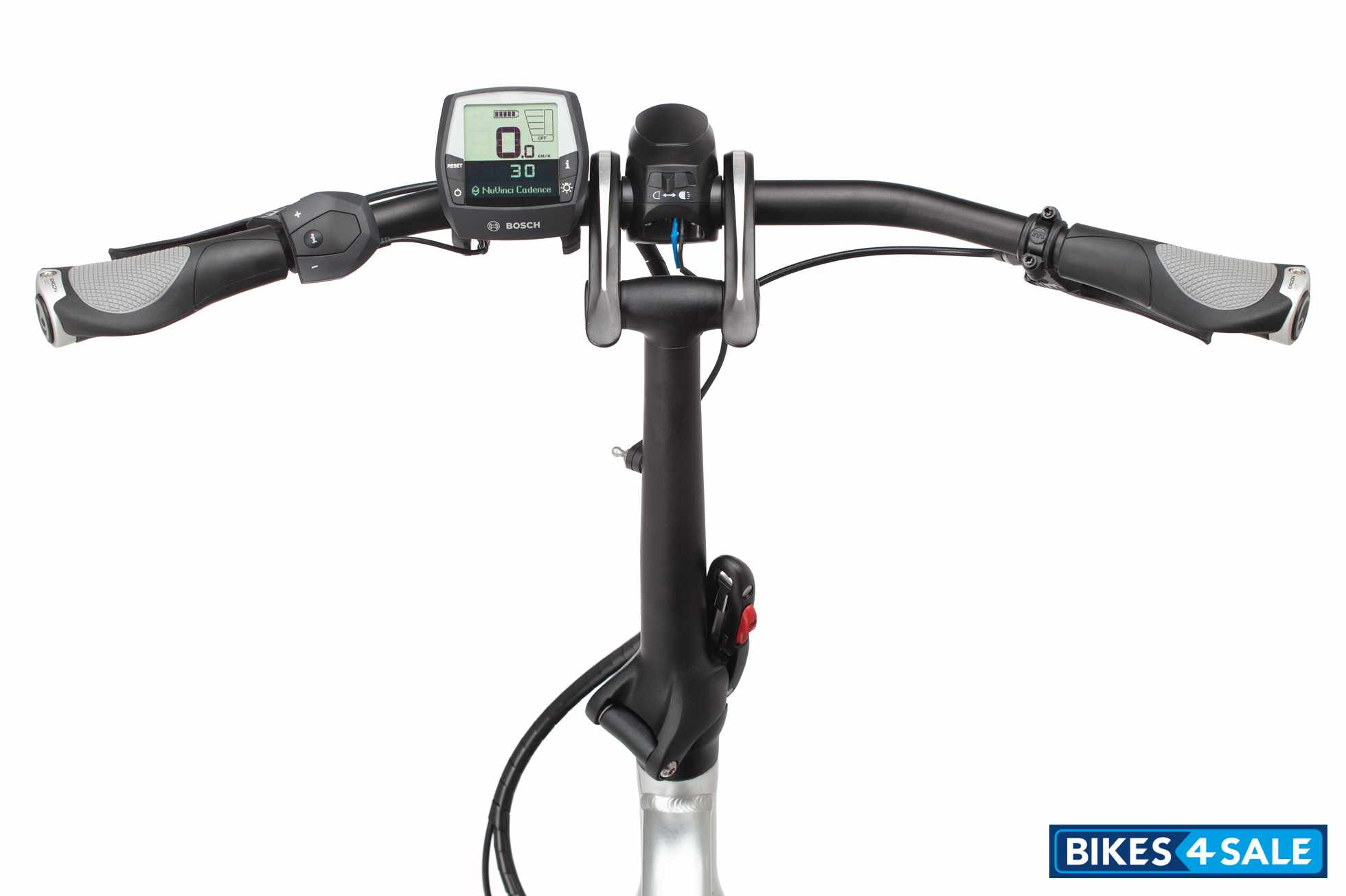

Bosch Intuvia, 4 mode selectable, walk assist, integrated auto/manual shifting
Electricals
BatteryBosch PowerPack 500
ChargerBosch Standard Charger
Head LampTern Valo Direct, 45 lux/190 lumens
Tail LampHerrmans H-Trace, for eBike
Brakes
Front Brake
Chassis and Suspension
FrameTern HSD, 6061-AL, patented design, Tern sliding dropouts, EFBE Tri-Test approved: 170 kg
Tyres
Wheels / RimSize : 20" wheels
Type :Tern Atlas H, cargo wheel
Rims : Tern Atlas H, wide 35 mm
Dimensions
Length x Width x Height-- x -- x -- mm
Weight26.7 kg
Accessories
BELL: Aluminum
CHAINGUARD: Gates integrated
KICKSTAND: Ursus, rear mount
LUGGAGE SOCKET: Combo Mount
FENDERS: SKS, stainless hardware

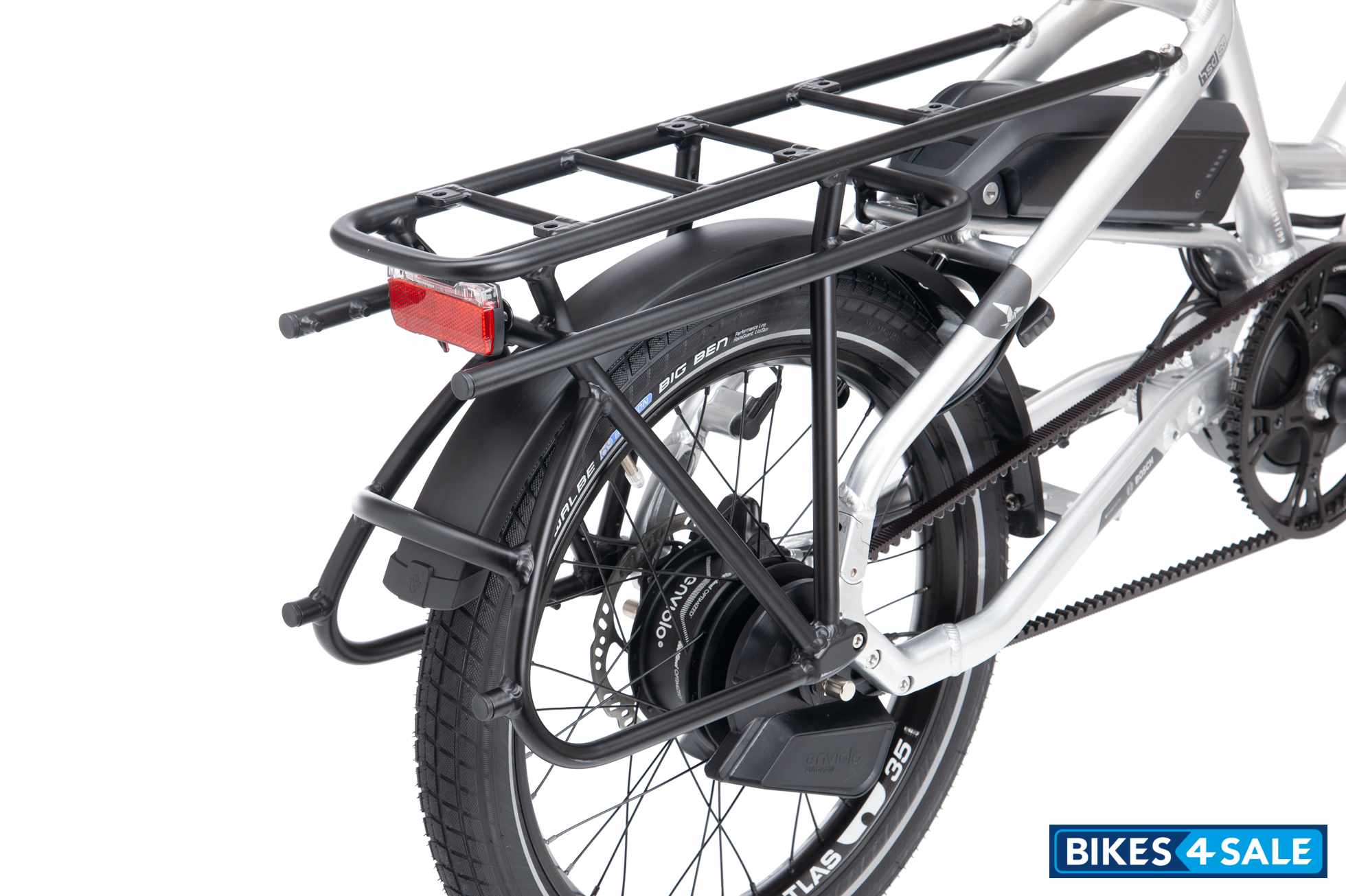

RACK(S): Atlas H rack, Atlas Rack Mount, 6 point mounting, max load capacity 60 kg (132 lb)
ABUS 5650L, keyed-alike with Bosch battery
Additional Details
SPEEDS : ∞/9 spd manual
FOLDING SIZE : 163 x 40.5 x 86 cm (64" x 15.9" x 34")
FOLDING TIME : 5 sec
FRAME SIZES : One size
GEAR INCHES : 29" - 111" (2.34 - 8.89 m)
DISTANCE: SEATPOST TO HANDLEBAR : Min: 490 mm (19.3"); Max: 590 mm (22")
DISTANCE: SADDLE TO PEDAL : Min: 690 mm (27.2") Max: 1050 mm (41.3")
SUGGESTED RIDER HEIGHT : 150 - 195 cm (4'11" - 6'5")
MAX GROSS VEHICLE WEIGHT : 170 kg (374 lbs)
MAX RIDER WEIGHT : 120 kg. (264 lbs.)
HANDLEPOST : Tern Physis 3D (G2), 3D forged, 5 patented technologies, 12°, 290 mm
SEATPOST CLAMP : Tern Collar, 6061-AL, 2pc
