Tern HSD S8i

Price, review, features and specs

Rate Tern HSD S8i:
3.5/5 (2 votes)
Add To Compare
Write a Review
Tern HSD S8i Price $ 3799 [Chicago, United States]

The given price can change depending on the colour, accessories and other features.

Country, City Showroom Price On Road Price
United States, Chicago $ 3799 --
United States, Los Angeles $ 3799 --
United States, New York $ 3799 --
United States, San Diego $ 3799 --
Buy new Tern HSD S8i

Book a Test Drive through Bikes4Sale and we will try to get you the best offer for Tern HSD S8i.

For Exciting Offers, Book a Test Drive
1830
Colours

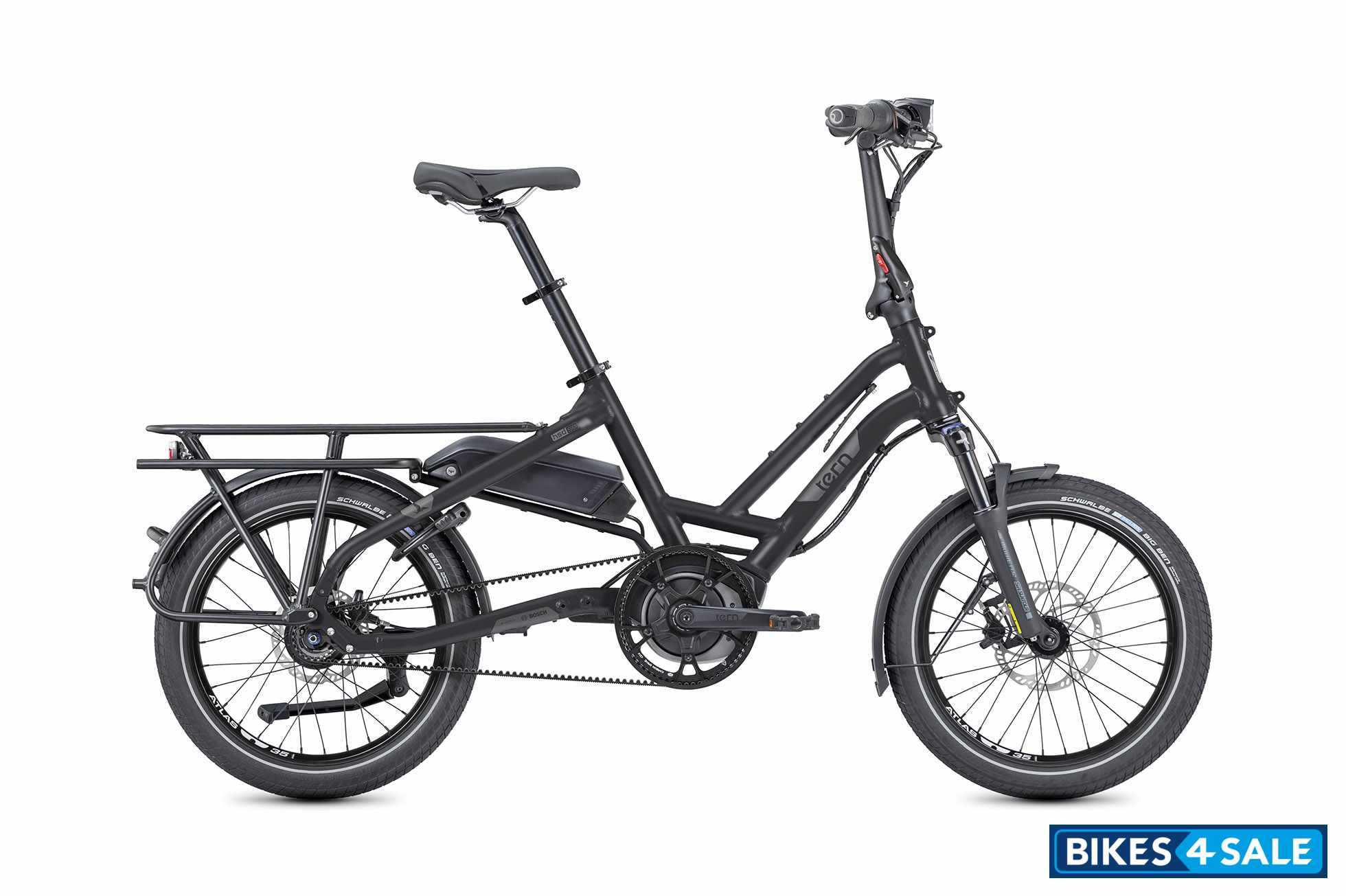

Black

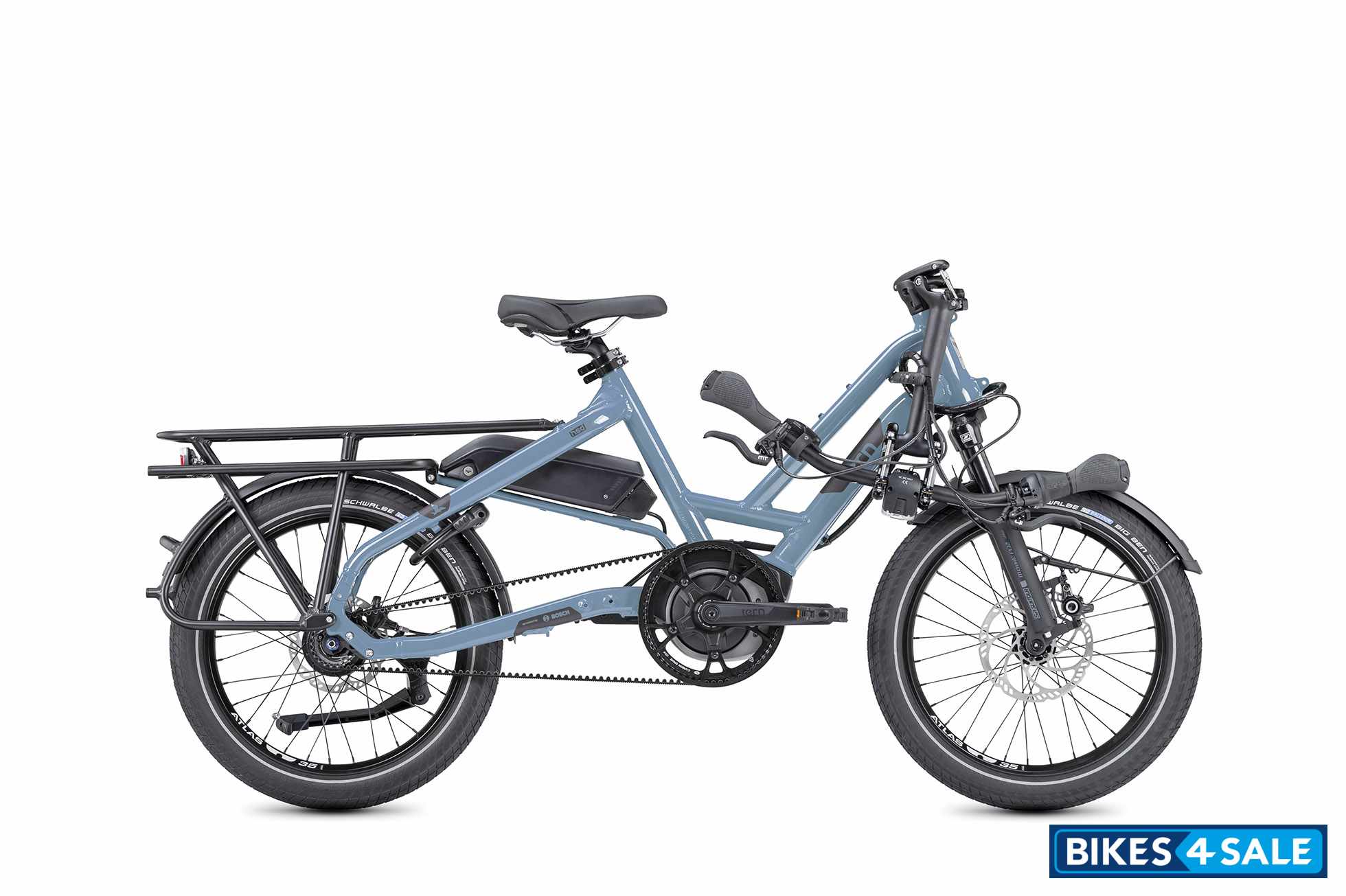

Tundra

Tern HSD S8i
Tern HSD S8i
Tern HSD S8i
Tern HSD S8i
Tern HSD S8i
Technical Specifications
Vehicle TypeBicycle
FuelElectric
StemTern Andros (G2), adjustable, forged construction, patented technology
HandlebarTern Sweep, 6061-AL, Tern Andros adapted
ForkSuntour custom for Tern, 1.5" tapered Chromoly steerer, 32 mm stanchions, Thru-axle, 70 mm travel, EFBE tested for 170 kg
SeatpostTern Telescope, 34.9/30.9 mm, 2014-AL
GripErgon
CranksetTern HSD custom, Gates CDX CNC machined beltring
PedalsUrban with non-slip surface
ChainGates Carbon Drive CDX belt
ShiftersShimano Nexus 8
SaddleTern HSD
HeadsetTern Flux Pro Taper, 1.5", angular contact bearings, Physis integrated
Hub : FrontShimano Nexus 8
Hub : RearNovatec, Thru-axle, sealed bearings
SpokeStainless steel
CassetteGates CDX, precision CNC machined cog
Motor Details
Bosch Active Line Plus (Gen 3), max speed 25 kph (EU); max speed 20 mph (US)
Range
42 -110 km (26-69 mi)
Display
Bosch Purion, 4 mode selectable, walk assist
Electricals
BatteryBosch PowerPack 400
ChargerBosch Standard Charger
Head LampTern Valo Direct, 45 lux/190 lumens
Tail LampHerrmans H-Trace, for eBike
Brakes
Front BrakeMagura MT4, hydraulic disc, 180 mm rotor
Rear BrakeMagura MT4, hydraulic disc, 160 mm rotor
Brake LeverMagura, hydraulic
Chassis and Suspension
Frame
Tyres
Wheels / RimSize : 20" wheels
Type : Tern Atlas H, cargo wheel
Rims : Tern Atlas H, wide 35 mm
Front TyreSchwalbe Big Ben, 55-406, RaceGuard puncture protection, ECE-R75 ebike certification
Rear TyreSchwalbe Big Ben, 55-406, RaceGuard puncture protection, ECE-R75 ebike certification
Dimensions
Length x Width x Height-- x -- x -- mm
Weight25 kg
Accessories
BELL: Aluminum
CHAINGUARD: Gates integrated
KICKSTAND: Ursus, rear mount
LUGGAGE SOCKET: Combo Mount
FENDERS: SKS, stainless hardware
RACK(S): Atlas H rack, Atlas Rack Mount, 6 point mounting, max load capacity 60 kg (132 lb)
Additional Details
FOLDING SIZE : 163 x 40.5 x 86 cm (64" x 15.9" x 34")
FOLDING TIME : 5 sec
FRAME SIZES : One size
GEAR INCHES : 31" - 95" (2.47 - 7.56 m)
DISTANCE: SEATPOST TO HANDLEBAR : Min: 490 mm (19.3"); Max: 590 mm (23")
DISTANCE: SADDLE TO PEDAL : Min: 690 mm (27.2") Max: 1050 mm (41.3")
SUGGESTED RIDER HEIGHT : 150 - 195 cm (4'11" - 6'5")
MAX GROSS VEHICLE WEIGHT : 170 kg (374 lbs)
MAX RIDER WEIGHT : 120 kg. (264 lbs.)
BRAKE CABLE & HOUSING : Magura, hydraulic
SEATPOST CLAMP : Tern Collar, 6061-AL, 2pc
HANDLEPOST : Tern Physis 3D (G2), 3D forged, 5 patented technologies, 12°, 290 mm
SEATPOST CLAMP : Tern Collar, 6061-AL, 2pc
