Tern Vektron D8

Price, review, features and specs

Rate Tern Vektron D8:
3.0/5 (2 votes)
Add To Compare
Write a Review
Tern Vektron D8 Price $ 2199 [Los Angeles, United States]

The given price can change depending on the colour, accessories and other features.

Country, City Showroom Price On Road Price
United States, Los Angeles $ 2199 --
United States, New York $ 2199 --
United States, San Diego $ 2199 --
Buy new Tern Vektron D8

Book a Test Drive through Bikes4Sale and we will try to get you the best offer for Tern Vektron D8.

For Exciting Offers, Book a Test Drive
77
Colours

Gunmetal Grey
White Silver

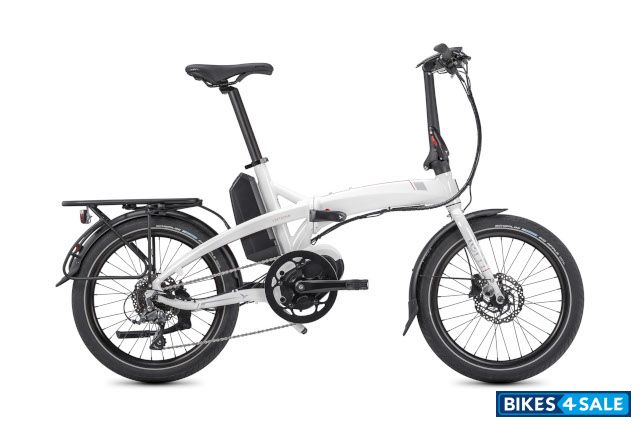

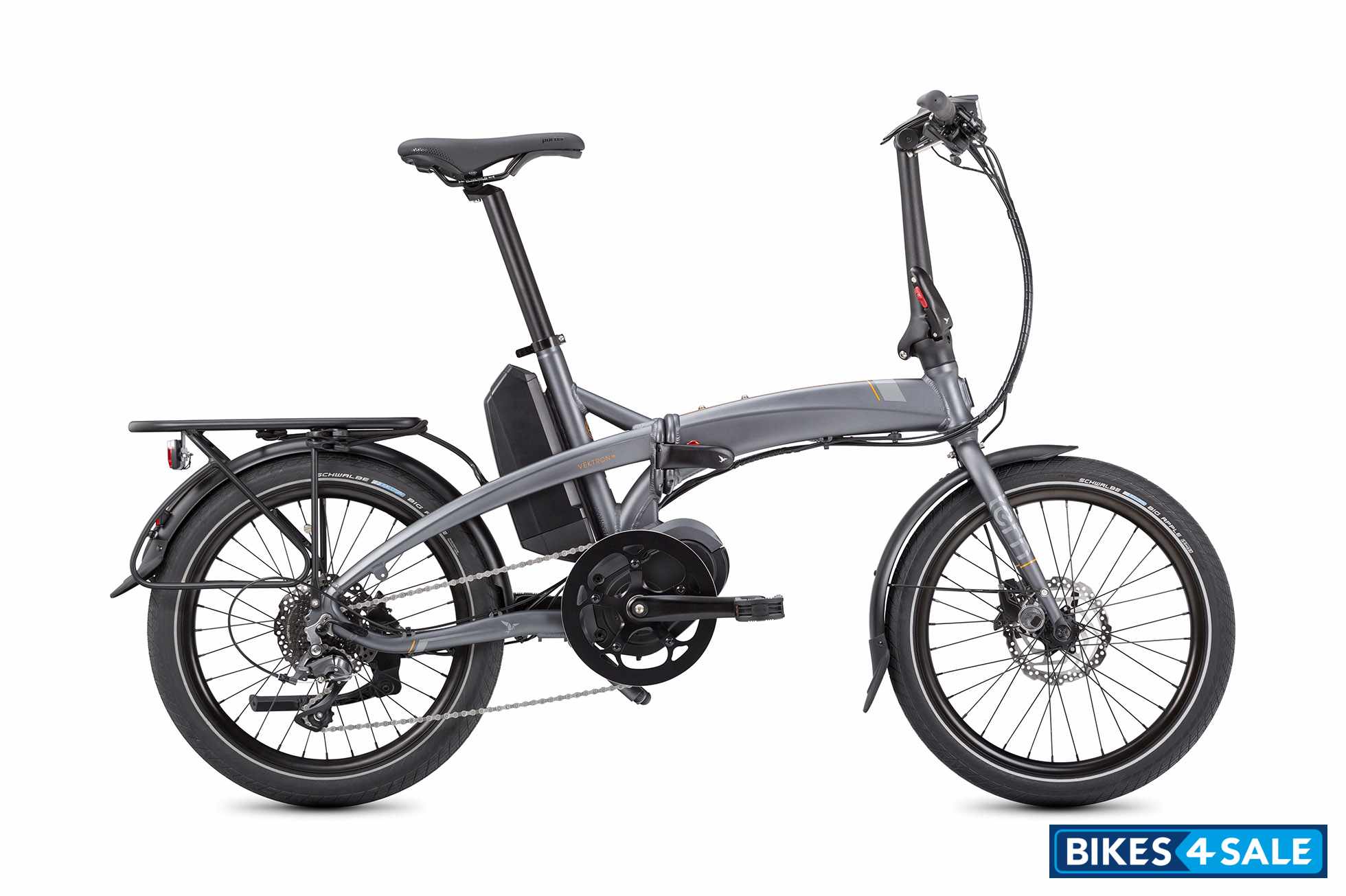

Tern Vektron D8
Tern Vektron D8
Tern Vektron D8
Technical Specifications
Vehicle TypeBicycle
FuelElectric
StemTern Andros (G2), adjustable, forged construction, patented technology
ForkIntegrated, hi-tensile steel
SeatpostSuperOversize, 6061-Al, micro-adjust clamp
GripVelo ergonomic, lock-on
CranksetVektron custom, forged AL6061 crankarm
PedalsFolding, alloy body
Chain8 spd, DHT for eBike, GST corrosion resistant coating
ShiftersShimano, 1 x 8 spd, trigger
SaddleTern Porter, patented GripPad design
HeadsetTern Flux, cartridge bearings, Physis integrated
Derailleur : RearShimano Claris
Hub : FrontShimano disc
Hub : RearShimano disc
SpokeStainless steel
CassetteShimano 11-32T, 8 spd
Motor Details
Bafang M400 Drive System, 36 V/250 W, max speed 25 kph (EU); max speed 20 mph (US), max torque 80 Nm
Range
40-90 km (25-56 mi)
Display
Bafang M400 Drive System Display, 5 mode selectable, walk assist
Electricals
BatteryBafang M400 Drive System Battery, 400 Wh, Panasonic cells
ChargerBafang Charger
Head LampTern Valo Direct, integrated, 41 lux/150 lumens
Tail LampHerrmans H-Trace / H-Trace Mini, for eBike
Brakes
Front BrakeShimano, hydraulic disc
Rear BrakeShimano, hydraulic disc
Brake LeverShimano, hydraulic disc
Chassis and Suspension
FrameTern Vektron, hydroformed aluminum, OCL+ joint, 3 patented technologies
Tyres
Wheels / Rim20" wheels
Kinetix Comp, for disc
Front TyreSchwalbe Big Apple, Active Line, 50-406, puncture protection, Reflex
Rear TyreSchwalbe Big Apple, Active Line, 50-406, puncture protection, Reflex
Dimensions
Length x Width x Height-- x -- x -- mm
Weight22.5 kg
Accessories
BELL : Aluminum
CHAINGUARD : n/a
KICKSTAND : Rear mount, Pletscher design
CLIP SYSTEM : Magnetix 2.0
LUGGAGE SOCKET : Yes
FENDERS : SplashGuard, stainless hardware
RACK(S) : Optional: Tern Loader Rack
Additional Details
SPEEDS : 1 x 8

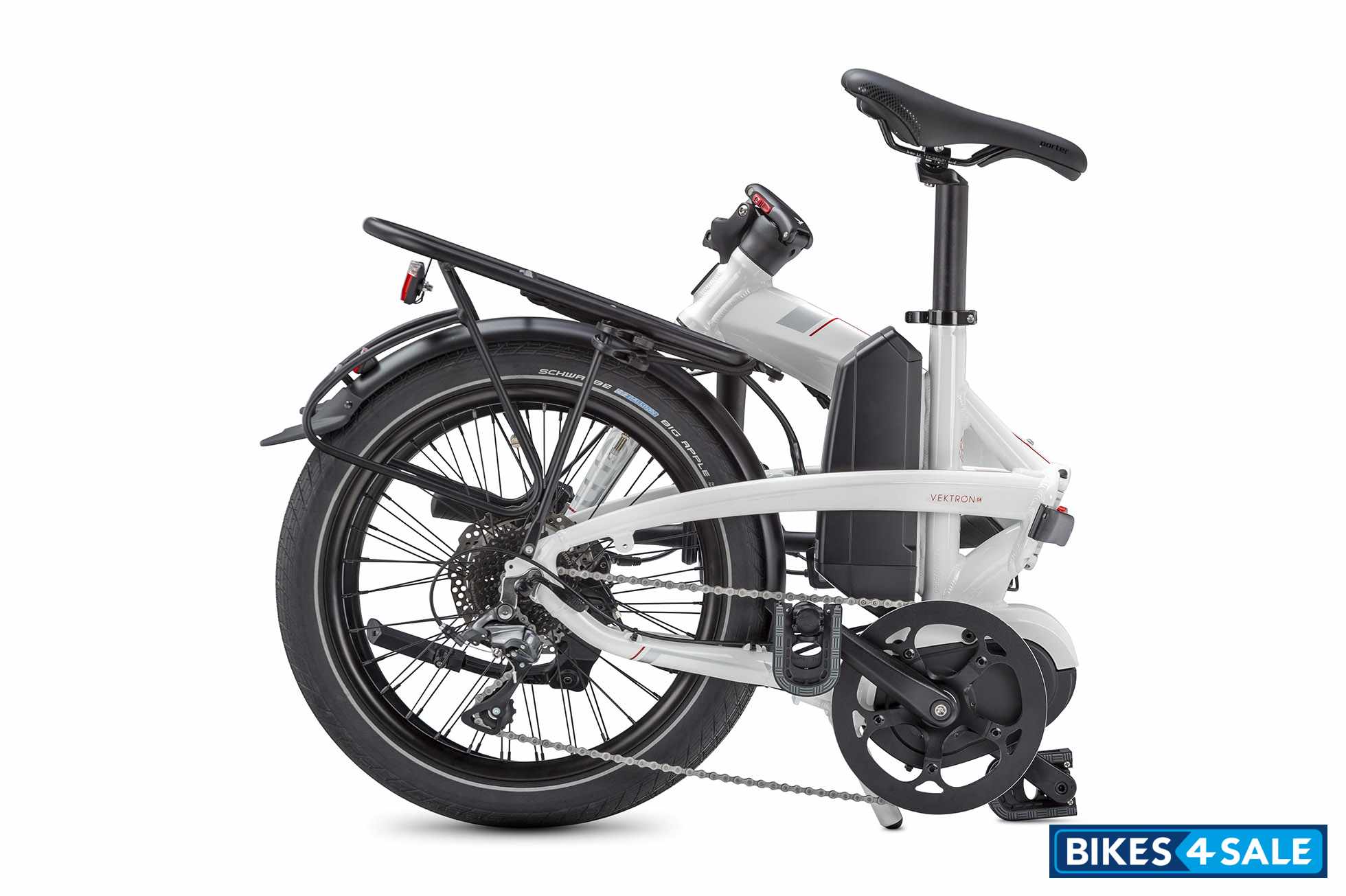

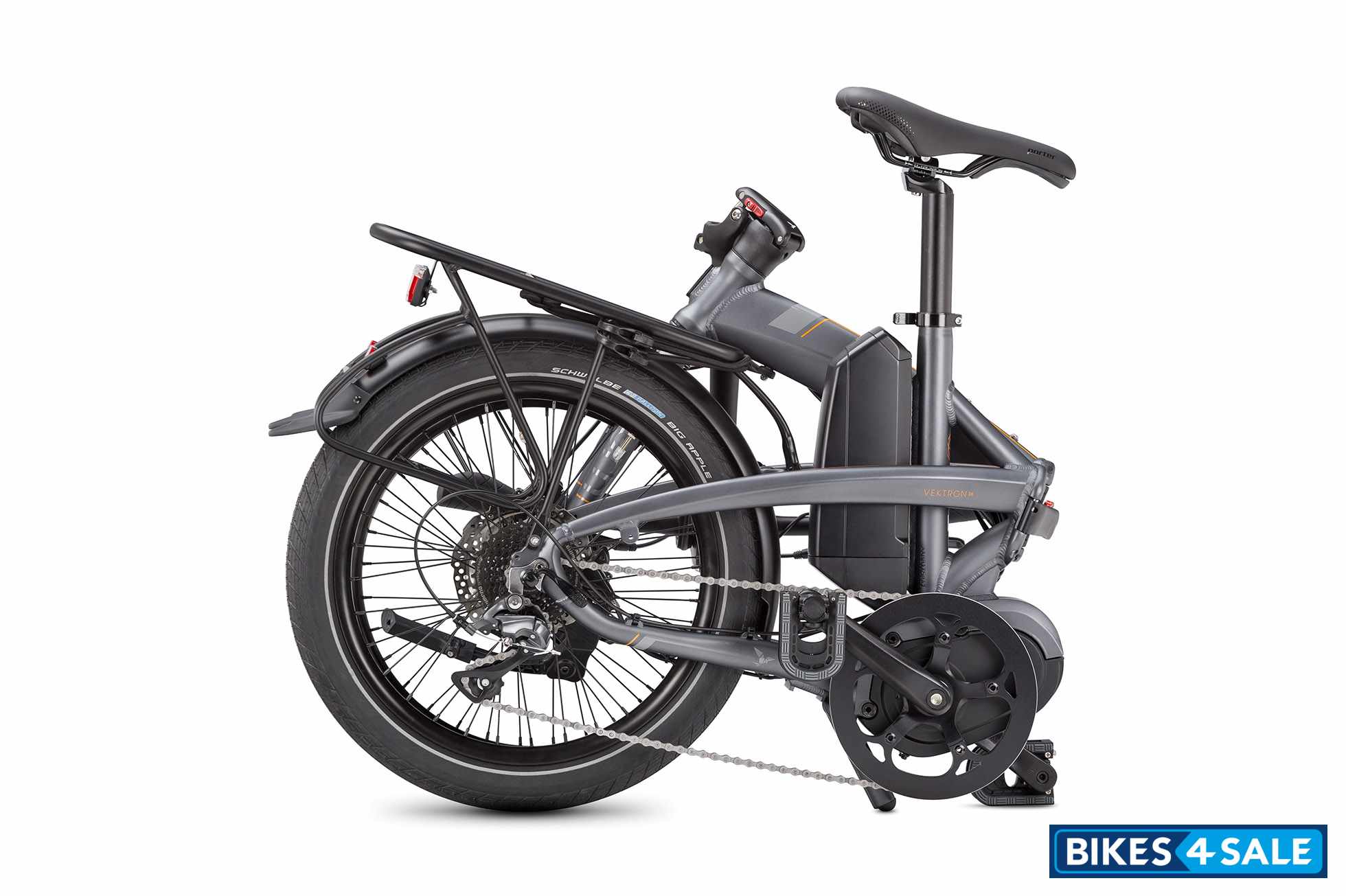

FOLDING SIZE : 41 x 86 x 68 cm (16.1" x 33.9" x 26.8")
FOLDING TIME : 10 sec
FRAME SIZES : One size
GEAR INCHES : 33" - 95" (2.60 - 7.57 m)
DISTANCE: SEATPOST TO HANDLEBAR : Min. 620 mm (24.4") Max: 690 mm (27.2")
DISTANCE: SADDLE TO PEDAL : Min. 780 mm (30.7") Max: 990 mm (39")
SUGGESTED RIDER HEIGHT : 160 - 195 cm (5'3" - 6'5")
MAX LOAD WEIGHT : 105 kg (230 lb)
HANDLEPOST : Tern Physis 3D (G2), 3D forged, 5 patented technologies, 12°, 320 mm
SEATPOST CLAMP : Oversize, 6061-Al
BOTTOM BRACKET : Motor integrated
SHIFTER CABLE & HOUSING : Anti-compression housing, slick cables
