Tern Vektron P9

Price, review, features and specs

Rate Tern Vektron P9:
3.5/5 (2 votes)
Add To Compare
Write a Review
Tern Vektron P9 Price

Not Available

Buy new Tern Vektron P9

Book a Test Drive through Bikes4Sale and we will try to get you the best offer for Tern Vektron P9.

For Exciting Offers, Book a Test Drive
5257
Features
- LUGGAGE SOCKET
- OCL+ FRAME JOINT
- ANDROS STEM
- SHIMANO HYDRAULIC DISC BRAKES
- SCHWALBE BIG APPLE TIRES
- BAFANG M400 DRIVE SYSTEM
-BAFANG M400 DRIVE SYSTEM BATTERY
- BAFANG M400 DRIVE SYSTEM DISPLAY
- VALO DIRECT LIGHT
Tern Vektron P9
Tern Vektron P9
Tern Vektron P9
Technical Specifications
Vehicle TypeBicycle
FuelElectric
Maximum Torque80 NM
Top Speed25 kmph
StemTern Andros (G2), adjustable, forged construction, patented technology
HandlebarFlat bar, 6061-Al, Tern Andros adapted
ForkTern Tarsus, 6061-Al, hydroformed
SeatpostTern Telescope, 34.9 mm, Lite 2014-AL
SEATPOST CLAMP : Oversize, 6061-Al, 2 pc
GripBioLogic Arx
CranksetVektron custom, forged 6061-AL crankarm
PedalsLiteForm QR, alloy body, QR right/standard left
Chain9 spd, DHT for eBike, GST corrosion resistant coating
ShiftersShimano, 1 x 9 spd, trigger
SaddleTern Porter, patented GripPad design
HeadsetTern Flux, cartridge bearings, Physis integrated
Derailleur : RearShimano Sora
Hub : FrontShimano disc
Hub : FrontShimano disc
SpokeStainless steel
CassetteShimano 11-32T, 9 spd
Motor Details
Bafang M400 Drive System, 36 V/250 W, max speed 25 kph (EU); max speed 20 mph (US), max torque 80 Nm
Range
40-90 km (25-56 mi)
Display
Bafang M400 Drive System Display, 5 mode selectable, walk assist
Electricals
BatteryBafang M400 Drive System Battery, 400 Wh, Panasonic cells
ChargerBafang Charger
Head LampTern Valo Direct, integrated, 41 lux/150 lumens
Tail LampHerrmans H-Trace / H-Trace Mini, for eBike
Brakes
Front BrakeShimano, hydraulic disc
Rear BrakeShimano, hydraulic disc
Brake LeverShimano, hydraulic disc
Chassis and Suspension
FrameTern Vektron, hydroformed aluminum, OCL+ joint, 3 patented technologies
Tyres
Wheels / RimWHEEL SIZE : 20" wheels
RIMS : Kinetix Comp, for disc
Front TyreSchwalbe Big Apple, Performance Line, 55-406, puncture protection, Reflex
Rear TyreSchwalbe Big Apple, Performance Line, 55-406, puncture protection, Reflex
Dimensions
Length x Width x Height-- x -- x -- mm
Weight22.6 kg
Accessories
Pedal Holder
Additional Details
HANDLEPOST : Tern Physis 3D (G2), 3D forged, 5 patented technologies, 12°, 320 mm

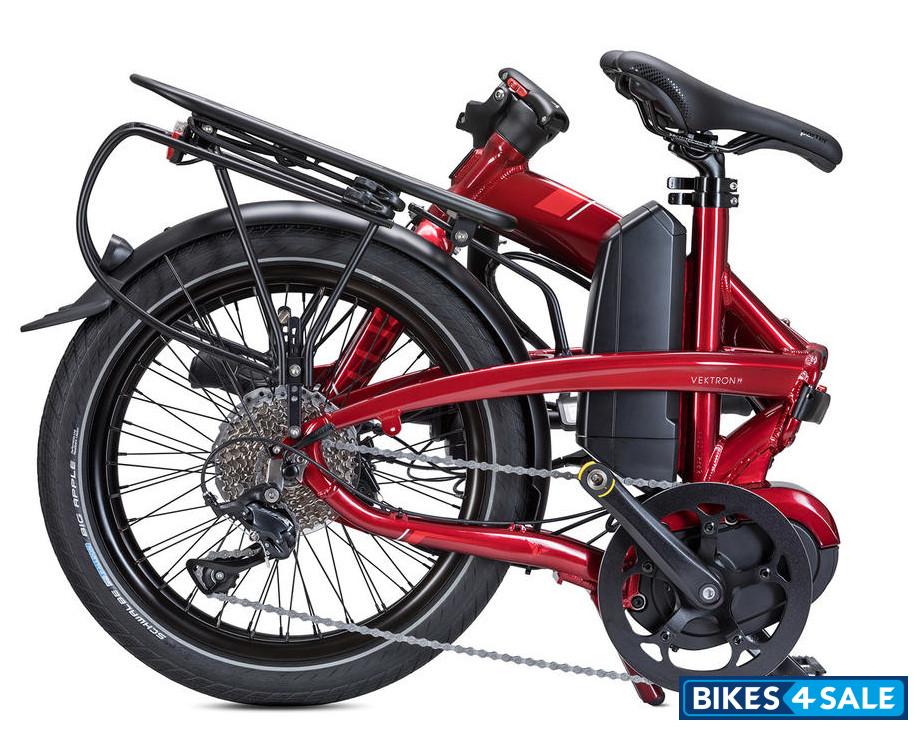

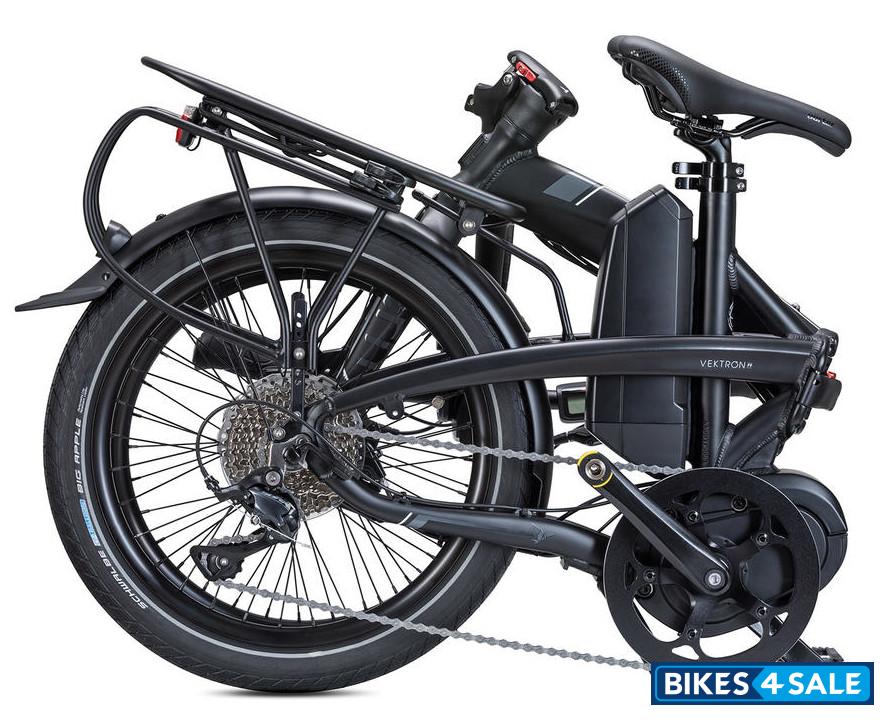

FOLDING SIZE : 41 x 86 x 68 cm (16.1" x 33.9" x 26.8")
FOLDING TIME : 10 sec
FRAME SIZES : One size
GEAR INCHES : 33" - 97" (2.65 - 7.72 m)
DISTANCE: SEATPOST TO HANDLEBAR : Min. 620 mm (24.4") Max: 690 mm (27.2")
DISTANCE: SADDLE TO PEDAL : Min. 680 mm (26.8") Max: 1110 mm (43.7")
SUGGESTED RIDER HEIGHT : 147 - 195 cm (4'10" - 6'5")
MAX LOAD WEIGHT : 105 kg (230 lb)
SHIFTER CABLE & HOUSING: Jagwire LEX-SL, slick treatment, alloy ferrules
BOTTOM BRACKET: Motor integrated
KICKSTAND : DoubleStand, center mount
CLIP SYSTEM : Magnetix 2.0
FENDERS : SplashGuard, stainless hardware
RACK(S) : Opt: Tern Cargo Rack
