Tern Vektron Q9

Price, review, features and specs

Rate Tern Vektron Q9:
3.5/5 (2 votes)
Add To Compare
Write a Review
Tern Vektron Q9 Price $ 3199 [Los Angeles, United States]

The given price can change depending on the colour, accessories and other features.

Country, City Showroom Price On Road Price
United States, Los Angeles $ 3199 --
United States, New York $ 3199 --
United States, San Diego $ 3199 --
Buy new Tern Vektron Q9

Book a Test Drive through Bikes4Sale and we will try to get you the best offer for Tern Vektron Q9.

For Exciting Offers, Book a Test Drive
5837
Features
- German-engineered Bosch Active Line electric drivetrain—the industry leader in electric bike technology
- Hydraulic disc brakes for all-weather stopping power
- New frame design, with a reclining battery for a lower center of gravity and better ride

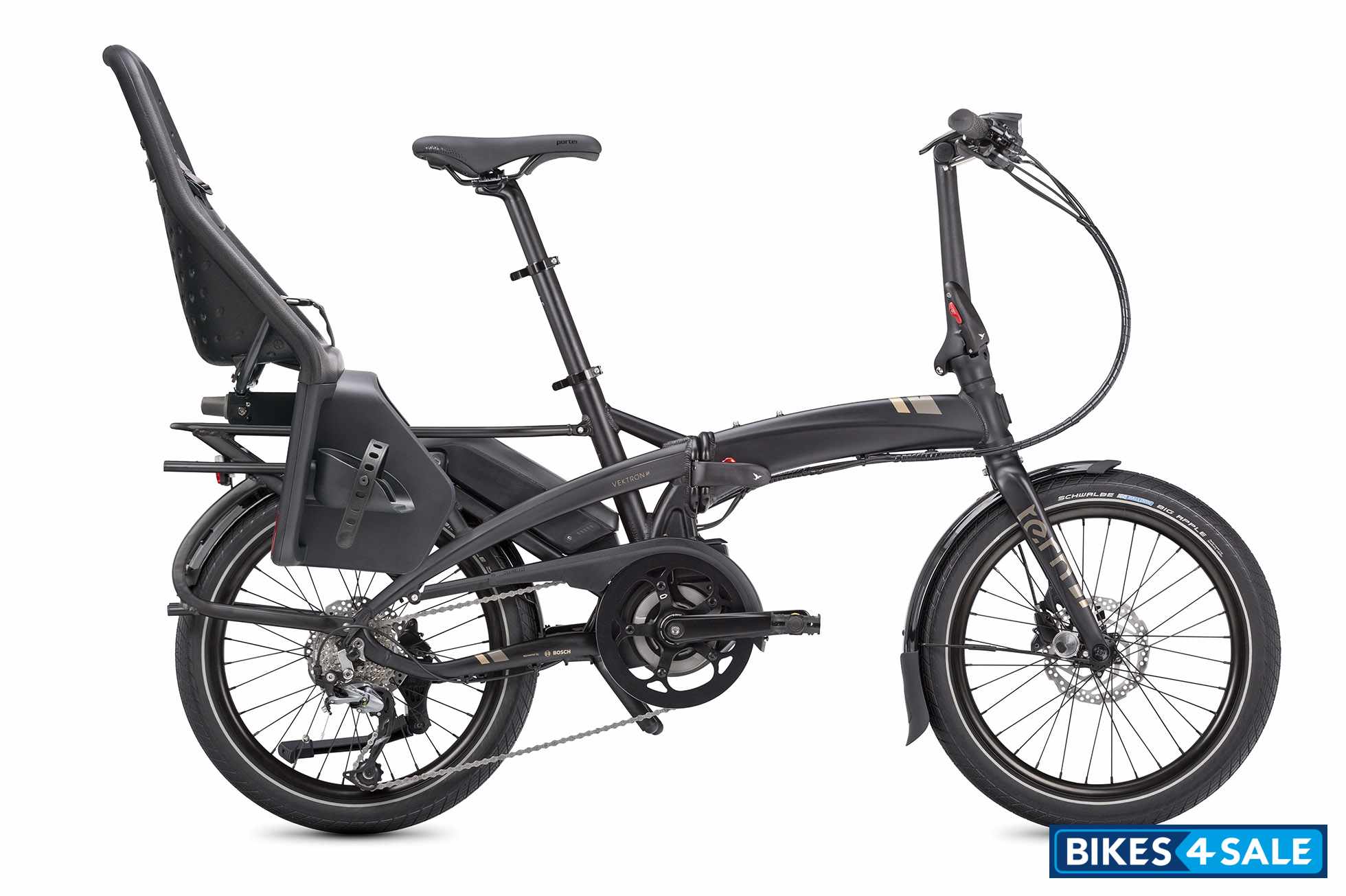

- Integrated Atlas Rack works seamlessly with Thule Yepp Maxi and Nexxt Maxi child seats—no adapters needed
- Resizes in seconds to fit riders 147 – 195 cm (4’10” – 6’5”) so a single bike can be shared by the family
Colours

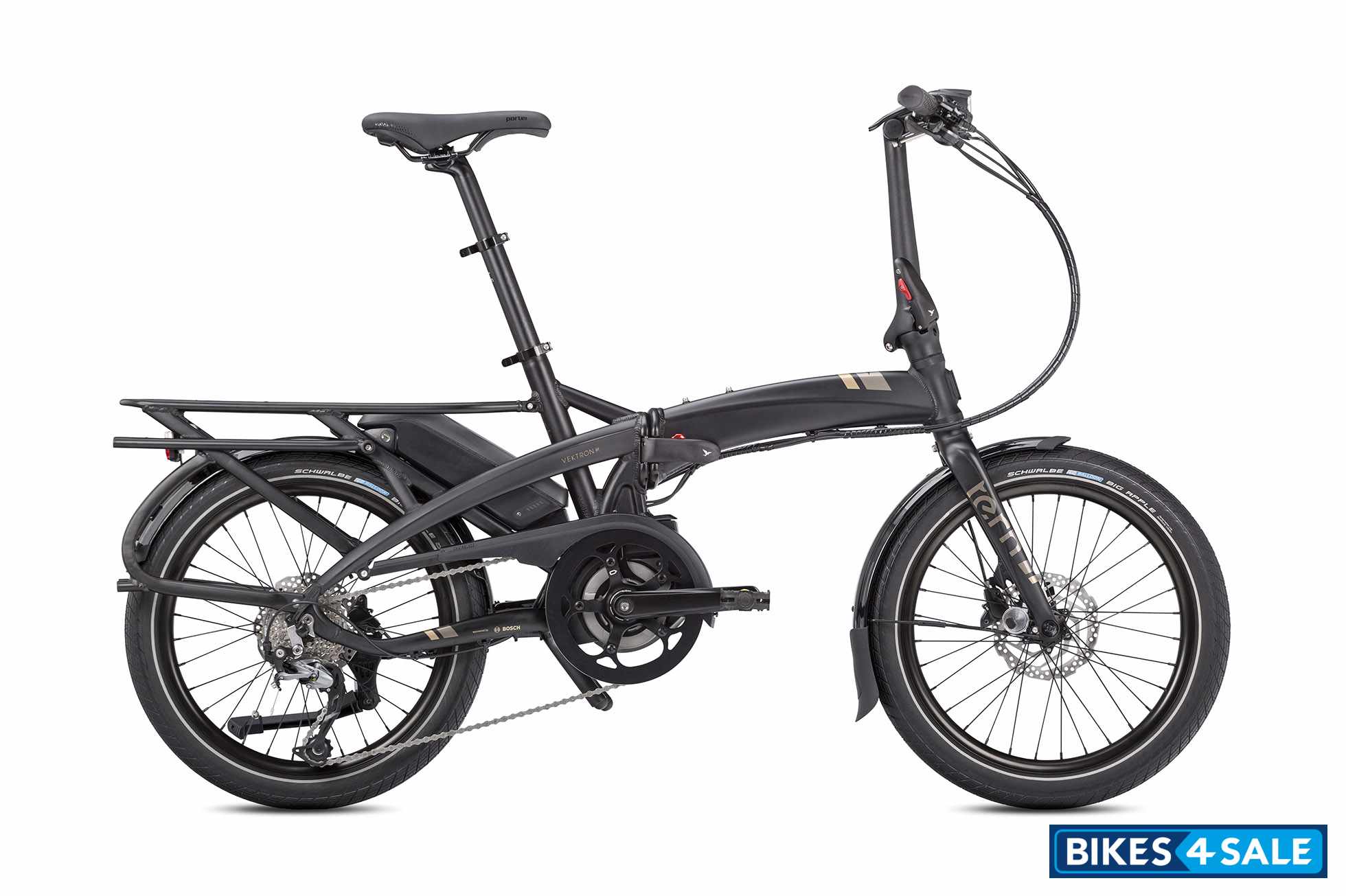

Black Bronze

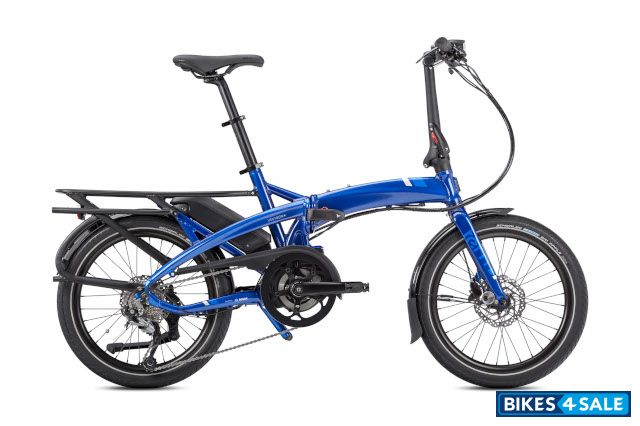

Blue Silver

Tern Vektron Q9
Tern Vektron Q9
Tern Vektron Q9
Tern Vektron Q9
Technical Specifications
Vehicle TypeBicycle
FuelElectric
Maximum Power36V/250 W
Maximum Torque40 Nm
StemTern Andros, adjustable, forged construction, patented technology
HandlebarFlat bar, 6061-AL, Tern Andros adapted
ForkTern Tarsus, 6061-Al, hydroformed
SeatpostTern Telescope, 34.9 mm, Lite 2014-AL
GripVelo ergonomic, lock-on
CranksetVektron custom, forged 6061-AL crankarm
PedalsMKS EZY
Chain9 spd, DHT for eBike, GST corrosion resistant coating
ShiftersShimano Alivio, 1 x 9 spd, trigger
SaddleTern Porter, patented GripPad design
HeadsetTern Flux, cartridge bearings, Physis integrated
Derailleur : RearShimano Alivio Shadow
Hub : FrontShimano disc
Hub : RearShimano disc
SpokeStainless
CassetteShimano 11-32T, 9 spd
Motor Details
Bosch Active Line, 36 V/250 W, max speed 20 mph (US), max torque 40 Nm
Range
400 Wh: 50-130 km (30-80 mi)
Display
Bosch Purion, 4 mode selectable, walk assist
Electricals
BatteryBosch PowerPack 400 Wh
ChargerBosch Compact Charger
Brakes
Front BrakeShimano, hydraulic disc
Rear BrakeShimano, hydraulic disc
Brake LeverShimano, hydraulic disc
Chassis and Suspension
FrameVektron G2 Frame
Tyres
Wheels / Rim20" wheels
Kinetix Comp, for disc
Front TyreSchwalbe Big Apple, 55-406, puncture protection, Reflex
Rear TyreSchwalbe Big Apple, 55-406, puncture protection, Reflex
Dimensions
Length x Width x Height-- x -- x -- mm
Weight21.9 kg
Accessories
BELL: Aluminum
CHAINGUARD : SKS Chainblade
KICKSTAND : URSUS MOOI, rear mount
CLIP SYSTEM : Magnetix 2.0
LUGGAGE SOCKET: Yes
FENDERS : SplashGuard, stainless hardware
RACK(S) : Atlas Rack, integrated 8 point mounting, max load capacity 27 kg (59 lb)
Additional Details

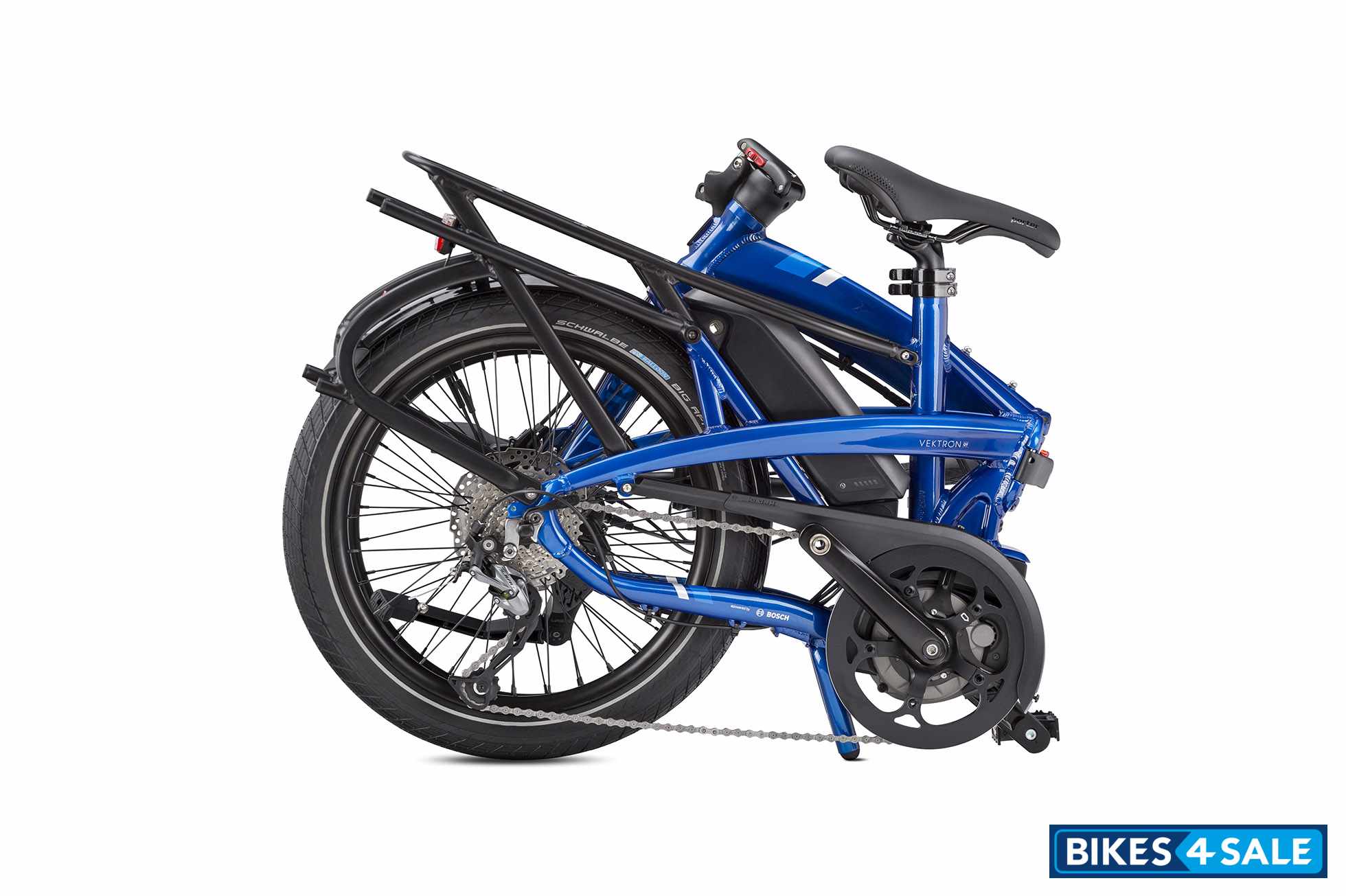

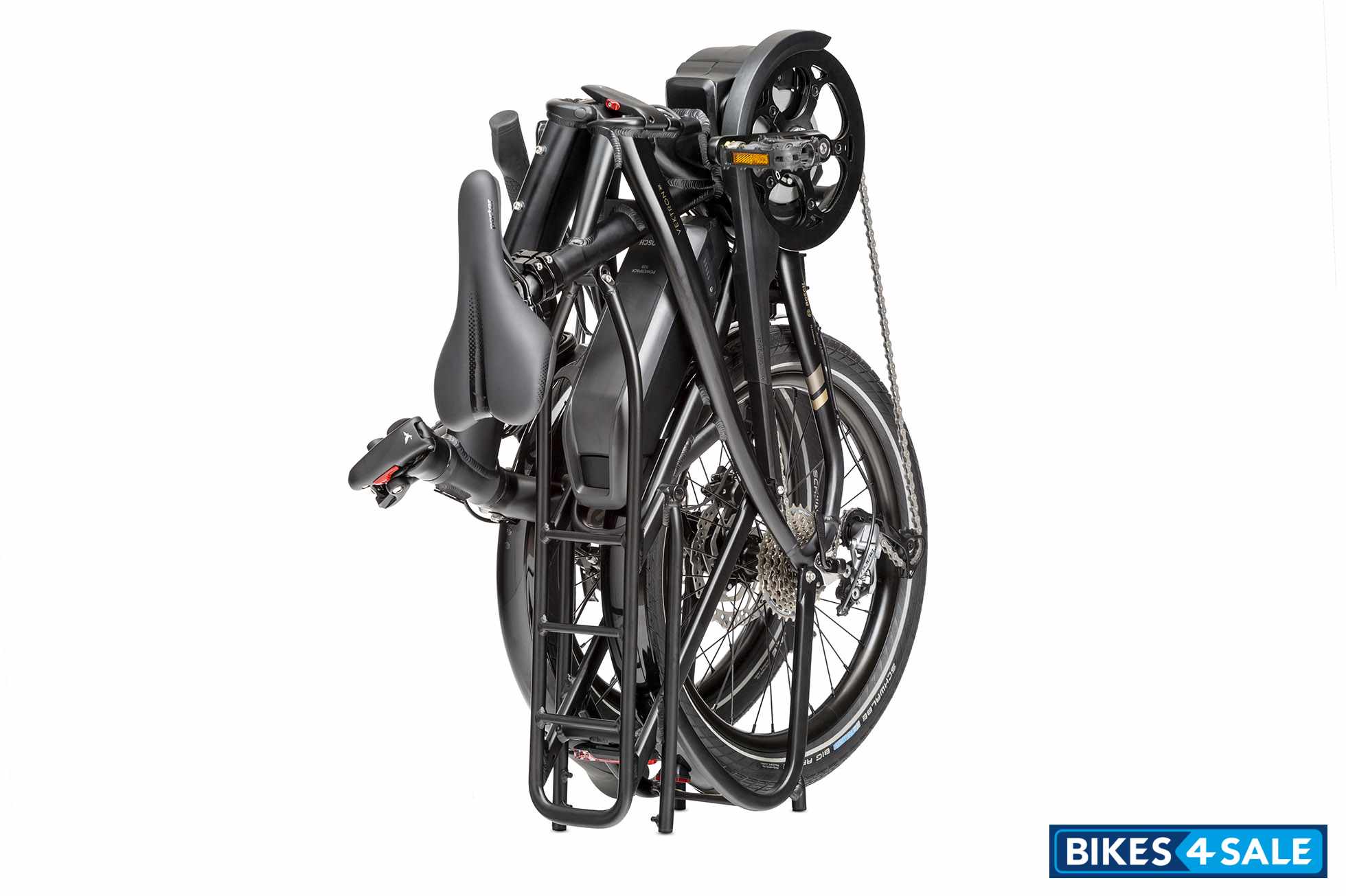

FOLDING SIZE : 41 x 86 x 68 cm (16.1" x 33.9" x 26.8")
FOLDING TIME : 10 sec
GEAR INCHES : 33" - 97" (2.65 - 7.72 m)
DISTANCE: SEATPOST TO HANDLEBAR : Min: 620 mm (24.4") Max: 690 mm (27.2")
DISTANCE: SADDLE TO PEDAL : Min: 670 mm (26.4") Max: 1100 mm (43.3")
SUGGESTED RIDER HEIGHT : 147 - 195 cm (4'10" - 6'5")
MAX GROSS VEHICLE WEIGHT : 125 kg (275 lb)
MAX RIDER WEIGHT : 105 kg (230 lb)
HANDLEPOST : Tern Physis 3D, 3D forged, 5 patented technologies
SEATPOST CLAMP : Oversize, 6061-AL, 2pc
SHIFTER CABLE & HOUSING : Jagwire LEX-SL, slick treatment, alloy ferrules
