Tern Vektron S10

Price, review, features and specs

Rate Tern Vektron S10:
3.0/5 (2 votes)
Add To Compare
Write a Review
Tern Vektron S10 Price

Not Available

Buy new Tern Vektron S10

Book a Test Drive through Bikes4Sale and we will try to get you the best offer for Tern Vektron S10.

For Exciting Offers, Book a Test Drive
3433
Colours

Black Bronze
Forest Grey
Silver

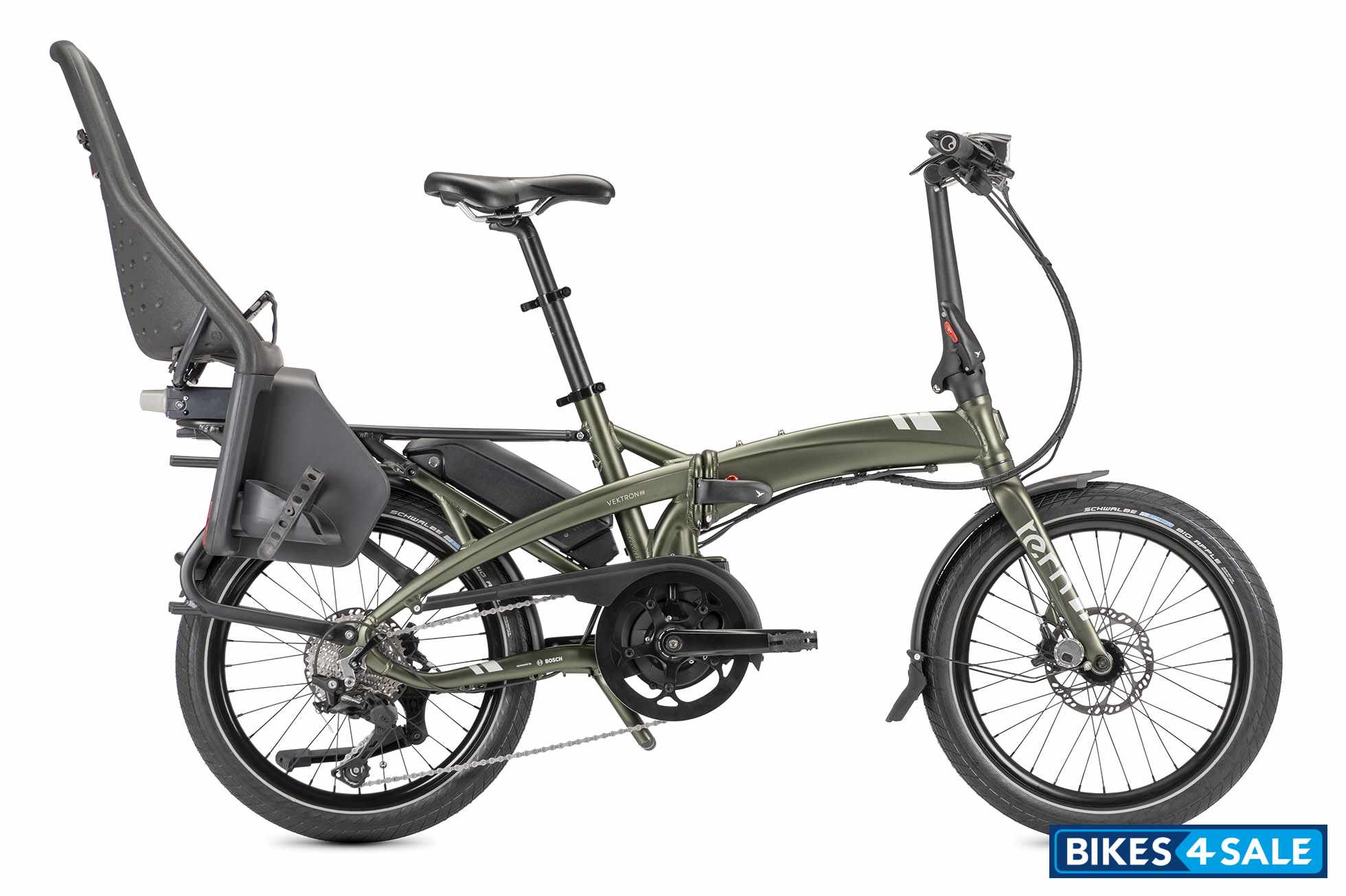

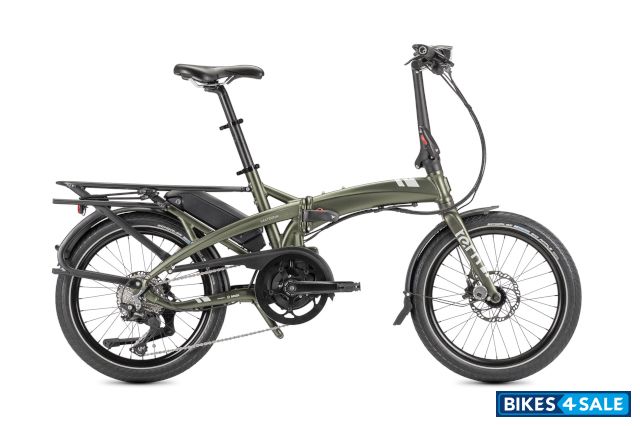

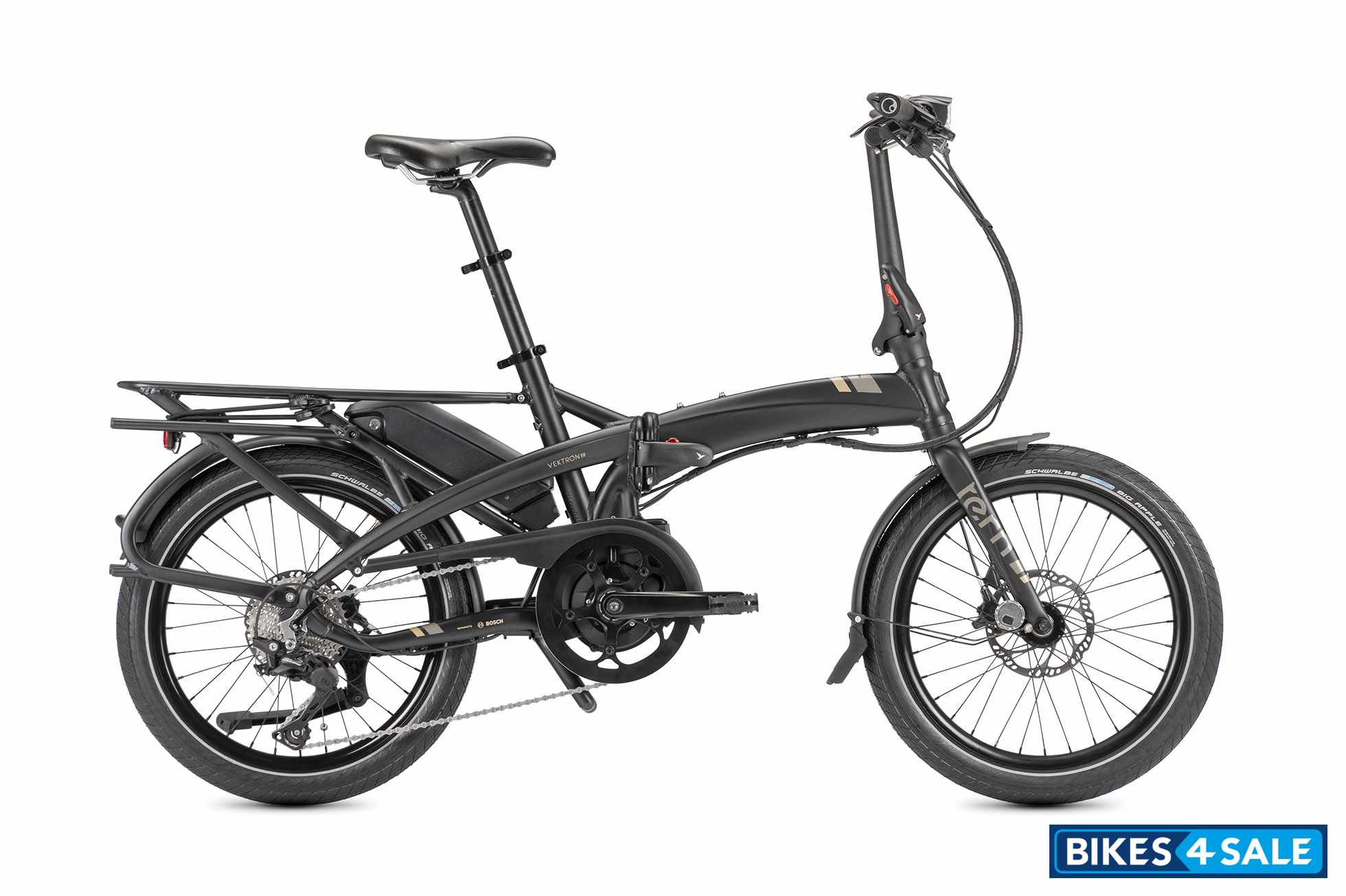

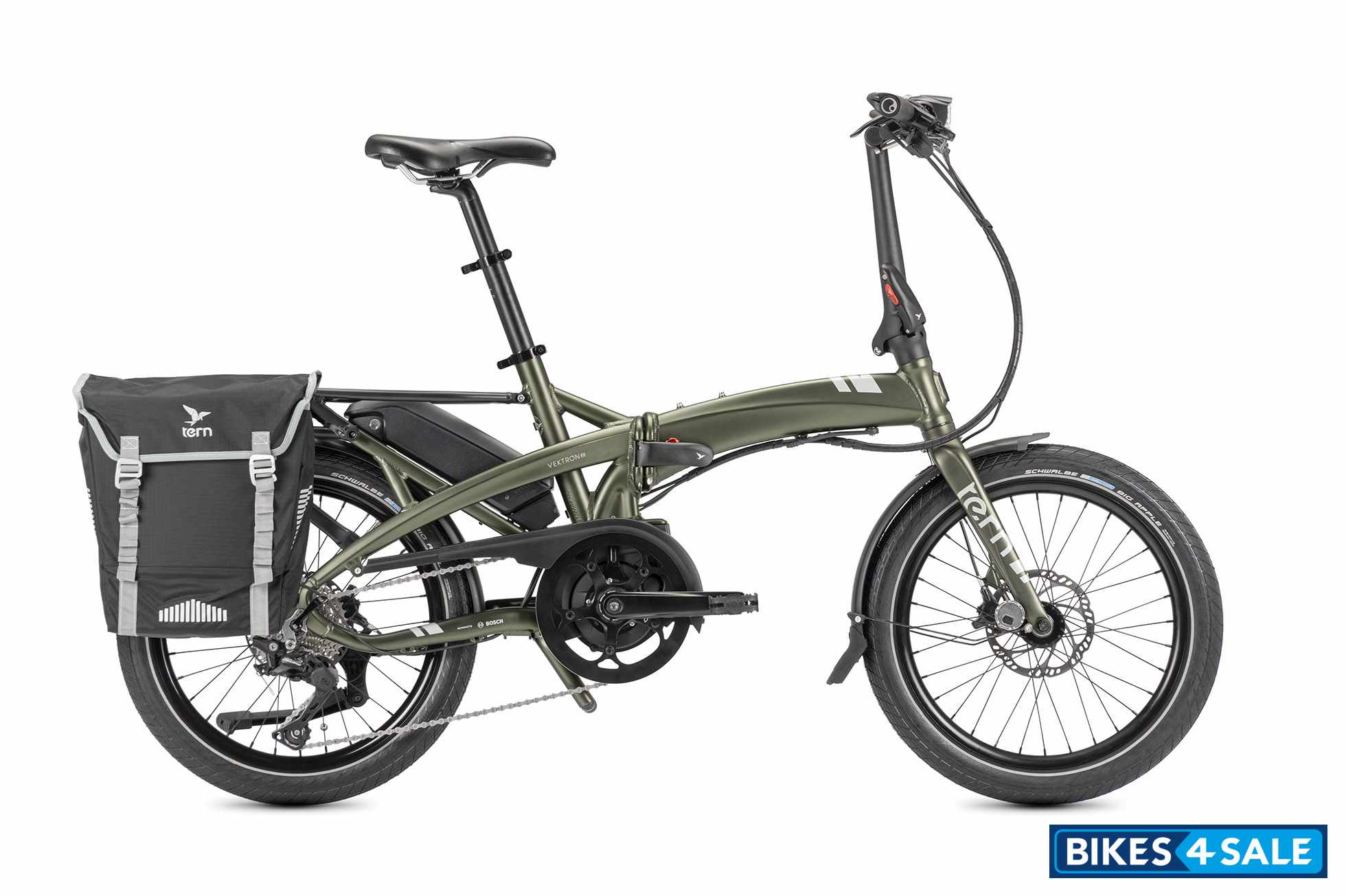

Tern Vektron S10
Tern Vektron S10
Tern Vektron S10
Tern Vektron S10
Tern Vektron S10
Tern Vektron S10
Tern Vektron S10
Tern Vektron S10
Tern Vektron S10
Tern Vektron S10
Technical Specifications
Vehicle TypeBicycle
FuelElectric
Maximum Power400 Wh
Maximum Torque65 Nm
HandlebarKinetix Comp, double-butted 6061-AL, Tern Andros adapted
ForkTern Tarsus, 6061-Al, hydroformed
SeatpostTern Telescope, 34.9/30.9 mm, 2014-AL
GripErgon
CranksetVektron custom, forged 6061-AL crankarm
PedalsMKS EZY
Chain10 spd, DHT for eBike, GST corrosion resistant coating
ShiftersShimano Deore, 1 x 10 spd
SaddleTern Porter+, patented GripPad design, PrimeGel padding
HeadsetFlux Pro, angular contact bearings, Physis integrated
Derailleur : RearShimano Deore Shadow+
Hub : FrontNovatec, sealed cartridge bearing, disc
Hub : RearNovatec, sealed cartridge bearing, disc
SpokeStainless steel, double-butted
CassetteShimano 11-36T, 10 spd
Motor Details
Bosch Performance, 300% Assist, 65 Nm Torque, max speed 25 kph (EU); max speed 20 mph (US)
Range
400 Wh: 53 -106 km (34-68 mi)
Display
Bosch Purion, 4 mode selectable, walk assist
Electricals
BatteryBosch PowerPack 400 Wh
Charger220V, 4A (EU); 100-240V, 4A (US)
Head LampTern Valo Direct, 190 lumens
Tail LampHerrmans H-Trace, for eBike
Brakes
Front BrakeMagura MT4, hydraulic disc
Rear BrakeMagura MT4, hydraulic disc
Brake LeverMagura, hydraulic disc
Chassis and Suspension
FrameTern Vektron, hydroformed 7005-AL, OCL+ joint, 3 patented technologies
Tyres
Wheels / RimWheel size : 20" wheels
Rims : Kinetix Comp, for disc
Front TyreSchwalbe Big Apple, Performance Line, 55-406, puncture protection, Reflex
Rear TyreSchwalbe Big Apple, Performance Line, 55-406, puncture protection, Reflex
Dimensions
Length x Width x Height-- x -- x -- mm
Weight22.1 kg
Accessories
BELL: Aluminum
CHAINGUARD : SKS Chainblade
KICKSTAND : URSUS, rear mount
CLIP SYSTEM : Magnetix 3.0
LUGGAGE SOCKET : Yes
Additional Details

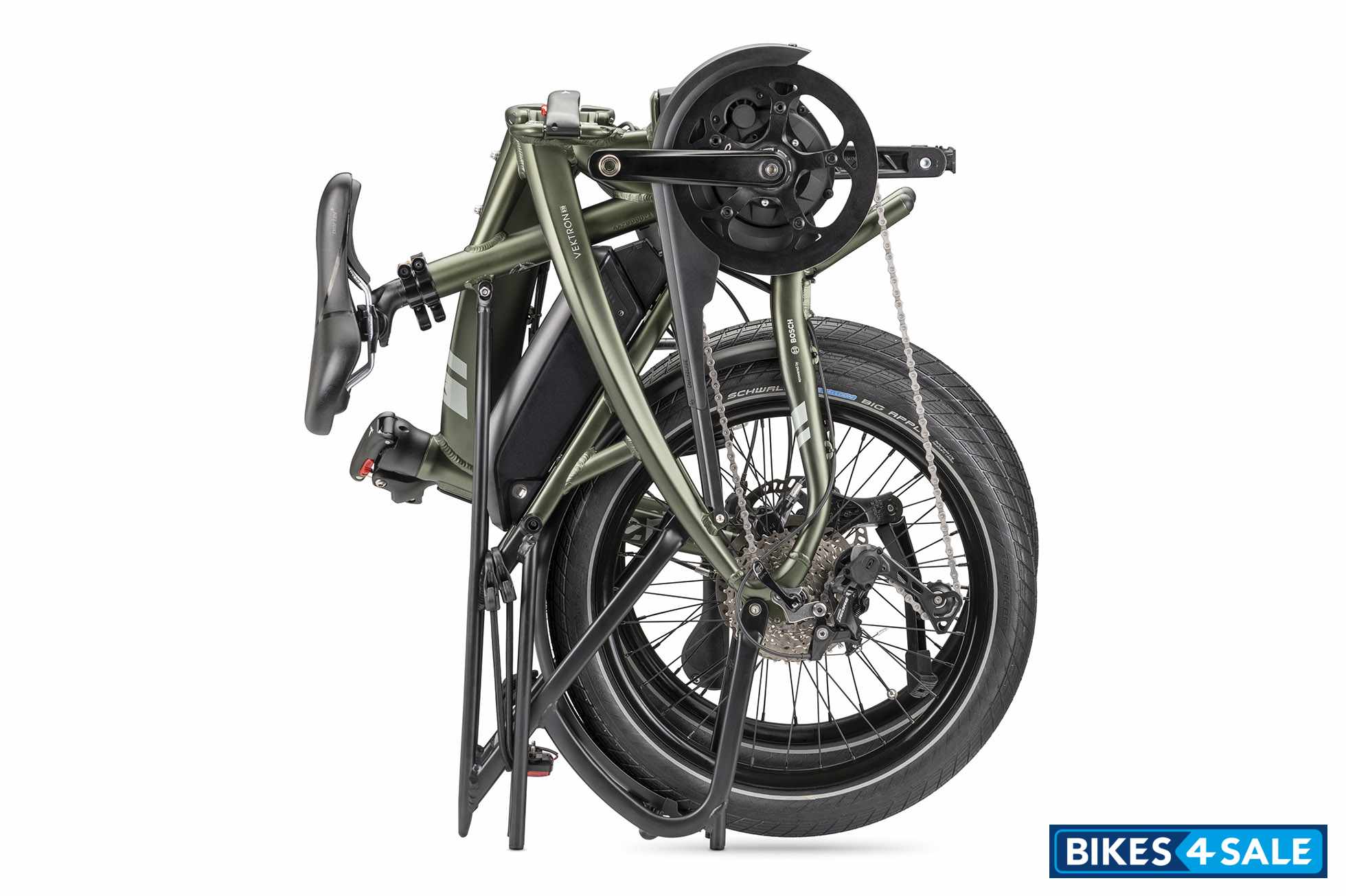

FOLDING SIZE : 41 x 86 x 68 cm (16.1" x 33.9" x 26.8")
FOLDING TIME : 10 sec
GEAR INCHES : 30" - 97" (2.36 - 7.72 m)
DISTANCE: SEATPOST TO HANDLEBAR : Min : 620 mm (24.4") Max : 690 mm (27.2")
DISTANCE : SADDLE TO PEDAL : Min : 670 mm (26.4") Max : 1100 mm (43.3")
SUGGESTED RIDER HEIGHT : 147 - 195 cm (4'10" - 6'5")
MAX LOAD WEIGHT : 105 kg (230 lb)
MAX GROSS VEHICLE WEIGHT : 125 kg (275 lb)
MAX RIDER WEIGHT : 105 kg (230 lb)
SEATPOST CLAMP : Tern Collar, 6061-AL, 2pc
HANDLEPOST : Tern Physis 3D, 3D forged, 5 patented technologies
SHIFTER CABLE & HOUSING : Jagwire LEX-SL, slick treatment, alloy ferrules
FENDERS : SKS, stainless hardware
RACK(S) : Atlas Rack, integrated 8 point mounting
