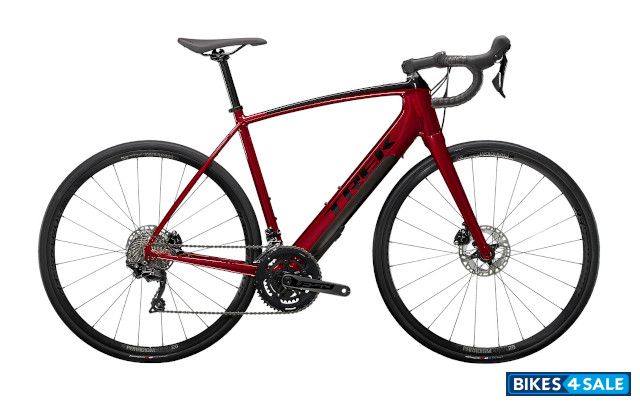

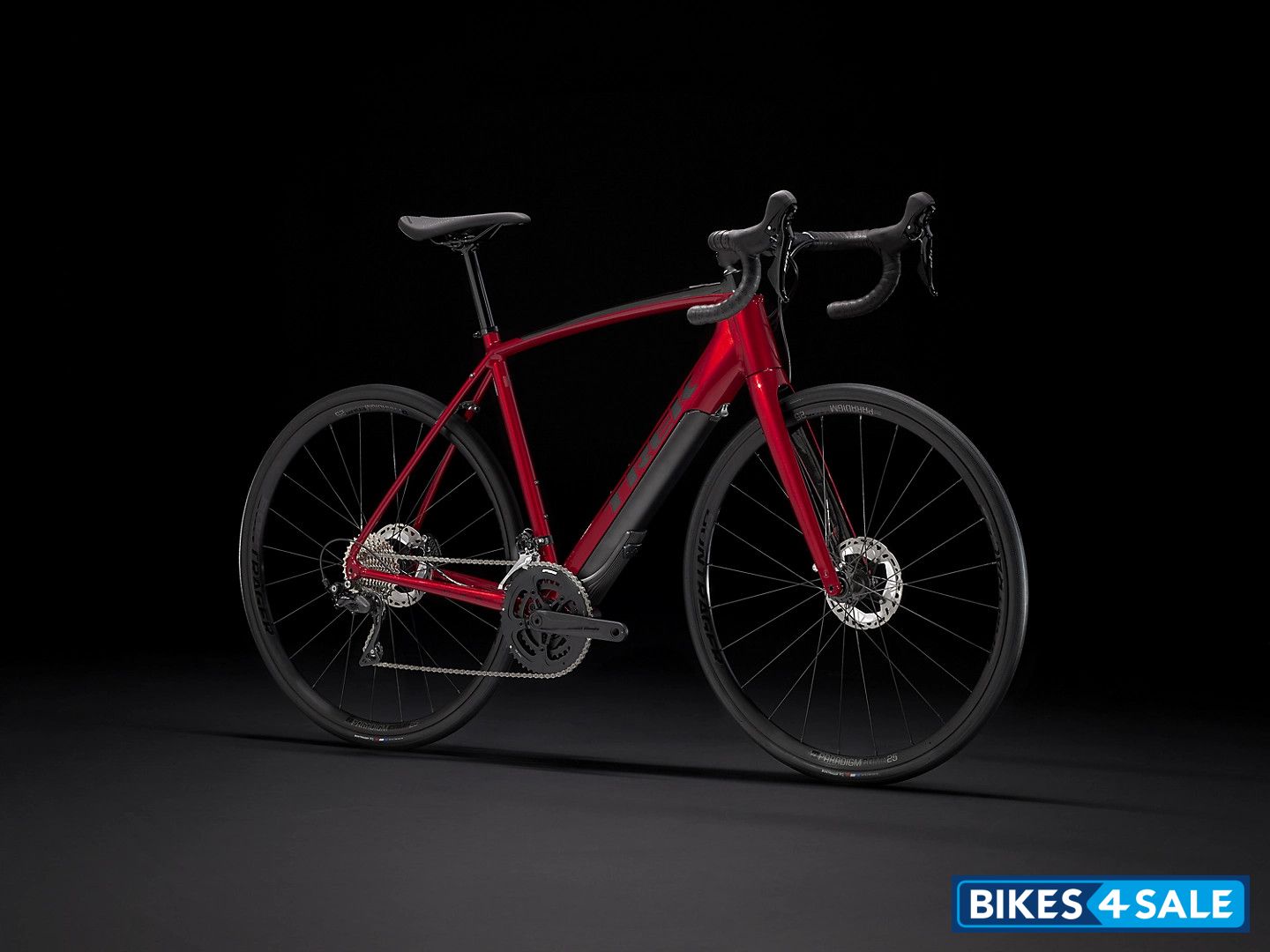

Trek Domane Plus ALR

Price, review, features and specs

Rate Trek Domane Plus ALR:
4.0/5 (3 votes)
Add To Compare
Write a Review
Trek Domane Plus ALR Price $ 4599 [Alabama, United States]

The given price can change depending on the colour, accessories and other features.

Country, City Showroom Price On Road Price
United States, Alabama $ 4599 --
United States, Alaska $ 4599 --
United States, Arizona $ 4599 --
United States, Atlanta $ 4599 --
United States, Austin $ 4599 --
United States, Baltimore $ 4599 --
United States, Boston $ 4599 --
View price in other cities
Buy new Trek Domane Plus ALR

Book a Test Drive through Bikes4Sale and we will try to get you the best offer for Trek Domane Plus ALR.

For Exciting Offers, Book a Test Drive
2643
Features
- Removable drivepack
- Additional Tire Clearance
- Rack Mounts
- Endurance Geometry
- Fender Compatible
Similar Bicycles
Colours

Voodoo Trek Black
Crimson/Trek Black

Technical Specifications
Vehicle TypeBicycle
FuelElectric
Load Carrying CapacityCombined weight of bicycle, rider, and cargo of 275 pounds (125 kg)
StemSize : 52, 54 - Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 90mm length ( Size : 49 - 80mm length )
Size : 56, 58 - Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 100mm length
Size : 61 - Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 110mm length
HandlebarSize : 49, 52 - Bontrager Comp VR-C, alloy, 31.8 mm, 100 mm reach, 124 mm drop, 40cm width
Size : 54, 56 - Bontrager Comp VR-C, alloy, 31.8 mm, 100 mm reach, 124 mm drop, 42cm width
Size : 58, 61 - Bontrager Comp VR-C, alloy, 31.8 mm, 100 mm reach, 124 mm drop, 44cm width
ForkDomane+ carbon, tapered alloy steerer, flat mount disc, 12 x 100 mm thru axle
SeatpostBontrager Comp, 6061 alloy, 27.2 mm, 8 mm offset, 330 mm length
CranksetSize : 49, 52 - FSA Alloy for Fazua, 50/34 chainrings, 170 mm length
Size : 54, 56 - FSA Alloy for Fazua, 50/34 chainrings, 172.5 mm length
Size : 58, 61 - FSA Alloy for Fazua, 50/34 chainrings, 175 mm length
ChainShimano 105 HG601, 11 speed
ShiftersSize : 49, 52 - Shimano 105 R7025, short-reach lever, 11 speed
Size : 54, 56, 58, 61 - Shimano 105 R7020, 11 speed
SaddleBontrager Arvada Comp, steel rails, 138 mm width
HeadsetFSA Integrated, sealed cartridge bearing, 1-1/8'' top, 1.5'' bottom
Derailleur : FrontShimano 105 R7000, braze-on
Derailleur : RearShimano 105 R7000, long cage, 34T max cog
CassetteShimano 105 HG700-11, 11-34, 11 speed
Motor Details
Fazua Evation Drive Pack, 20mph max assist
Electricals
BatteryFazua Evation 1.0, 250Wh
ChargerFazua Evation charger, 90-120V
Brakes
Front BrakeShimano 105 hydraulic disc, flat mount
Brake Rotor : Shimano MT800, centerlock, 160 mm
Rear BrakeShimano 105 hydraulic disc, flat mount
Brake Rotor : Shimano MT800, centerlock, 160 mm
Chassis and Suspension
Frame300 Series Alpha Aluminum, Fazua Evation integrated drive system, tapered head tube, internal routing, flat mount disc, fender mounts, 148 x 12 mm thru axle
Tyres
Wheels / RimFront : Bontrager Paradigm Comp 25, Tubeless Ready, 25 mm rim width, 100 x 12 mm thru axle
Rear : Bontrager Paradigm Comp 25, Tubeless Ready, 25 mm rim width, Shimano 11-speed freehub, 148 x 12 thru axle
Front TyreBontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700 x 32c
Rear TyreBontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700 x 32c
Dimensions
Length x Width x Height-- x -- x -- mm
Weight15.21 kg
