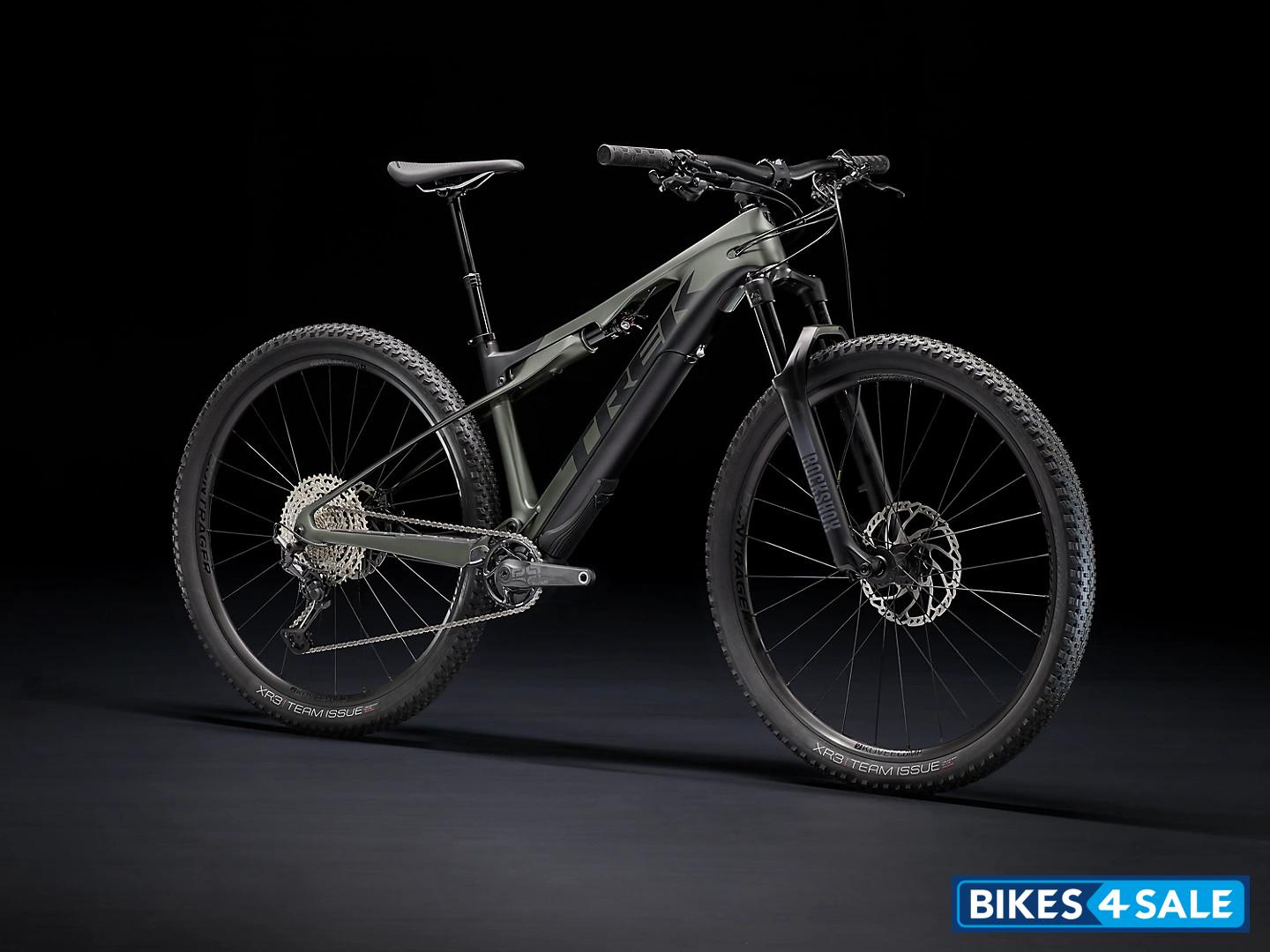

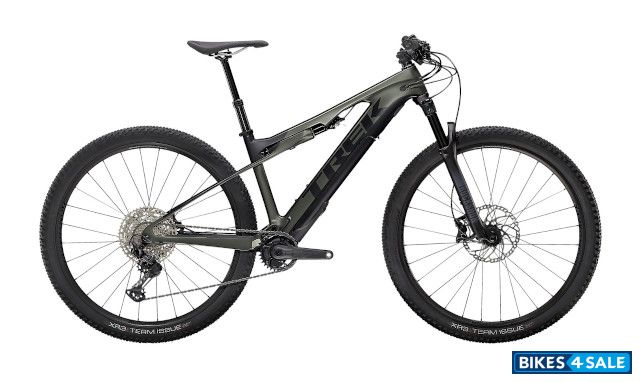

Trek E-Caliber 9.6

Price, review, features and specs

Rate Trek E-Caliber 9.6:
4.0/5 (5 votes)
Add To Compare
Write a Review
Trek E-Caliber 9.6 Price $ 6499 [Alabama, United States]

The given price can change depending on the colour, accessories and other features.

Country, City Showroom Price On Road Price
United States, Alabama $ 6499 --
United States, Alaska $ 6499 --
United States, Arizona $ 6499 --
United States, Atlanta $ 6499 --
United States, Austin $ 6499 --
United States, Baltimore $ 6499 --
United States, Boston $ 6499 --
View price in other cities
Buy new Trek E-Caliber 9.6

Book a Test Drive through Bikes4Sale and we will try to get you the best offer for Trek E-Caliber 9.6.

For Exciting Offers, Book a Test Drive
3362
Features
- Smart software for the trail
- Fast and efficient
- Removable drivepack
- OCLV Mountain Carbon
- IsoStrut
- Complete Tubeless System
- Suspension Calculator
- Knock Block
Colours

Satin Lithium Grey/Trek Black

Technical Specifications
Vehicle TypeBicycle
FuelElectric
Load Carrying CapacityCombined weight of bicycle, rider, and cargo of 300 pounds (136 kg)
StemSize : S, M - Bontrager Rhythm Comp, 31.8 mm, Knock Block, 0 degree, 60 mm length
Size : L, XL - Bontrager Rhythm Comp, 31.8 mm, Knock Block, 0 degree, 70 mm length
HandlebarSize : S - Bontrager Comp, alloy, 31.8 mm, 5 mm rise, 720 mm width
Size : M, L, XL - Bontrager Comp, alloy, 31.8 mm, 15 mm rise, 750 mm width
ForkRockShox 35 Gold RL, DebonAir spring, Motion Control damper, tapered steerer, 44 mm offset, Boost110, 15 mm Maxle Stealth, 120 mm travel
SeatpostSize : S - TranzX JD-YSP18, 100 mm travel, internal routing, 31.6 mm, 361 mm length
Size : M, L, XL - TranzX JD-YSP18, 130 mm travel, internal routing, 31.6 mm, 425 mm length
GripBontrager XR Trail Comp, nylon lock-on
CranksetSize : S, M, - E*thirteen E*spec Race Carbon, 34T, 170 mm length
Size : XL - E*thirteen E*spec Race Carbon, 34T, 175 mm length
ChainShimano Deore M6100, 12 speed
ShiftersShimano Deore M6100, 12 speed
SaddleBontrager Arvada, hollow chromoly rails, 138 mm width
HeadsetKnock Block Integrated, 62-degree radius, cartridge bearing, 1-1/8'' top, 1.5'' bottom
Derailleur : RearShimano XT M8100, long cage, 51T max cog
Hub : FrontBontrager alloy, sealed bearing, 6-bolt, Shimano MicroSpline freehub, Boost148, 12 mm thru axle
Hub : RearBontrager alloy, sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru axle
CassetteShimano Deore M6100, 10-51, 12 speed
Chainrings32T with 52 mm chainline, 36T with 55 mm chainline
Motor Details
Fazua Evation Drive Pack, 20mph max assist
Electricals
BatteryFazua Evation 1.0, 250Wh
ChargerFazua Evation charger, 90-120V
ControllerFazua Remote bX
Brakes
Front BrakeShimano 4-piston hydrauilc disc, MT4100 lever, MT420 caliper
Brake Rotor : Shimano RT66, 6-bolt, 180 mm
Rear BrakeShimano 4-piston hydrauilc disc, MT4100 lever, MT420 caliper
Brake Rotor : Shimano RT66, 6-bolt, 203 mm
Chassis and Suspension
FrameOCLV Mountain Carbon main frame & stays, IsoStrut, tapered head tube, Knock Block, Control Freak internal routing, Boost148, 60 mm travel
Tyres
Wheels / RimFront : Bontrager Kovee Comp 23, Tubeless Ready, 6-bolt, Boost110, 15 mm thru axle
Rear : Bontrager Kovee Comp 23, Tubeless Ready, Rapid Drive 54, centerlock, Shimano MicroSpline freehub, Boost148, 12 mm thru axle
Front TyreBontrager XR3 Team Issue, Tubeless Ready, Inner Strength sidewall, aramid bead, 120tpi, 29 x 2.40''
Rear TyreBontrager XR3 Team Issue, Tubeless Ready, Inner Strength sidewall, aramid bead, 120tpi, 29 x 2.40''
Dimensions
Length x Width x Height-- x -- x -- mm
Weight18.48 kg
Additional Details
Shock : Trek IsoStrut, Fox Performance shock, air spring, DPS 2-position remote damper, 235 x 32.5 mm
Suspension lever : Bontrager Drop Lock remote
Max compatible fork travel : 120 mm (531 mm axle-to-crown)
Skewer rear : Bontrager Switch thru axle, removable lever
